Morimoto XB Evo LED Fog Lights – Ford F-150 (2015–2020) / Super Duty (2017–2022)
Next-Gen Fog Light Performance. Real-World Visibility.
The Morimoto XB Evo LED Fog Lights are a true evolution of performance lighting, built for truck owners who demand more than just brightness. Designed specifically for the Ford F-150 (15–20) and Super Duty (17–22), these next-generation fog lights combine OE fitment, elite optics, and real-world usability that goes far beyond the typical plug-and-play.
Whether you’re battling poor weather, dark backroads, or just want to match your premium LED headlights—XB Evo is the fog light upgrade your truck deserves.
Key Features & Benefits
Engineered for the Real World

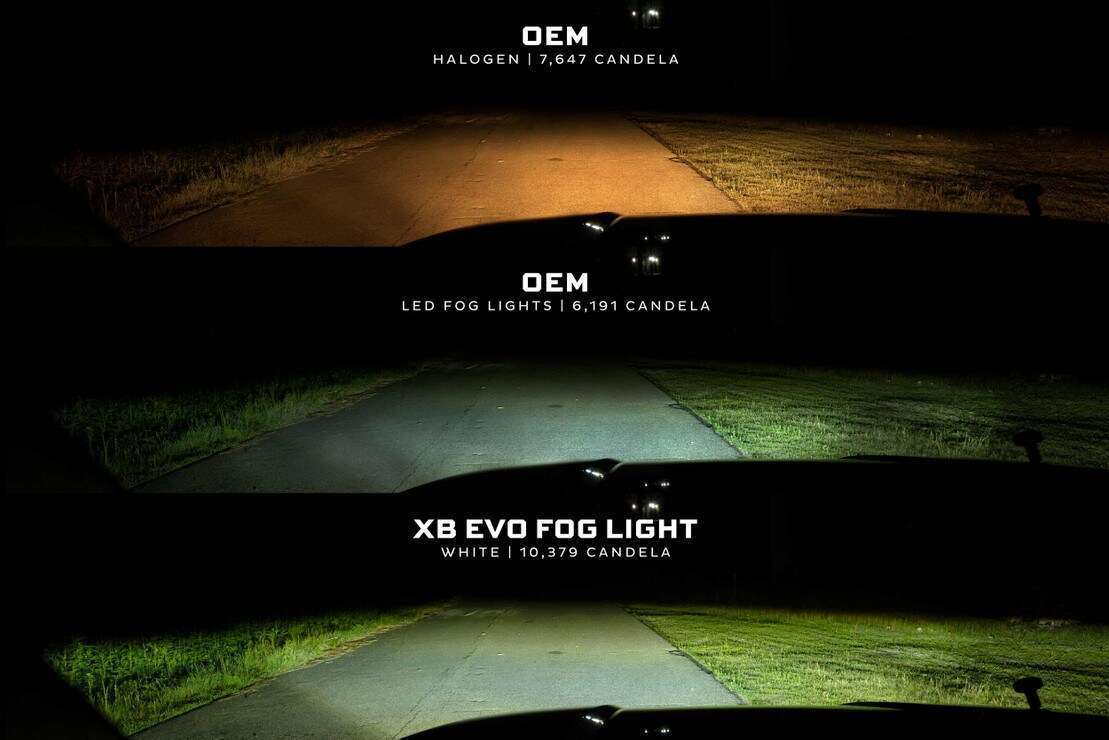

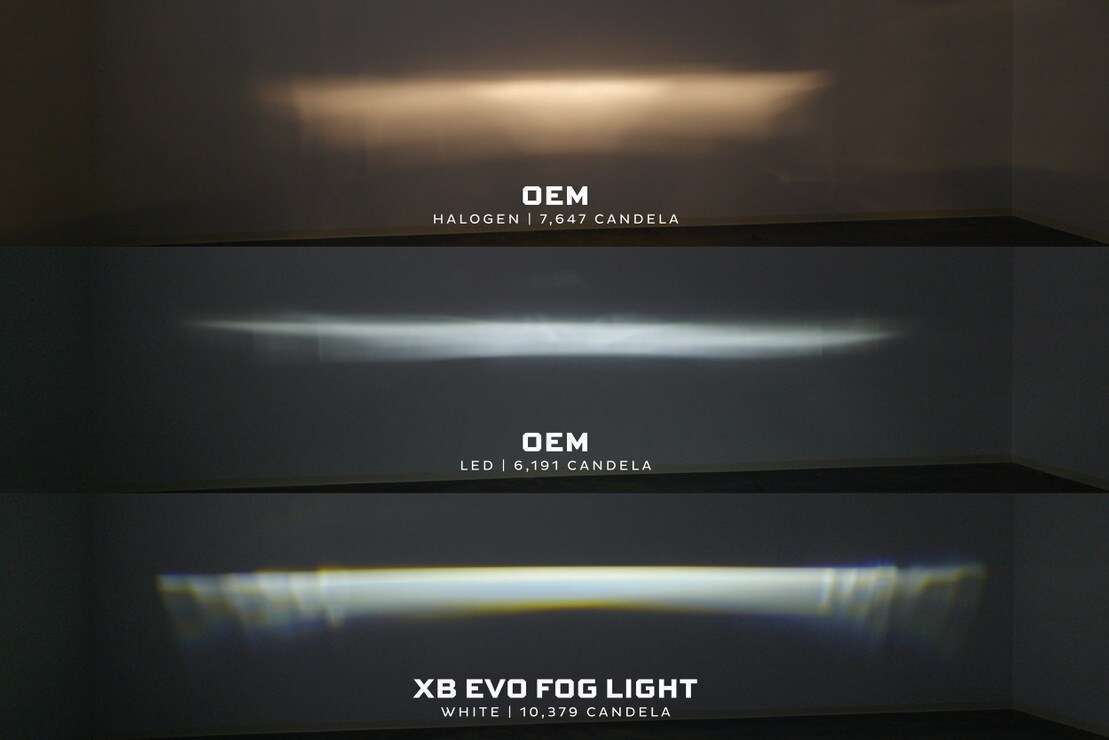

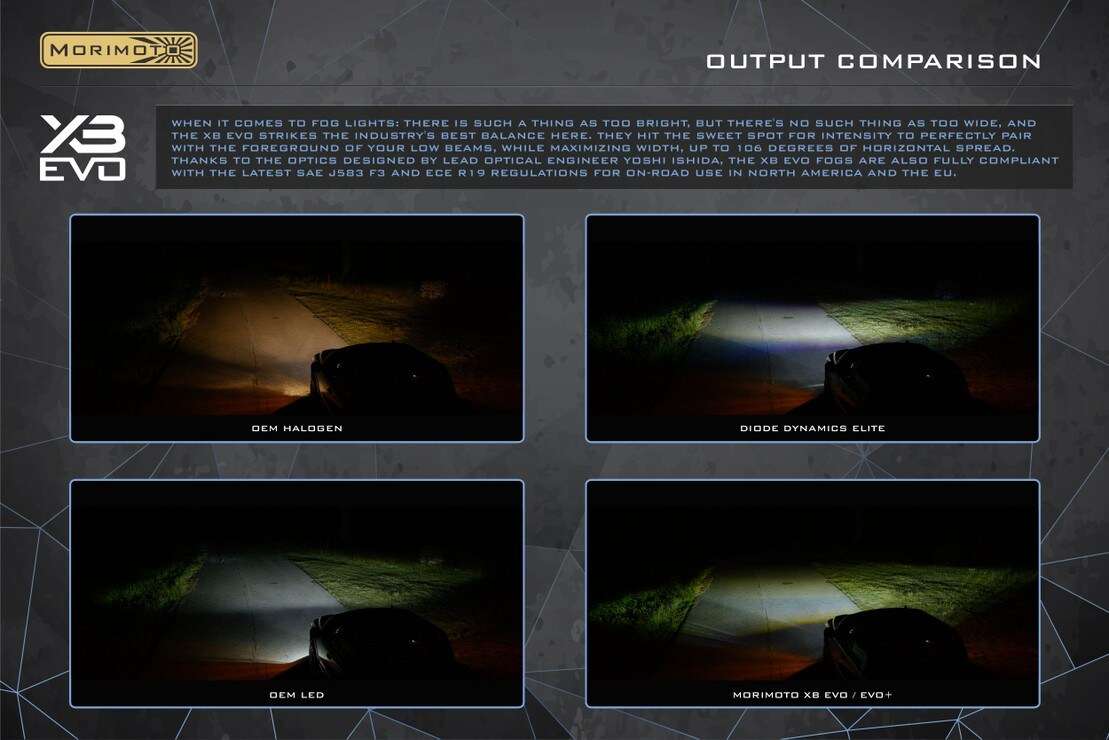

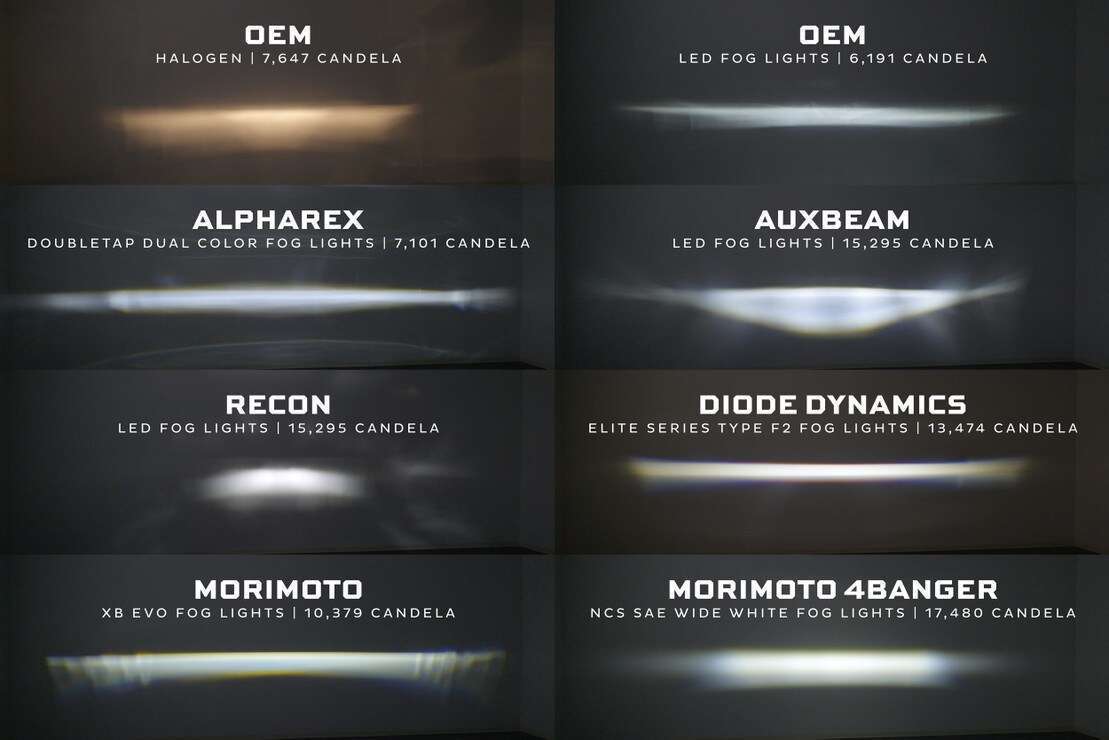

Forget raw lumen hype. The XB Evo Fog Lights were designed to outperform where it counts—in actual driving conditions. Featuring a staggered Osram Oslon-PL LED array and an advanced Morimoto-designed optic, they deliver an ultra-wide 106º beam spread with just the right brightness—enough to cut through fog and rain without overpowering your low beams.
Street-Legal Brilliance
Unlike most fog lights that sacrifice beam control for candela, XB Evo is fully SAE J583 F3 and ECE R19 compliant—making it 100% street-legal in both the U.S. and Europe. The Evo+ variant is the only switchable white/yellow fog light that maintains legal beam performance in both modes. No compromises.

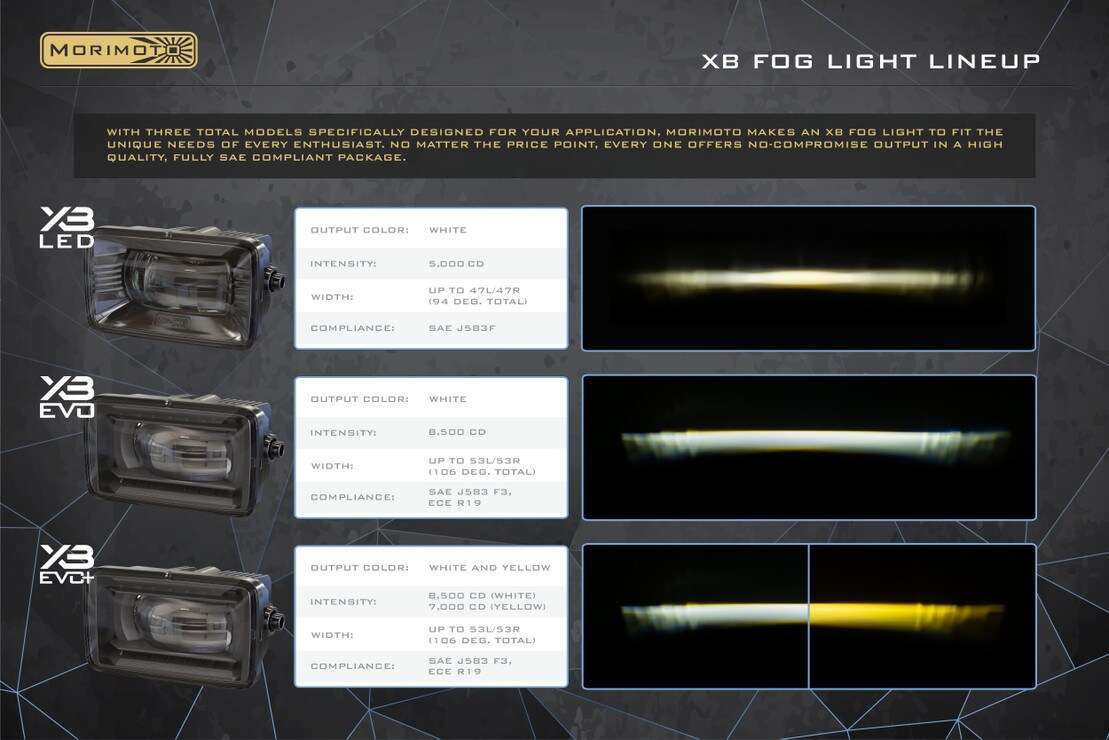

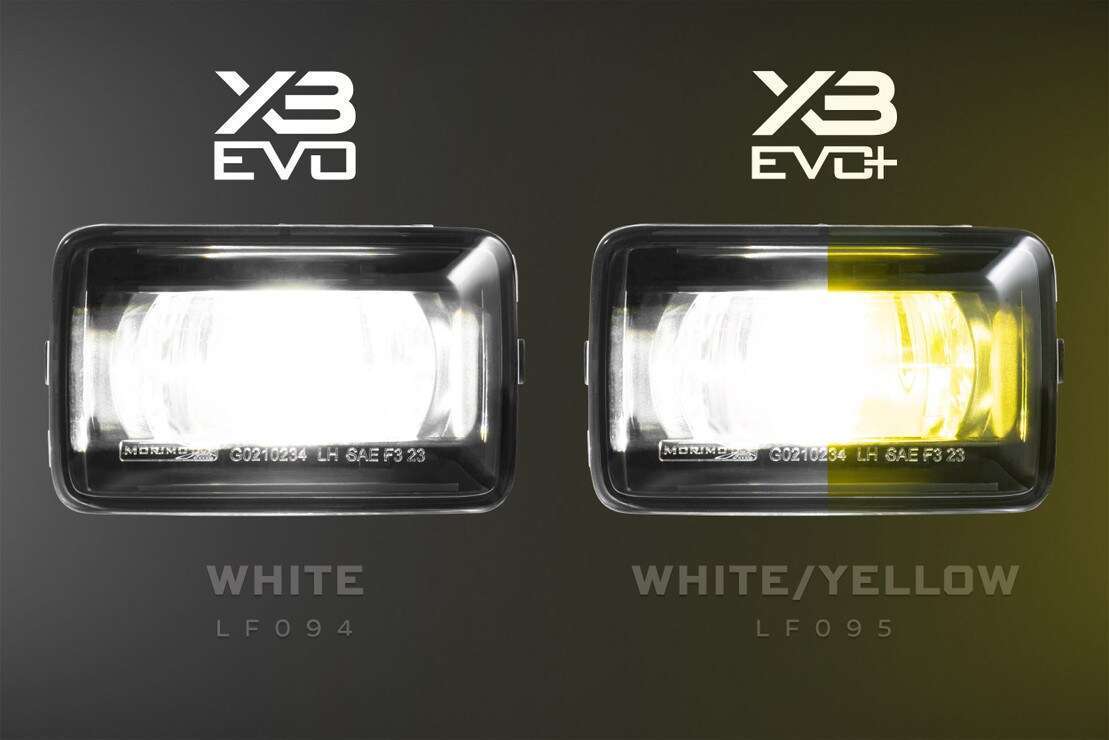

Two Evo Options
-
XB Evo (Standard): Clean white output with a crisp, OE-style appearance.
-
XB Evo+ (Selectable): Instantly switch between white and yellow output without losing beam integrity. No other dual-color fog light can match its compliant optical performance.
OE Fit & Plug-and-Play

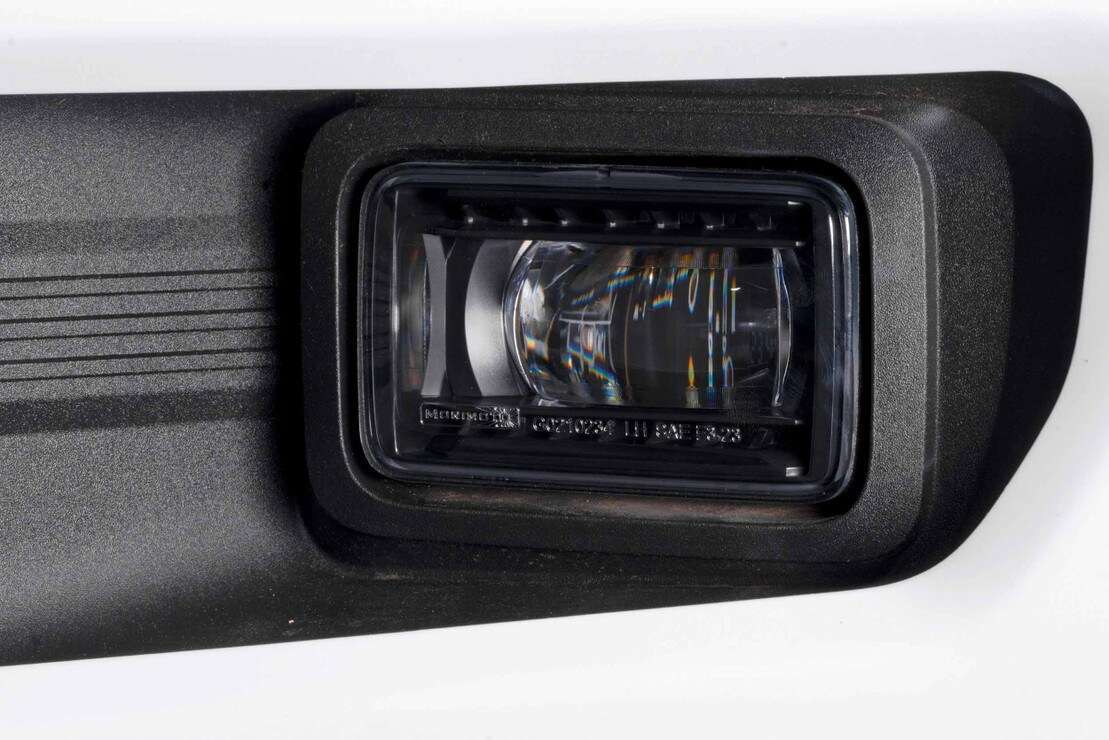

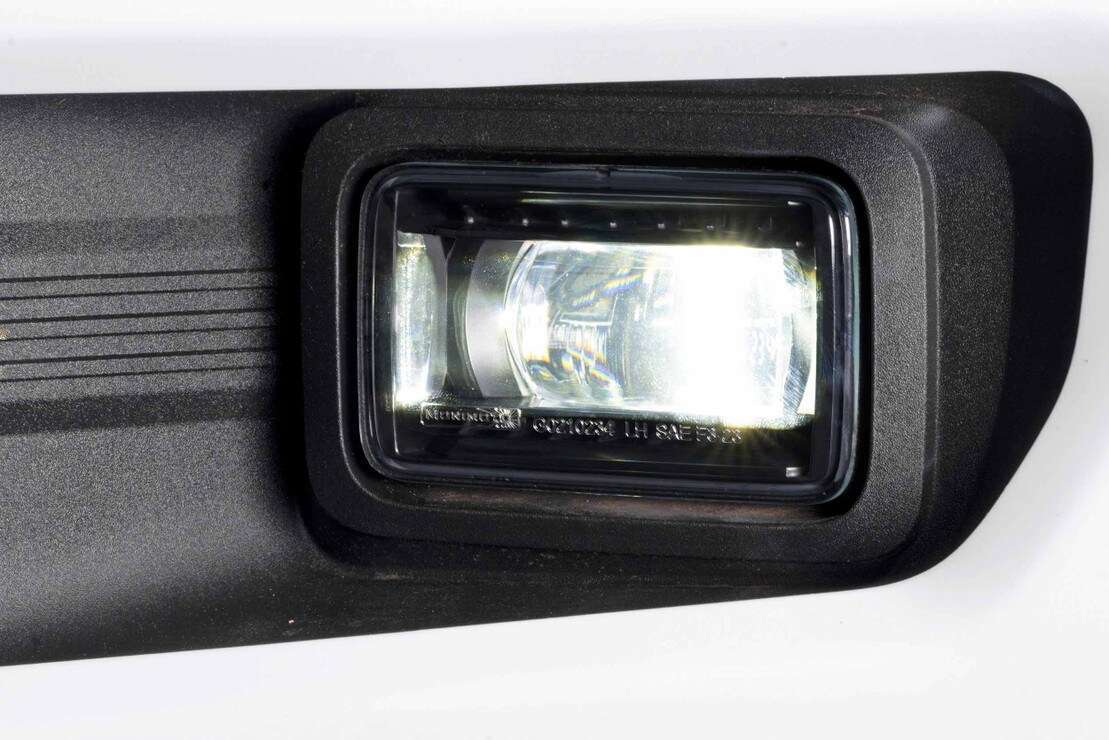

No splicing. No retrofitting. No hassle. The XB Evo installs directly into your stock bumper using OEM mounting points and plug-and-play 9005/9006/H10 connectors. Built-in aim adjusters let you dial in beam height with precision.
Built to Outlast the Truck
From the inside out, XB Evo lights are constructed with die-cast aluminum housings, UV-resistant polycarbonate lenses, and automotive-grade LEDs. A new hard coating formula even exceeds Toyota’s high bar for UV protection—resisting yellowing, cracking, and fading for the long haul.
10-Year Warranty
Morimoto stands behind every set of XB Evo fogs with an industry-leading 10-year warranty, because they’re engineered to perform and built to last.
Why Choose XB Evo Over Generic Fogs?
✔ Real-world beam width > raw lumens
✔ Legal in both white and yellow (Evo+)
✔ No glare, no hot spots, no eye strain
✔ OEM-style fitment for Ford trucks
✔ Built tough, backed by a decade-long warranty
Vehicle Compatibility
-

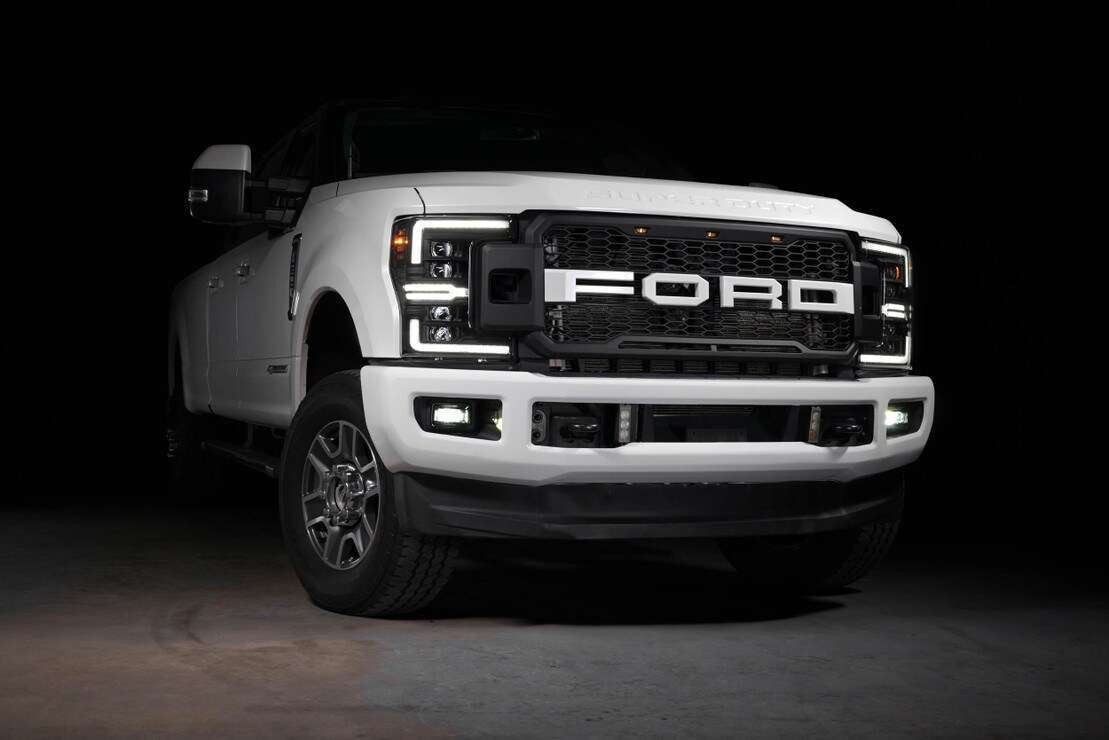

Ford F-150: 2015–2020
-
Ford Super Duty: 2017–2022 (Excludes 2020–2022 trucks with OEM LED fog lights)
-
Replaces Ford Part #: FL3Z15201B, FL3Z15200B
Technical Specifications
-
Input: 9005/9006/H10 Male
-
LED Source: Osram Oslon Compact PL
-
Peak Luminosity: 1,500 lm (raw)
-
Power Draw: 20.5W each
-
Beam Intensity: 8,500 Cd
-
Beam Spread: 106° horizontal / 6.3° vertical
-
Optic: Ishida SAE Wide Fog
-
Lens: UV-Resistant Polycarbonate
-
Lens Coating: Proprietary Hardened Anti-UV
-
Housing: Die-Cast Aluminum
-
Interior Finish: Gloss Black with Textured Accents
-
Compliance: SAE J583 F3 / ECE R19
What’s Included
-

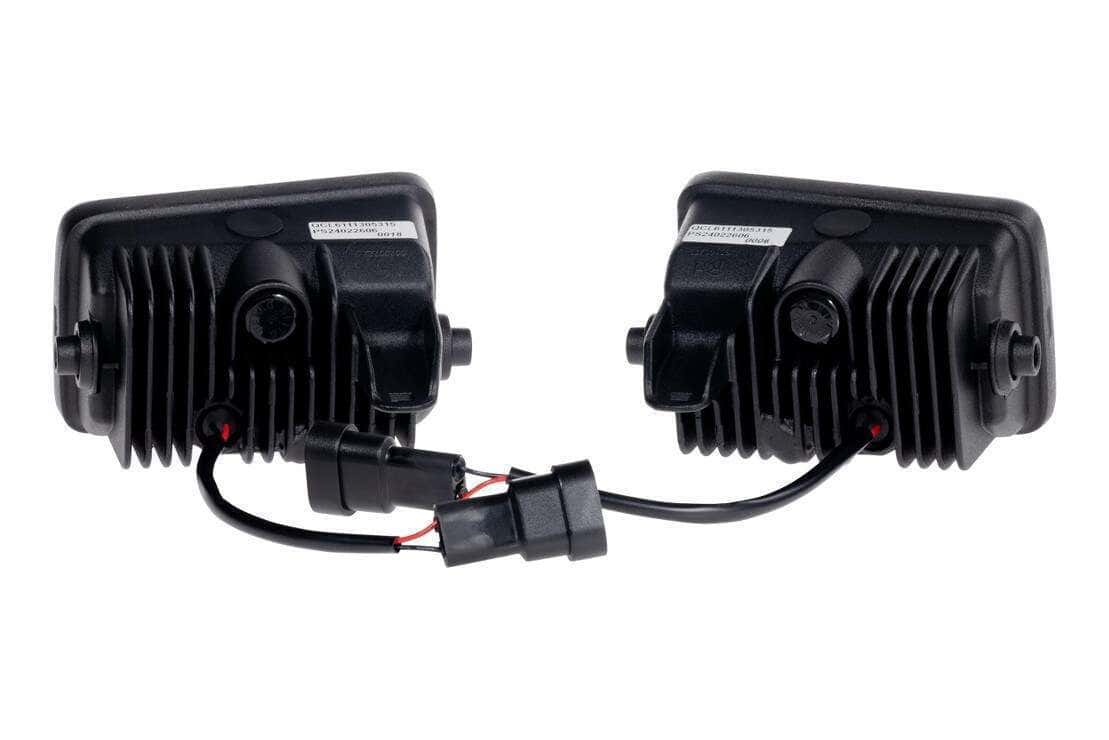

2x Morimoto XB Evo LED Fog Lights (Type F2)
-
2x Plug-and-Play 9005/9006/H10 Connectors
-
Optional: Yellow Lamin-X Film Kit
-
Warranty: 10 Years
More Width. Better Control. No Compromise.
From their high-precision optics to their bulletproof build, the Morimoto XB Evo Fog Lights are the upgrade Ford truck owners have been waiting for. Whether you go with the standard white model or the dual-color Evo+—you’re getting cutting-edge engineering made for the street, not just the spec sheet.
Outperform stock. Outshine the rest. Evo is here.
