Diode Dynamics SS3 SAE Type SD Fog Light Kit (Pair)

Upgrade your factory fog lights with the Diode Dynamics SS3 SAE Type SD Fog Light Kit. Featuring high-output LED pods, advanced TIR optics, and SAE-compliant beam patterns, this kit delivers dramatically improved visibility with a clean OEM-style installation.

High-Performance Fog Lighting with Precision Optics

The SS3 Fog Light Kit is engineered to outperform traditional fog lights by using advanced Total Internal Reflection (TIR) optics. Unlike conventional reflector or lens-based designs that lose light to internal reflection and glare, the SS3 optic captures nearly all available light and directs it precisely where it’s needed.

The result is significantly improved efficiency, increased usable light output, and reduced glare for oncoming drivers.

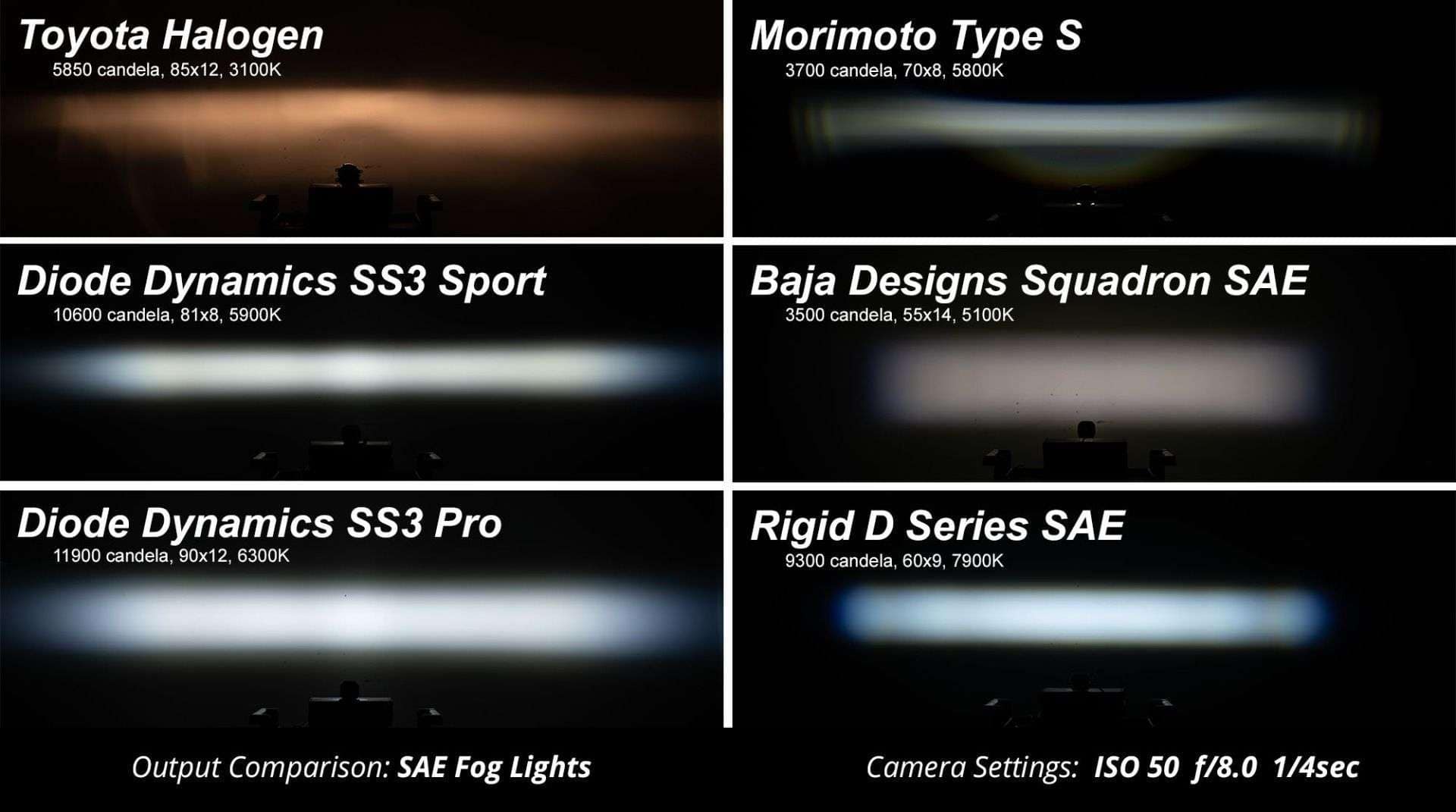

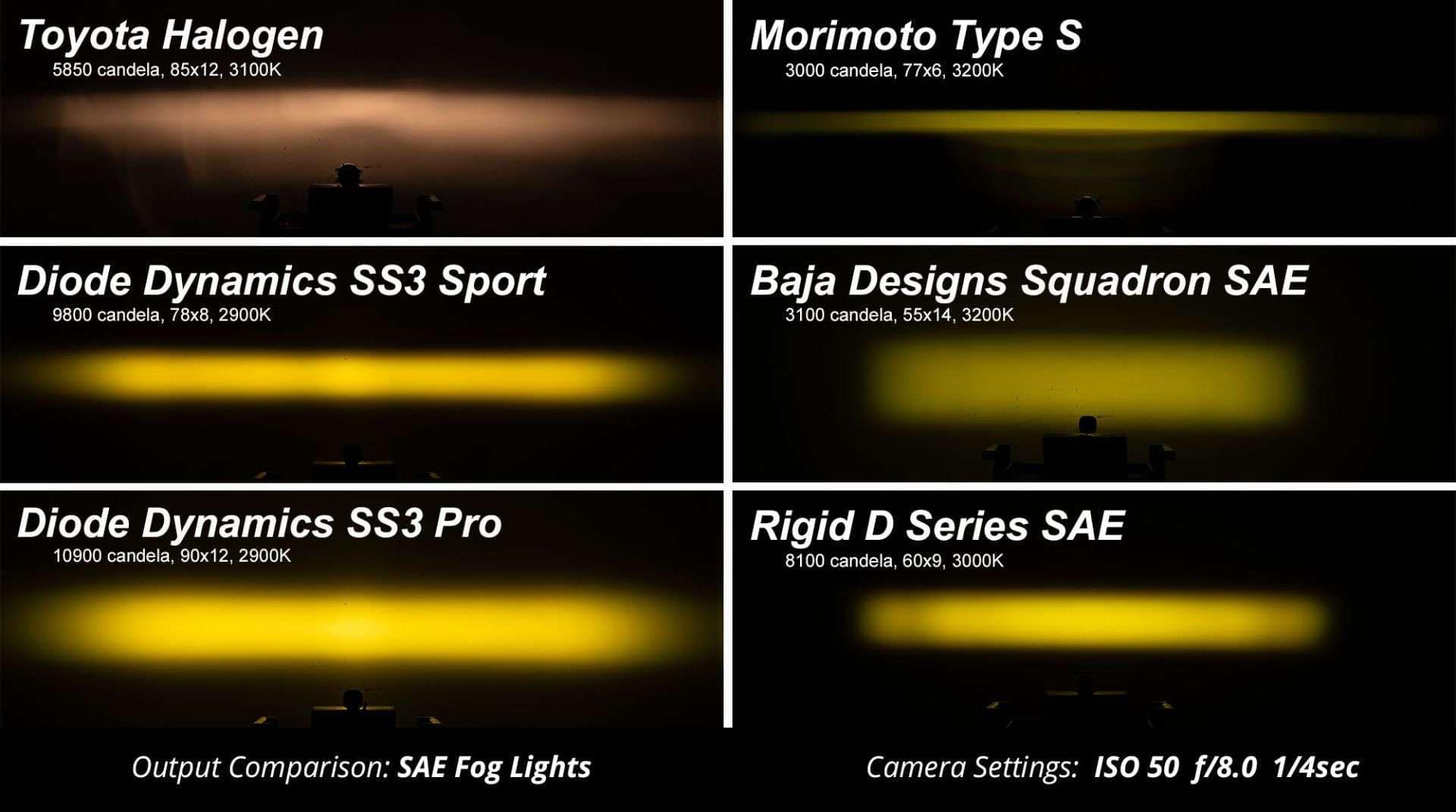

Wide, Road-Legal Beam Pattern

SAE Fog Beam Pattern

The SS3 Fog configuration utilizes Diode Dynamics’ FineLine optic design, engineered through advanced optical simulation to deliver a highly functional beam pattern.

Key characteristics include:

• 80° wide beam spread

• Sharp cutoff to prevent glare

• Smooth, even light distribution

• High-intensity illumination across the road surface

When installed as a pair and properly aimed, the fog beam pattern meets SAE J583 fog light standards for legal on-road use.

Choose Your Output Color

Cool White – 6000K

Produces a clean white output that matches most factory LED headlights and daytime running lights.

Selective Yellow – 3000K

Provides higher contrast in fog, rain, snow, and dusty environments while reducing glare.

Integrated Amber Backlight

Each SS3 LED pod features a distinctive amber backlight that illuminates the entire TIR optic.

This backlight can be wired to operate as:

• Parking light

• Accent lighting

• Sidemarker function

The integrated design creates a modern appearance compared to small indicator LEDs found on other auxiliary lights.

Multiple Performance Levels

The SS3 LED pods are available in three power levels:

Sport

Excellent performance and efficiency with great value.

Pro

Roughly double the power output of the Sport model.

Max

The highest-output option using cutting-edge emitters for maximum intensity and performance.

Plug-and-Play Installation

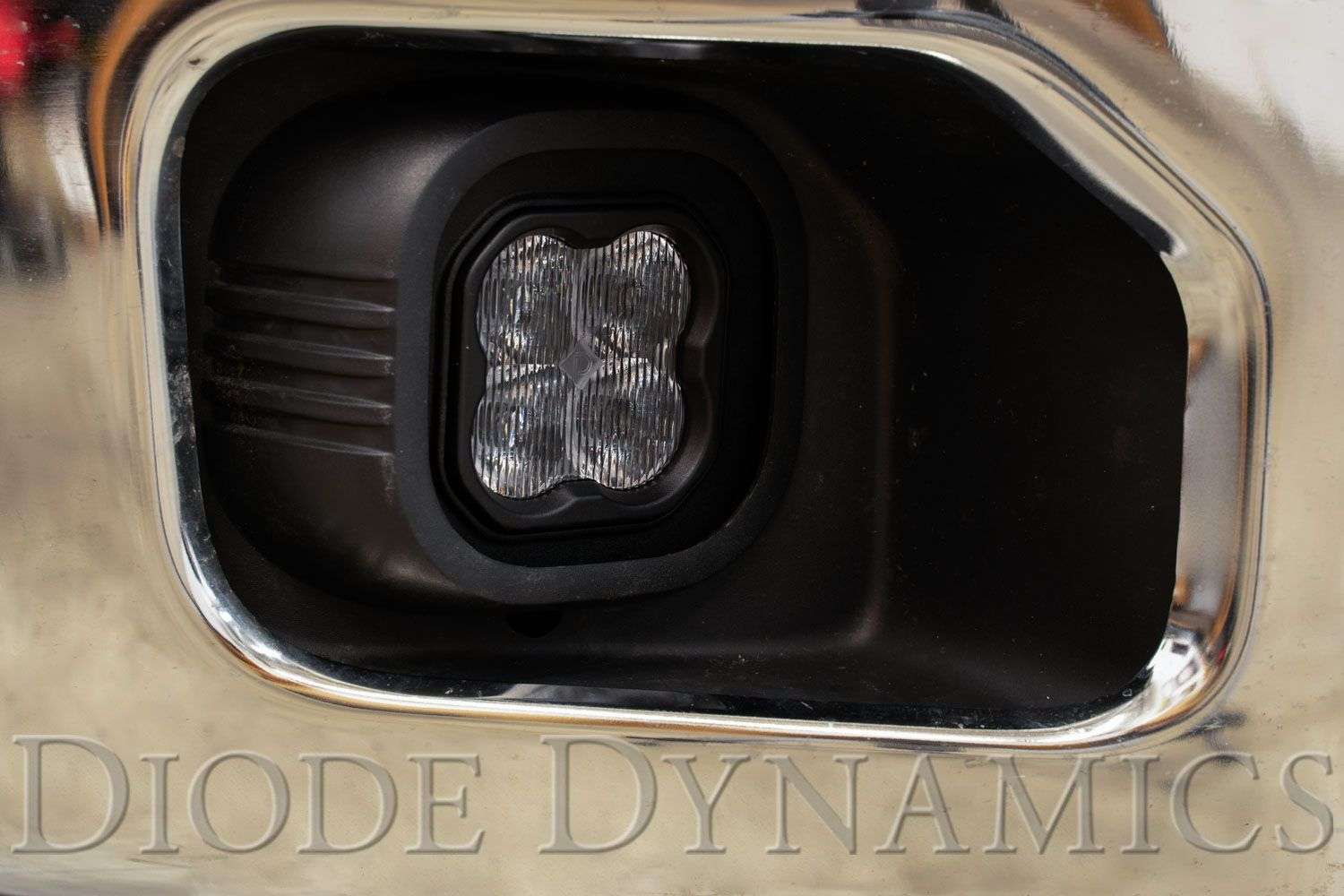

The SS3 Type SD kit includes vehicle-specific brackets designed for a clean factory-style installation.

Installation features:

• Direct bolt-on replacement for factory fog lights

• Plug-and-play wiring adapters

• No cutting or splicing required

• Adjustable aiming system

Built for Durability

SS3 LED pods are engineered for long-term reliability in demanding environments.

Construction features include:

• Powder-coated aluminum housing

• Automotive-grade LED emitters

• Integrated heat management

• Weather-resistant construction

Each unit is tested for:

• Vibration

• Moisture intrusion

• Corrosion resistance

• Temperature range (-40°F to 185°F)

Fitment & Compatibility

This fog light kit is a direct replacement for vehicles equipped with Type SD fog light mounts, including:

• Ford F-250 Super Duty — 2011–2016

• Ford F-350 Super Duty — 2011–2016

Additional vehicles may also be compatible depending on fog light mounting style.

What’s Included

• 2 × SS3 3″ LED Pods

• 2 × Type SD mounting brackets

• 2 × 9006 DT 4-pin backlight tap wires

• Mounting hardware

• Installation guide

Warranty & Guarantee

• Lifetime Warranty

• 30-Day Return Policy (No Restocking Fee)

• 100% Satisfaction Guarantee

Frequently Asked Questions About the SS3 SAE Type SD Fog Light Kit

Are these fog lights street legal?

Yes. The beam pattern meets SAE J583 fog light standards when properly installed and aimed.

What vehicles does this kit fit?

It fits vehicles equipped with Type SD fog light mounting points, including certain Ford Super Duty models.

What color options are available?

The fog lights are available in 6000K cool white and 3000K selective yellow.

What is the amber backlight used for?

The amber backlight can function as an accent light, parking light, or sidemarker.

What output levels are available?

The SS3 pods are available in Sport, Pro, and Max output levels.

What warranty is included?

The SS3 Fog Light Kit includes a lifetime warranty.
