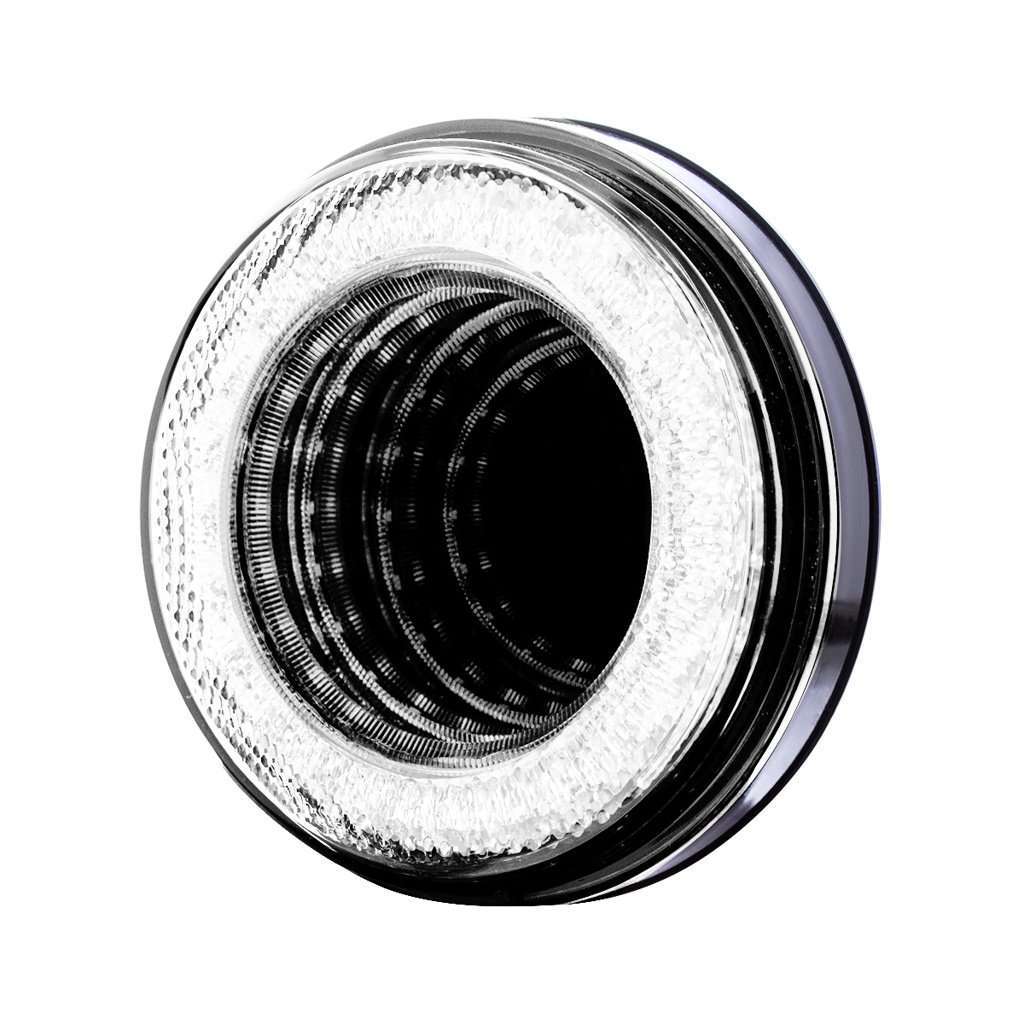

United Pacific 36836: 4-inch round Mirage backup light
United Pacific 36836 is a 4-inch round backup light with 24 white LEDs behind a clear Mirage lens. The lens creates the range’s mirror-depth effect while the light supplies the white reverse function. One light is supplied for a matching 12V installation.
Specifications
- Part number: 36836
- Light style: Mirage
- Size / shape: 4-inch / round
- LEDs: 24 white LEDs
- Lens: Clear
- Function: Backup / reverse
- Voltage: 12V
- Package: One light
- Recommended mating plugs: United Pacific 34211P / 34215P; sold separately
Fitment and mounting
Choose by the 4-inch round light format, the required backup-light function and the vehicle’s 12V supply. Match the chosen retainer or grommet’s specified cutout, rear connector and available clearance. A nominal lamp size or a 12V rating alone does not confirm fit in every truck bracket.
What’s included
One 36836 Mirage backup light. The recommended 34211P or 34215P mating plug is sold separately; confirm the connector and mounting arrangement for the installation.
Installation notes

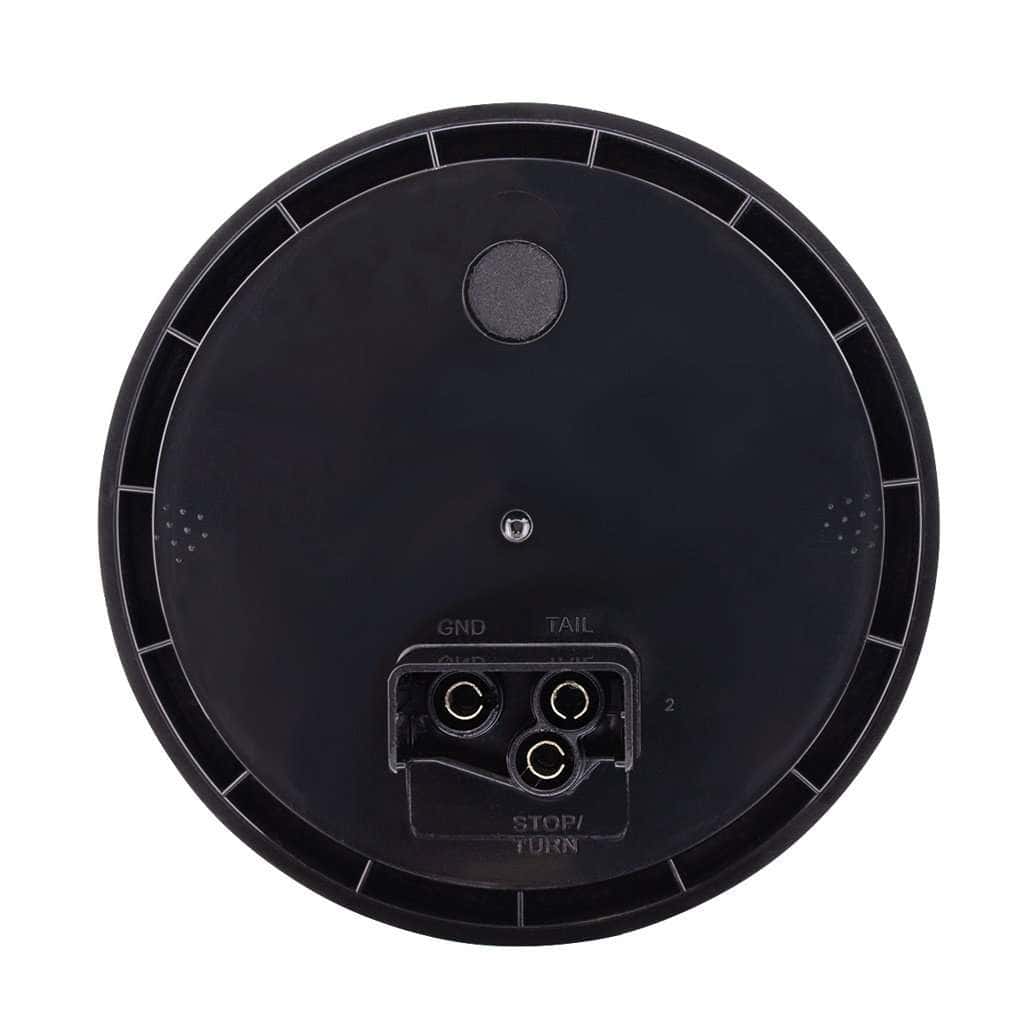

Compare the light with the actual round opening and mount before installation. Use the chosen mounting retainer or grommet’s specified cutout dimensions. Match the physical rear connector and active contacts before choosing the pigtail, then connect to the appropriate 12V reverse circuit using the actual lead identification.
Warranty
Lifetime warranty.
Frequently Asked Questions
Is 36836 a stop/turn/tail light?
No. This exact Mirage part is a white LED backup light. Other Mirage products provide different functions; match the function and part number as well as the lens style.
What makes it a Mirage light?
The Mirage lens creates a mirror-depth visual effect. This exact light has a clear lens with 24 white LEDs; the style name does not mean the LEDs change colour.
Is the mating electrical plug included?
No. United Pacific identifies 34211P and 34215P as separate recommended plug items. Match the actual rear connector, active contacts and desired lead orientation before selecting the pigtail.
Does a 12V rating mean it fits every truck?
No. The lamp is specified for a 12V supply, but the opening, mount, connector and backup-light circuit also need to match. It is not a vehicle-specific plug-in kit.
Is the listed size the size of the shipping package?
No. 4-inch describes the nominal round light size. Shipping-package dimensions include the packaging and should not be used as a cutout template. This listing supplies one light.
