33 LED 4″ Round Lumos Light S-Series (Back-Up) – White LED / Clear Lens
Product Overview
Illuminate your reverse path with maximum clarity using the 33 LED 4″ Round Lumos Light S-Series Back-Up Light. Designed for 12V DC systems, this high-performance back-up light features 33 ultra-bright SMD LEDs housed behind a clear lens with a distinctive center reflector for a bold and efficient lighting effect. Built with a sonic-sealed polycarbonate lens and epoxy-sealed electronics, the S-Series is engineered for durability, waterproof protection, and long-lasting performance in demanding environments. DOT/SAE compliant and IP67 rated, this light is the ideal solution for commercial trucks, trailers, and fleet applications.
Key Features & Benefits
-
33 Super-Bright White LEDs: Delivers powerful rear-facing illumination for enhanced visibility while reversing.
-
Lumos S-Series Reflective Design: Unique center reflector creates a glowing visual effect when powered on.
-
Sealed for Harsh Environments: Sonically sealed polycarbonate lens and epoxy-encased electronics resist moisture, dust, and vibration.
-
Low Power Draw: Consumes only 0.2A, making it energy efficient without sacrificing brightness.
-
Standard 3-Pin Rear Terminal (2 Pins Functional): Integrates easily into existing systems with a 2-pin male connector.
-
Recommended Accessories (Sold Separately):
-
2-Pin Male Plug: Item #34211
-
Rubber Push-In Grommet: Item #31515
-
-
DOT/SAE Certified: Meets FMVSS 108 standards for legal on-road reverse lighting.
-
IP67 Rated: Fully waterproof and dustproof for year-round reliability.
-
10-Year Warranty: Manufacturer-backed for long-term assurance and peace of mind.
Expanded Benefit Section
The 33 LED 4″ Round Lumos S-Series Back-Up Light combines modern design with robust functionality to deliver high-performance rear lighting. The specialized reflective center design not only enhances visual impact but also improves overall light spread, ensuring your surroundings are well-lit during reverse maneuvers. With a low amperage draw and solid-state construction, this light is built for efficiency and longevity. Its rugged housing and sealed electronics make it perfect for the demands of commercial transport, utility fleets, and heavy-duty equipment.
Vehicle Compatibility
Perfect for 12V DC systems on:
-
Semi trucks
-
Cargo and utility trailers
-
Fleet and service vehicles
-
Flatbeds and haulers
-
Agricultural and construction machinery
Technical Specifications
-
Item Number: 36099
-
Light Type: Back-Up / Reverse
-
LED Count: 33 White SMD LEDs
-
Lens Color: Clear
-
LED Color: White
-
Lens Material: Sonically Sealed Polycarbonate
-

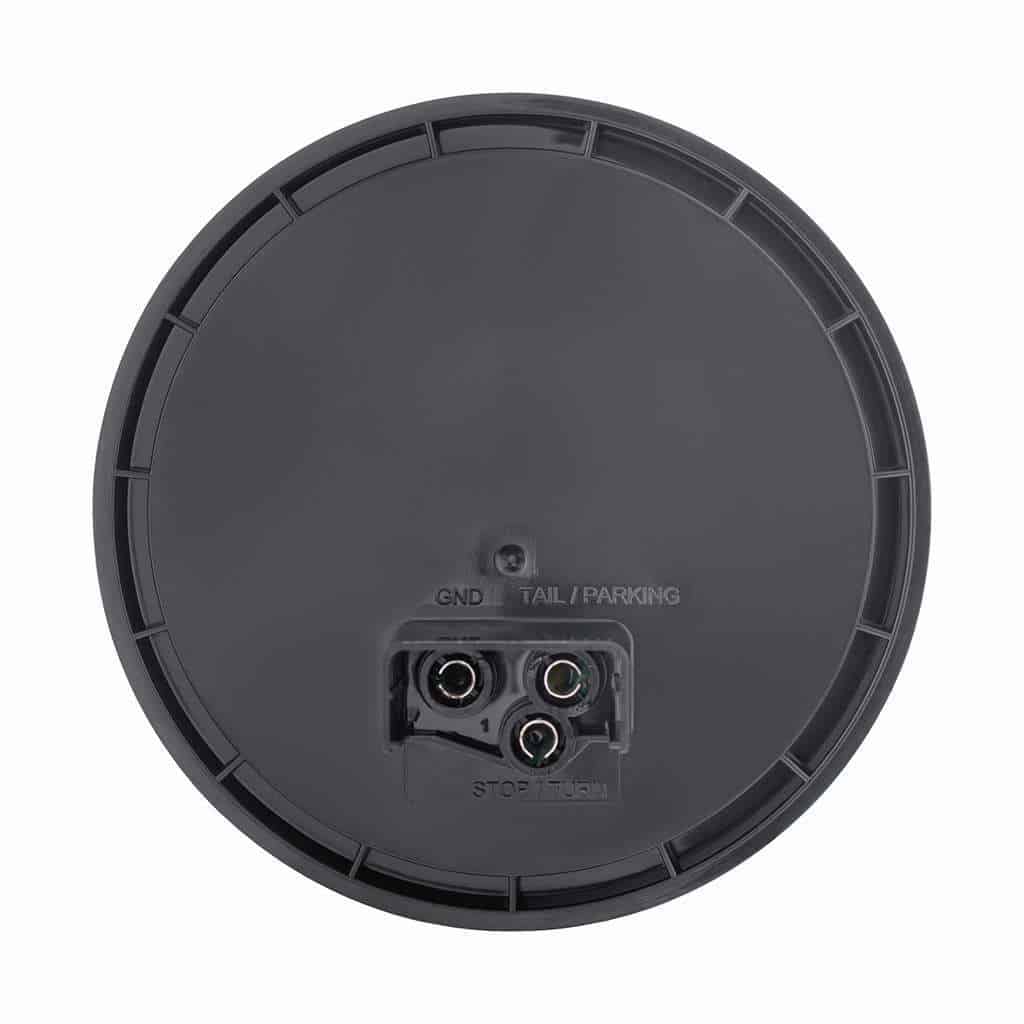

Housing: Rear Plastic with 3-Pin Female Terminal (2 Pins Functional)
-
Voltage: 12V DC
-
Amperage Draw: 0.2A
-
Connection: Use with 2-Pin Male Plug (#34211 – Not Included)
-
Mounting: Rubber Grommet Mount (#31515 – Not Included)
-
Compliance: DOT/SAE, FMVSS 108
-
Water Resistance: IP67 Rated
-
Warranty: 10-Year Limited Warranty
What’s Included
-
1x 33 LED 4″ Round Lumos S-Series Back-Up Light – White LED / Clear Lens
-
(Grommet and connector sold separately)
Warranty
10-Year Warranty – Manufacturer-backed coverage for durable, worry-free operation.
Maximum Visibility. Modern Look. Road-Legal Performance.
The 33 LED Lumos S-Series Back-Up Light delivers high-performance lighting with standout style. With its brilliant white output, reflective center design, and sealed durability, this light is the go-to choice for safe and effective reverse lighting. Install it today and back up with clarity and confidence.
