United Pacific 34849 · Single-colour Mini light
Amber LEDs, a clear lens and low/high operation
Choose United Pacific 34849 for four amber LEDs behind a clear polycarbonate watermelon-style lens. The polished stainless steel bezel finishes the compact light, while separate low and high inputs let you wire the functions your installation needs.
Amber LED / clear lens
The LEDs emit amber light. The clear lens describes the appearance of the lens, including when the light is off.
Two brightness functions
Low and high use the same amber LED colour, with separate positive wires for the two functions.
3/4-inch grommet mount
The included rubber grommet mounts in a 3/4-inch installation hole. Check the rear space and wiring access before choosing a mounting position.
Need a separate mount? Compare penny and watermelon-light brackets, then check the exact light’s retention method, bezel and rear clearance against the bracket and mounting location. A matching hole size alone does not confirm fit.
Mounting, power and package details
Match the 12V supply and three-wire connection
12V DC wiring
- White: ground
- Black: low-function positive
- Red: high-function positive
United Pacific specifies 12V DC. Check your supply and the circuits you intend to use before connecting the light.
What’s included
- 1x 4 LED Dual Function 3/4" Mini Watermelon Light – Amber LED / Clear Lens
- 1x Rubber Mounting Grommet
- 3-Wire Connection Leads

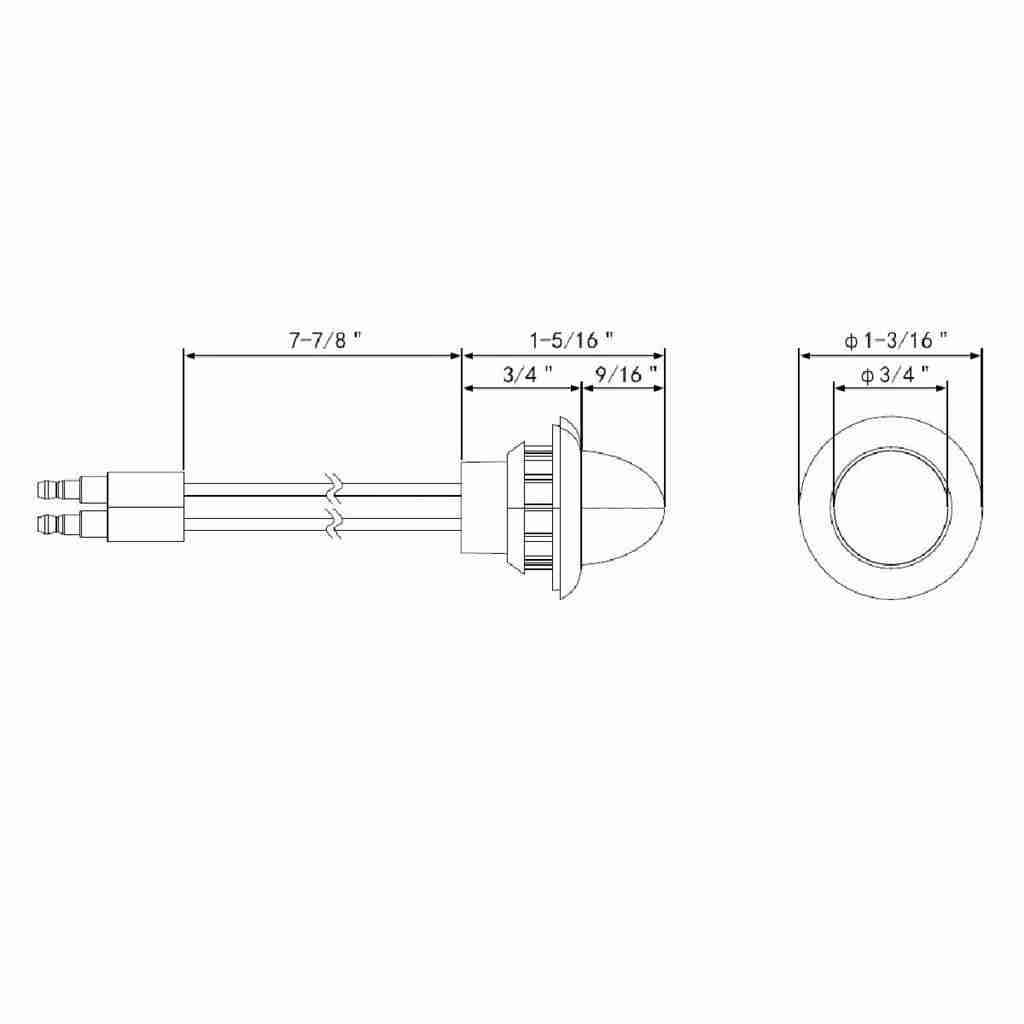

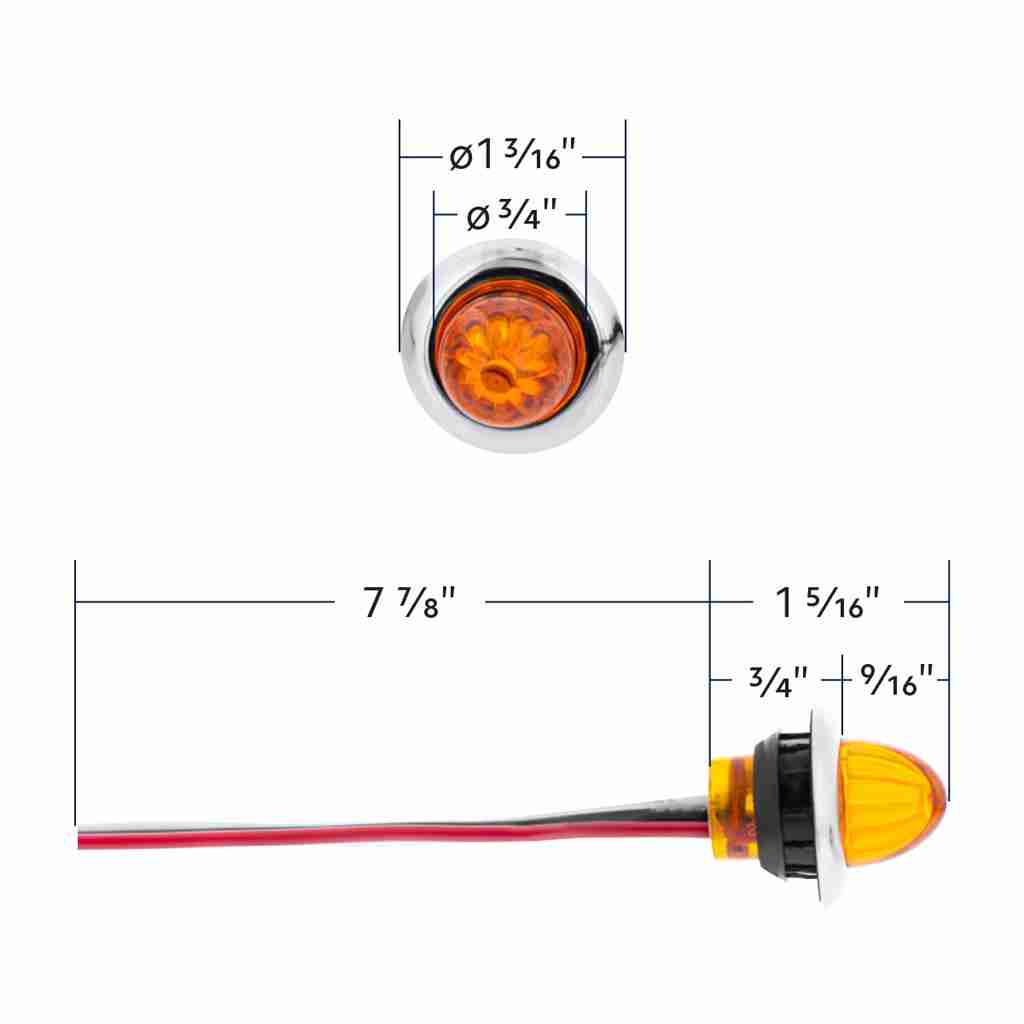

The 3/4-inch measurement is the installation-hole requirement. Check mounting space, grommet fit and wiring access as well; matching the hole size alone does not establish vehicle or bracket compatibility. The light uses epoxy-sealed construction to help prevent moisture intrusion.
Choosing a different colour or function? Compare Mini watermelon lights by LED colour, lens colour and function, then check the exact product’s mounting requirements.
Prefer an amber lens with the same amber LED colour? Compare the UPI 34847 amber LED/amber lens Mini light. Check that listing’s own availability and package details.
For wiring options, compare 3 Prong Female Bullet Plugs Wire Harness 6″ Lead and 3 Prong Female Bullet Plugs Wire Harness 12″ Lead. Check the light’s actual terminals against the harness before ordering; a three-wire circuit alone does not confirm connector fit.
Before you choose
United Pacific 34849 questions
What’s the difference between amber/amber and amber/clear?
Both versions emit amber light. This amber/clear version has a clear polycarbonate lens; the alternative changes the lens colour, not the LED colour.
Will this fit a 3/4 inch bracket?
United Pacific specifies a 3/4-inch mounting hole and includes a rubber grommet. Also check the rear clearance, mounting material and wiring access for your installation.
Is this light waterproof?
The polycarbonate lens and epoxy-sealed construction help prevent moisture intrusion. This listing does not promise a submersion rating.
Can this be used on the front of a semi truck?
This amber LED light provides low/high operation. Its colour and mounting-hole size do not establish approval for a particular road-lighting position. Confirm the required colour, function and installation rules for your application.
How do the low/high functions and three wires work?
Both functions emit amber light. White is ground, black is the low-function positive lead and red is the high-function positive lead. Use a 12V DC supply.
Warranty
Warranty: 3-year manufacturer warranty.
