United Pacific 34847 · Single-colour Mini light
Amber LEDs, an amber lens and low/high operation
Choose the 34847 when you want a compact amber watermelon light with separate low and high brightness circuits. The amber lens keeps the same color theme when the light is off.
Amber LED / amber lens
The LEDs emit amber light. The amber lens describes the appearance of the lens, including when the light is off.
Two brightness functions
Low and high use the same amber LED colour, with separate positive wires for the two functions.

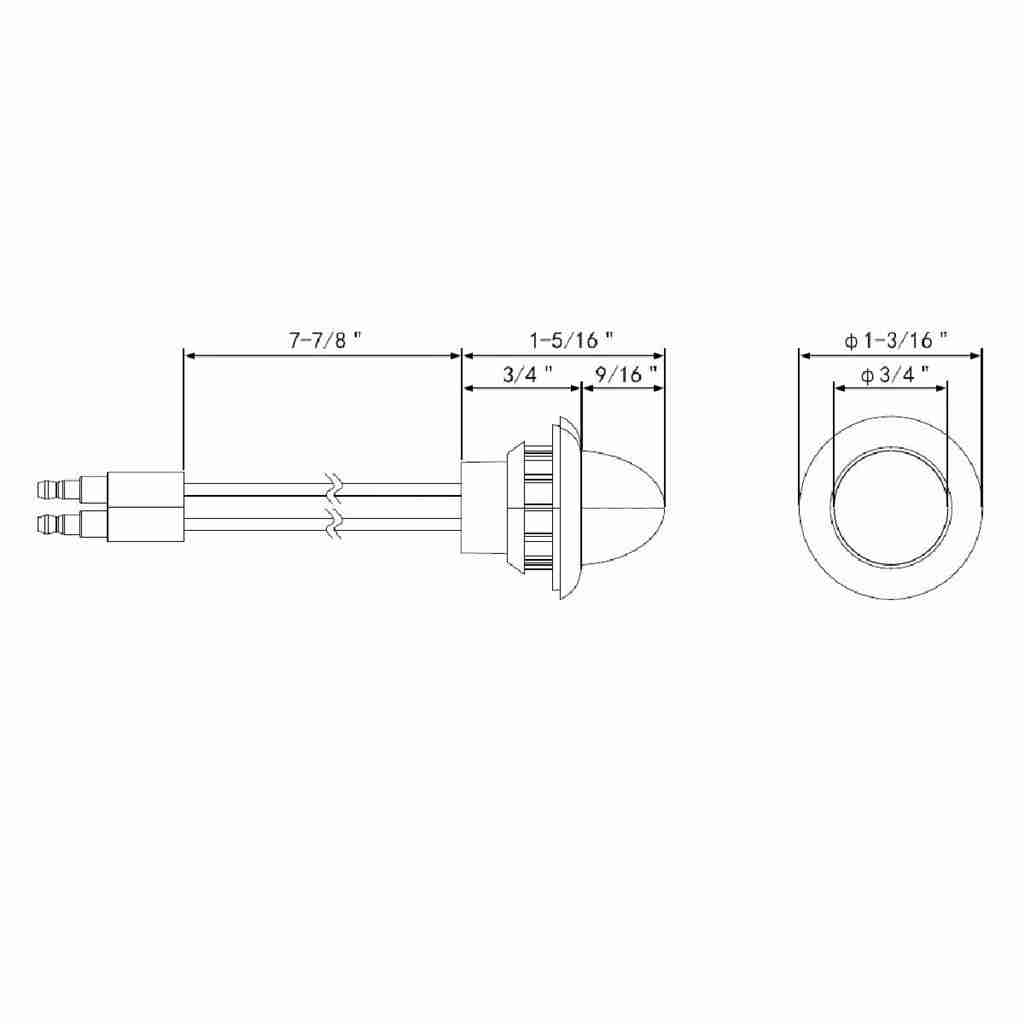

3/4-inch grommet mount
The included rubber grommet mounts in a 3/4-inch installation hole. Check the rear space and wiring access before choosing a mounting position.
Need a separate mount? Compare penny and watermelon-light brackets, then check the exact light’s retention method, bezel and rear clearance against the bracket and mounting location. A matching hole size alone does not confirm fit.
Mounting, power and package details
Match the 12V supply and three-wire connection
12V DC wiring
- White: ground
- Black: low-function positive
- Red: high-function positive
United Pacific specifies 12V DC. Check your supply and the circuits you intend to use before connecting the light.
Grommet mount and construction
- Polished stainless steel bezel
- Polycarbonate watermelon-style lens
- Included rubber mounting grommet
- 3/4-inch installation hole
The 3/4-inch measurement is the installation-hole requirement. Check mounting space, grommet fit and wiring access as well; matching the hole size alone does not establish vehicle or bracket compatibility. The light uses epoxy-sealed construction to help prevent moisture intrusion.
Choosing a different colour or function? Compare Mini watermelon lights by LED colour, lens colour and function, then check the exact product’s mounting requirements.
To compare this single-colour low/high design with two-colour options, read our guide to dual-colour versus dual-function Mini lights.
Prefer a clear lens with the same amber LED colour? Compare the UPI 34849 amber LED/clear lens Mini light. Check that listing’s own availability and package details.
Before you choose
United Pacific 34847 questions
What size hole does 34847 need?
A 3/4-inch diameter hole. The supplied rubber grommet retains the light.
Does dual-function mean two colors?
No. This SKU uses amber light in both brightness functions; the lens is also amber.
How are the three wires assigned?
White is ground, black is low function and red is high function.
Does this light work on a 24V supply?
United Pacific specifies 12V DC for this light. It is not specified here for a direct 24V connection.
How is the light protected from moisture?
It uses a polycarbonate watermelon-style lens and epoxy-sealed construction to help prevent moisture intrusion.
Warranty
Warranty: 3-year limited warranty.
