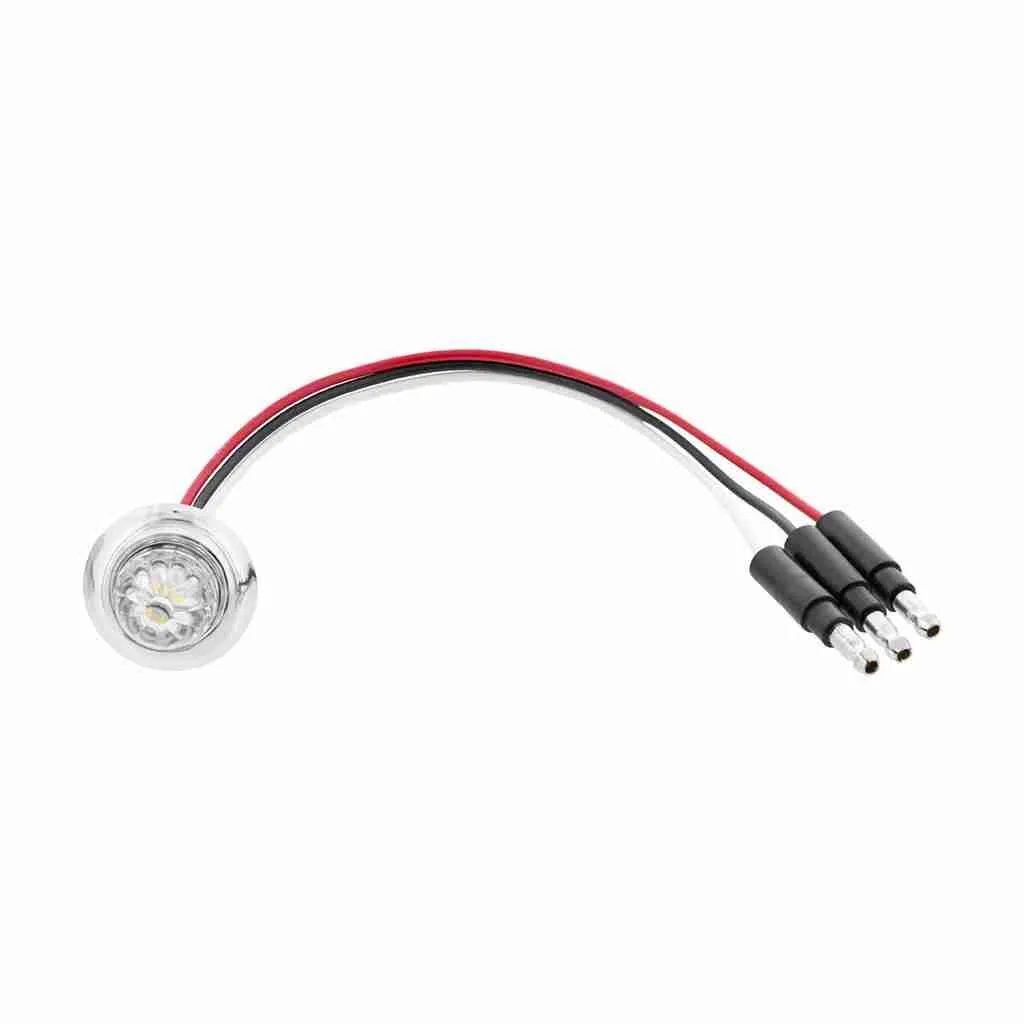

United Pacific 34850 · Single-colour Mini light
Red LEDs, a clear lens and low/high operation
Choose United Pacific 34850 for four red LEDs behind a clear polycarbonate watermelon-style lens. The polished stainless steel bezel finishes the compact light, while separate low and high inputs let you wire the functions your installation needs.
Red LED / clear lens
The LEDs emit red light. The clear lens describes the appearance of the lens, including when the light is off.
Two brightness functions
Low and high use the same red LED colour, with separate positive wires for the two functions.

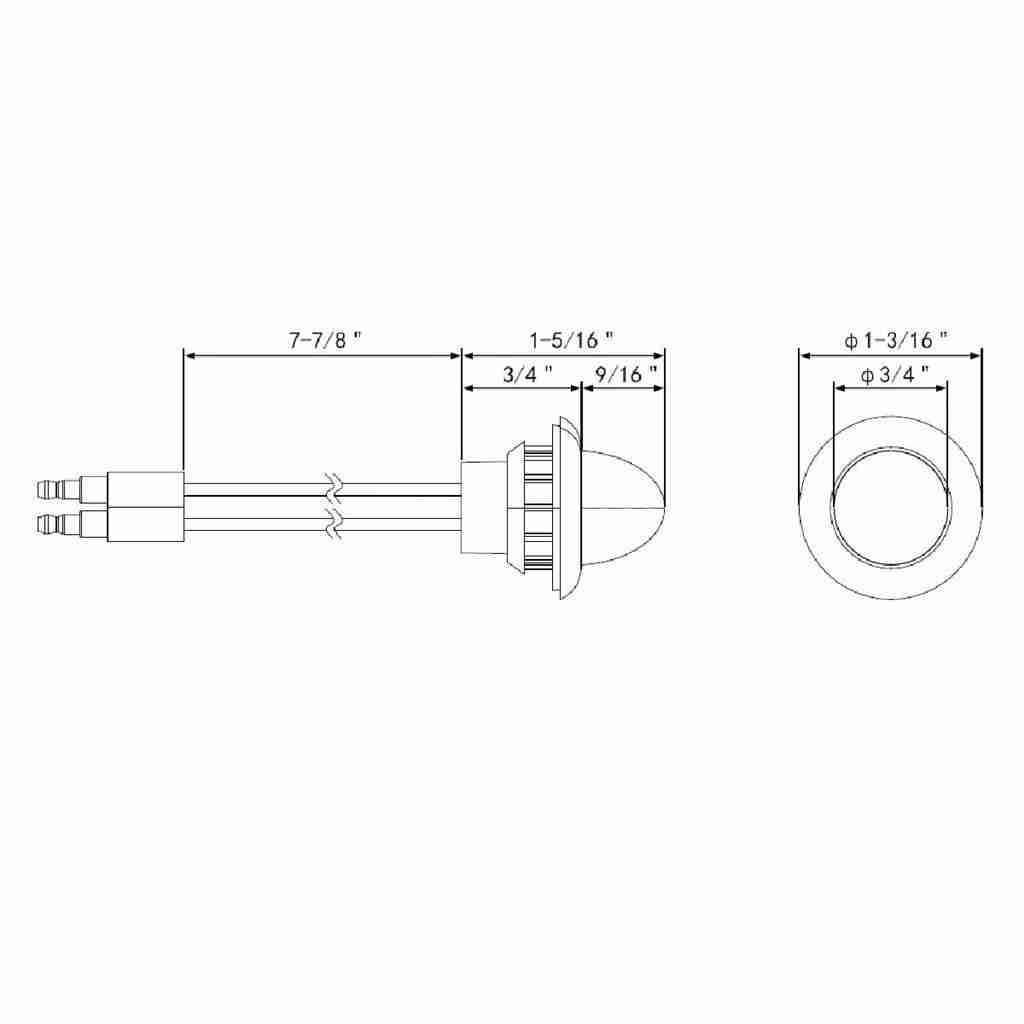

3/4-inch grommet mount
The included rubber grommet mounts in a 3/4-inch installation hole. Check the rear space and wiring access before choosing a mounting position.
Need a separate mount? Compare penny and watermelon-light brackets, then check the exact light’s retention method, bezel and rear clearance against the bracket and mounting location. A matching hole size alone does not confirm fit.
Mounting, power and package details
Match the 12V supply and three-wire connection
12V DC wiring
- White: ground
- Black: low-function positive
- Red: high-function positive
United Pacific specifies 12V DC. Check your supply and the circuits you intend to use before connecting the light.
What’s included
- 1x 4 LED Dual Function 3/4" Mini Watermelon Light – Red LED / Clear Lens
- 1x Rubber Mounting Grommet
- 3-Wire Leads
The 3/4-inch measurement is the installation-hole requirement. Check mounting space, grommet fit and wiring access as well; matching the hole size alone does not establish vehicle or bracket compatibility. The light uses epoxy-sealed construction to help prevent moisture intrusion.
Choosing a different colour or function? Compare Mini watermelon lights by LED colour, lens colour and function, then check the exact product’s mounting requirements.
Prefer a red lens with the same red LED colour? Compare the UPI 34848 red LED/red lens Mini light. Check that listing’s own availability and package details.
Before you choose
United Pacific 34850 questions
What’s the difference between red/red and red/clear?
Both versions emit red light. This red/clear version has a clear polycarbonate lens; the alternative changes the lens colour, not the LED colour.
Will this fit a 3/4 inch bracket?
United Pacific specifies a 3/4-inch mounting hole and includes a rubber grommet. Also check the rear clearance, mounting material and wiring access for your installation.
Is red allowed on the front of a truck?
This is a red LED light with low/high operation. Its colour and mounting-hole size do not establish approval for a particular road-lighting position. Confirm the required colour, function and installation rules for your application.
Is this light waterproof?
The polycarbonate lens and epoxy-sealed construction help prevent moisture intrusion. This listing does not promise a submersion rating.
How do the low/high functions and three wires work?
Both functions emit red light. White is ground, black is the low-function positive lead and red is the high-function positive lead. Use a 12V DC supply.
Warranty
Warranty: 3-year manufacturer warranty.
