Product Overview
The white LED / clear lens mini watermelon light delivers:
-
Bright, clean white output
-
A crystal-clear lens appearance when off
-
A sharp, modern lighting signature
-
A perfect match for polished stainless or chrome-heavy builds
This configuration is ideal for applications where clean white accent or auxiliary lighting is desired.
Common uses include:
-
Interior lighting builds
-
Custom accent lighting
-
Under-cab or frame accent setups
-
Show trucks
-
Specialty or off-road applications
⚠️ Always verify local regulations before installing white lighting in exterior positions on public-road vehicles.
Key Features & Benefits
Dual Function 4-LED Performance
Equipped with four high-performance LEDs, this mini light runs in:
-
Low intensity (marker mode)
-
High intensity (clearance / auxiliary mode)
Provides significantly stronger output than single-LED minis while maintaining compact size.
White LED with Clear Dome Lens
The clear lens allows maximum LED clarity and brightness, creating a clean, glass-like appearance when unlit and a sharp white glow when activated.
Retro Watermelon Styling
The domed watermelon lens profile keeps the classic semi-truck aesthetic alive while housing modern LED internals.
Polished Stainless Steel Bezel
Built with corrosion-resistant stainless steel to provide:
-
Long-term durability
-
Rust resistance
-
Premium visual appeal
Epoxy-Sealed Internal Protection
Fully epoxy sealed to resist:
-
Moisture
-
Road debris
-
Salt
-
Vibration
Engineered for harsh environments.
Durable Polycarbonate Lens
Impact-resistant lens construction prevents cracking and fading over time.
True 3/4″ Mounting Design
Designed specifically for standard 3/4 inch mounting holes, compatible with most mini light brackets and factory cutouts.
Performance / Compatibility / Use-Case
This 3/4″ 4 LED mini watermelon light works well for:
-
Semi trucks
-
Custom trailers
-
Show builds
-
Interior lighting setups
-
Frame accent lighting
-
Service vehicles
-
Off-road builds
White LED versions are especially popular for:
-
Clean monochrome builds
-
Matching white rock lights or accent lighting
-
Custom interior or sleeper lighting
Installation / Fitment / Technical Details
Light Type: Clearance / Marker (Dual Function)
LED Count: 4 High-Performance LEDs

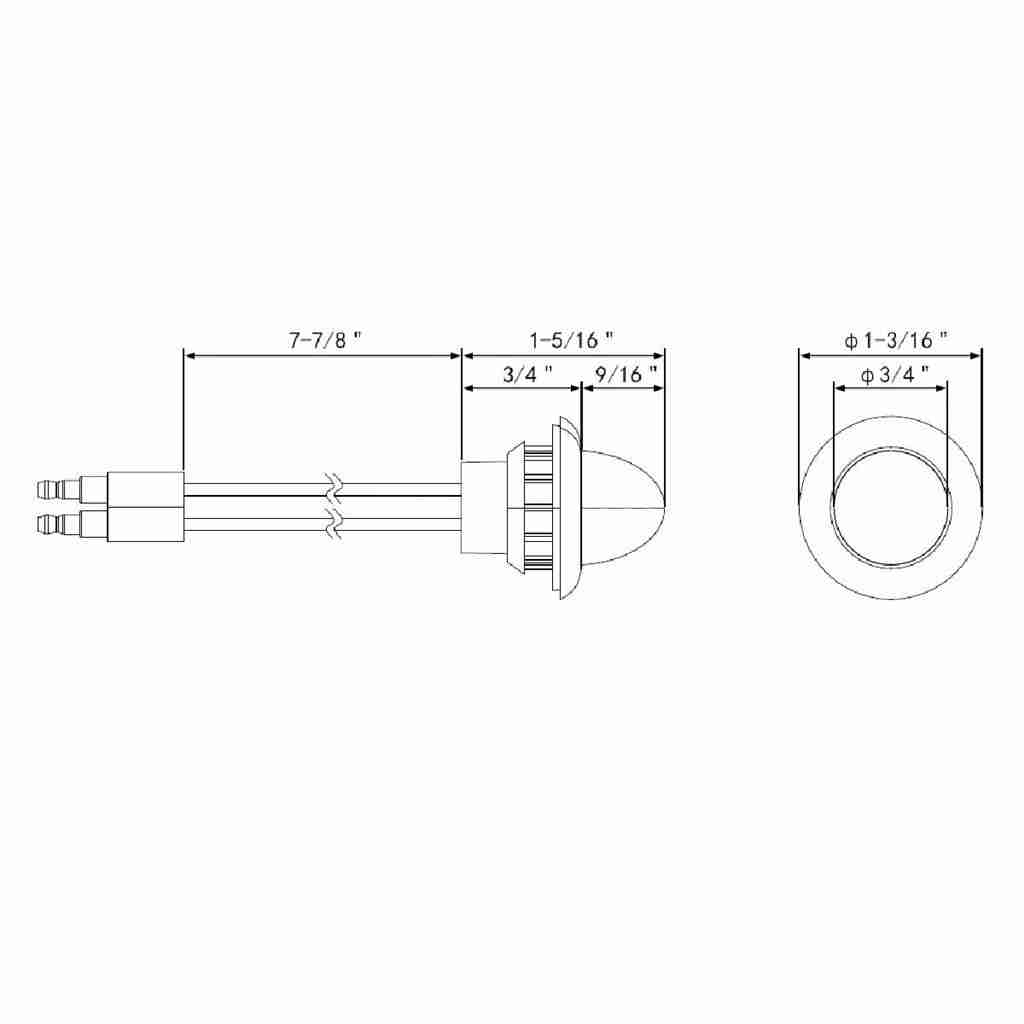

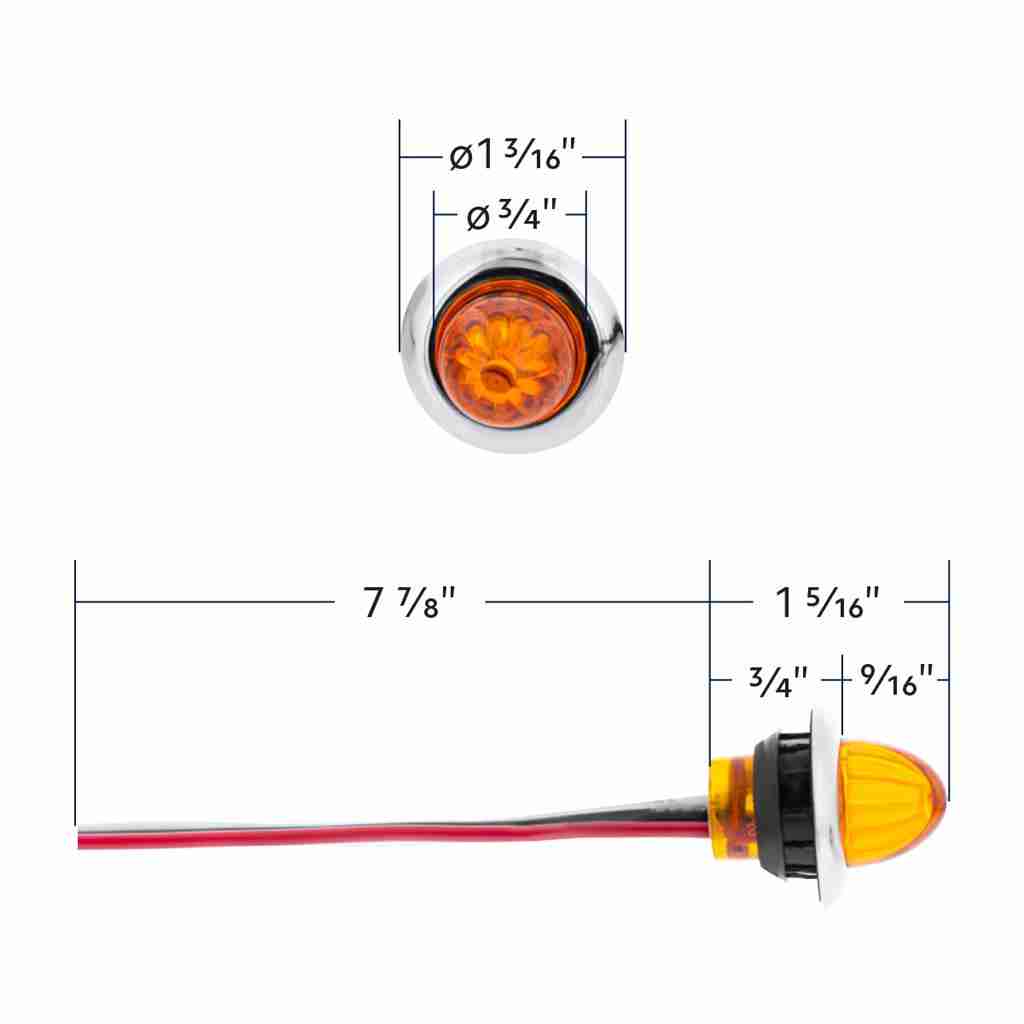

Mounting Hole Diameter: 3/4″
Voltage: 12V DC
3-Wire Hookup:
-
White = Ground
-
Black = Low (Marker)
-
Red = High (Clearance)
Installation:
-
Rubber mounting grommet included
-
Push-fit 3/4″ mounting
-
Vibration-resistant design
Compatible Wire Harnesses (Sold Separately):
-
Item #34191 – 3 Prong Female Bullet Plugs Wire Harness 6″ Lead
-
Item #34192 – 3 Prong Female Bullet Plugs Wire Harness 12″ Lead
Seal: Epoxy sealed
Build Quality / Warranty
-
Lens: Watermelon-style polycarbonate
-
Bezel: Polished stainless steel
-
Internal Protection: Epoxy sealed
-
Designed for commercial vibration environments
-
Built for long-term performance
This is a rugged, compact mini light engineered for real-world truck use.
Warranty: 3-year manufacturer warranty.
What’s Included
-
1x 4 LED Dual Function 3/4″ Mini Watermelon Light – White LED / Clear Lens
-
1x Rubber Mounting Grommet
-
3-Wire Leads
Frequently Asked Questions
Is white legal for exterior clearance lighting?
White lighting regulations vary depending on placement and jurisdiction. Always verify local DOT/SAE rules before installing on public-road vehicles.
What’s the advantage of a clear lens?
A clear lens maintains a clean, polished look when off and allows maximum brightness and sharpness from the LED.
Will this fit a 3/4 inch mounting hole?
Yes. This light is designed specifically for standard 3/4 inch holes and includes a rubber grommet.
Is this waterproof?
The light is epoxy sealed and weather resistant, protecting internal components from moisture and contaminants.
Does the stainless bezel rust?
No. The polished stainless steel bezel is corrosion resistant and designed for exterior exposure.
Clean Illumination. Classic Profile. Modern Reliability.
The 4 LED Mini Watermelon Light – White LED / Clear Lens delivers bright, crisp illumination with timeless dome styling. Compact, durable, and easy to install, it’s a smart upgrade for custom and accent lighting applications.
