Product Overview
If you want more presence than a standard marker light, this 6-LED spike light delivers both aggressive styling and dependable illumination.
The larger 1-1/4″ profile combined with a spike-style lens creates a standout illuminated effect while supporting dual brightness operation.
Ideal for:
-
Semi trucks
-
Show rigs
-
Trailers
-
Sleeper panels
-
Bumpers & fairings
-
Custom stainless builds
Key Features & Benefits

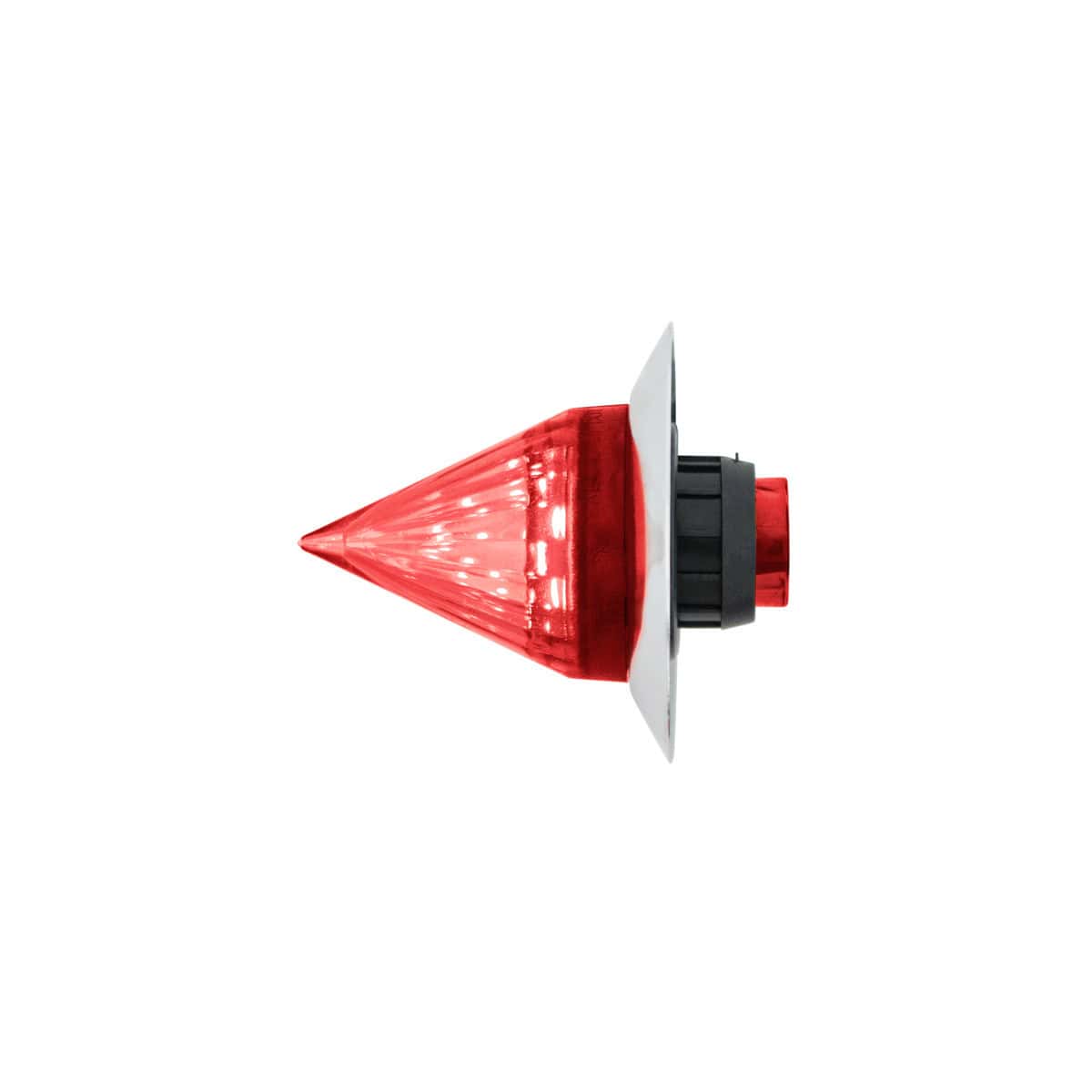

Spike-Style Polycarbonate Lens
Durable polycarbonate lens with bold spike design for a distinctive illuminated appearance.
6 Super Bright Dual-Function LEDs
Six high-output LEDs support both low and high intensity operation for flexible lighting applications.
Dual Function Operation
3-wire configuration allows separate low and high brightness functions (e.g., running + brake or running + turn, depending on wiring setup).
Polished Stainless Steel Bezel
Adds corrosion resistance and premium styling to complement chrome and stainless truck accessories.
IP67 Water Resistant
Rated IP67 for protection against dust and water exposure.
Epoxy-Sealed Electronics
Fully sealed internal components help prevent moisture intrusion and protect against vibration.
Performance / Compatibility / Use Case
-
Voltage: 12V DC
-
LED Count: 6 LEDs
-
Lens Color: Red
-
LED Color: Red
-
Mounting: Rubber grommet mount
-
Required Hole Size: 3/4″ diameter
-
Overall Profile: 1-1/4″
-

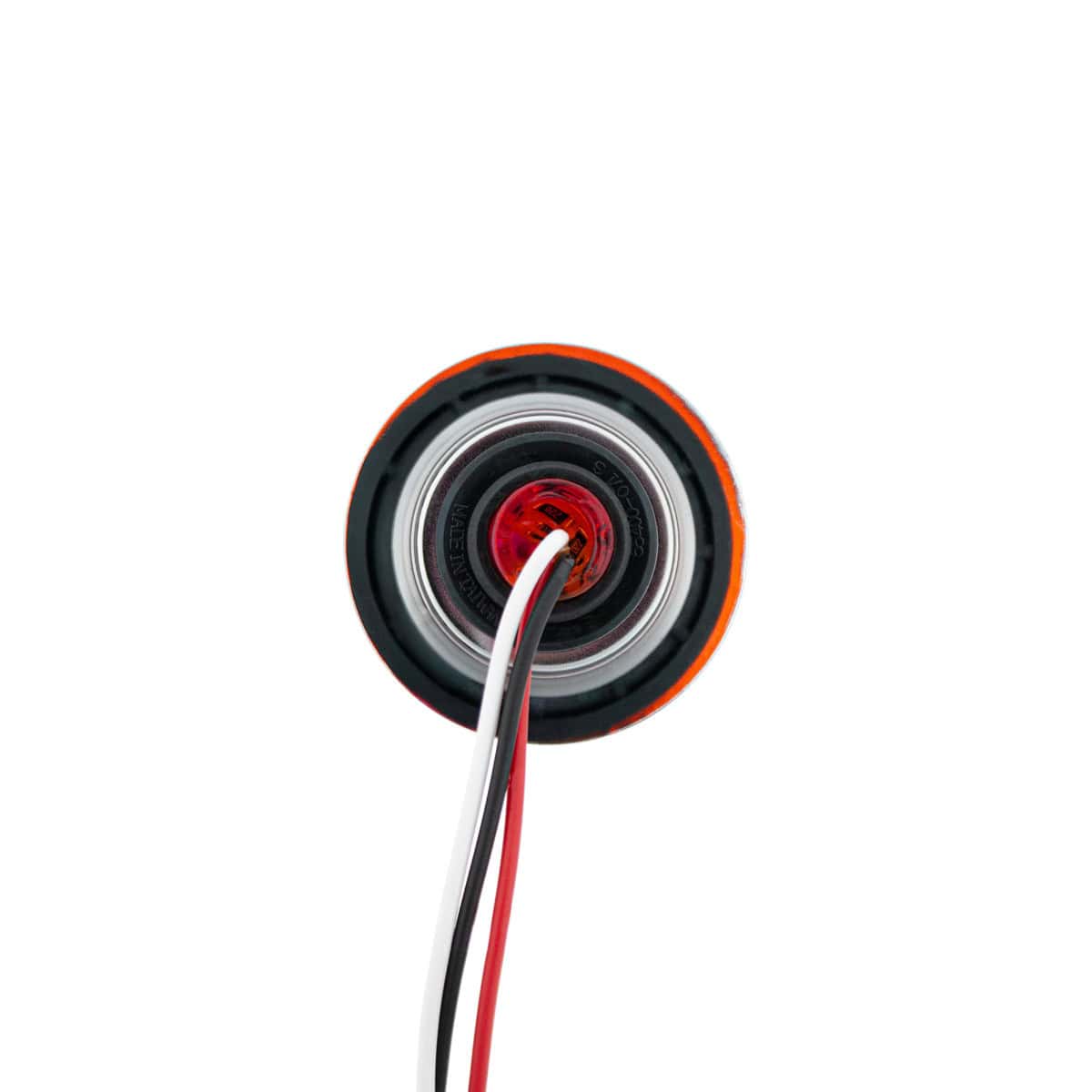

Wiring: 3-wire with 0.180″ bullet connectors
-
IP Rating: IP67
Wiring Color Code:
-
White – Ground
-
Black – Low function
-
Red – High function
Designed for 12V DC systems only.
Placement requirements vary by vehicle and jurisdiction. Confirm proper rear-facing or accent use before installation.
Installation / Fitment / Technical Details
Installs using the included rubber grommet for a secure, vibration-resistant fit in a standard 3/4″ hole.
The 3-wire hookup allows:
-
Ground connection
-
Low-intensity function
-
High-intensity function
Professional installation is recommended if unfamiliar with vehicle electrical systems.
Build Quality / Warranty
Constructed with:
-
Spike-style polycarbonate lens
-
Polished stainless steel bezel
-
Epoxy-sealed electronics
-
Rubber vibration-resistant grommet
Designed for long-term exterior use in demanding truck and trailer environments.
Warranty: 3-year manufacturer warranty.
What’s Included
-
(1) 6 LED 1-1/4″ Dual Function Spike Light – Red LED / Red Lens
-
(1) Rubber Mounting Grommet
Frequently Asked Questions
What size hole is required for installation?
A 3/4″ diameter mounting hole is required.
Is this a dual-function light?
Yes. It supports both low and high intensity operation through the 3-wire setup.
What voltage does this spike light operate on?
It is designed for 12V DC systems.
Is this light waterproof?
It carries an IP67 water resistance rating and features epoxy-sealed electronics for moisture protection.
What material is the bezel made from?
The bezel is made from polished stainless steel.
What warranty is included?
This product includes a 3-year manufacturer warranty.
