MORIMOTO C6 GEN I XB LED · LF460.2
A modern white signature for the C6.
The original Morimoto XB LED design brings a C7-inspired shape, integrated low and high beams, and amber signals to the 2005–2013 Corvette C6.
- Left + rightOne complete headlight pair
- White DRLFixed daytime signature
- Bi-LED opticsIntegrated low and high beams

THE LIGHTING SYSTEM, EXPLAINED
Three details that define this set

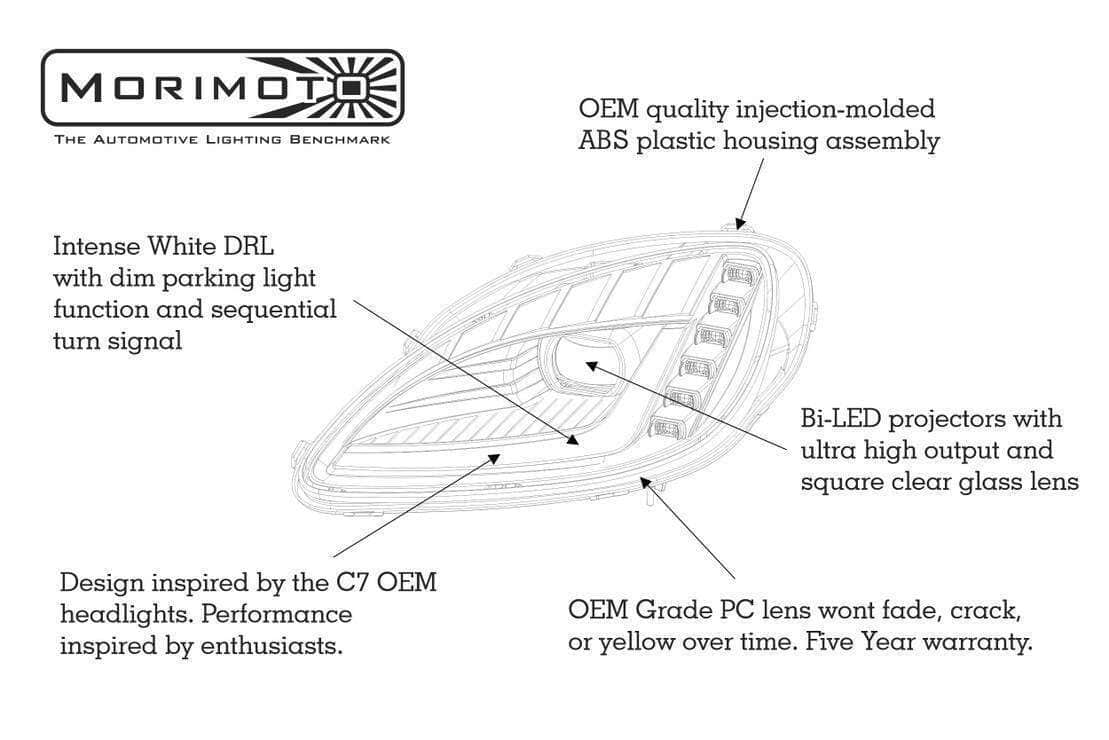

Integrated LED optics
The Gen I Kuria Bi-LED system provides low and high beams in complete replacement housings. Morimoto lists 2,600 raw lumens per lamp; it is not a promise of a particular on-road lux reading.
Choose the signature
Fixed 5000K white daytime lights give the C6 a modern signature. The standard kit does not provide RGB or red projector lighting.
Amber turn signals
The exact Gen I wiring guide supports sequential or standard amber turn signals. The supplied signal-control connection selects the behaviour; do not substitute instructions from the newer Evo system.

YOUR LIGHTING SIGNATURE
See the available lighting modes
Fixed 5000K white daytime lights give the C6 a modern signature. The standard kit does not provide RGB or red projector lighting.



MATCH THE VEHICLE AND ORIGINAL EQUIPMENT
Exact fitment before you order
| Check | This exact application |
|---|---|
| Model years | 2005–2013 Chevrolet Corvette C6 |
| Exact version | LF460.2, XB LED Gen I |
| Connection | GM factory multi-pin interface plus supplied DRL wiring |
| Traffic / market | Left-hand-drive / US-spec; other markets require confirmation |
| Exact part | LF460.2 |
| Package | Complete driver- and passenger-side headlight assemblies |
THE STANDARD HEADLIGHT PACKAGE
What comes with the pair

- Headlights: 2x (One Pair) 05-13 Corvette C6 XB LED Headlights
- Wiring: Plug and Play Harness, Fuse Tap
Use the adapters and signal components appropriate to the vehicle’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
The exact guide illustrates the pair and DRL harness with fuse tap. The original vehicle’s wiring and the supplied set determine the installation path.
Other lighting, bodywork and accessories in the vehicle photographs are separate products.
PLAN THE ACCESS AND WIRING
Installation details worth knowing
Use the exact LF460.2 Gen I wiring guide, dated March 2019, for DRL power and the sequential/standard signal connection. Route and secure the harness clear of heat and moving components, check the actual vehicle’s fuse information, and test every lighting function before final assembly. Finish by aiming the headlight cutoff on the vehicle.
Download the official LF460.2 installation guide
Follow the instructions supplied with the exact set and the actual vehicle’s wiring information. Other aftermarket exterior lighting can affect turn-signal behaviour. Test the complete system before final reassembly.

EXACT PART · LF460.2
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Intensity | 2,600lm (Raw; each) |
| Traffic Pattern | LHD Only |
| Input | GM Multi-Pin OEM |
| Functions | DRL (White), Turn, Parking, Low, High |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Kuria Optic BI-LED |
| UV Coating | Momentive UVHC3000 |
Original-equipment replacement references
20936417, 20936419, 25785289, 20789691, 20789687, 20789711
Use these references with the exact model-year and equipment checks above, not as a standalone compatibility decision.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
An official supplier-linked overview and installation video for this model. Use the current written part-specific fitment and package details above when the video shows earlier configurations.
C6 Corvette XB LED Headlights and Tail Lights By Morimoto

Choose a video to load it. No autoplay. Historical launch or availability statements are not current BTS stock information; the written part-specific details govern this selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your C6 Gen I XB LED questions
Is this one lamp or a pair?
One order supplies complete left and right headlight assemblies with the listed standard installation parts.
Which vehicle does this exact part fit?
US-spec 2005–2013 Chevrolet Corvette C6. Check the original equipment and market notes above before ordering.
How do I choose the daytime lighting?
Fixed 5000K white daytime lights give the C6 a modern signature. The standard kit does not provide RGB or red projector lighting.
Which lighting functions does this set provide?
The exact Gen I wiring guide supports sequential or standard amber turn signals. The supplied signal-control connection selects the behaviour; do not substitute instructions from the newer Evo system.
Can I add Supercharged drivers?
No exact Supercharged-driver compatibility is confirmed for this LF460.2 selection. Do not fit a driver intended for a different Evo or XB assembly. This page describes the standard supplied headlight package.
Should the headlights be aimed after installation?
Yes. Check all functions and adjust the low-beam cutoff on the actual vehicle. Suspension changes, load and ride height can affect the aim.
What warranty applies?
The exact supplier record lists a 5-year limited manufacturer warranty. Coverage and exclusions follow the manufacturer’s terms; retain proof of purchase and contact BTS for assistance.
Is this the newer C6 Evo or Gen II headlight?
No. This is LF460.2, the original Gen I XB LED design. Compare the exact SKU and the gallery before choosing another C6 generation.

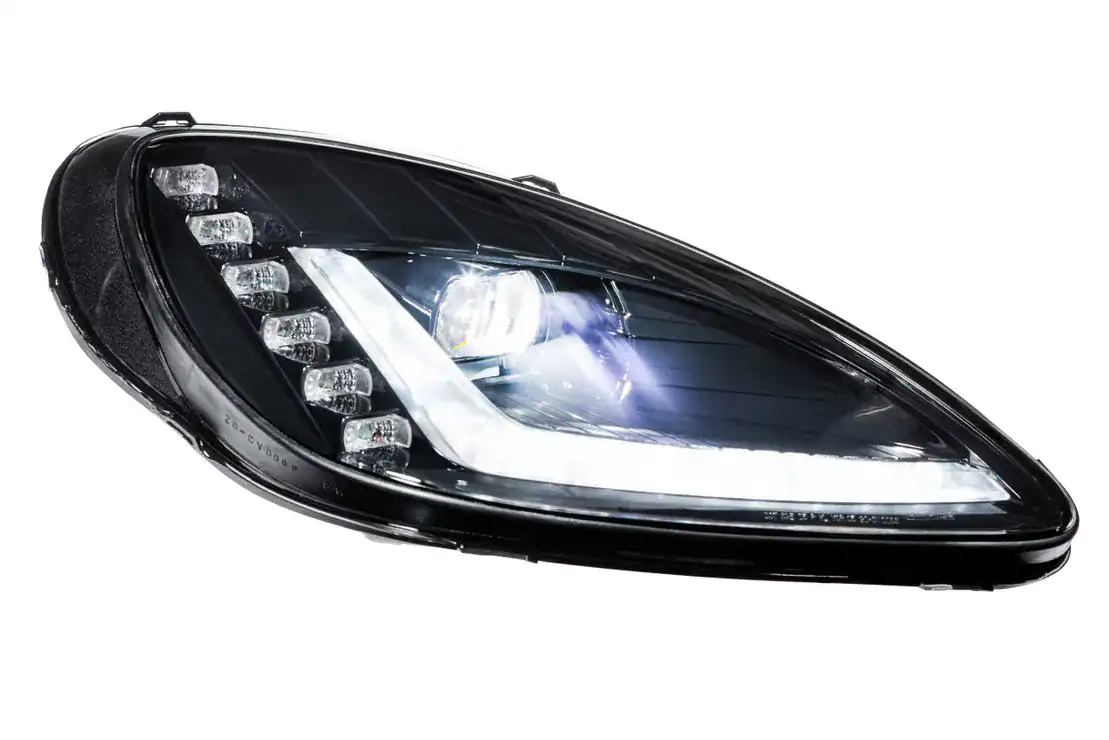

THE FINISHED LOOK
See the design on the vehicle
Original supplier photography; other vehicle equipment is separate.
