MORIMOTO XB EVO · LF2-460
A new signature for your C6.
Dual Bi-LED projectors and a sculpted daytime signature bring a distinctive new look to the C6. Choose white or amber DRLs and sequential or fade-off signals using the supplied selector keys, with side-shooter optics adding low-beam width.

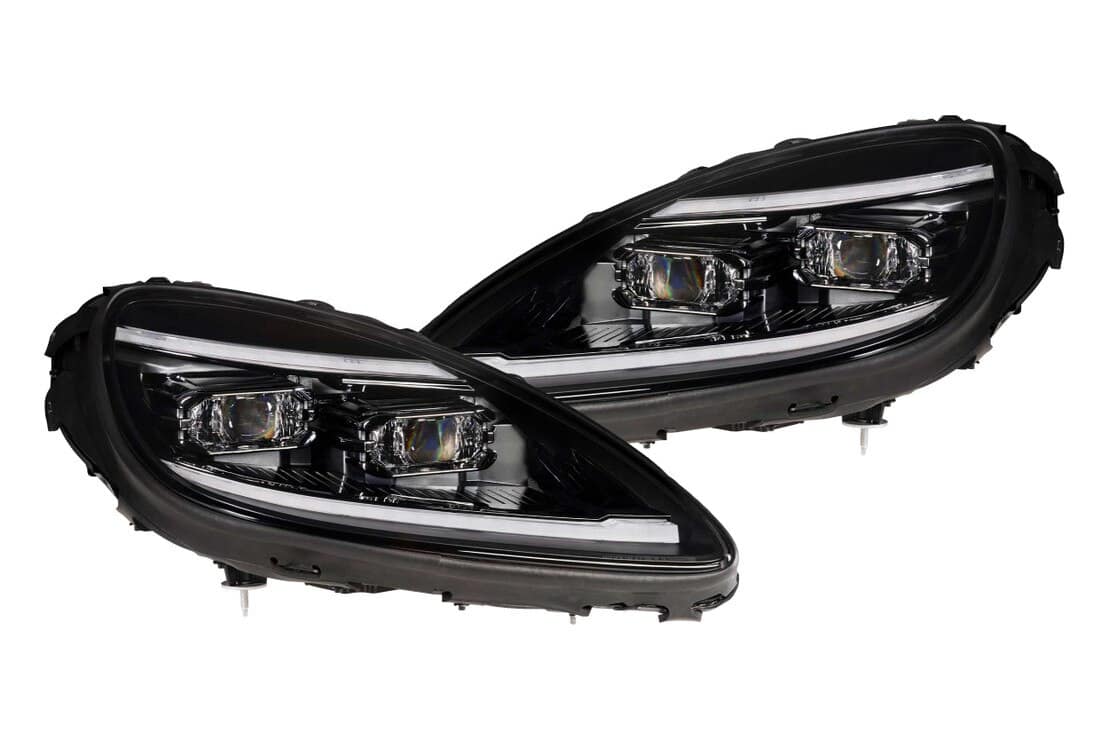

- Left + rightOne complete headlight pair
- White or amberSelect with included keys
- Bi-LED opticsIntegrated low and high beams

THE LIGHTING SYSTEM, EXPLAINED
Three details that define this set

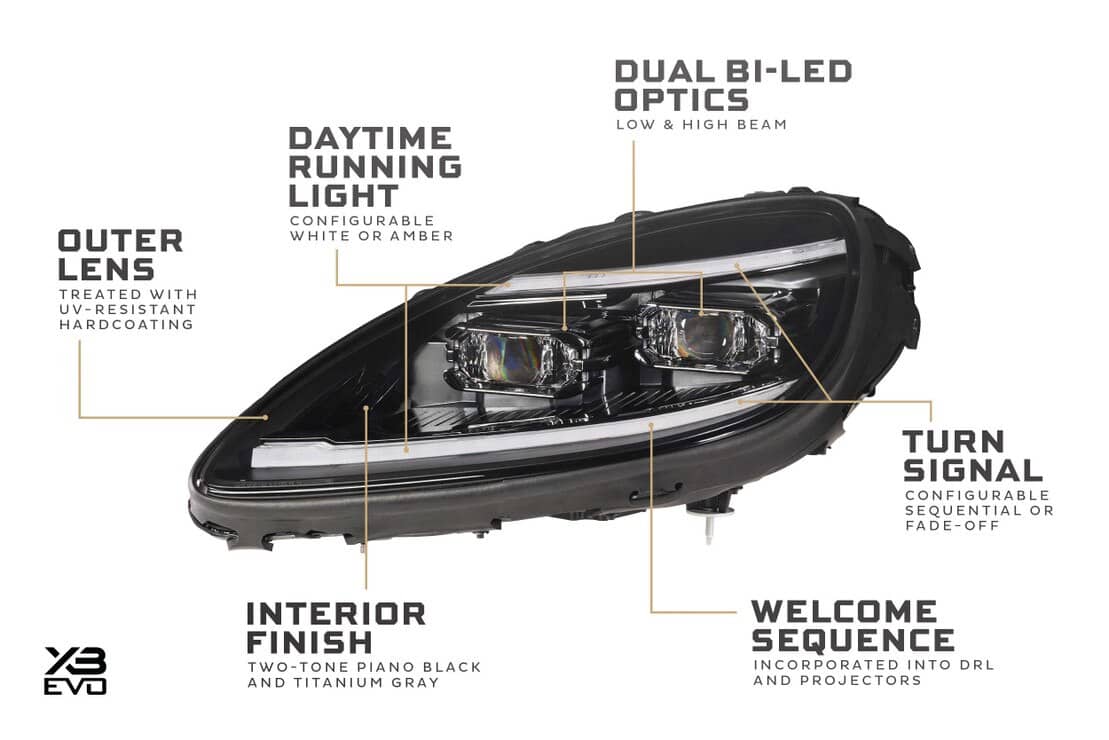

Integrated LED optics
Two Type 2 Ishida Bi-LED projectors per housing deliver low and high beams. The Evo adds side-shooter optics for extra low-beam width.
Choose your signature
Four pairs of selector keys let you set white or amber DRLs and sequential or fade-off signals. Make changes with the vehicle and headlights off.
Integrated LED signals
Choose sequential or fade-off amber LED signals using the supplied keys. Set both headlights consistently.

ORIGINAL MANUFACTURER IMAGERY

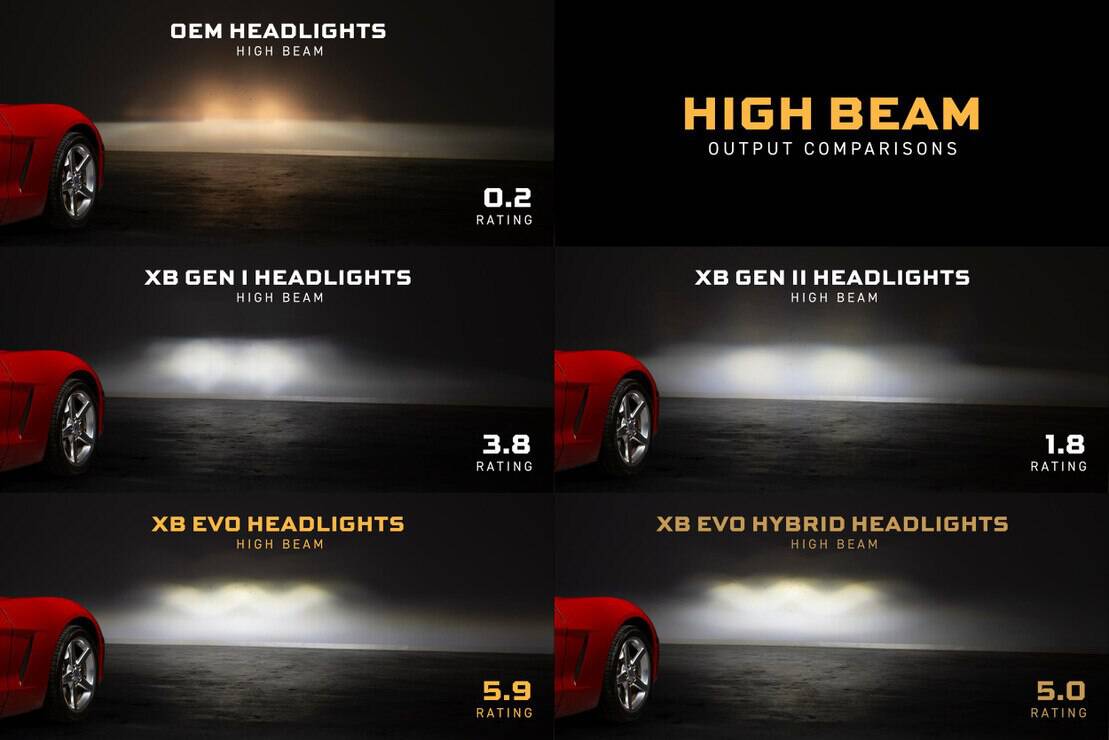

Compare the beam patterns
These unchanged Morimoto images compare the shown configurations in the manufacturer’s test setup; the ratings are not BTS measurements or universal road-lux figures.


Final aim, vehicle load, ride height and test distance affect the result. This headlight model does not support Supercharged drivers.
SEE THE DIFFERENCE
Lighting modes at a glance
Four pairs of selector keys let you set white or amber DRLs and sequential or fade-off signals. Make changes with the vehicle and headlights off.

MATCH THE VEHICLE AND ORIGINAL EQUIPMENT
Exact fitment before you order
| Check | This exact application |
|---|---|
| Vehicle | 2005–2013 Chevrolet Corvette C6 |
| Exact part | LF2-460 |
| Package | Complete driver- and passenger-side assemblies |
| Traffic pattern | Left-hand-drive vehicles used in right-hand traffic |
| Generation | Exact vehicle generation listed above |
| Listed trims | 1LT, 2LT, 3LT, 4LT, Grand Sport, Z06 and ZR1 |
| Market / original equipment | North American vehicles; confirm actual original equipment. Outside-North-America compatibility is not guaranteed |
| Road-use status | Manufacturer lists the standard configuration to its stated DOT / FMVSS108 requirements; correct installation and aim remain essential |
THE STANDARD HEADLIGHT PACKAGE
What comes with the pair

- Headlights: One Pair 05-13 Corvette C6 XB Evo (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)
- Accessories: 8x (Four Pairs) Mode Selectors, 8x Magnet-Mount Resistors, 4x Resistor Brackets, 2x Mode Selector Extensions, 2x Input Harnesses, 1x DRL Harness, 1x Fuse Tap
Use the adapters and signal components appropriate to the vehicle’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
Other vehicle lighting, bodywork, wheels and accessories in the installation photographs are separate products.
PLAN THE ACCESS AND WIRING
Installation details worth knowing
The exact LF2-460/LF2-460Y guide covers bumper and fender-liner removal, careful fender movement and the supplied input harnesses. Eight magnet-mount resistors attach using four brackets. The DRL feed uses the illustrated 15A fuse position 6; the guide calls for a small notch in the fuse-box lid and installation of the harness grommet. Mode-selector extensions are included on Evo only. Align the panels, secure the wiring and finish the beam aim after testing.
Download the official LF2-460 installation guide
Use the vehicle’s actual fuse information and the instructions supplied with the exact set. Other aftermarket exterior lights can affect turn-signal operation. Test the complete lighting system before final reassembly.

EXACT PART · LF2-460
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD / Right Hand Traffic Only |
| Main Optics | 2x Type 2 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA) |
| Functions | Low Beam, High Beam, Parking Light, Turn Signal, Welcome Sequence, Daytime Running Light (DRL) |
| DRL Color | White or Amber (Configurable) |
| Turn Signal | Sequential or Fade-Off (Configurable) |
| Internal Bezel Finish | Black and Titanium |

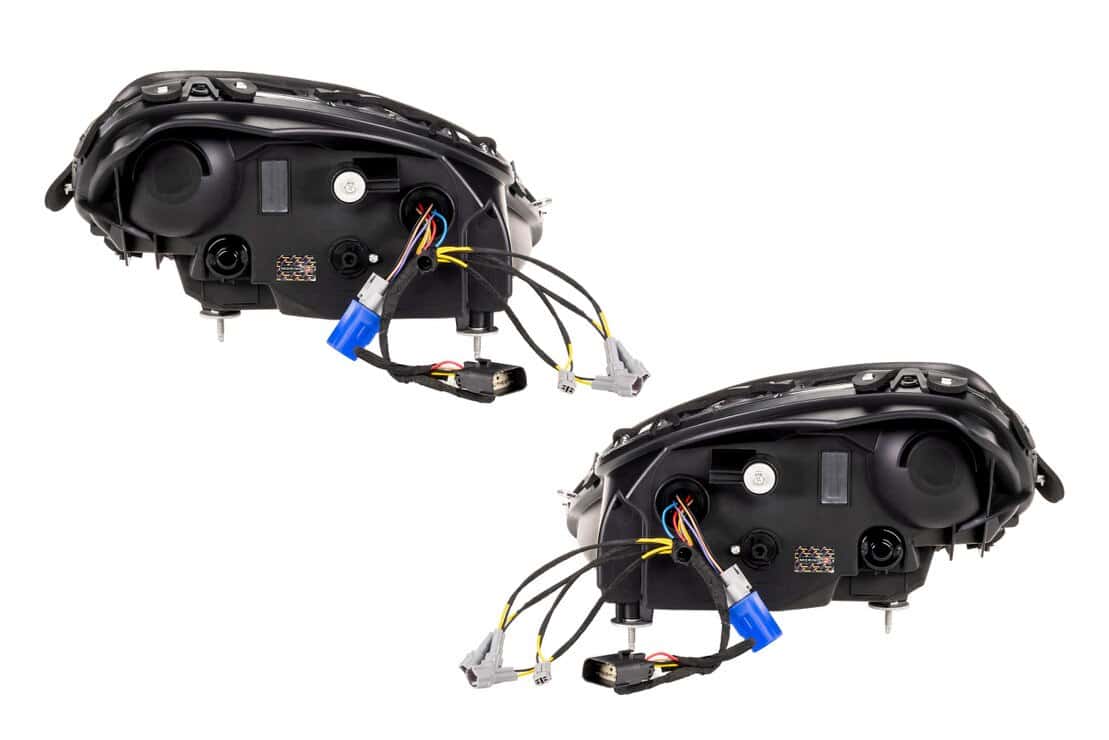

| Wiring | Factory-style main connectors; follow the separate DRL/resistor installation steps above |
| Lens | Polycarbonate with UV-Shield Hard coating |
Original-equipment replacement references
20789679, 20789680, 25867785, 25867786, 20936420, 20789706, 15849088, 15875917, 15237568, 15237578, 20832116, 20832118, 20909411, 20909412, 19371153, 19371151
Use with the model-year and equipment requirements above, not as a standalone fitment check.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
The supplier-linked video may compare multiple versions. Only the exact part and functions described on this page are included; a comparison does not make features interchangeable.
Morimoto XB Evo Headlight Overview & Install Guide | Corvette C6 (2005–2013)

Choose a video to load it. No autoplay. Historical launch or availability statements are not current BTS stock information; the written part-specific details govern this selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB Evo questions
Does a shared video mean every shown feature is included?
No. Family videos compare different models. The exact part number, package list and written functions on this page determine what is supplied.
Is this one headlight or a pair?
One order supplies complete left and right headlight assemblies with the listed standard installation parts.
Which vehicle does this exact part fit?
2005–2013 Chevrolet Corvette C6. Match the listed generation, original equipment and market before ordering.
Can I change the DRL colour?
Four pairs of selector keys let you set white or amber DRLs and sequential or fade-off signals. Make changes with the vehicle and headlights off.
How do I select the turn-signal pattern?
Choose sequential or fade-off amber LED signals using the supplied keys. Set both headlights consistently.
Are Supercharged drivers compatible?
No. Driven Lighting Group confirms that LF2-460 does not support Supercharged drivers. Use the standard drivers supplied with this headlight set; a Supercharged driver intended for another Evo model is not compatible.
Do I need to aim the headlights?
Yes. Test all functions and adjust the low-beam cutoff after installation. Ride height, suspension and load can change the final aim.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Coverage and exclusions follow its current terms; retain proof of purchase and contact BTS if an issue occurs.
Is the C6 Evo installation completely modification-free?
No blanket promise applies. The exact guide calls for a small fuse-box lid notch for the DRL harness grommet, plus the supplied resistor brackets and wiring.
THE FINISHED LOOK
See the design on the car
Original supplier photography. Other vehicle equipment is separate.
