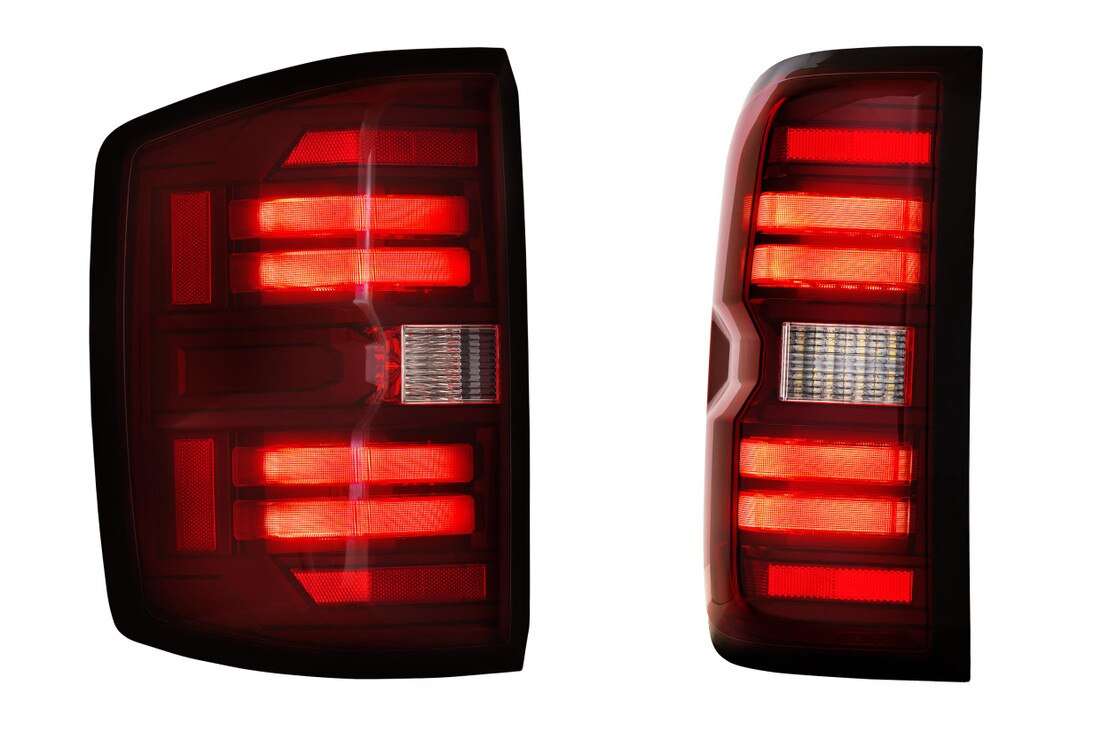

Morimoto XB LED Tail Lights (Red) for Chevrolet Silverado 2500HD / Chevrolet Silverado 3500HD
The Morimoto LF728 red-lens tail-light pair is listed for 2015–2019 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 3500HD dually applications. Factory LED tail lights require separate LF728HT adapters; Sierra single-rear-wheel trucks use a different application.
Fitment and original equipment
- Chevrolet Silverado 2500HD and 3500HD: 2015–2019. GMC Sierra 3500HD dually: 2015–2019.
- OEM LED tail-light applications require separate LF728HT adapters. Do not assume the standard supplied harness is that optional adapter.
- Sierra single-rear-wheel applications are excluded from this LF728 scope.
- Morimoto designed and tested these housings on US-spec vehicles. Confirm the actual rear lighting and connectors on Canadian or other-market vehicles.
Specifications and contents
| Part number | LF728 |
|---|---|
| Quantity | Two complete red-lens tail lights, left/right pair |
| Brake / parking / turn | Red |
| Reverse | Integrated white LED |

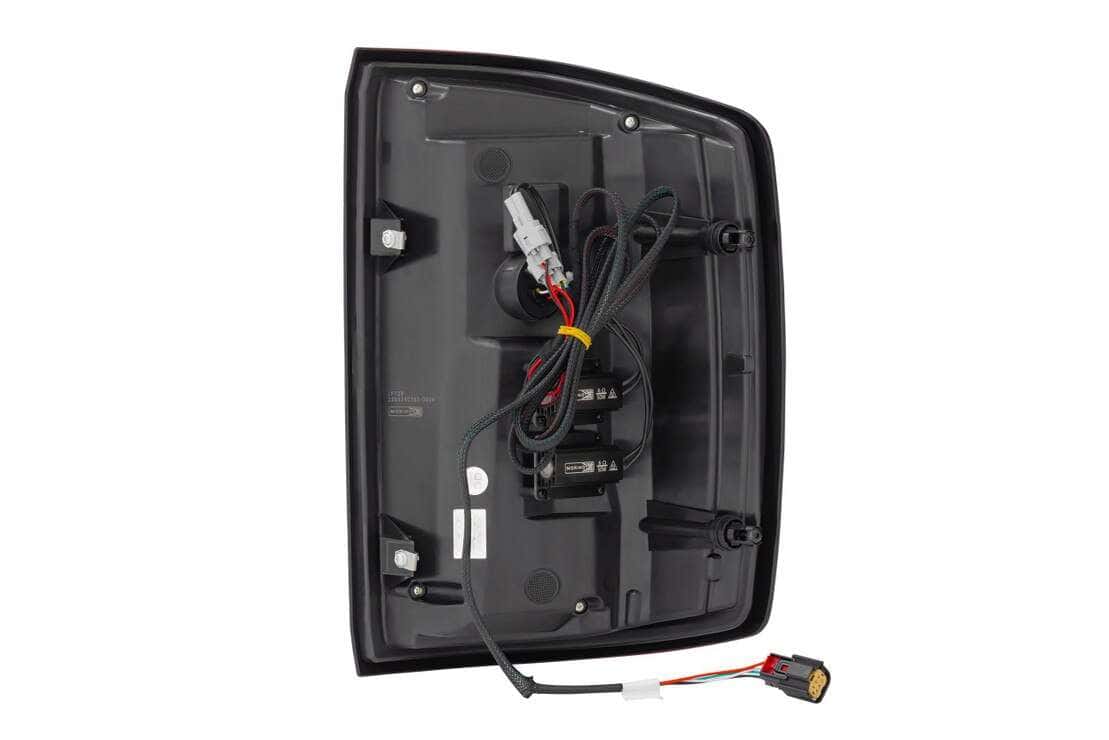

| Wiring | GM multi-pin OEM input; base adapter harness supplied |
| OEM LED requirement | Separate LF728HT adapters required |

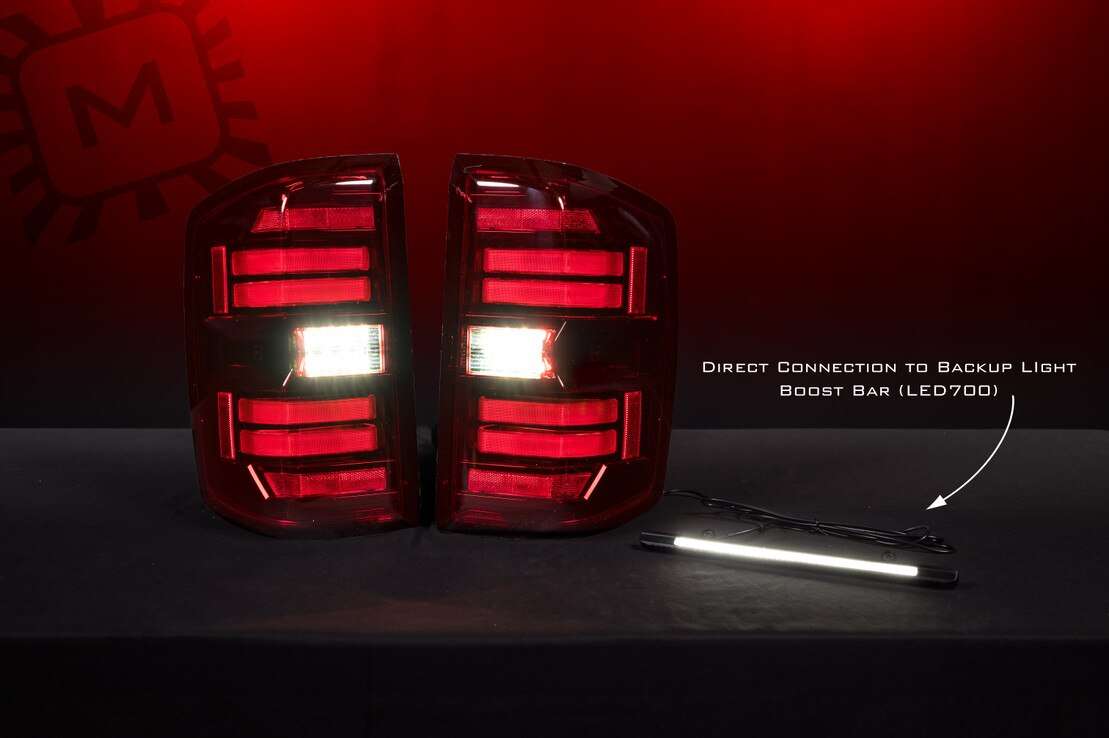

| Optional reverse accessory | Backup Light Boost Bar, sold separately |
| Lens | UV-resistant polycarbonate |
Before installation
Identify the truck model, rear-wheel configuration and original incandescent or LED tail lights. Include LF728HT adapters where required, follow the correct wiring procedure and mount any supplied resistors as instructed. Check all functions before reassembly.
Replacement references
Replaces GM part numbers:
-
GM2800261
-
GM2801261
Warranty Coverage
Backed by Morimoto’s 5-Year Limited Warranty.
Frequently Asked Questions About Morimoto Silverado HD Tail Lights
Will LF728 fit a Sierra with single rear wheels?
This LF728 Sierra application is specifically 3500HD dually. Do not apply it to Sierra single-rear-wheel trucks; compare the exact model, rear-wheel configuration and original tail lights.
Can LF728 be used on a truck with factory LED tail lights?
The current exact Silverado HD and Sierra dually pages require the separate LF728HT adapters for OEM LED trucks. Verify the original lamp and include the correct adapters in the order.
Are LF728HT adapters included in the standard pair?
They are a separate required option for OEM LED applications. The base package’s adapter harness should not be mistaken for the optional LF728HT set.
What colours do the brake, turn and reverse lights use?
Brake, parking and turn signals are red. The integrated reverse lights illuminate white. Red lens describes this exact outer-lens variant.
Does the pair include a Backup Light Boost Bar?
No. The bar is optional and separate. The tail lights already include white LED reverse illumination without it.
Does this HD application include a 2014 truck?
The listed HD application is 2015–2019. Confirm a 2014 truck’s body style and original lamp separately rather than extending the newer range.
What should I check before installing the adapters?
Identify incandescent versus OEM LED tail lights, verify the exact LF728HT requirement where applicable and follow the matching guide. Test every rear-light function and confirm Canadian or other-market equipment.
