The Diode Dynamics SS6 LED Lightbar Kit gives 2013-2018 Ram Sport/Express trucks a clean, high-output lighting upgrade using the factory bumper openings. The application-specific brackets are designed for the Sport/Express bumper and install using existing mounting points, with no cutting or drilling required.
This kit is built for Ram owners who want more usable light output, modern TIR optics, amber backlight styling, and a factory-style installation instead of a universal light bar setup.
Key Features & Benefits
Direct-Fit Sport/Express Bumper Installation
This kit is designed specifically for Ram trucks with the Sport/Express bumper.
Features include:
- Fits 2013-2018 Ram Sport/Express bumper applications
- Uses existing mounting points
- No cutting required
- No drilling required
- Application-specific heavy-duty steel brackets
- Designed for a clean bumper-mounted install
If your Ram has the standard bumper, this is not the correct kit.
SS6 LED Light Bar Performance
The included SS6 LED light bars are engineered for strong output, efficient heat management, and controlled beam performance.
Features include:
- Two 6″ Classic or SS6 LED light bars
- High-intensity automotive-grade LED emitters
- Patented TIR optics
- Copper circuit boards
- Thermal transfer materials
- Optimized heatsinks

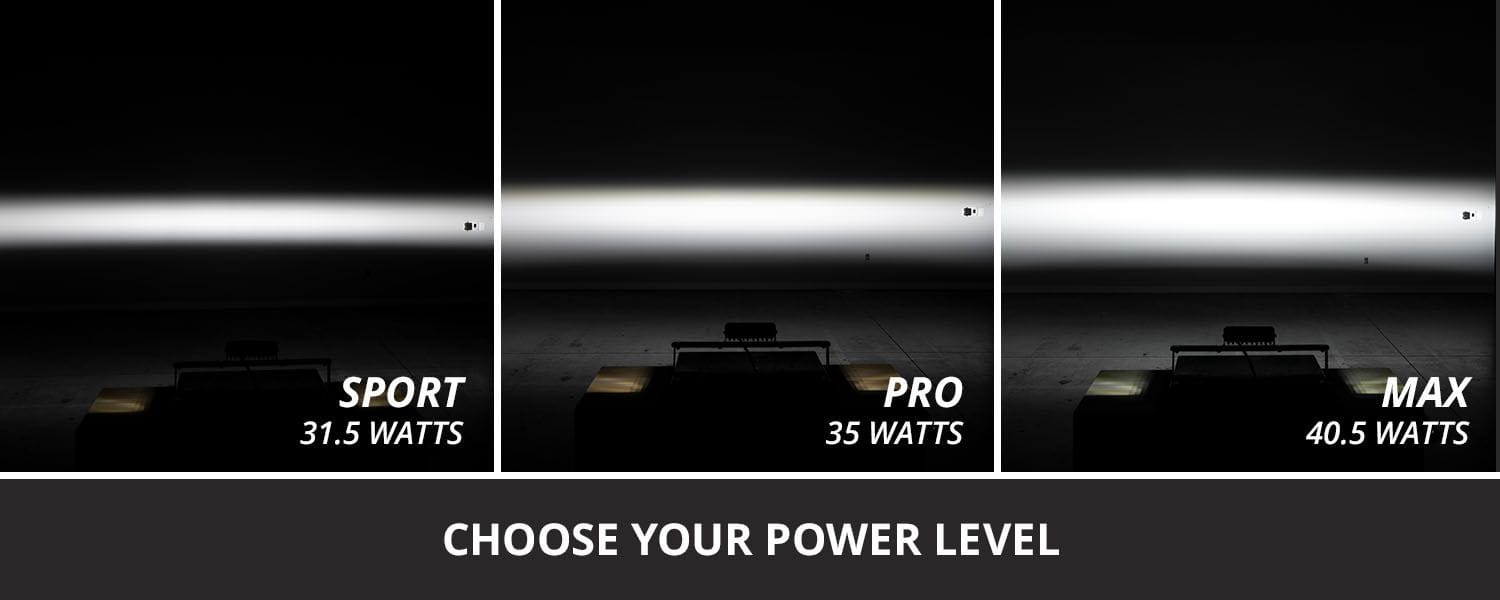

- Available in Sport, Pro, and Max power levels
Choose Sport for value, Pro for a stronger output upgrade, or Max for the highest-performance version.

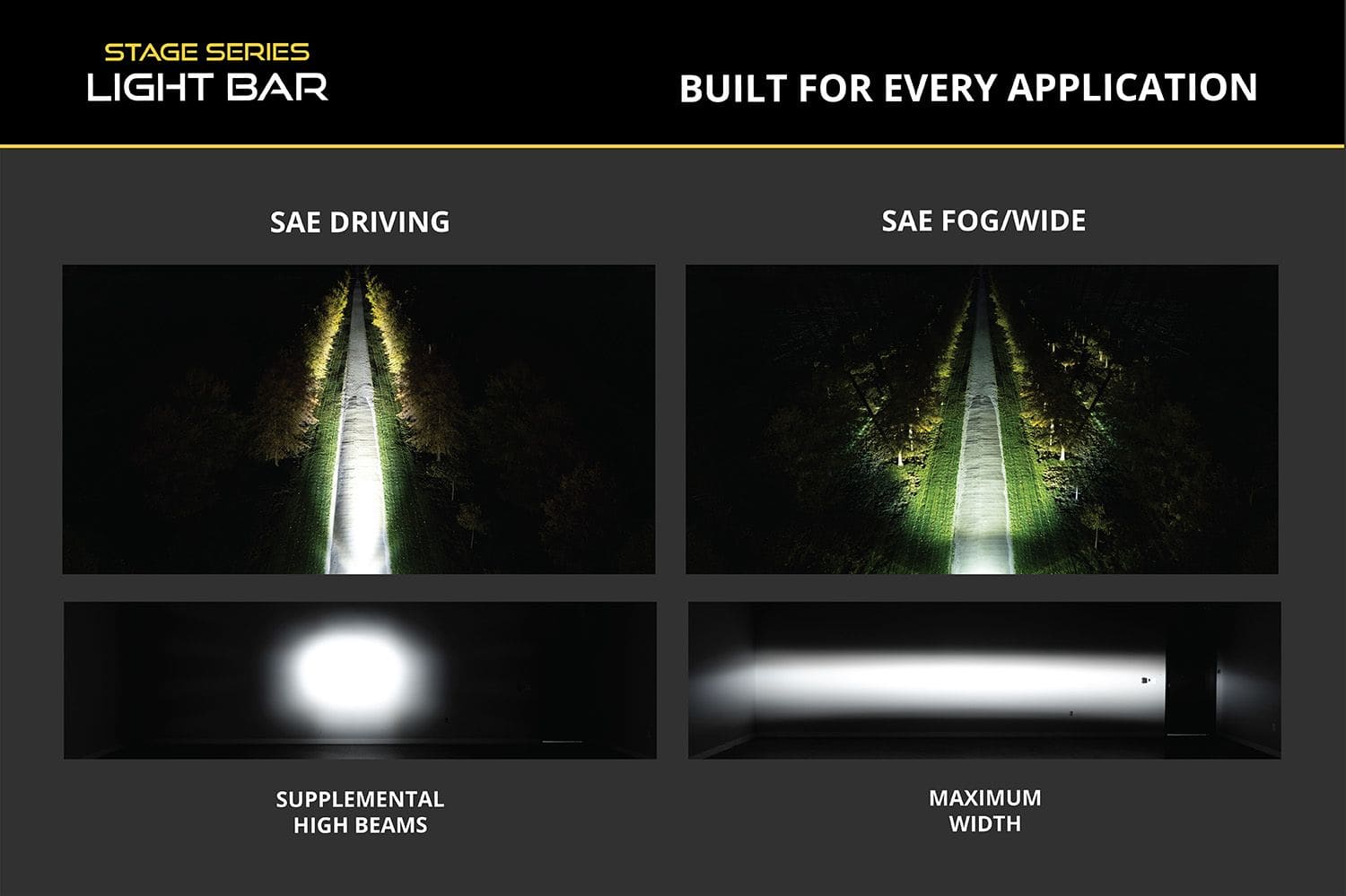

SAE/DOT Beam Options
This kit is designed around road-focused SAE/DOT lighting options, depending on the selected beam pattern.
Available beam styles include:
- SAE Fog: 90 x 10 degree wide fog pattern
- SAE Driving: 20 x 12 degree slightly broad-spot pattern
The SAE Fog pattern is designed to illuminate the area directly in front of the truck. The SAE Driving pattern is designed to supplement high beams with added distance and width.
Always check local laws for aiming, installation, and road-use requirements.

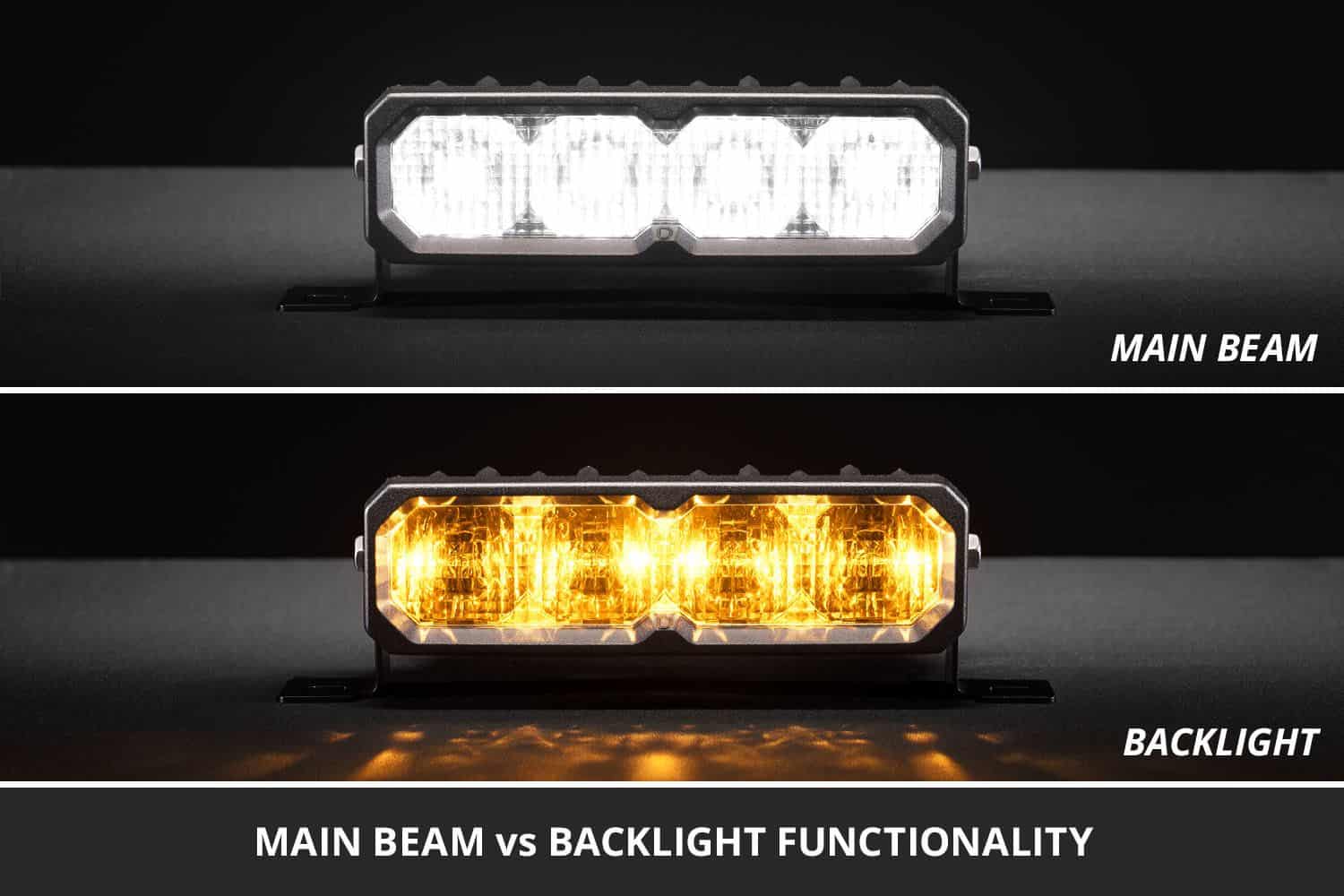

True Amber Backlight
The SS6 light bars include a true amber backlight for accent lighting.
Features include:
- Amber backlight function
- Fully illuminates the TIR optic
- Distinctive parked or trail appearance
- Separate from the main beam
- Modern auxiliary lighting style
The amber backlight gives the front bumper a cleaner custom look when the main light bars are not in use.
Dual Output Harness With Toggle Switch
The kit includes wiring support for the main beam and backlight functions.
Included wiring features:
- Dual output harness
- Toggle switch included
- Main beam control
- Amber backlight control
- Designed for a complete installation setup
Professional installation is recommended for clean wiring, switch placement, and proper function.
Performance, Compatibility & Use Case
Ram Compatibility
This kit is designed for 2013-2018 Ram 1500, 2500, and 3500 models with the Sport/Express bumper.
Important fitment note: The supplied product information also notes the kit was designed for 2013-2019 Ram Sport/Express bumper applications, while the listed fitment years show 2013-2018. Confirm 2019 fitment before applying this listing to a 2019 truck.
Sport/Express Bumper Note
This kit is for Ram trucks with the Sport/Express bumper only.
If your truck has the standard bumper, choose the standard bumper version instead.
Output Color Options
This kit is available in cool white or selective yellow output.
Output options:
- Cool White: 6000K color temperature
- Selective Yellow: 3000K color temperature
Cool white matches many factory LED lighting setups, while selective yellow offers a higher-contrast look that is popular in poor weather or custom lighting builds.
Application & Use Case
Designed for:
- Ram Sport bumper lighting upgrades
- Ram Express bumper lighting upgrades
- SAE fog light upgrades
- SAE driving light upgrades
- Amber backlight styling
- Daily-driven trucks
- Off-road and trail lighting
- Work truck visibility upgrades
- Clean bumper-mounted auxiliary lighting
This kit is a strong choice for Ram owners who want usable auxiliary light output without cutting into the bumper or building custom brackets.
Installation & Technical Details
Installation Overview
This Diode Dynamics lightbar kit uses application-specific brackets and existing factory mounting points on compatible Ram Sport/Express bumpers.
Installation details:
- Vehicle: Ram 1500/2500/3500
- Model years listed: 2013-2018
- Bumper requirement: Sport/Express bumper
- Product type: SS6 LED lightbar kit
- Light bars: Two 6″ Classic or SS6 LED light bars
- Brackets: Application-specific heavy-duty steel brackets
- Wiring: Dual output harness with toggle switch
- Main beam options: SAE Fog or SAE Driving, depending on selected kit
- Backlight: Amber
- Cutting or drilling: Not required
- Warranty: Limited lifetime warranty
Professional installation is recommended for wiring, aiming, switch placement, and final function checks.
Build Quality, Materials & Warranty
Stage Series Construction
Diode Dynamics Stage Series light bars are engineered for output, beam control, and long-term durability.
Build details include:
- Patented TIR optics
- Automotive-grade LED emitters
- Copper circuit boards
- Thermal transfer materials
- Optimized heatsinks
- Application-specific heavy-duty steel brackets
- Made in USA with global materials
The light bars are tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.
Compliance
The kit is listed as an SAE/DOT LED lightbar kit.
SAE Fog and SAE Driving beam patterns are designed for road-use applications when installed and aimed according to applicable laws and regulations. Always check local laws for aiming, installation, and road-use requirements.
Warranty & Return Policy
This product includes:
- Limited lifetime warranty
- 30-day return policy with no restocking fee
- 100% satisfaction guarantee
Warranty and return coverage apply according to Diode Dynamics terms.
What’s Included
Included in the box:
- 2 × Application-Specific Heavy-Duty Steel Brackets for 2013-2018 Ram Sport/Express
- 2 × 6″ Classic or SS6 LED Light Bars
- 1 × Dual Output Harness With Toggle Switch
- All Necessary Hardware
- Installation Guide
Quantity:
- Pair, left and right side
Frequently Asked Questions About Diode Dynamics Ram Sport/Express Lightbar Kits
Does this kit fit the 2013-2018 Ram Sport bumper?
Yes. This kit is designed for 2013-2018 Ram trucks with the Sport/Express bumper.
Confirm your bumper style before ordering.
Does this fit Ram 1500, 2500, and 3500?
Yes. The supplied fitment lists Ram 1500, 2500, and 3500 models for 2013-2018.
Always confirm bumper style and model year before installation.
Does this fit the standard Ram bumper?
No. This kit is designed for the Sport/Express bumper.
If your truck has the standard bumper, choose the standard bumper version instead.
Does installation require cutting or drilling?
No. The brackets use existing mounting points.
No cutting or drilling is required on compatible Sport/Express bumper applications.
What lights are included?
The kit includes two 6″ Classic or SS6 LED light bars.
It also includes the brackets, dual output harness with toggle switch, hardware, and installation guide.
What beam patterns are available?
This kit is available with SAE Fog or SAE Driving beam patterns, depending on the selected configuration.
SAE Fog provides a wide 90 x 10 degree pattern, while SAE Driving provides a 20 x 12 degree pattern for added distance.
Does this kit have an amber backlight?
Yes. The SS6 light bars include a true amber backlight.
The backlight fully illuminates the TIR optic and gives the bumper a distinctive accent light.
Can I choose white or yellow output?
Yes. This kit is available in cool white or selective yellow output.
Cool white is 6000K, and selective yellow is 3000K.
What power levels are available?
The SS6 light bars are available in Sport, Pro, and Max power levels.
Sport is the value option, Pro adds more output, and Max is the highest-performance version.
Is this kit road legal?
The kit is listed as an SAE/DOT lightbar kit, with SAE Fog and SAE Driving beam options.
Road-use legality depends on selected beam pattern, aiming, installation, and local laws.
What warranty is included?
This product includes a limited lifetime warranty.
