HitchMount · C1 or C1R
Light behind the truck, right from the receiver.
Add White reverse lighting and a Red running light. Choose C1R when you also want the additional brake-light function.
Match the receiver and harness
For a 2016–2023 Toyota Tacoma, use an open-back 2-inch receiver and the compatible factory 7-pin trailer connector. The included 2.5-inch sleeve is not used for this Tacoma application. Keep the factory tail lights installed.
This HitchMount family also serves other compatible vehicles with 2-inch or 2.5-inch receivers. Receiver size alone is not enough: confirm the rear connector and required vehicle-specific harness before ordering. Ram trucks use the C1 option only; C1R is not compatible with Ram.
A dedicated harness/kit is required for 2015–2023 F-150, 2005–2015 Tacoma, 2019+ Sierra/Silverado 1500, 2022–2024 Maverick and 2023+ Colorado. Confirm the exact year, model and trailer package before choosing this standard kit.
The receiver must be open at the back for the harness. Do not drill or modify a structural hitch receiver to make this kit fit. Remove the light when the receiver is needed for towing.

Two functions, or three?
| Choice | Reverse | Running light | Brake |
|---|---|---|---|
| C1 · DD7420 | White Flood beam | Low-power Red | No brake-light function |
| C1R + Brake · DD7422 | White Flood beam | Low-power Red | High-power Red, with optional SafetyStrobe |

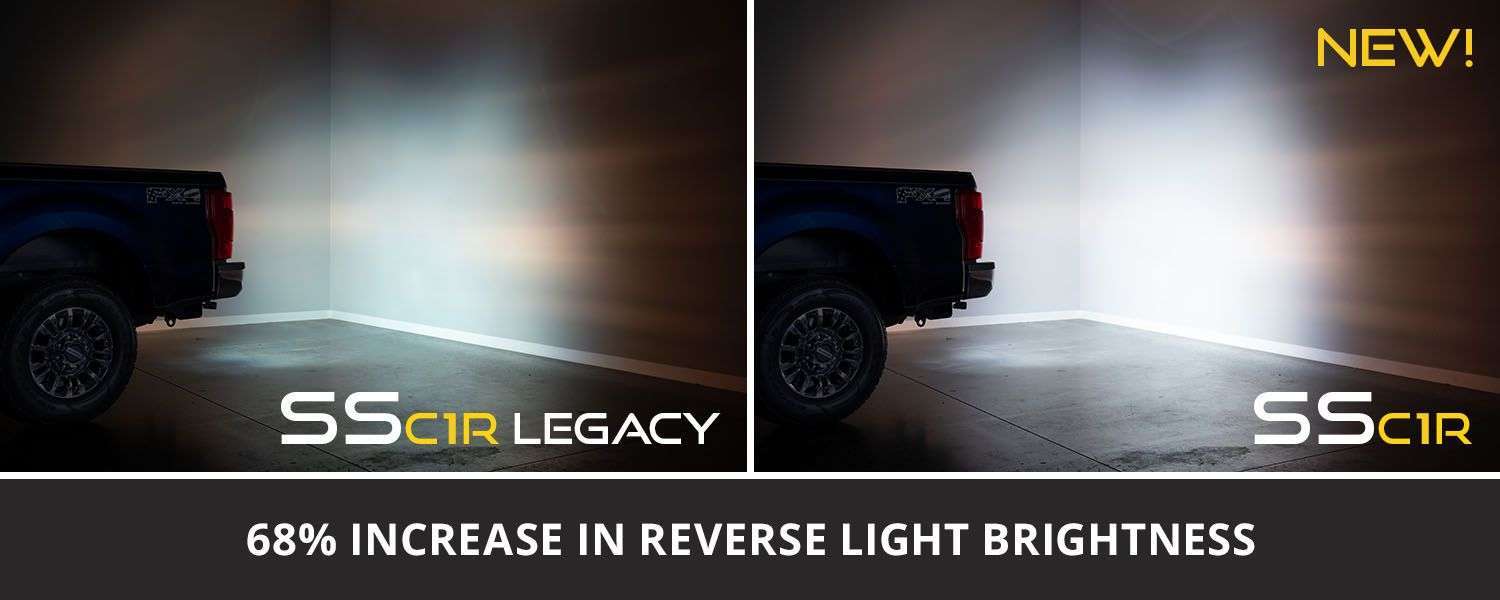

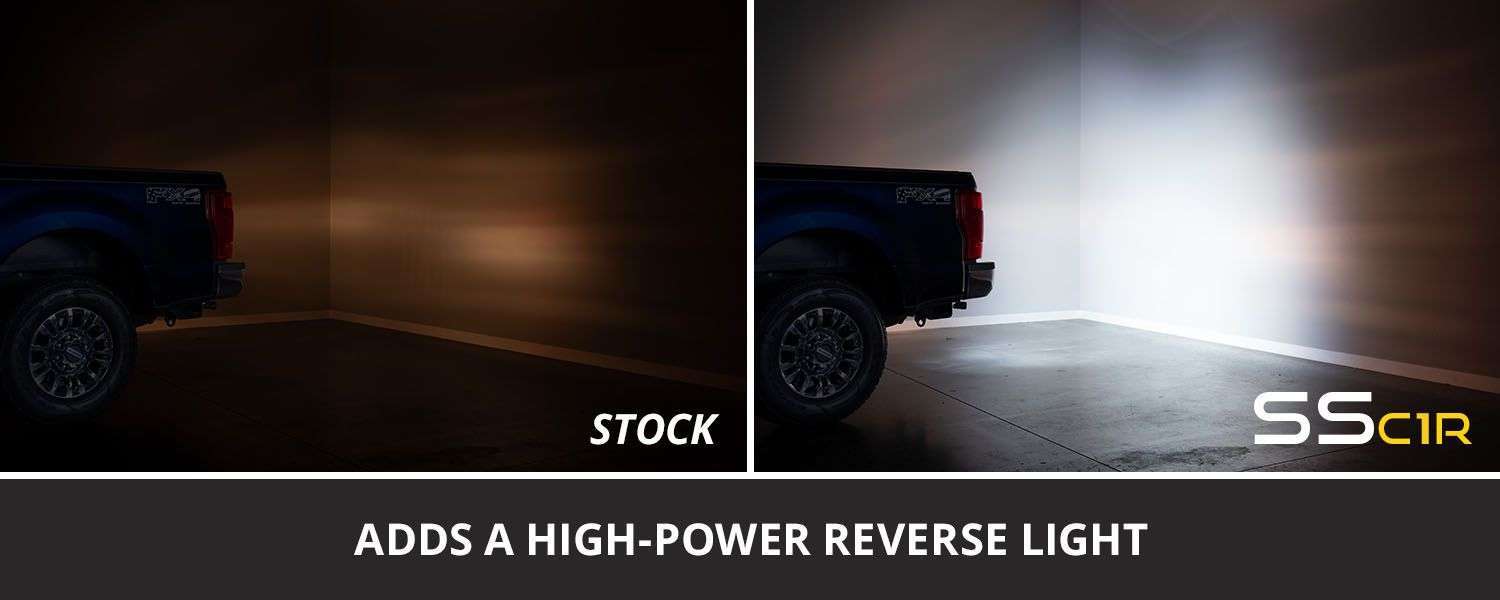

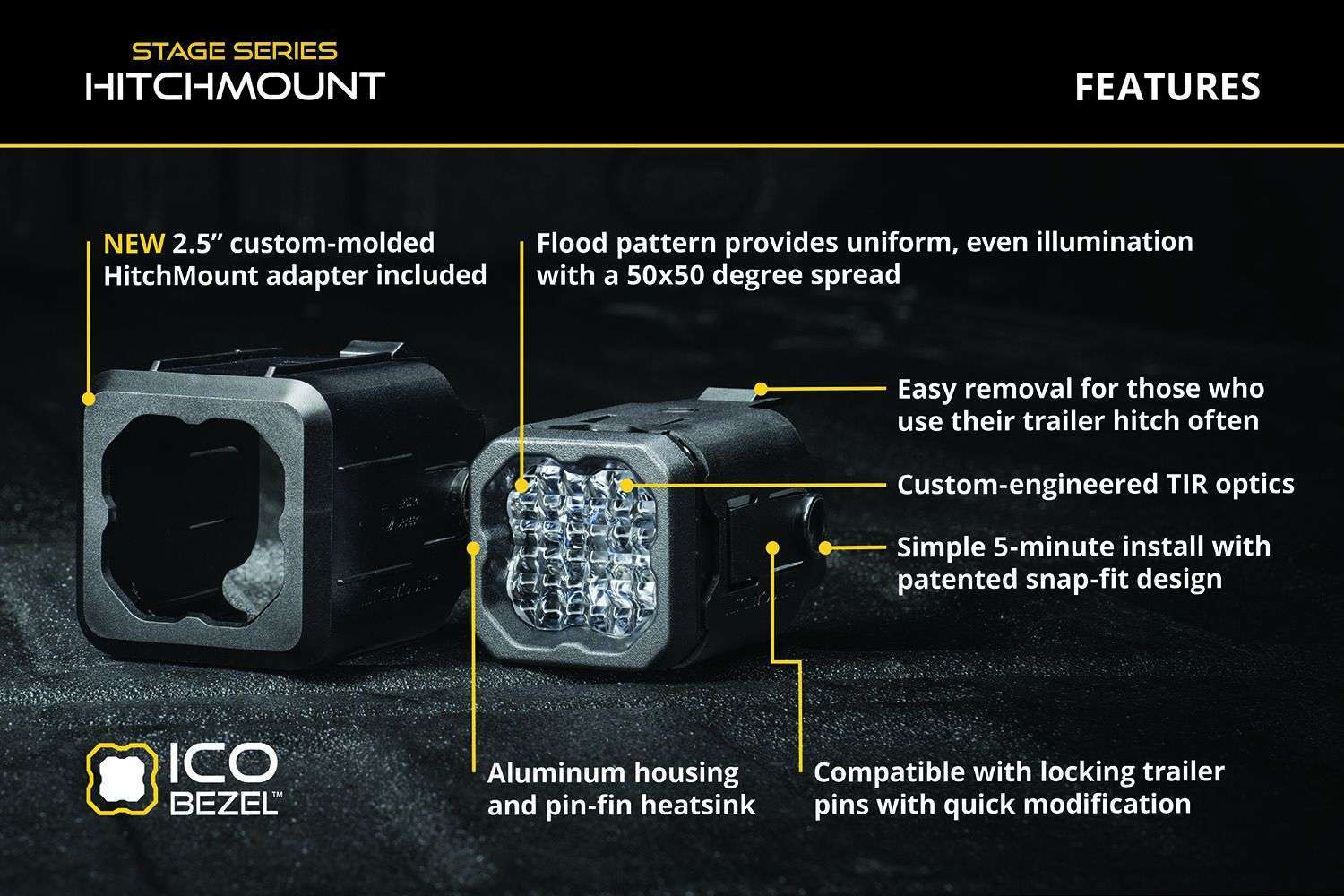

The wide 50° × 50° Flood pattern illuminates the area behind the vehicle. Red running and brake functions are separate from the White reverse output.
Choose the complete kit for your truck

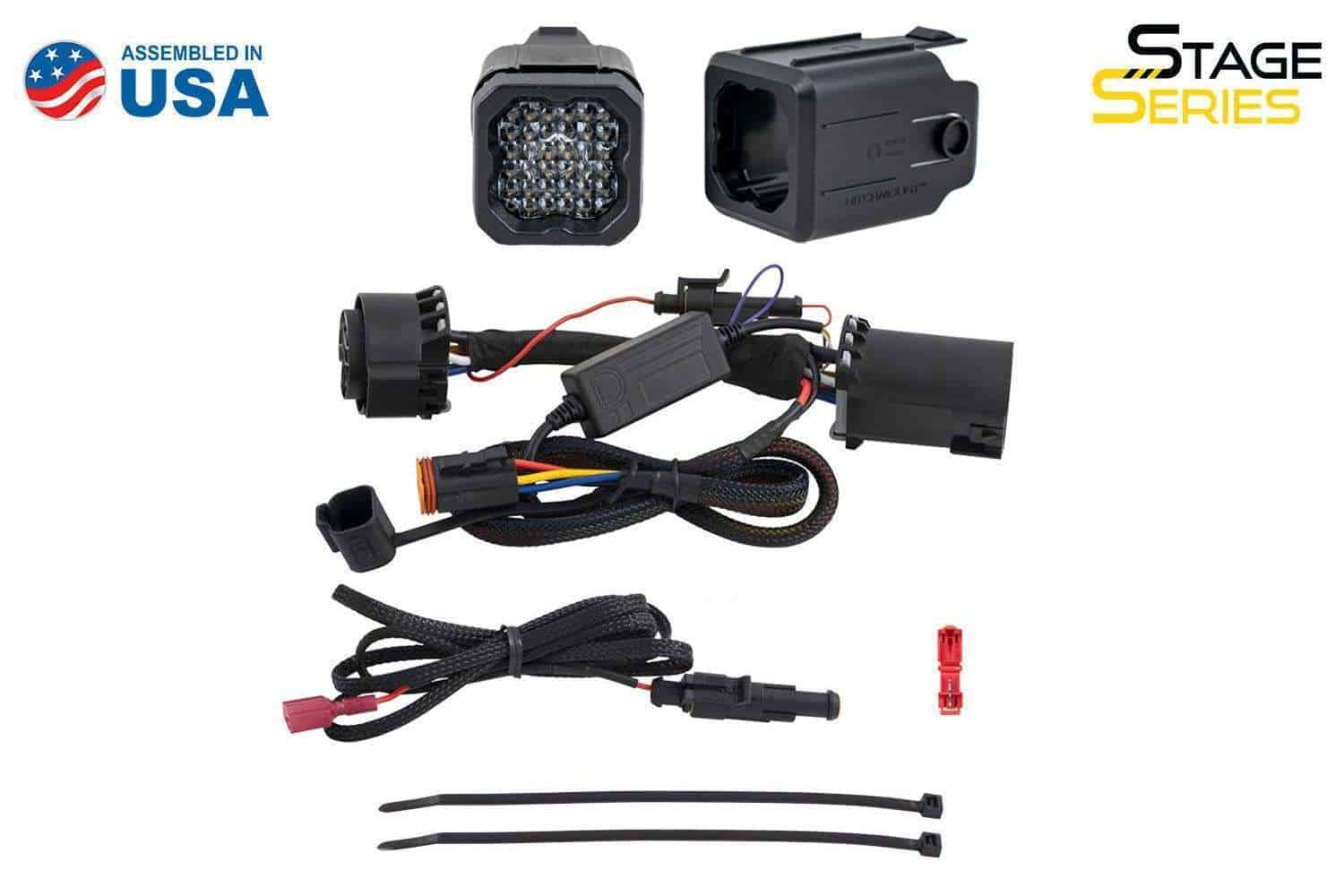

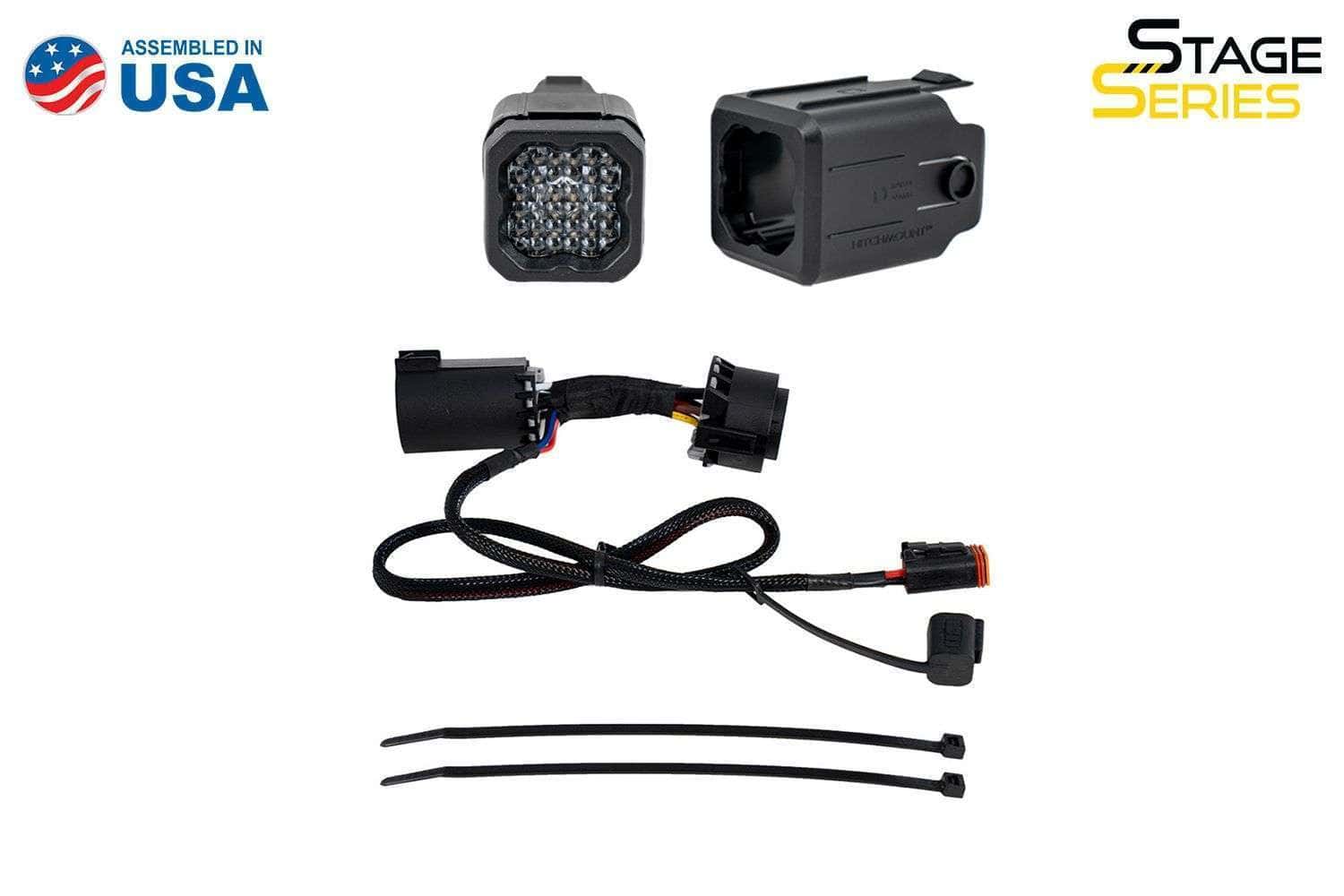

Both choices include one pod, HitchMount sleeve, inline 7-pin harness, 2.5-inch adapter sleeve and mounting accessories. C1R includes the brake-function wiring and SafetyStrobe module. A locking hitch pin is optional and is not included.


Fit the inline harness and snap-in mount
Connect behind the factory 7-pin socket, route the DT lead through the open receiver, connect the pod and engage the side clips. The guide also covers removal, the optional clean brake-signal tap and a locking pin through the plastic sleeve.
Illustrated installation guide
Manufacturer video shown on a Ford Super Duty with a 2.5-inch receiver. It demonstrates that receiver setup; it is not a Tacoma-specific installation. Confirm your receiver size and use the illustrated guide above for the correct C1/C1R wiring and mounting steps.
Warranty and common questions
Covered Stage Series lights have a limited lifetime manufacturer warranty. Commercial, industrial and fleet use is limited to eight years; wiring and other bundled accessories have their own terms. Read the manufacturer warranty.
Does C1 have a brake light?
No. C1 has White reverse and Red running functions. Select C1R + Brake for the additional brake function.
Does the 2.5-inch sleeve go on my 2016–2023 Tacoma?
No. Use the standard 2-inch sleeve for this Tacoma application.
Will a closed-back receiver work?
No. This application requires an open-back receiver so the DT lead can reach the pod. Do not drill the hitch to create a cable opening.
Can I leave the receiver occupied while towing?
Remove the HitchMount before fitting the hitch accessory. Use the supplied cap to protect the unused harness connector.
