Diode Dynamics SL2 Pro 9005 white LED bulb pair

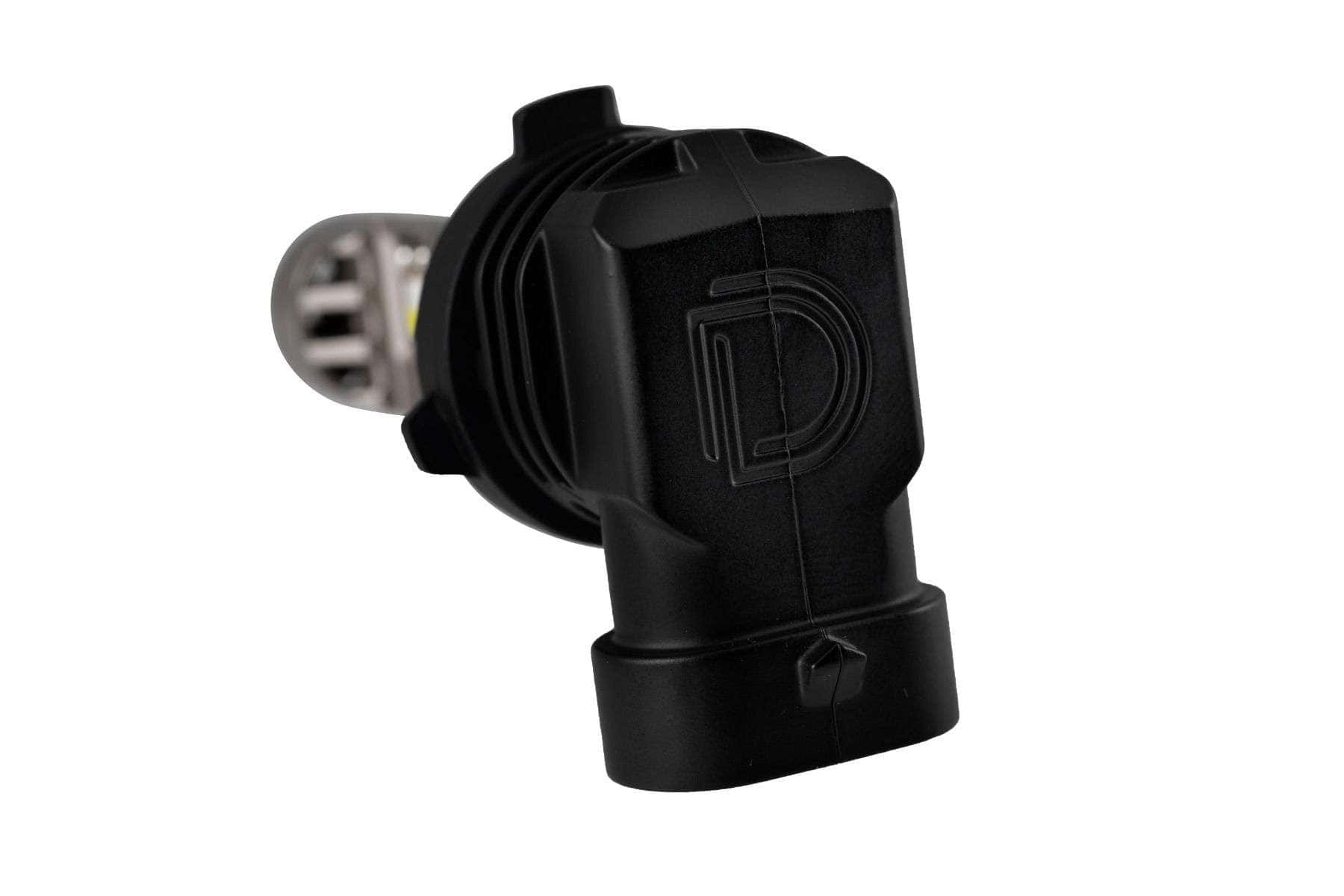

The DD0481P SL2 Pro pair brings Diode Dynamics’ fan-cooled design to the 9005 / 9011 / H10 family. Its driver is built into the bulb, so there is no separate driver box to tuck behind the housing.

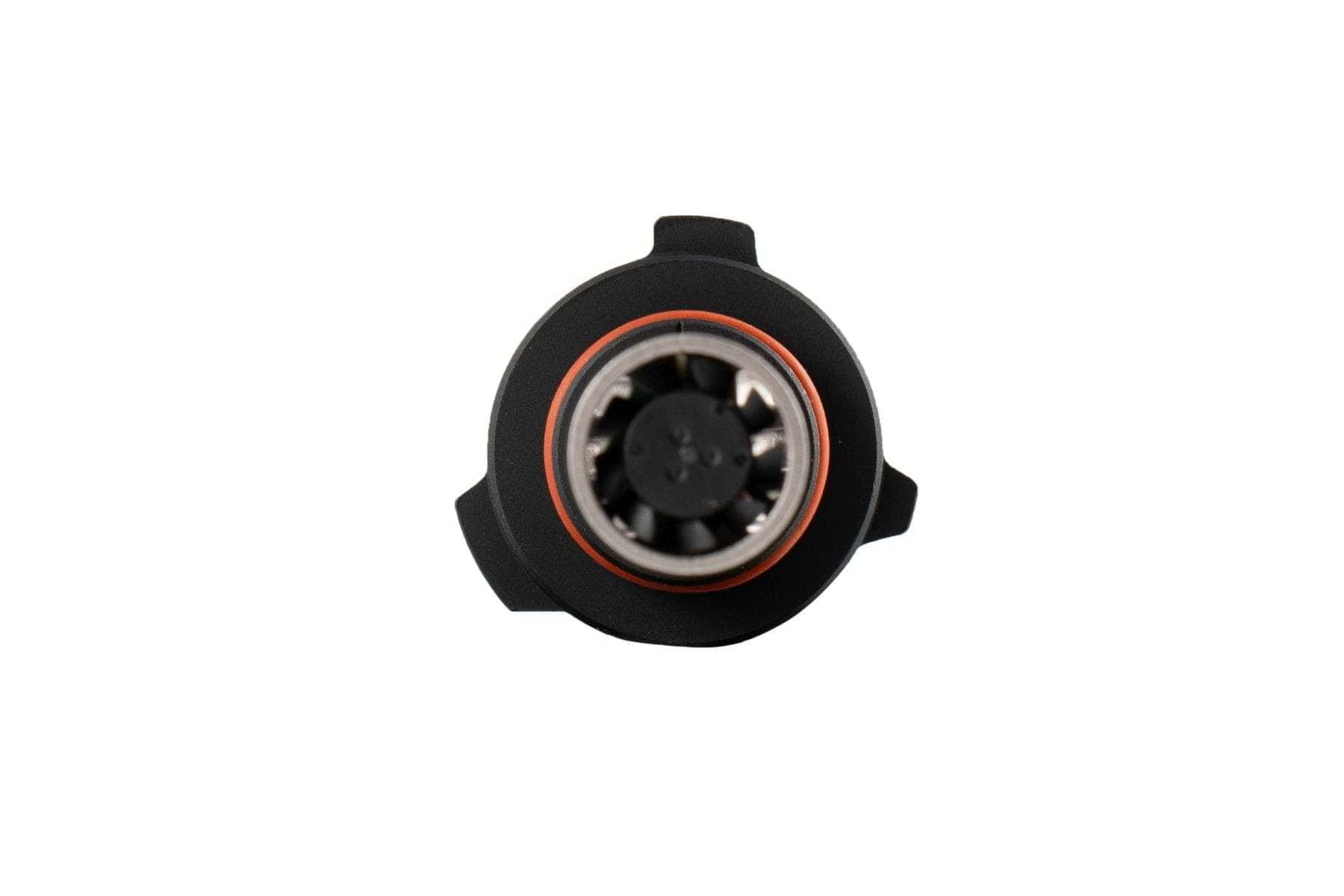

A top-mounted cooling fan sits near the LEDs, while an adjustable collar allows the bulb position to be set and locked according to the installation instructions. Fan cooling is a key difference from the fanless SL2; choose the design that suits your equipment and available space.
Specifications and contents
- Manufacturer part: DD0481P
- Listed bases: 9005 / 9011 / H10
- Colour: 6000K white
- Manufacturer output specification: 2,400 lumens per bulb
- Rated bulb power: 22W
- Operating range: 9–30V
- Included: two bulbs and one hex tool
Manufacturer output figures are not a BTS beam test or a promise of identical results in every housing.
Choose for your installation
Check the existing bulb, connector, retaining hardware and dust-cover clearance. Confirm any anti-flicker module or daytime-running-light requirements for your equipment before ordering accessories.
Does the shared 9005/9011/H10 listing confirm my vehicle fit?
It identifies the bases listed for DD0481P. Confirm your actual housing and electrical requirements separately, especially when the lamp also operates as a daytime running light.
Intended use
These bulbs are not compliant for public-road headlight use in the United States. Fog-light and other applications must meet applicable local requirements. Verify the intended application and local rules before installation.
Comparing designs for the 9005 / 9011 / H10 family? Read our Diode Dynamics SL2 vs SL2 Pro guide for cooling, colour and bulb-selection differences.
