Diode Dynamics 9006 XP80 LED bulb pair
The 9006 XP80 pair combines 6000K cool white light with side-facing and forward-facing LEDs in an aluminum housing. It offers higher listed bulb output than the 9006 HP48 in the same documented fog-light application.
Manufacturer-listed specifications
- Manufacturer pair SKU: DD0142P
- Quantity: two bulbs
- Bulb designation: 9006
- Manufacturer-listed output: 510 lumens per bulb
- Light colour: 6000K Cool White
- Light distribution: omnidirectional, 270 degrees
- Power: 5.67W
- Input voltage: 9–16V
- Current: 0.43A at 13.2V
- Operating temperature: -40°C to 85°C (-40°F to 185°F)
- Connector: OEM-size plug-and-play type
- Polarity: nonpolar
- Manufacturer compatibility note: not CK-compatible
- Manufacturer warranty: three-year replacement limited warranty, subject to its terms
Match the actual fog lamp
For example, Diode Dynamics lists this exact pair for the fog lights of the 2001 Hyundai XG300. Verify the actual 9006 fog-lamp equipment; other vehicles and aftermarket housings need their own application check.
The manufacturer lists these bulb cross-references: 9006XS, 9006, 9006ST, 9006XV, 9006EB, 9006XSST, 9006CB, 9006HP, 9006XSCB, 9006SU. Match the actual connector, retaining arrangement and clearance before choosing a replacement.
Confirm that the bulb seats correctly and any lamp cover closes. Check the finished operation and aim. Listed lumens describe bulb output; the installed beam also depends on the optics and bulb position.

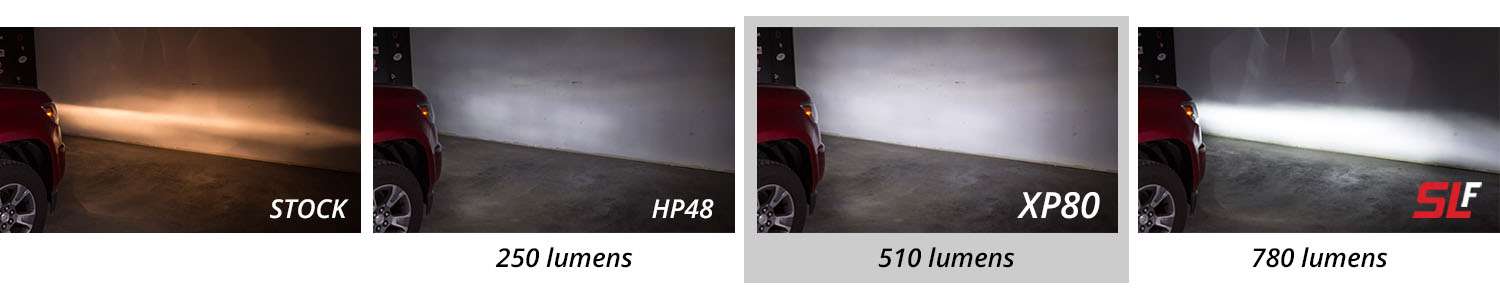

For a cosmetic alternative in the same documented fog-light application, compare the 9006 HP48 pair.
Browse LED bulbs by listed base.
Does a 9006 base make XP80 a headlight upgrade?
No. The documented application here is a fog lamp. Bulb-base compatibility alone does not establish the optical performance or suitability needed for a headlight.
