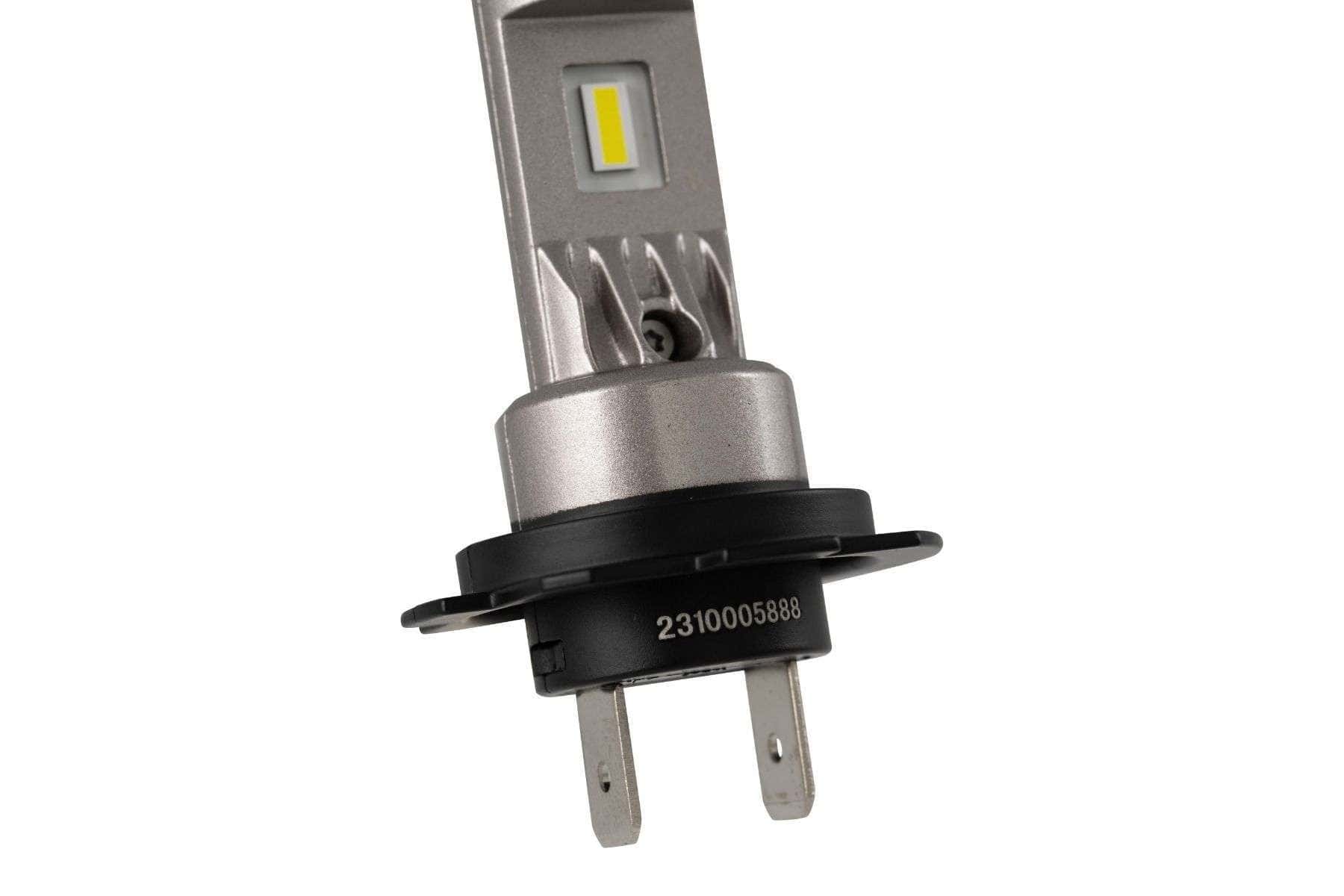

Diode Dynamics H7 SL2 LED bulb pair
Choose a fanless H7 SL2 pair with an integrated driver and passive heatsink. The white and yellow versions are separate options, each supplied as two bulbs.
Choose white or yellow
- 6000K white: DD0473P
- 3000K yellow: DD0474P
Select the colour you want in the product options. Each pair emits one colour; it does not switch between white and yellow.
Specifications and installation
- Listed bulb bases: H7
- Rated power: 14W per bulb
- Operating voltage: 9–30V
- Cooling: passive heatsink, without a fan
- Driver: integrated into the bulb
- Package: two bulbs
Compare your existing bulb, connector and retaining hardware, and check heatsink and dust-cover clearance. Electrical requirements depend on the equipment; a shared base designation alone does not confirm vehicle fitment.

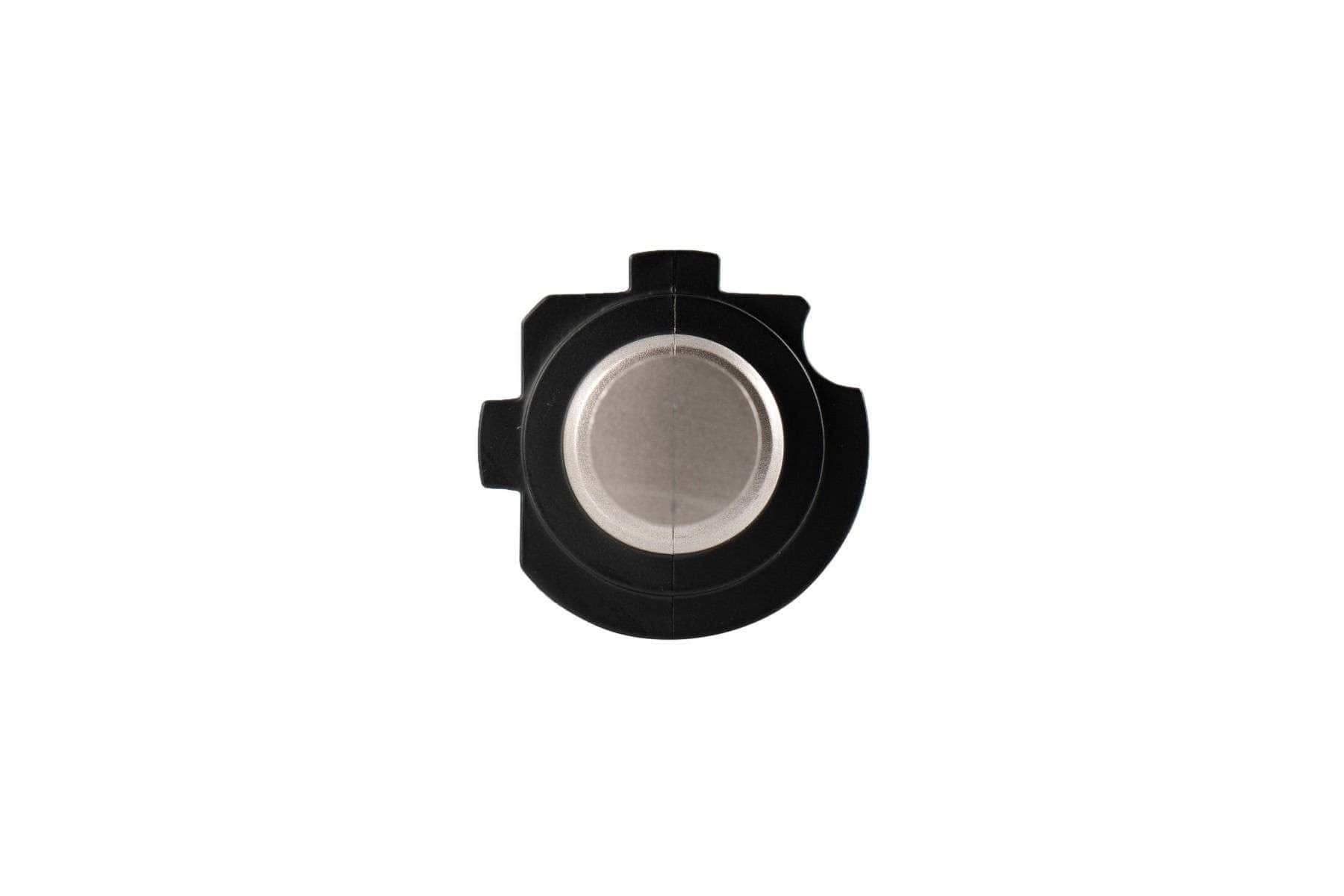

Can I rotate the H7 SL2 collar?
No. Diode Dynamics states that the H7 collar cannot be adjusted. Check the retaining arrangement and installed orientation in your housing before choosing this pair.
Intended use
These bulbs are not compliant for public-road headlight use in the United States. Fog-light and other applications must meet applicable local requirements.
For the differences between the fanless SL2 and fan-cooled Pro designs, read our Diode Dynamics SL2 vs SL2 Pro guide. Its H11 product examples do not establish H7 vehicle fitment.
