Product Overview
Replace compatible factory fog lamps with the focused output and factory-style appearance of the Diode Dynamics SS3 SAE Type A Fog Light Kit. The kit combines two SS3 3-inch Round LED Pods with Type A mounting brackets, round bezels, plug-and-play adapters, and mounting hardware.
Diode Dynamics uses custom-engineered Total Internal Reflection optics to collect and direct LED output into a wide, controlled SAE Fog beam pattern. When installed as a pair and aimed according to applicable regulations, the Fog pattern meets the SAE J583 standard for use as a fog lamp.
Key Features & Benefits
Advanced TIR Optics for Focused Output
Each SS3 LED pod uses a custom-engineered Total Internal Reflection optic rather than a traditional reflector and separate outer lens.
The TIR optic collects light from the LEDs and directs it into the intended beam pattern. It also serves as the pod’s main lens, helping reduce internal light loss and unwanted glare while improving usable output.

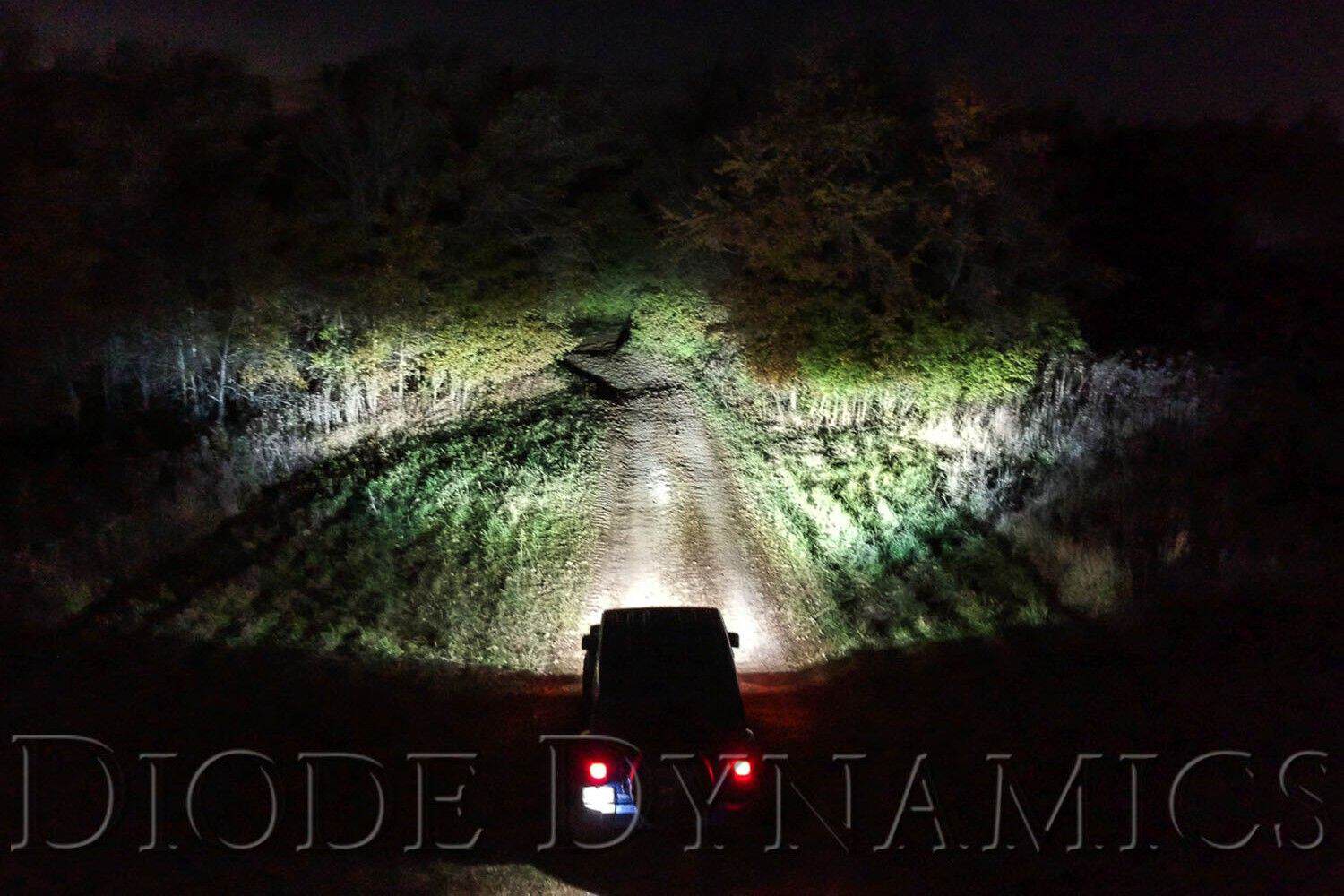

Wide SAE Fog Beam Pattern
The SAE Fog pattern uses Diode Dynamics’ FineLine optic to produce a wide field of view across an approximately 80-degree spread.
This beam is designed to illuminate the area directly ahead and toward the sides of the vehicle, making the SS3 a functional upgrade for compatible factory fog lights.
When installed as a pair and properly aimed, the Fog pattern meets the SAE J583 standard. Road-use requirements can vary, so confirm local regulations governing installation, aiming, color, and application.

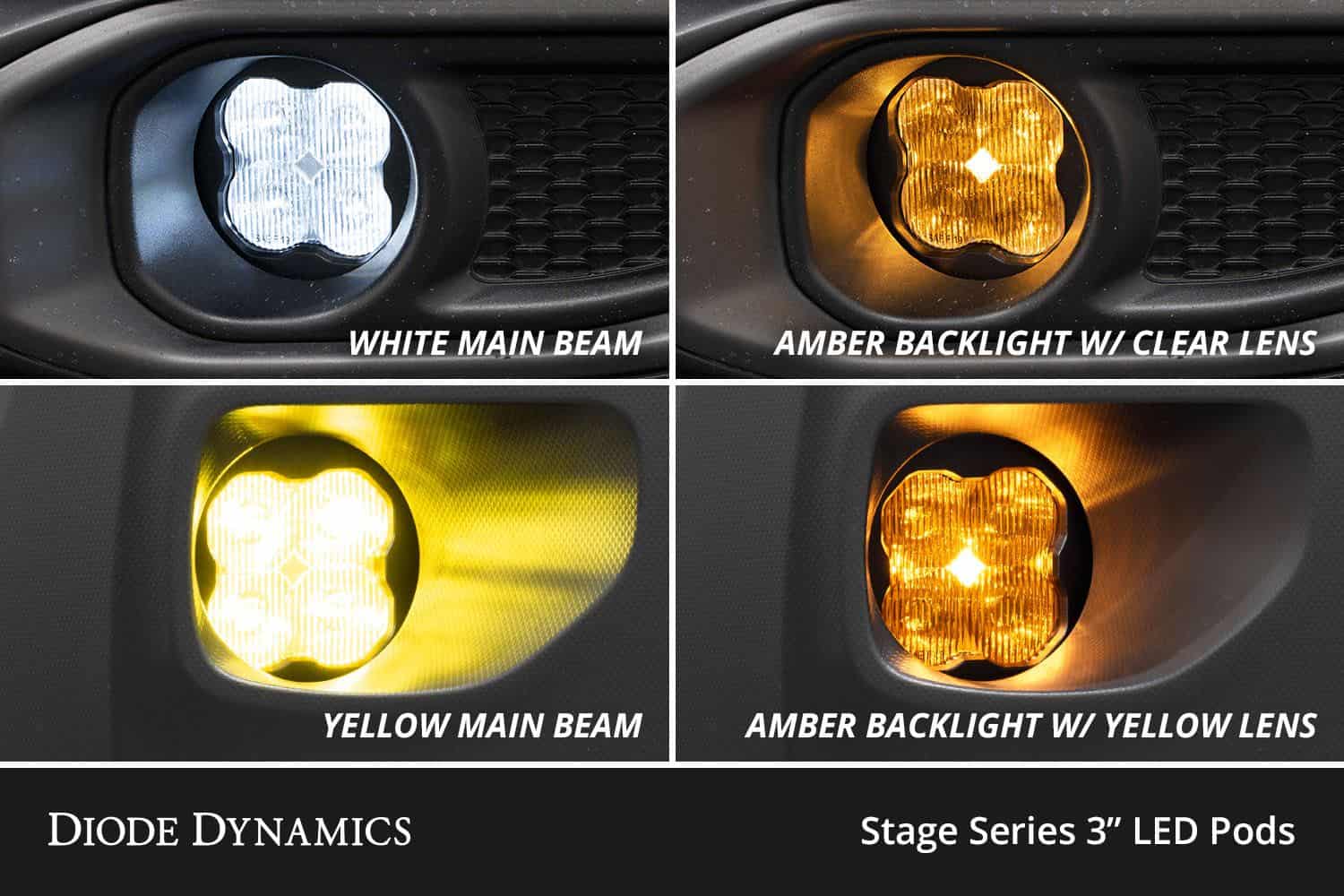

Cool White or Selective Yellow Output
Choose the main-beam color that best suits your vehicle and driving preferences:
- Cool White: 6000K output designed to coordinate with many factory LED lights
- Selective Yellow: 3000K output offering greater visual contrast in poor weather and a distinctive appearance
Available colors may vary by selected power level and current product options.
Sport, Pro, and Max Power Levels
The SS3 is available in three performance levels, allowing you to select the output and price point that fits your application.
- Sport: Entry-level SS3 option offering focused output and strong overall value
- Pro: Higher-power option with approximately twice the total power of the Sport model
- Max: Highest-performance option using advanced automotive LED emitters for increased power and intensity
Exact output, power consumption, and electrical specifications vary by selected model. Review the applicable Sport, Pro, or Max specifications before ordering.
Integrated Amber Backlight
Each SS3 LED pod includes an amber backlight that illuminates the TIR optic independently from the main fog beam.
The included backlight tap wires allow the accent lighting to be connected to a compatible vehicle function. Backlight wiring requirements and permissible road use depend on the vehicle and local regulations.
Round Bezels for a Factory-Style Appearance
Included round bezels help the SS3 pods integrate cleanly into compatible factory fog-light openings.
The bezels provide a more finished, factory-style presentation while retaining the performance and serviceability of the SS3 LED pod platform.
Plug-and-Play Type A Installation
Custom-moulded Type A brackets allow the SS3 pods to replace compatible factory fog-light assemblies without modifying the vehicle.
The included H11-to-4-pin DT backlight tap wires connect the SS3 pods to compatible factory bulb sockets. The amber backlight requires the included harness to be tapped into the desired compatible vehicle function.
Durable Powder-Coated Aluminum Housings
Each SS3 pod uses a powder-coated aluminum housing designed for demanding automotive use.
Stage Series lighting has undergone testing for operation from -40°F to 185°F, along with vibration, moisture-intrusion, and corrosion testing performed to SAE standards.
Engineered and Assembled in the USA
Diode Dynamics engineers and assembles Stage Series lighting products in the United States, supporting direct control over product development, assembly, and testing.
Performance, Compatibility & Use Cases
The SS3 Type A Fog Light Kit is designed as a direct replacement for compatible factory fog lamps. It is suitable for drivers seeking a wider and more focused fog-light beam, selectable white or yellow output, an amber accent backlight, and a clean round-bezel appearance.
Known applications include:
Acura
- 2013–2018 Acura ILX
- 2013–2018 Acura RDX
- 2012–2014 Acura TL
- 2011–2013 Acura TSX
Fiat
- 2012–2016 Fiat 500
Ford
- 2013–2016 Ford C-Max
- 2014–2019 Ford Fiesta ST
- 2005–2007 Ford Freestyle
- 2013–2016 Ford Fusion
- 2006–2009 Ford Mustang
- 2015–2017 Ford Mustang
- 2004–2007 Ford Ranger STX
- 2008–2009 Ford Taurus X
Honda
- 2013–2015 Honda Accord
- 2016–2021 Honda Civic
- 2013–2015 Honda Civic Si Sedan
- 2013–2015 Honda Crosstour
- 2012–2014 Honda CR-V
- 2013–2016 Honda CR-Z
- 2015–2017 Honda Fit
- 2010–2014 Honda Insight
- 2019–2020 Honda Odyssey
- 2012–2019 Honda Pilot
Nissan
- 2009–2021 Nissan Frontier
- 2007–2012 Nissan Sentra
- 2017–2019 Nissan Titan
- 2016 Nissan Titan XD
- 2005–2015 Nissan Xterra
Scion
- 2013–2016 Scion FR-S
Subaru
- 2013–2017 Subaru BRZ
- 2016–2023 Subaru Crosstrek
- 2013–2015 Subaru XV Crosstrek
- 2014–2023 Subaru Forester
- 2012–2014 Subaru Impreza
- 2015–2023 Subaru Impreza with Eyesight Package
- 2010–2014 Subaru Legacy
- 2010–2012 Subaru Outback
- 2022–2023 Subaru Outback Wilderness
- 2015–2021 Subaru WRX
- 2015–2017 Subaru WRX STI
Fitment may depend on the factory fog-light configuration, trim, option package, and regional vehicle specification. Confirm that the vehicle has the compatible Type A factory fog-light assembly before ordering.
Installation, Fitment & Technical Details
Installation replaces the compatible factory fog-light assemblies with the supplied Type A brackets, SS3 pods, and round bezels.
Basic installation process:
- Remove the factory fog-light assemblies.
- Attach the SS3 pods to the supplied Type A brackets.
- Install the assembled brackets in the factory mounting locations.
- Connect the included adapters to the compatible factory bulb sockets.
- Connect the amber backlight to the desired compatible vehicle function.
- Aim both fog lamps according to applicable regulations.
The main fog-light connection is plug-and-play for the listed compatible applications. Activating the amber backlight requires an additional tap connection using the included wiring.
Technical Specifications
- Product Type: Vehicle-specific LED fog-light kit
- Manufacturer: Diode Dynamics
- LED Pod Series: Stage Series SS3
- Pod Size: 3 inches
- Pod Style: Round
- Bracket Type: Type A
- Main Beam Pattern: SAE Fog
- Beam Spread: Approximately 80 degrees
- Main-Beam Colors: 6000K cool white or 3000K selective yellow
- Backlight Color: Amber
- Power Levels: Sport, Pro, or Max
- Optic Type: Total Internal Reflection
- Housing Material: Aluminum
- Housing Finish: Powder coated
- Operating Test Range: -40°F to 185°F
- Factory Connector Adapter: H11 to 4-pin DT backlight tap wire
- Main-Light Installation: Plug-and-play on compatible applications
- Backlight Installation: Additional tap connection required
- Quantity: Pair, left and right sides
- Engineering and Assembly: USA
- Warranty: Lifetime
- Return Policy: 30-day returns with no restocking fee
- Guarantee: 100% satisfaction guarantee
Build Quality, Testing & Warranty
Diode Dynamics SS3 LED pods feature powder-coated aluminum housings and automotive-grade construction developed for long-term vehicle use.
Stage Series products have undergone temperature, vibration, moisture-intrusion, and corrosion testing completed to SAE standards. The kit is backed by a lifetime warranty.
The supplied return policy provides 30-day returns without a restocking fee and a 100% satisfaction guarantee. Return eligibility remains subject to the complete store return-policy requirements.
What’s Included
- 2x Diode Dynamics SS3 3-inch Round LED Pods
- 2x Type A mounting brackets
- 2x H11-to-4-pin DT backlight tap wires
- Round bezels
- Mounting hardware
- Mounting guide
- Quantity: One pair for the left and right sides
Upgrade Your Factory Fog Lights With Focused SS3 Output
The Diode Dynamics SS3 Type A Fog Light Kit combines vehicle-specific mounting, advanced TIR optics, an SAE Fog beam pattern, selectable white or yellow output, and amber backlighting in a durable, factory-style package.
Choose Sport, Pro, or Max output based on your lighting goals, then confirm your vehicle, trim, factory fog-light configuration, and applicable road-use requirements before ordering.
Frequently Asked Questions About the Diode Dynamics SS3 Type A Fog Light Kit
The Type A designation identifies the mounting-bracket and factory fog-light configuration used by this kit. It fits the compatible vehicles listed above when equipped with the applicable factory fog-light assembly.
When installed as a pair and aimed according to applicable regulations, the SS3 SAE Fog pattern meets the SAE J583 standard for use as a fog lamp. Confirm local requirements for light color, aiming, installation, and vehicle application.
The main fog-light connection is plug-and-play on compatible listed applications using the included brackets and adapters. Connecting the amber backlight requires an additional tap into the desired compatible vehicle function.
Sport is the value-oriented option, Pro increases total power substantially, and Max delivers the highest available performance using advanced automotive emitters. Exact output and electrical specifications vary by selected model.
Choose 6000K cool white for a modern appearance that coordinates with many factory LED lights. Choose 3000K selective yellow for greater visual contrast in poor weather and a distinctive yellow fog-light appearance.
This kit uses the SAE Fog pattern with Diode Dynamics’ FineLine optic. It produces a wide field of view across an approximately 80-degree spread to illuminate the area ahead and toward the sides of the vehicle.
The amber backlight illuminates the SS3’s TIR optic independently from the main fog beam, creating an additional accent-light function. It must be connected to a compatible vehicle circuit using the included wiring.
No modification is stated as necessary for compatible applications. The included Type A brackets replace the factory fog-light assemblies using the existing mounting locations.
Yes. The kit includes two SS3 Round LED Pods, two Type A brackets, wiring adapters, round bezels, mounting hardware, and a mounting guide for the left and right sides.
Fitment may vary by trim, factory fog-light configuration, option package, and regional specification. Confirm that your vehicle uses the compatible Type A fog-light assembly before ordering.
The Diode Dynamics SS3 Type A Fog Light Kit includes a lifetime warranty.
