Dodge Ram 1500 | Ram 2500/3500-SS3 LED Fog Light Kit

Features
-
Direct replacement for Ram 1500 & 2500/3500 fog lamps
-
SAE-compliant road-legal output
-
Includes custom bracket with bezel, for factory-style appearance
-
Plug and play, no modification needed
-
Advanced TIR optics provide high efficiency and focus
-
Durable powdercoated aluminum die-cast construction
-
Engineered and Assembled in the USA
Overview
Upgrade your Ram 1500 & 2500/3500 fog lights with the SS3 Fog Light Bracket Kit!
Featuring higher output intensity than any other 3” light on the market, these LED pods are designed for maximum functionality. Custom-engineered TIR optics project light in useful beam patterns with minimal glare, while the included bracket and bezel provide a clean, factory-style appearance—only much brighter.
Plug and Play Installation
The custom-molded brackets allow for a fast, hassle-free install. Simply remove your factory fog light assembly and bolt in the SS3 kit. Wire adapters are included to connect directly to your factory bulb sockets—no splicing or extra wiring required.
Advanced Optics
Traditional reflectors and lenses waste light and create glare. The SS3’s custom-engineered TIR optic collects all of the light from the LED and directs it exactly where it’s needed, drastically improving efficiency. Unlike other designs, the SS3’s TIR optic doubles as the main lens, boosting total light output (patent pending).
SAE Compliant Beam Patterns
-
SAE Driving: An 18×8° spread designed to supplement high beams with long-range, road-focused illumination.
-
SAE Fog (FineLine Optic): An ultra-wide 80° spread for complete coverage in front of your vehicle. Available in cool white or selective yellow for better performance in poor weather.
When installed and aimed correctly, these patterns meet SAE J581 (Driving) and SAE J583 (Fog) standards for legal on-road use.

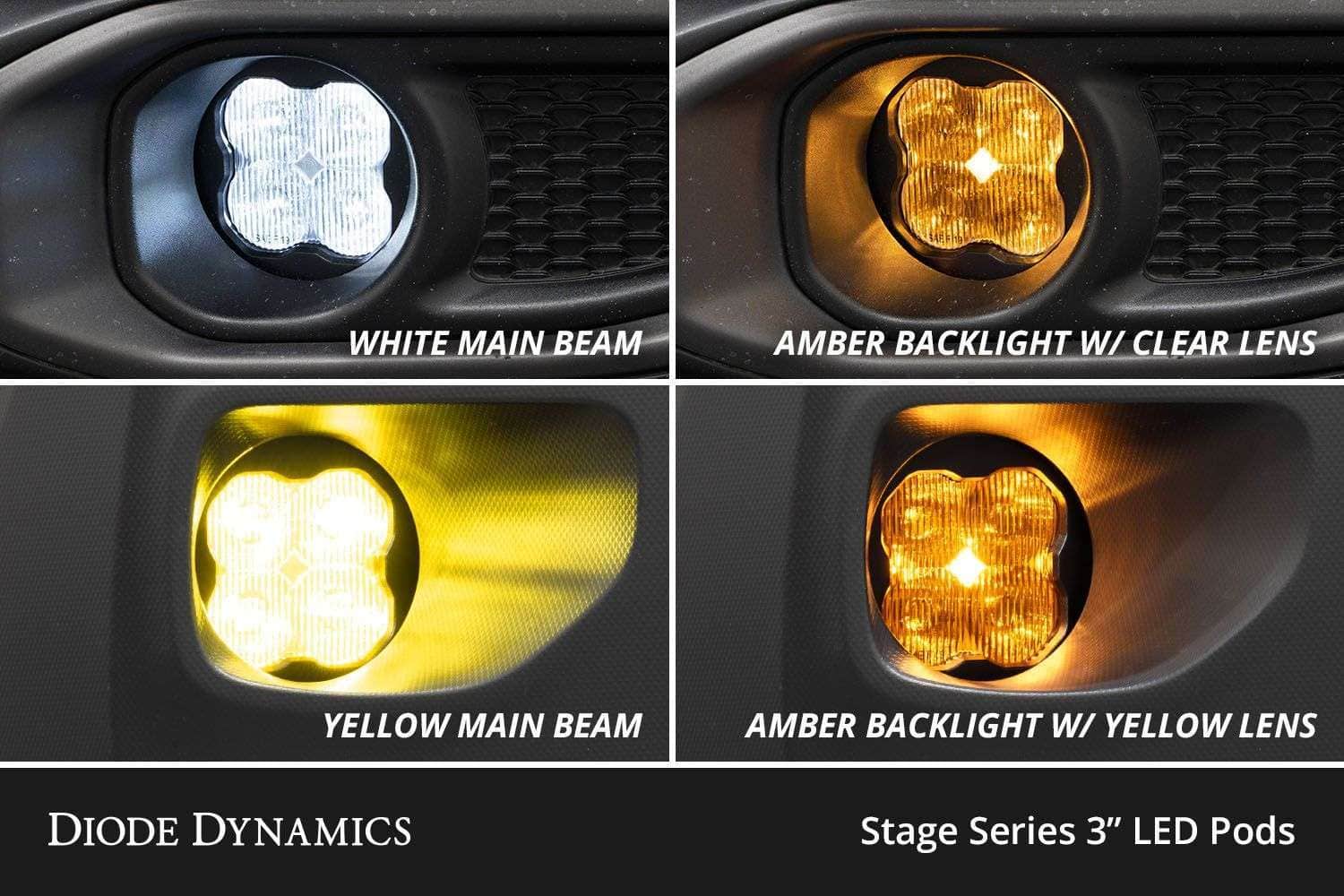

Backlight Functionality
Each SS3 LED pod includes a brilliant amber backlight that fully illuminates the TIR optic. This modern accent light provides a distinctive look compared to small indicator LEDs used in other products. The included harness lets you wire it to your desired vehicle function.
Color Options
-
Cool White (6000K): Crisp white light to match most factory LEDs.
-
Selective Yellow (3000K): High-contrast lighting for fog, rain, and snow.
Power Levels
-
Sport: High-intensity LEDs with unbeatable value.
-
Pro: Double the total power of Sport, for serious performance.
-
Max: Next-generation automotive emitters delivering extreme intensity—the brightest option available.
Proven Reliability
Stage Series lighting is tested to SAE standards for durability, vibration, moisture intrusion, and corrosion. Rated to operate from -40°F to 185°F, these lights are built to perform in all conditions—on and off the road.
What’s Included
-
Two (2) SS3 3” Standard LED Pods
-
Two (2) Ram horizontal brackets
-
Two (2) 9006 DT 4-Pin backlight tap wires
-
Mounting hardware
-
Mounting guide
Quantity: Pair (Left and Right Side)
Warranty: Lifetime warranty
Return Policy: 30-day returns, no restocking fee, 100% satisfaction guarantee
Fitment
-
Application: Fog Light
-
Make: Ram
-
Model: 2009-2012 Ram 1500, 2010-2018 Ram 2500/3500
Note: This kit replaces OEM fog lamps. If your truck did not come with fog lamps, extra hardware and wiring may be required.
Choose the correct Diode Dynamics configuration
| Manufacturer SKU | Configuration |
|---|---|
| DD7076 | SS3 Sport Type Ram Horiz Kit ABL White SAE Fog |
| DD7077 | SS3 Sport Type Ram Horiz Kit ABL Yellow SAE Fog |
| DD7079 | SS3 Pro Type Ram Horiz Kit ABL White SAE Fog |
| DD7080 | SS3 Pro Type Ram Horiz Kit ABL Yellow SAE Fog |
| DD7081 | SS3 Max Type Ram Horiz Kit ABL White SAE Fog |
| DD7082 | SS3 Max Type Ram Horiz Kit ABL Yellow SAE Fog |
Questions and answers
How do I choose the correct version?
Select the options that match the manufacturer SKU and configuration table on this page. The listed choices cover DD7076, DD7077, DD7079, DD7080, DD7081, DD7082; each row is a real product configuration.
What is included?
Two (2) SS3 3” Standard LED Pods; Two (2) Ram Horizontal brackets; Two (2) 9006 DT 4-Pin backlight tap wires; Mounting hardware; Mounting guide
What vehicle details must match?
Match the stated model years, model and any bumper, trim or factory-equipment requirements. A kit for one bumper or fog-light opening is not automatically compatible with another configuration of the same vehicle.
Explore pod lights, vehicle-specific lighting kits and matching wiring harnesses.
Manufacturer warranty
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
