GMC Sierra 1500 | Sierra 2500/3500 | SS3 LED Fog Light Kit

Features

• Direct replacement for factory GMC Sierra 1500/2500/3500 fog lamps

• SAE-compliant for road-legal use

• Includes custom bracket with bezel for a clean, factory-style appearance

• Plug-and-play installation – no cutting or splicing

• Advanced TIR optics for maximum efficiency and focus

• Rugged powder-coated aluminum die-cast housing

• Engineered and assembled in the USA

Overview

Upgrade the fog lights on your GMC Sierra 1500 with the SS3 LED Fog Light Bracket Kit from Diode Dynamics. With higher output intensity than any other 3-inch LED pod on the market, the SS3 delivers functional, road-legal performance in a durable, compact design. The included custom brackets and bezel ensure a professional, factory-style fit with a major boost in brightness.

Plug-and-Play Installation

The SS3 kit installs in minutes with custom-molded brackets designed specifically for your Sierra.

• Remove your factory fog lamp assembly

• Bolt in the new SS3 brackets with included hardware

• Use the supplied adapters to connect directly to your factory bulb sockets

No extra wiring or modifications required.

Advanced TIR Optics

Unlike traditional reflectors or lenses that waste light and create glare, the Total Internal Reflection (TIR) optics in the SS3 collect and focus every bit of LED output exactly where it’s needed. The result is a sharper, more efficient beam with less stray light.

• SAE Driving Beam (18×8° spread): Perfect as a high-beam supplement or for general forward visibility at higher speeds.

• SAE Fog Beam (FineLine Optic, 80° spread): Extremely wide coverage with high-intensity output—ideal for poor weather and road illumination.

Both options are fully SAE-compliant when properly aimed:

• Driving = SAE J581 (auxiliary high beam)

• Fog = SAE J583 (fog lamp)

Backlight Accent

Each SS3 LED pod features a built-in amber backlight that illuminates the optic for a bold, modern accent. Use the included harness to tap the backlight into your desired vehicle function for extra style alongside performance.

Color Options

• Cool White (6000K): Crisp output, matches most factory LEDs

• Selective Yellow (3000K): High-contrast lighting for fog, rain, and snow

Power Levels

Choose the SS3 model that fits your needs and budget:

• Sport: Best value, high-intensity output

• Pro: Double the power of Sport, significantly brighter

• Max: Cutting-edge automotive emitters delivering extreme performance—the brightest 3″ pod available

Proven Reliability

Built to perform in real-world conditions, the SS3 is tested for operation from -40°F to 185°F, as well as for vibration, moisture intrusion, and corrosion. All testing meets SAE standards, ensuring OEM-grade durability.

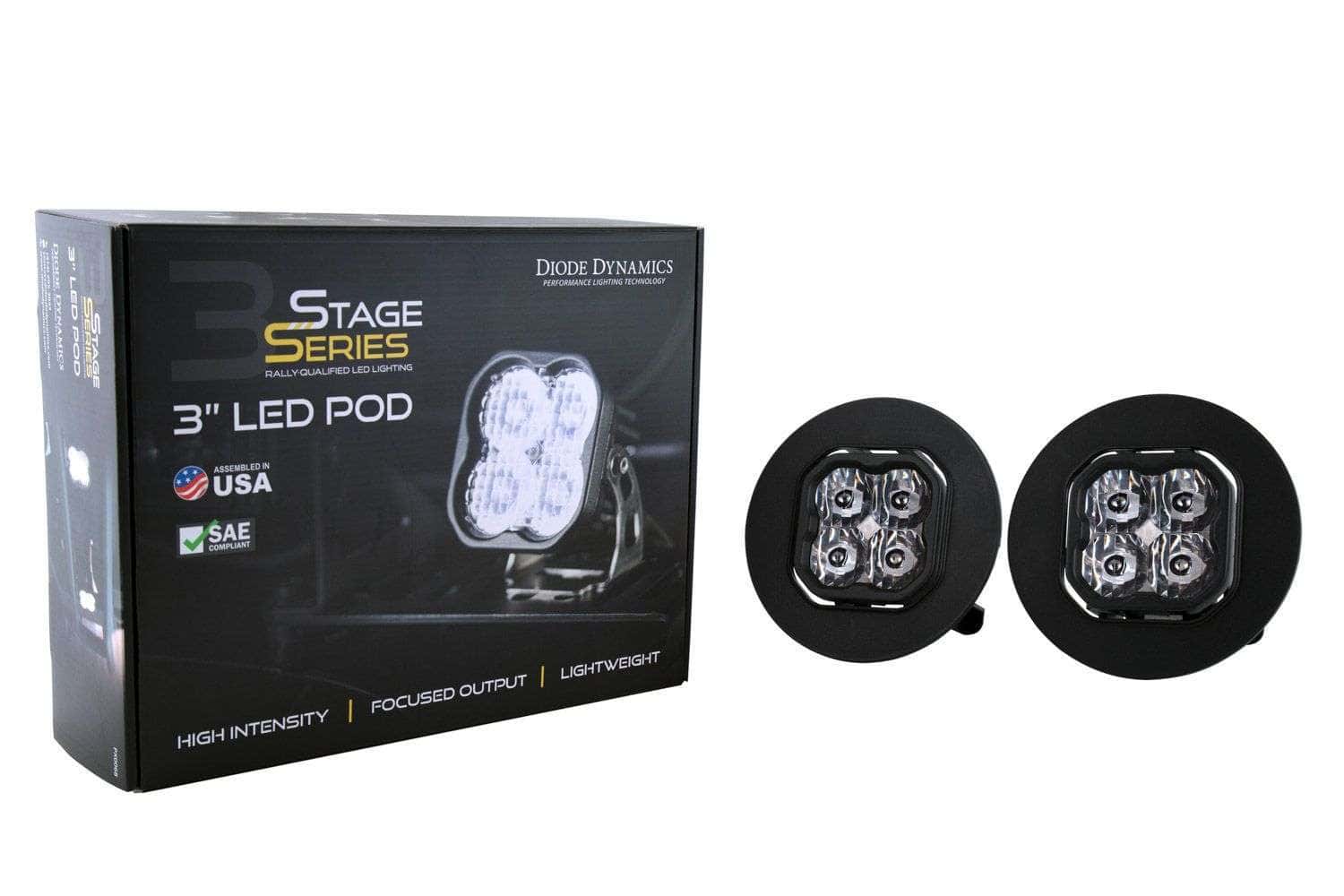

What’s Included

• Two (2) SS3 3” Standard LED Pods

• Two (2) 5202 DT Adapters

• Two (2) Type GM5 Brackets

• Mounting hardware

• Mounting guide

Quantity: Pair (Left & Right)
Warranty: Lifetime warranty
Returns: 30-day return policy, no restocking fee – 100% satisfaction guaranteed

Fitment

• Application: Fog Light

• Make: GMC

• Model:

  • 2007-2013 GMC Sierra 1500
  • 2007-2014 GMC Sierra 2500/3500

• Note: Not compatible with 2007 Classic model. This kit is designed as a direct replacement for OEM fog lamps. Vehicles without fog lamps may require additional hardware and wiring.

• Electrical Compatibility: Tested and confirmed – no electrical issues.
