2021–2023 Ford F-150 · SS3 fog pocket kit
Four pods. Two jobs. One factory-fit package.
Put a dedicated pair of fog lights and a separate pair of off-road lights into your F-150’s original fog pockets. Choose White or Yellow fog output, then Sport, Pro or Max performance. Every complete kit keeps the Combo off-road pair white.

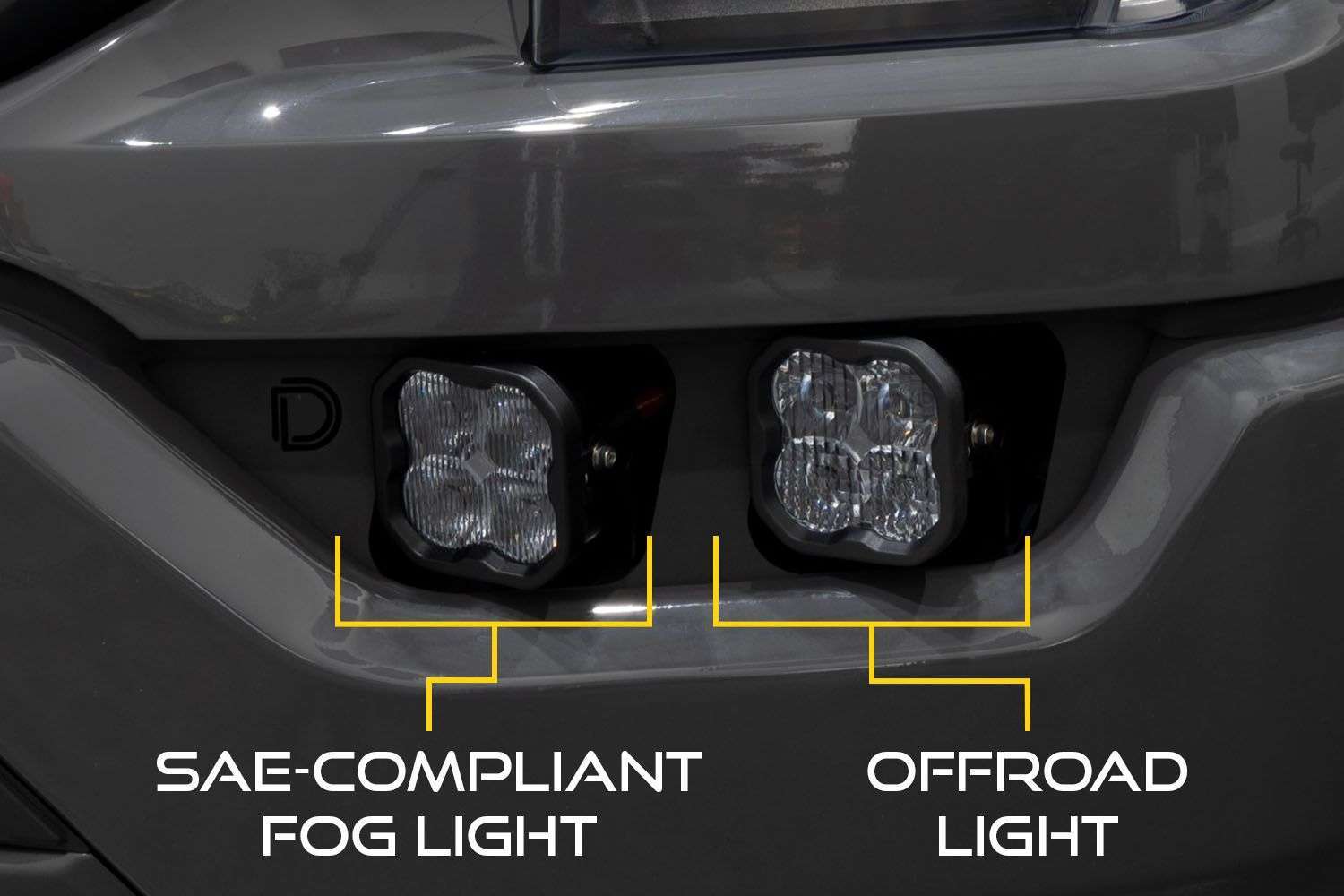

A fog beam for the road. A Combo beam for off-road.

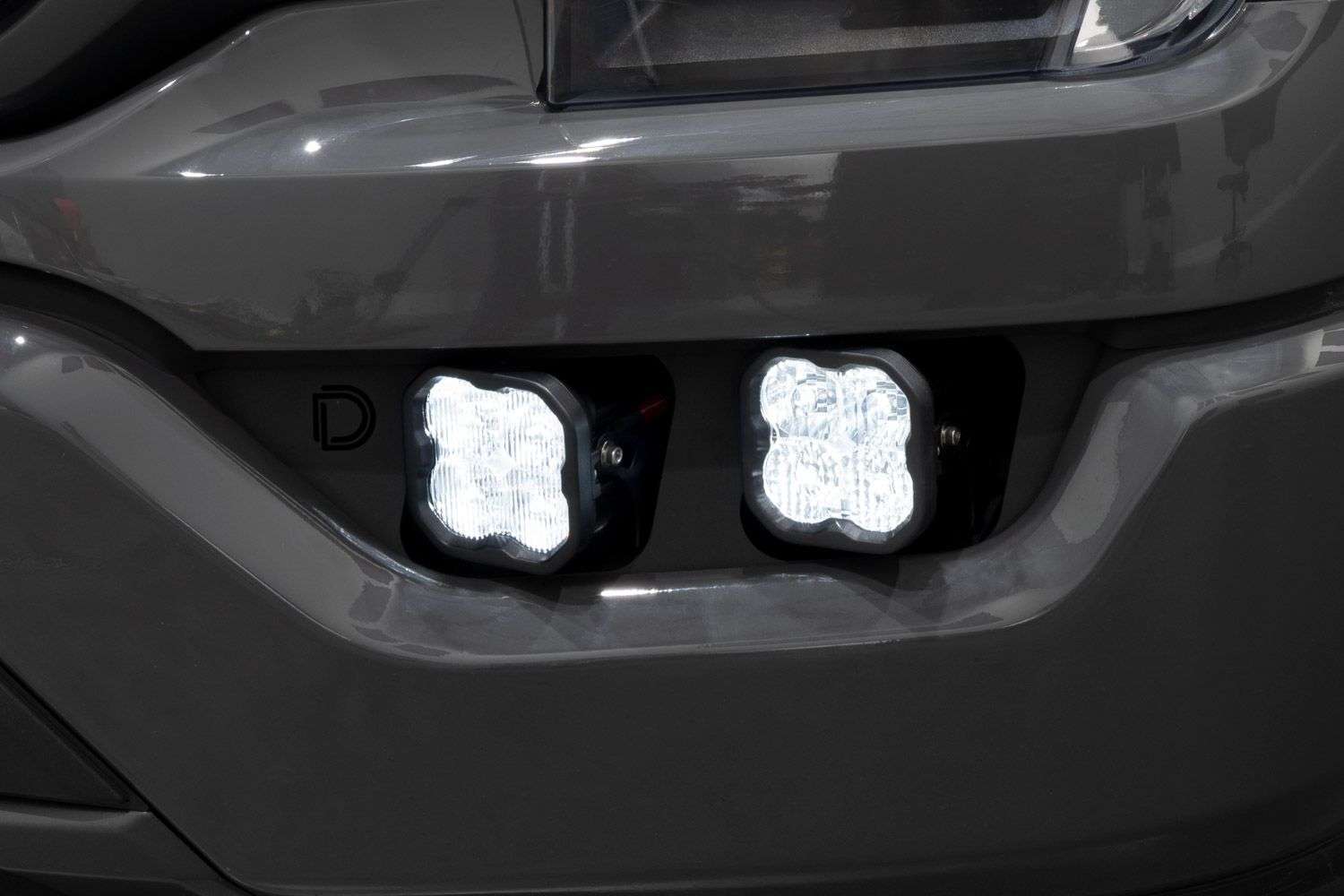

Two SAE Fog pods
A wide, controlled foreground beam. These connect to the factory fog-light circuit through the appropriate supplied adapters.
Two White Combo pods
A separate pair adds forward reach and spread for off-road driving. Operate them with the supplied toggle switch or a suitable factory auxiliary switch.
Diode Dynamics specifies the SAE Fog pattern to meet SAE J583 when installed as a pair and correctly aimed. Local installation and use requirements still apply. The Combo pair is for off-road use.


Choose the fog-beam colour—not the backlight
White · 6000K
White fog pods and White Combo pods for a consistent white main-beam appearance.

Selective Yellow · 3000K
Two Yellow fog pods paired with two White Combo pods. Choosing Yellow does not make all four lights yellow.

All four included pods have an amber accent backlight. This is a separate low-power function, not the White/Yellow main-beam choice. Factory LED and halogen fog-light trucks use different backlight connections, detailed in the guide.

Compare Sport, Pro and Max
All three complete-kit tiers use the same four-pod arrangement and vehicle-specific mounting system. The output ratings below describe one individual pod, not the whole kit. White/Yellow values refer to the SAE Fog pod; the Combo pods are always White.
| Tier | Main-beam power per pod | Measured Fog output per pod | Measured White Combo output per pod | White / Yellow Fog intensity |
|---|---|---|---|---|
| Sport | 14.5 W | 1,520 lm White / 1,300 lm Yellow | 1,520 lm | 10,600 / 9,050 cd |
| Pro | 36 W | 3,000 lm White / 2,700 lm Yellow | 3,000 lm | 11,900 / 10,900 cd |
| Max | 38.5 W | 3,500 lm White / 3,500 lm Yellow | 3,500 lm | 18,000 / 12,500 cd |
Sport
The lowest-power tier in this kit family, with dedicated fog and off-road functions.
Pro
Higher measured light output than Sport, with the same choice of White or Yellow fog optics.
Max
The highest listed output and fog-beam intensity of these three tiers. Equal lumens do not mean equal beam intensity.
Manufacturer measurements for the exact DD7310–DD7315 configurations. Backlight power is separate at 0.4 W per pod.

Complete kit or brackets only?

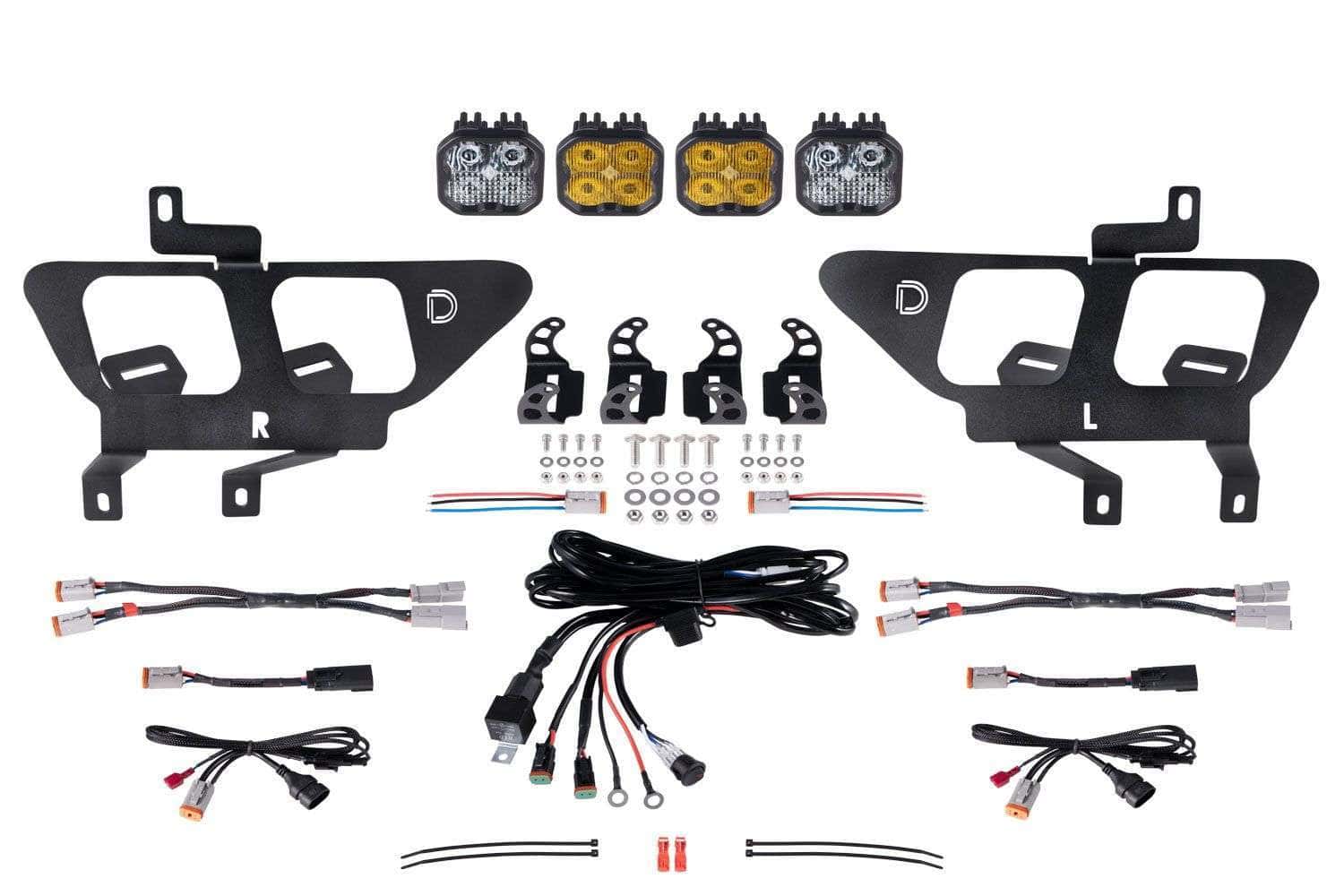

DD7310–DD7315 complete kits
- Two SS3 SAE Fog pods in the selected colour and power level
- Two White SS3 Combo pods in the same power level

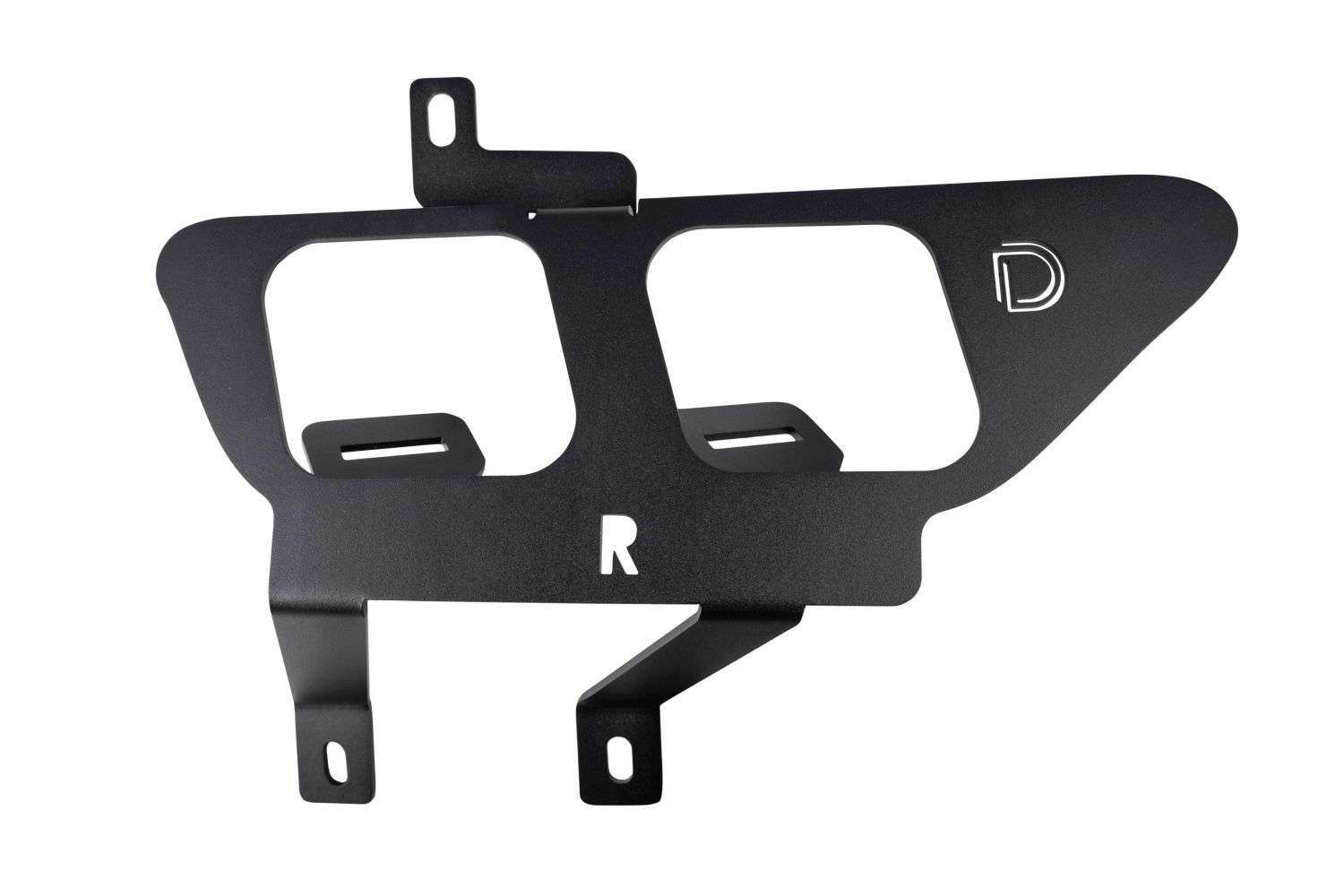

- Left and right F-150 fog-pocket mounting brackets
- Off-road wiring harness and toggle/auxiliary-switch connections
- Factory-fog adapters, backlight tap wiring and output splitters
- Mounting hardware, cable ties and installation instructions
The supplied wiring supports the specified factory halogen or LED fog-light configurations. Use the branch that matches your truck.

DD7309P · Brackets Only
Choose this only if you are building a compatible setup with separately supplied lights and wiring. It includes the two vehicle-specific fog-pocket brackets and installation guide. No SS3 pods or wiring harness are included. Choose No lamps with Brackets Only.

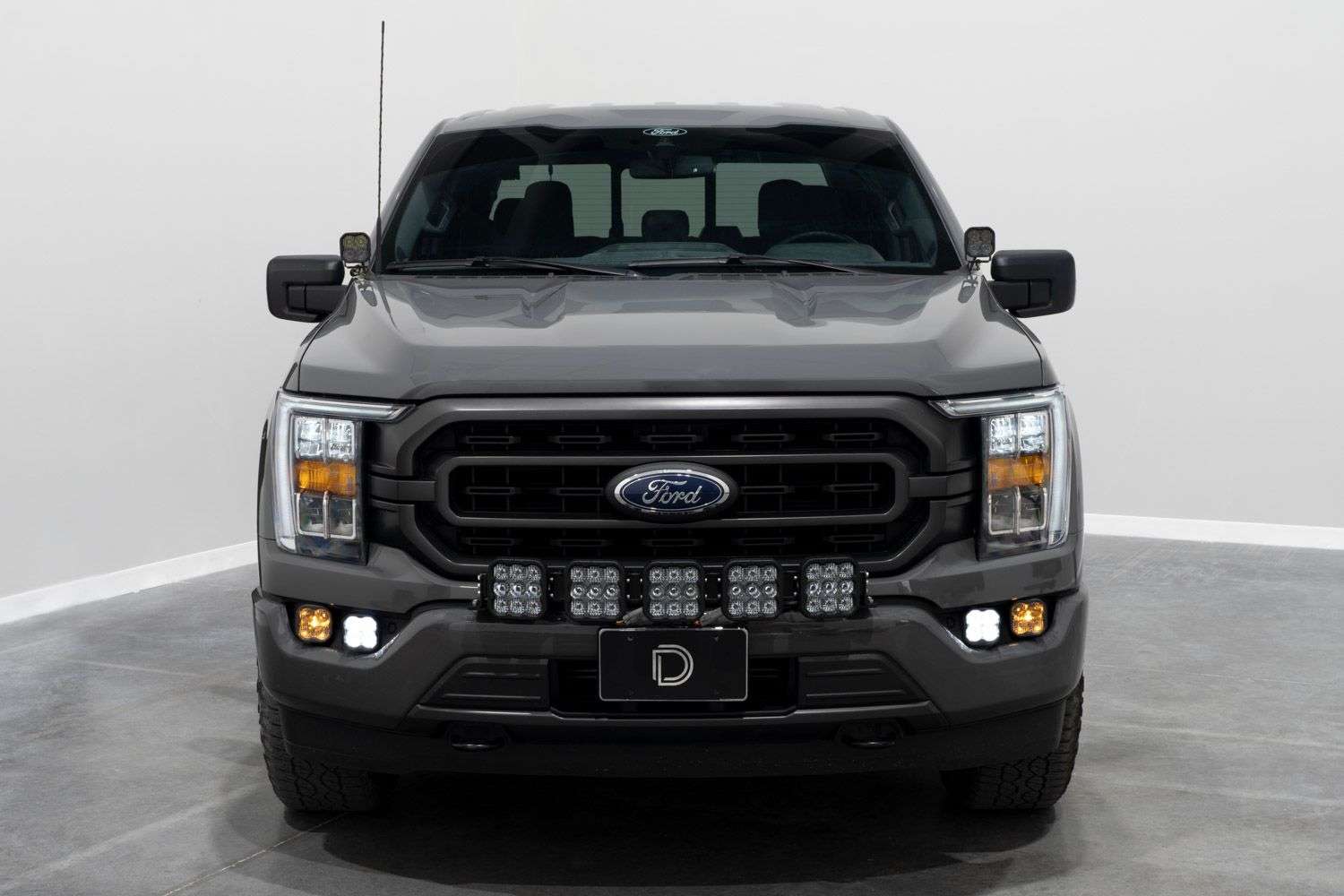

Fitted to our own F-150
On the BTS Lighting truck

Check your truck before ordering
- Supported application
- 2021, 2022 or 2023 Ford F-150 with the original fog-light pockets and compatible factory bumper.
- Excluded trim
- Raptor is not compatible with this kit.
- Factory fog lights
- Adapters support factory halogen or factory LED fog-light wiring. The supported factory fog/turn-signal functionality is retained.
- No factory fog lights?
- An additional suitable four-pin power harness and confirmation of your mounting setup are needed. Contact BTS before ordering.
- Other bumpers or model years
- Do not assume fitment for aftermarket bumpers or 2024-and-newer F-150s.

Plan the installation before you start
This is a fog-pocket assembly replacement, not a bulb swap. Diode Dynamics estimates 1–2 hours with basic hand tools. The process includes front-end and bumper removal, wiring and final aiming. Have a second person help with the heavy bumper.
360° camera equipped? Reconnect the front camera before starting the truck to avoid a possible recalibration requirement.
BTS illustrated installation guide
See every marked connector, fastener and wiring path
All nine mechanical photographs, the full wiring diagram, the aiming diagram and the manufacturer’s installation video.
Diode Dynamics’ overview of this four-pod F-150 package. Any older warranty statement in the video is superseded by the current manufacturer terms below.
Questions before you choose
Does Yellow mean all four lights are yellow?
No. Yellow kits contain two Yellow SAE Fog pods and two White Combo pods. The amber backlight is a third, separate function.
Can I run the off-road pair from the factory fog switch?
The kit separates the circuits: the Fog pair uses the factory fog connection, while the Combo pair uses the supplied off-road harness and its toggle or auxiliary-switch connection. Keep the Combo pair off on public roads.
Is the bracket-only option a complete lighting kit?
No. DD7309P contains the vehicle brackets and guide. Lamps and the wiring harness are not included.
Is this the same as the Elite fog-light pair?
No. This SS3 kit uses four individual pods for separate fog and off-road duties. The Elite fog-light pair is a replacement-lamp assembly with different lighting and control features.
Will it fit my Raptor or a 2024 F-150?
This listing is for the specified 2021–2023 non-Raptor F-150 application. Neither Raptor nor 2024-and-newer fitment is claimed.
What warranty applies?
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
