Product overview

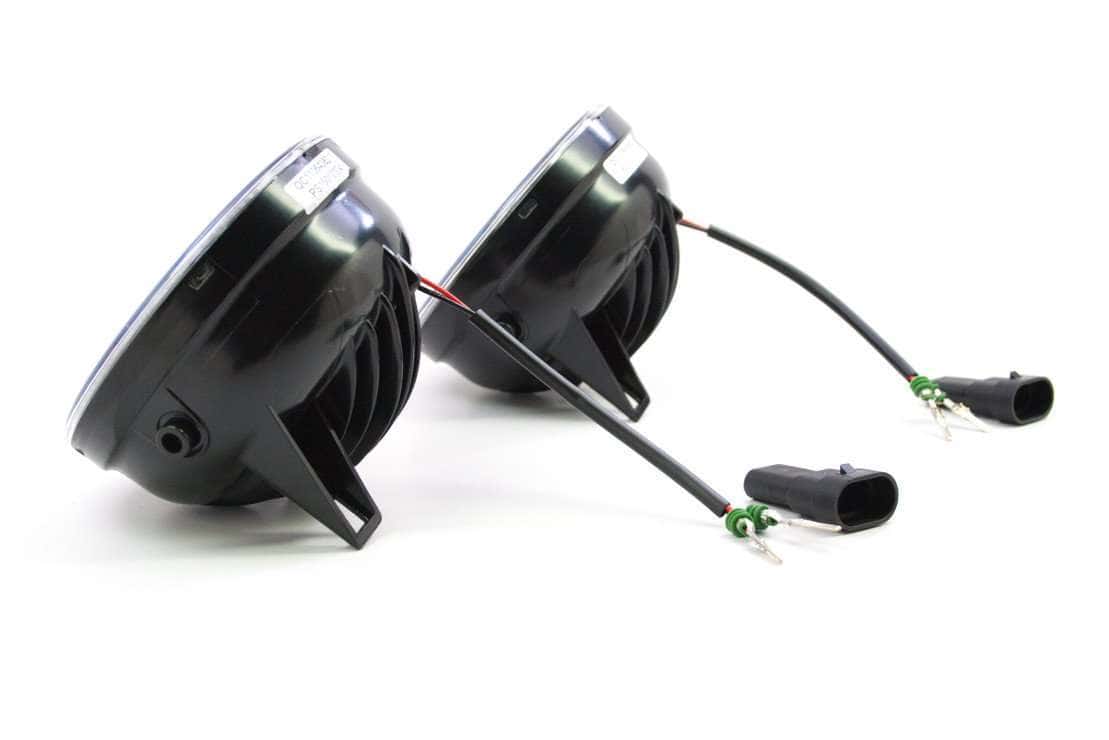

The Morimoto LF131 XB LED fog lights are a pair of complete white-output projector fog-light housings for the listed Ford F-150 and Ranger applications. They replace the matching original round fog lights and retain the factory mounting locations. For a 2007–2010 F-150, confirm the required OEM BL3Z15266B mounting bracket before ordering.
Fitment and ordering checks
- Ford F-150, 2004–2006: original round fog-light configuration required.
- Ford F-150, 2007–2010: round fog-light application; Morimoto specifies one OEM BL3Z15266B mounting bracket. Confirm that accessory separately.

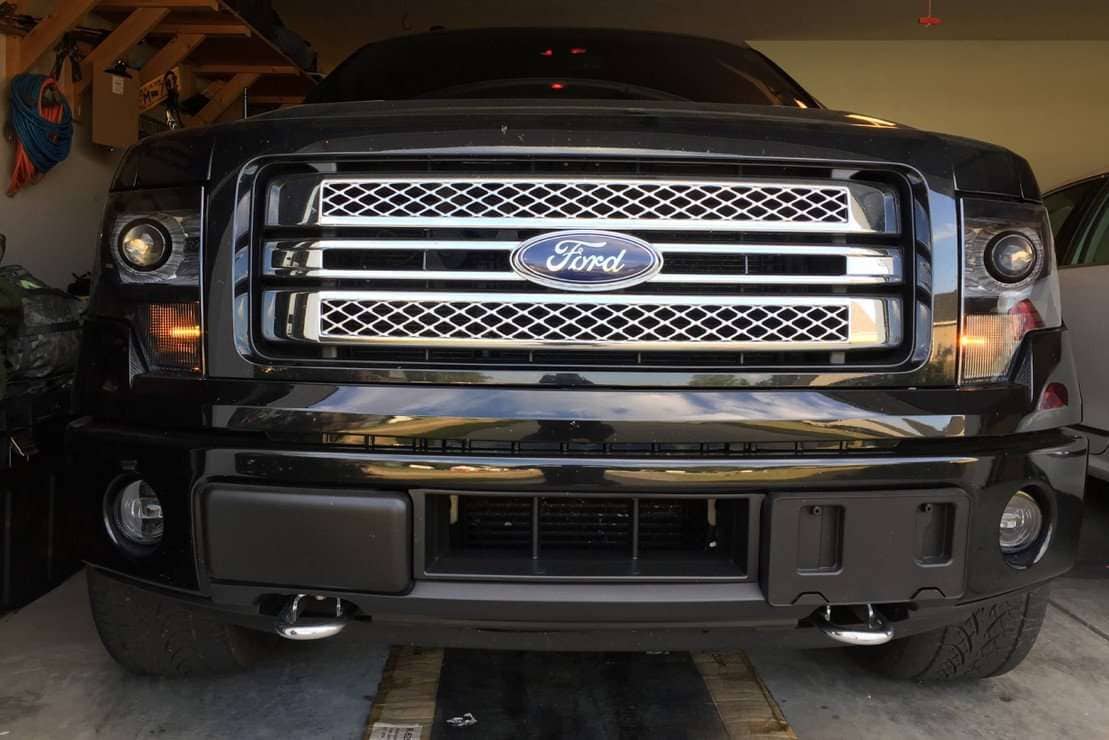

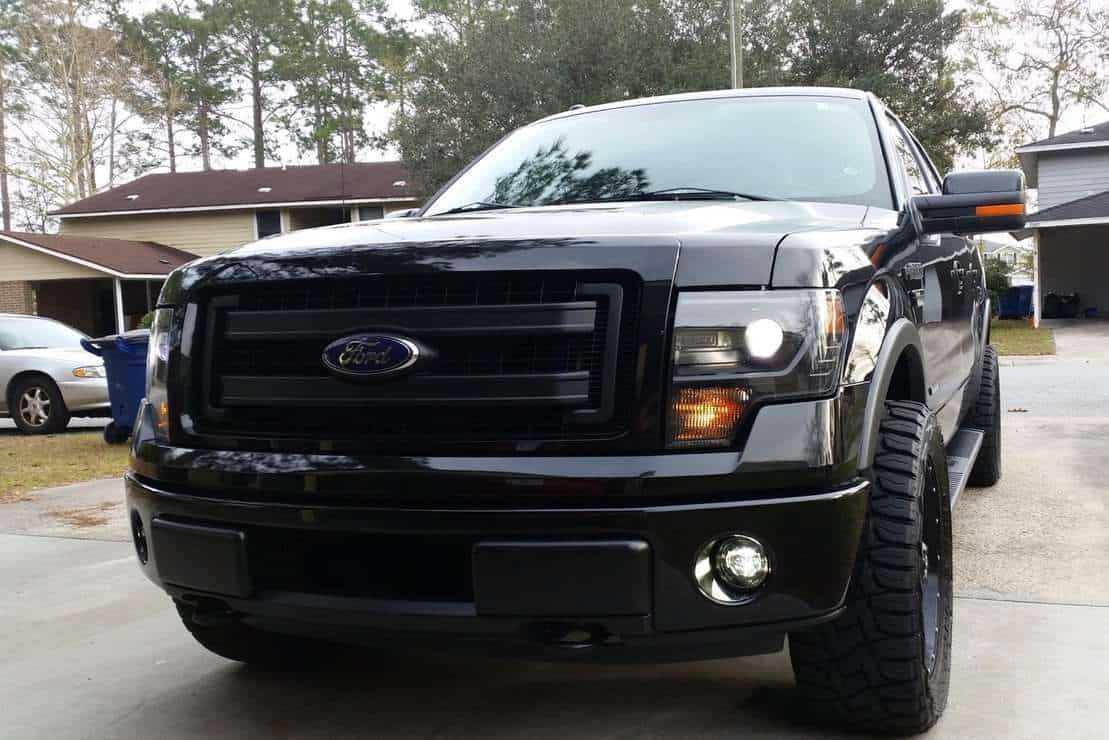

- Ford F-150, 2011–2014: matching round factory fog lights.
- Ford Ranger, 2008–2011: matching round factory fog lights.
- Other vehicles and trucks without the original round fog-light equipment require a separate application check.
Specifications
| Brand / part number | Morimoto / LF131 |
|---|---|
| Assembly type | XB LED Type F1 projector fog lights |
| Sold as | Pair |

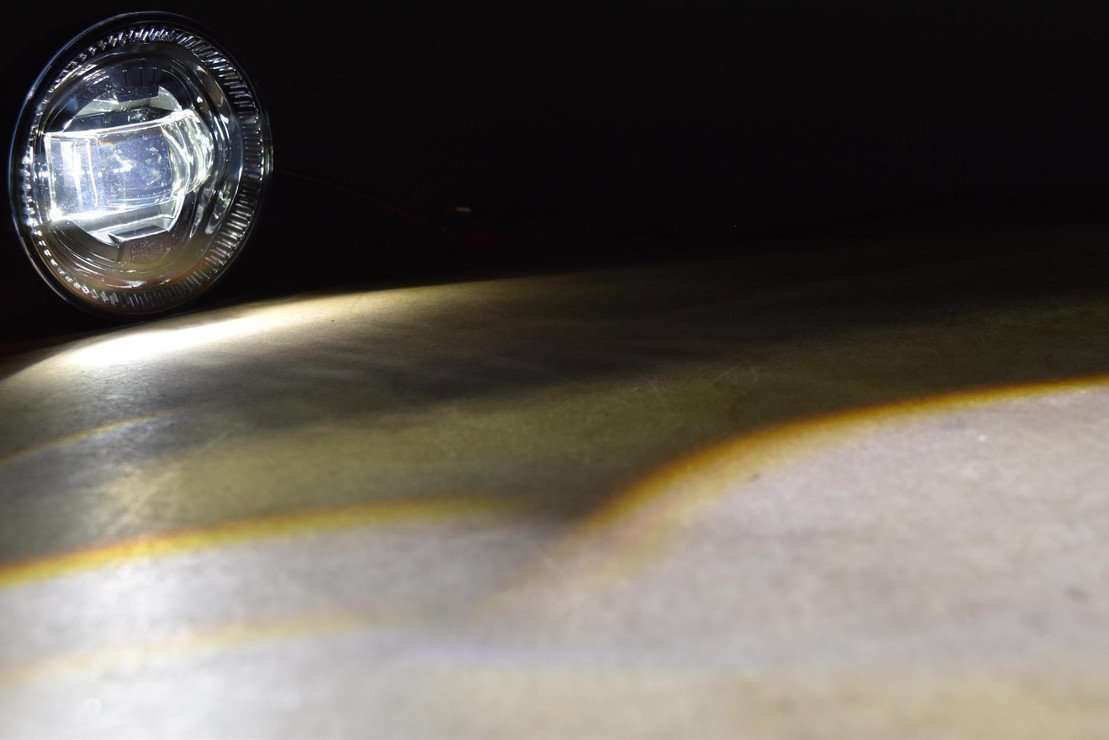

| Light output colour | White |
| Input | 9006 male / matching connector family |
| Housing / lens | Powder-coated aluminum / UV-resistant polycarbonate |
| Ford comparison numbers | AL1Z-15200-BCP, BL3Z-15200-ACP |
| Warranty | Morimoto 10-year limited warranty; manufacturer terms apply |
Installation notes
Check the original mounting pattern and connector before removing the fog lights. Morimoto supplies loose terminals for the 9005/9006/H10 connector family because vehicle polarity can vary. Test the pins in the factory connector first, then lock them into the supplied plastic shell in the working orientation. Set the integrated height adjusters after installation.
What is included

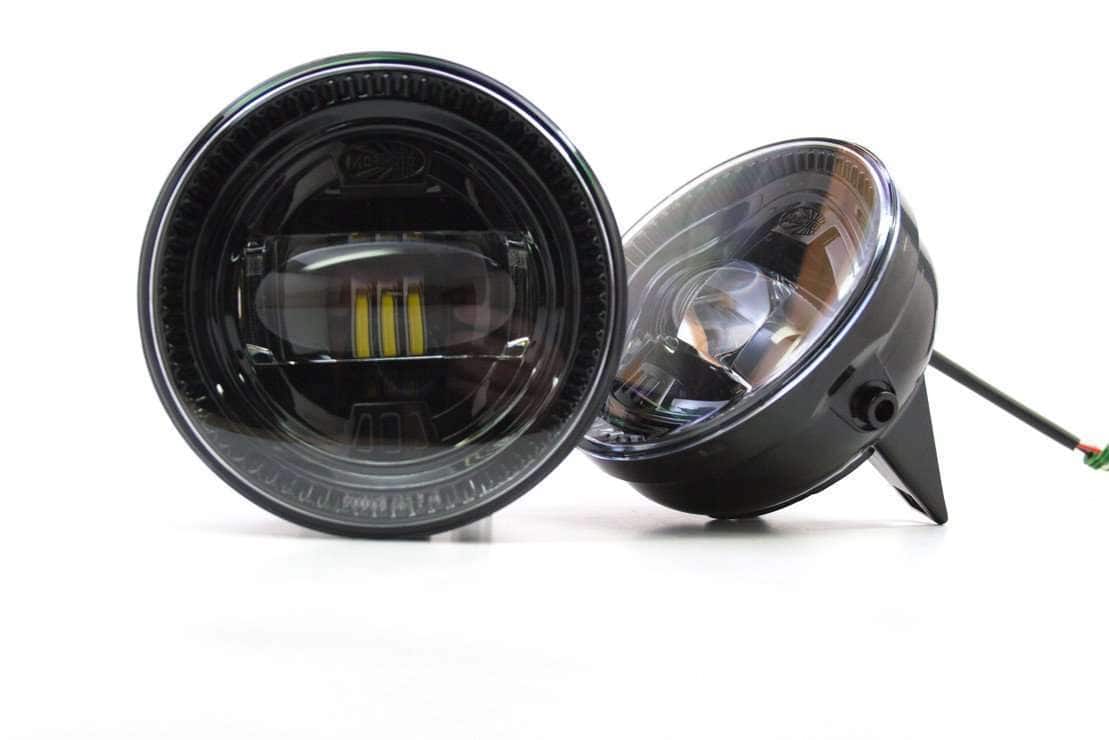

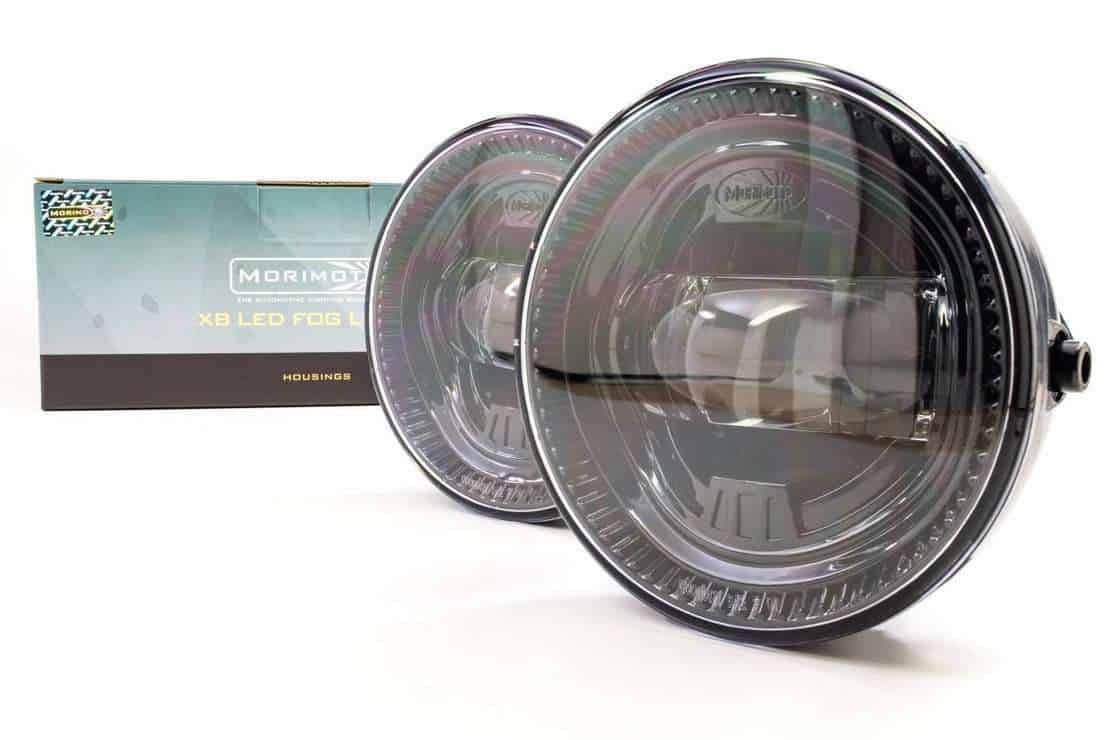

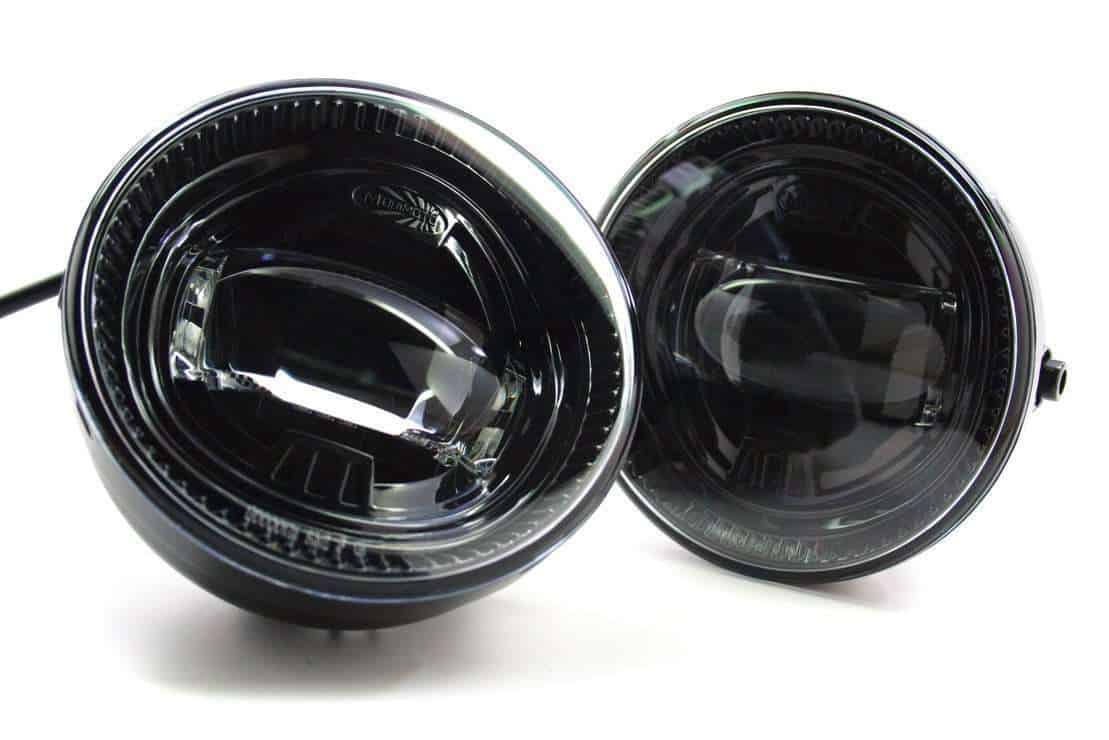

- Two Morimoto XB LED Type F1 fog lights.
- Plug-and-play wiring.
- Yellow Lamin-X film is optional; the fog-light pair itself produces white light.
- The required 2007–2010 F-150 OEM bracket must be confirmed separately; it is not listed as included with this pair.
Questions about LF131
Which F-150 years need the BL3Z15266B bracket?
Morimoto specifies one OEM BL3Z15266B mounting bracket for 2007–2010 F-150 applications. Confirm the bracket separately before ordering the LF131 fog-light pair.
Will LF131 fit an F-150 without round fog lights?
Do not assume it will. These applications require the matching round factory fog-light configuration. The 2004–2006 F-150 range specifically needs round fogs; trucks without that equipment require a separate check.
Can I use these on a 2008–2011 Ford Ranger?
Morimoto and the dealer application records list 2008–2011 Ranger applications. Match the original round housings, mounting points and connector before ordering.
Why are the connector terminals supplied loose?
Polarity can vary in the 9005/9006/H10 connector family. The installation guide calls for testing the terminals in the factory connector before seating them in the plastic connector shell.
Are these yellow fog lights?
The LF131 pair produces white light. Yellow Lamin-X film is an optional separate treatment; do not assume film is included with the fog-light pair.
