MORIMOTO XB EVO · LF2-506

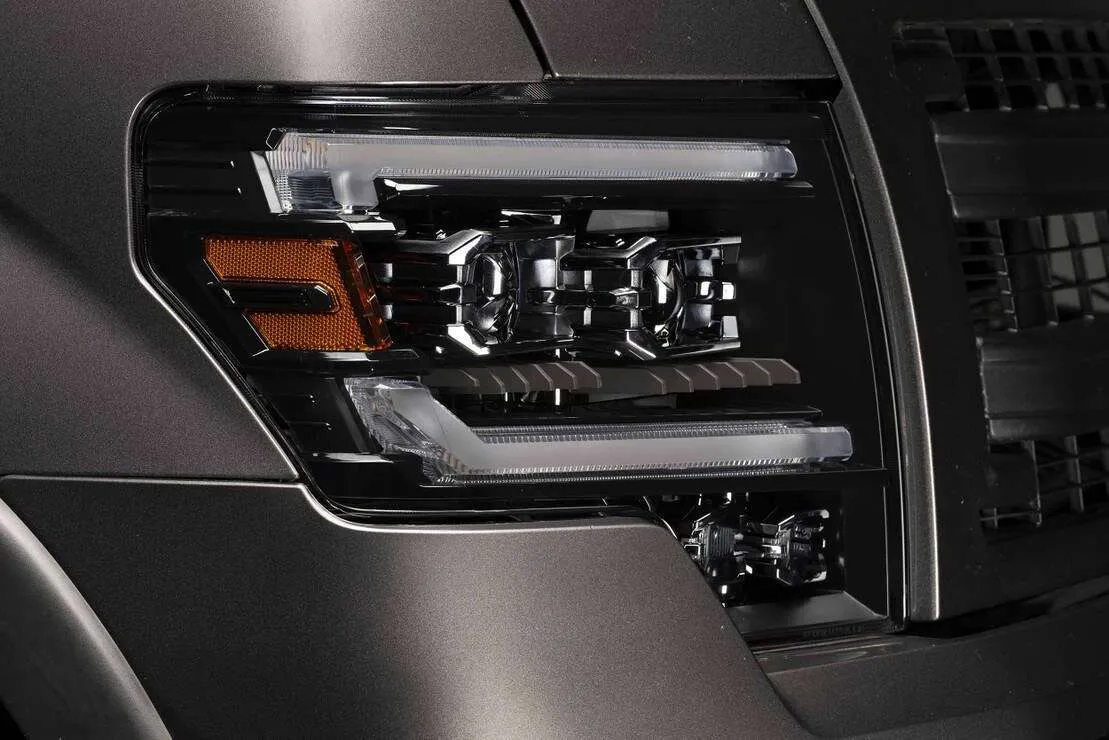

A distinctive F-150 signature. Dual Bi-LED light.
A complete left/right XB Evo headlight pair for your 2009–2014 Ford F-150 / 2010–2014 SVT Raptor. Configurable white or amber daytime running lights, a startup welcome sequence and Frost-Free lens heating bring a modern lighting signature to your truck.
- Left + rightOne complete headlight pair
- White / amber DRLsConfigurable signals
- Dual Bi-LED opticsBuilt for the exact application

THE OPTICS FOR YOUR TRUCK
Dual Bi-LED optics. A matched pair.
Light where it belongs

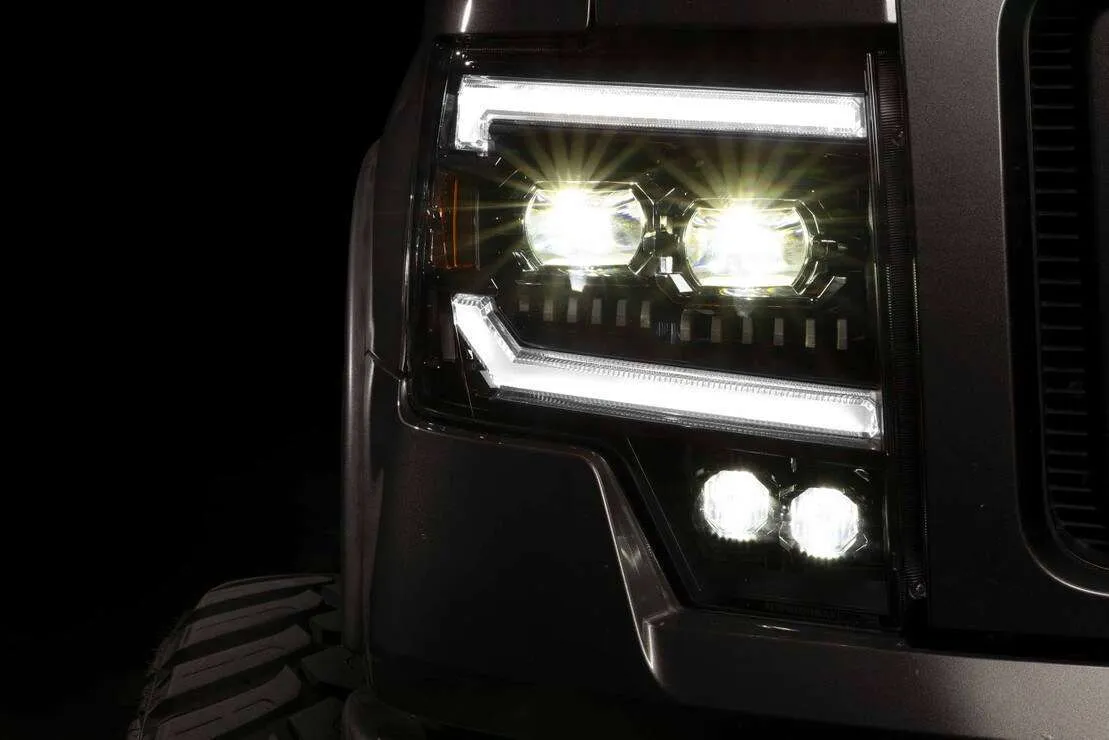

Two Type 1 Ishida Bi-LED projectors in each housing handle the main low and high beams. The separate auxiliary 1Banger NCS combo pods can supplement high beam off road. They use their own adjusters and are disabled as supplied.
Complete headlight assemblies

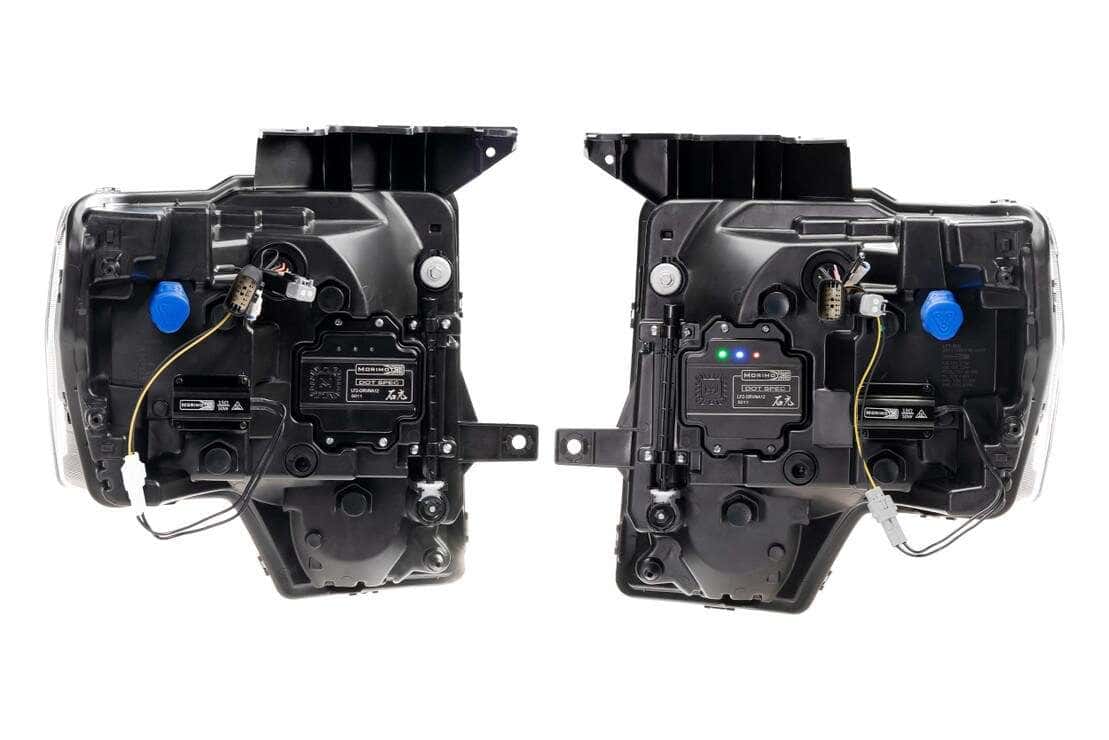

Both housings and the exact listed wiring parts are supplied. This replaces the headlight assemblies, rather than converting a bulb inside the old housing.
Finish with correct aim
Check and adjust beam aim after installation. Original mounting points and a stock ride height do not remove the need to verify alignment.

SEE THE MANUFACTURER COMPARISON

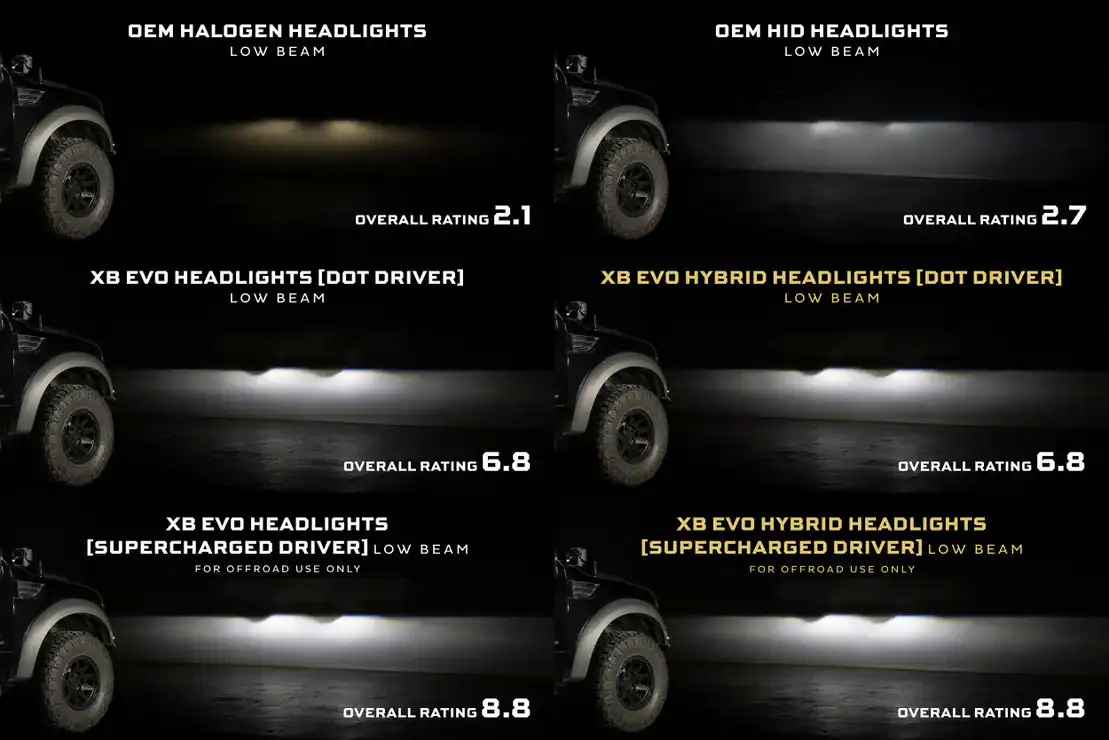

Low beam and high beam, with the configuration shown
These are Morimoto’s original comparison images, not an independent BTS test. Read the original-lamp and driver labels to understand each example. Supercharged configurations are for off-road use only. The Evo’s auxiliary 1Banger assist is also off-road only when enabled, separately from the driver choice.


YOUR FRONT-END SIGNATURE
Choose white or amber. Set your signal style.
The supplied selector keys configure white or amber daytime running lights and sequential or fade-off turn signals. Choose matching keys for both headlights with the vehicle and lamps switched off, following the exact guide.
A multistage welcome sequence adds a startup signature. It is a styling feature, separate from driving-light output.

FROST-FREE LENS HEATING
Request it when cold-weather conditions call for it
The logic-controlled 50W ceramic heating element and circulation fans warm the housing to help mitigate lens frost, snow and ice buildup during driving.
- With the vehicle running, wait until the welcome sequence completes.
- Flash the high beams four times within four seconds. The ambient sensor must read at or below 5°C / 41°F, and the other operating conditions must be satisfied.
- Two return flashes indicate active heating and fans. One acknowledges the request with conditional standby.
The system monitors lens and heater temperatures and battery voltage. It starts off at every ignition cycle; request it again when needed. The same four flashes within four seconds manually disable it.
This is an aid during inclement driving, not a system intended to melt heavy overnight snow accumulation.
CHOOSE THE FEATURES YOU WANT
Compare the matching Evo pair
This listing is LF2-506 XB Evo. The matching Evo and Hybrid are separate products. On smaller screens, swipe across the table to compare every column.
| Feature | XB Evo | XB Evo Hybrid |
|---|---|---|
| Main optics per housing | Dual Bi-LED projectors + off-road auxiliary 1Bangers | Dual Bi-LED projectors; no auxiliary 1Bangers |
| Daytime running lights | Selectable white / amber | Fixed white |
| Turn signals | Sequential or fade-off | Fade-off |
| Lens heating | Frost-Free; driver-requested | Not included |
| Standard welcome sequence | Included | Not included |
| Optional Supercharged pair | LF2-DRVSC12; off-road only | LF2-DRVSC12; off-road only |
BEFORE YOU ORDER
Match the year, model and original lamps
| Vehicle | Manufacturer-listed application |
|---|---|
| Ford F-150 | 2009-2014 (all trim levels, factory halogen & factory HID/xenon equipped models) |
| Ford SVT Raptor | 2010-2014 |
Developed for North American left-hand-drive vehicles using right-hand traffic. Morimoto does not guarantee compatibility outside North America.
This application covers 2009–2014 F-150 and 2010–2014 SVT Raptor, including the listed factory-halogen and factory-HID/xenon configurations. It is separate from the later 2015–2017 and 2018–2020 F-150 headlights.
BOTH SIDES. THE MATCHED HARDWARE.

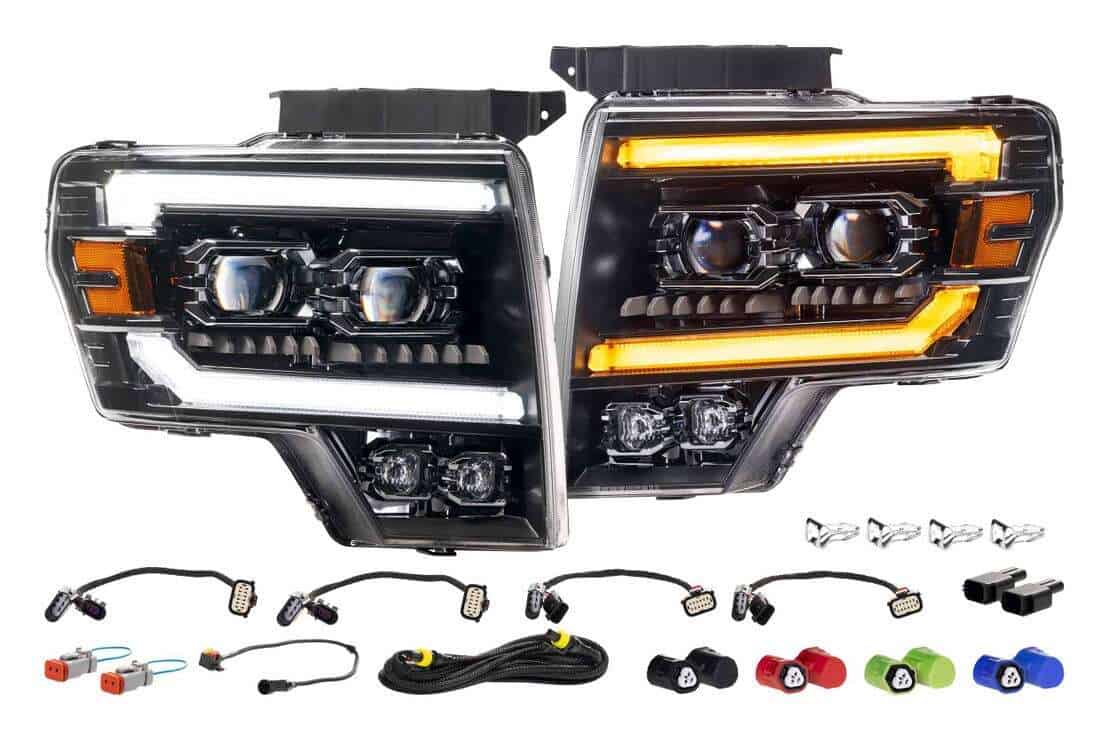

What is supplied

- Headlights: One Pair 09-14 Ford F-150 XB Evo (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)
- Accessories: 2x Halogen Input Harnesses, 2x OEM HID Input Harnesses, 1x DRL Harness, 2x High Beam Keys, 2x Side Marker Connector Caps, Fuse Tap Hardware, 4x Mounting Clips
- Function Selectors: 8x (Four Pairs) For DRL and Turn Signal Settings
Use the adapters and signal components appropriate to the truck’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
FACTORY MOUNTING. CAREFUL WIRING.
Plan the installation, then set the aim
- Follow the exact model-family guide and the wiring branch for your original lighting equipment.
- Fit the specified input harnesses and signal components, mount both housings at the original locations and route the DRL harness securely.
- The F-150 guide routes the DRL fuse tap through the engine-bay fuse box. Follow its exact fuse location and cover-routing instructions.
- Secure wires away from heat and moving parts, confirm every lighting function, then adjust the headlight aim.
Download the official LF2-506 model-family installation guide
Heater activation applies only to the heated Evo, and the feature defaults off after each ignition cycle.
AN OPTIONAL OFF-ROAD CONFIGURATION
Add the exact Supercharged driver pair
Standard LED drivers are included. The matching optional pair is LF2-DRVSC12. Select the matching Supercharged option with the headlight if you want that separate configuration.
For this exact application, Morimoto describes 30–50% greater low/high-beam intensity. This is the manufacturer’s comparison, not an independent BTS measurement or a guarantee in every condition.

THE EXACT LF2-506 CONFIGURATION
Specifications and replacement references
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD / Right Hand Traffic Only |
| Output (Standard Drivers) | DOT / FMVSS108 Compliant (LB2V and UB2) |
| Output (Supercharged Drivers) | +30-50% (Non-Compliant) |
| Main Optics | 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA) |
| High Beam Assist | 2x Morimoto 1Banger NCS Combo Beam* |

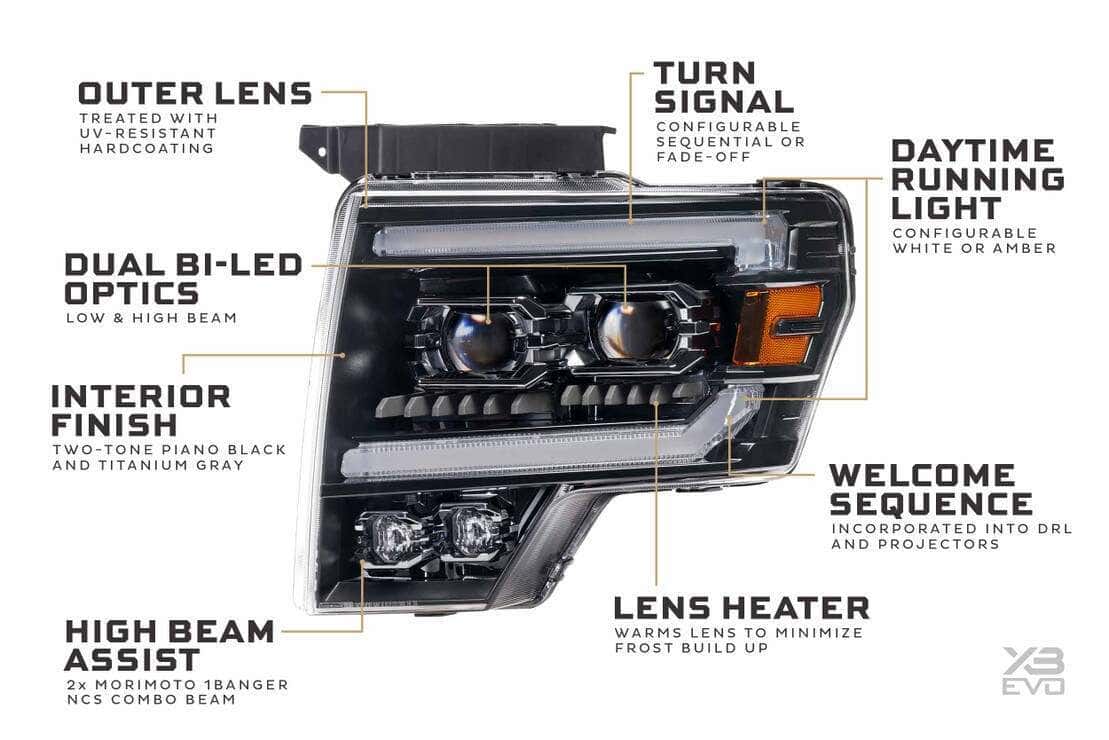

| Functions | Low, High, Park, Turn, DRL, Welcome, and Lens Heating |
| Turn Signal Modes | Sequential or Fade Off (Configurable) |
| DRL Colors | White or Amber (Configurable) |
| DRL/Signal Optics | Glass-like 3D Optics |
| Frost-Free System | Logic Controlled 50W Ceramic w/ circulation fans |
| Auxiliary 1Banger road-use restriction | Disabled by block-off plugs as supplied. Enabling the auxiliary high beams is for off-road use only, regardless of main LED-driver choice. |
Original-equipment replacement references
FO2503289, FO2502289, FO2503287, FO2502287, DL3Z13008A, DL3Z13008B, DL3Z13008EB, DL3Z13008EC, FR560B1A12SD6V, DL3Z13008DB, DL3Z13008FB, DL3Z13008BB, DL3Z13008CB
Confirm the exact year, model and original lamp equipment above.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Morimoto’s official F-150 / SVT Raptor model-family presentation. Other versions may appear; use this page’s exact LF2-506 package and specifications for your selection.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB Evo questions
Is this one lamp or a pair?
One order supplies both driver-side and passenger-side headlight assemblies with the listed accessories.
Which vehicles does this exact part fit?
2009–2014 Ford F-150 / 2010–2014 SVT Raptor. Match the exact original lamp equipment and wiring described in the guide.
What optics does the Hybrid keep?
Dual Bi-LED projectors; it does not include the heated Evo’s separate auxiliary 1Banger pods.
Can I choose white or amber DRLs?
Yes. Use the supplied selector keys for white or amber DRLs and sequential or fade-off signals. Follow the guide and switch off the vehicle and lights before changing keys.
Does this exact version have heated lenses?
Yes. Request Frost-Free after startup using the guide’s high-beam sequence. It operates only when its temperature and other conditions allow.
Does it have a startup welcome sequence?
The heated Evo includes a multistage welcome sequence.
What should I plan for installation?
Match the factory-halogen or factory-HID input harness, follow DRL routing and adjust aim. The heated Evo’s separate auxiliary pods are disabled as supplied and are off-road only when enabled.
Are the Supercharged drivers included?
No. Standard drivers are supplied. LF2-DRVSC12 is the exact optional Supercharged pair, for off-road use only in Canada and the United States.
Are the auxiliary 1Banger high beams road compliant?
No. The installation guide says their separate adjustment makes the auxiliary feature noncompliant for on-road use. They are disabled with block-off plugs as supplied. Enabling the auxiliary pods is for off-road use only, independent of Supercharged-driver selection.
Will Frost-Free clear heavy overnight snow?
It helps mitigate buildup while driving in cold conditions. It is not a heavy overnight-snow defroster, and defaults off after each ignition cycle.
What warranty is included?
Morimoto lists a five-year limited manufacturer warranty. Keep proof of purchase and contact BTS for installation support or a suspected warranty issue.
