MORIMOTO XB EVO · LF2-502
A sharper F-150 look, with light to match.
Upgrade your 2015–2017 F-150 / 2017–2020 Raptor with a complete left/right XB Evo pair. Dedicated low- and high-beam optics, configurable white or amber running lights and a driver-requested Frost-Free system bring function and style together.
- Left + rightOne complete headlight pair
- Frost-Free heatingActivate when conditions allow
- Bi-LED + high-beam assistPer headlight

OPTICS WITH A PURPOSE

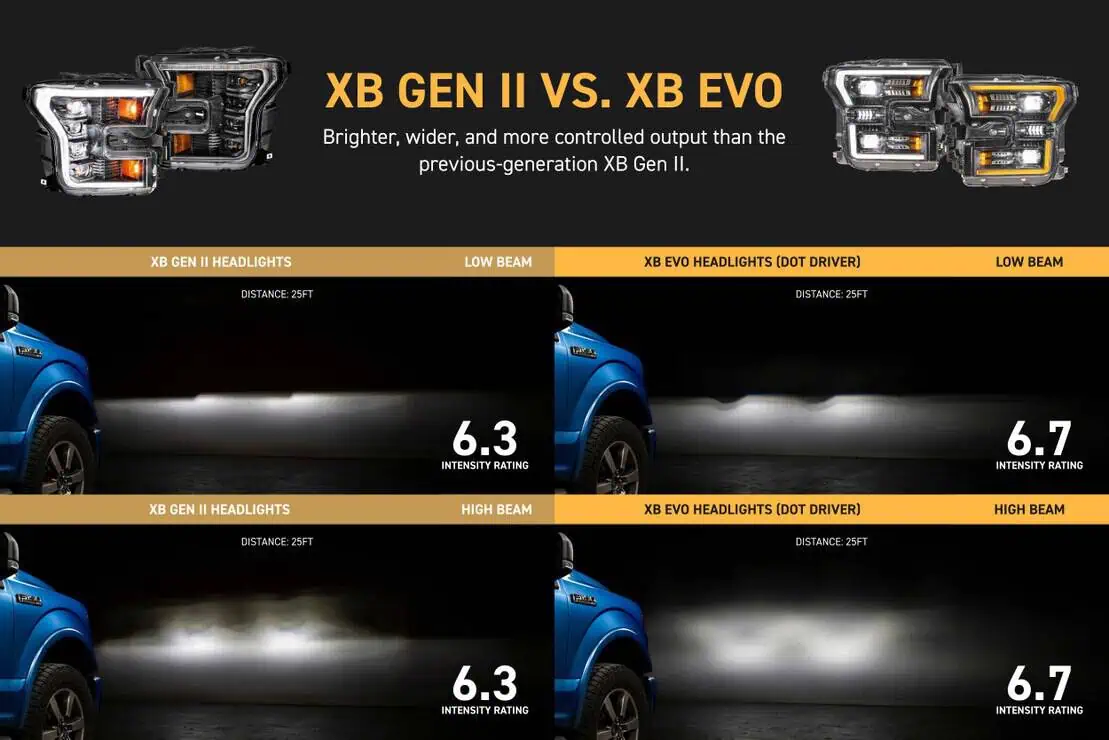

Two Bi-LED projectors + D-Optic high-beam assist per headlight
Low and high, together
Two Bi-LED projector units form the main beam pattern. A separate D-Optic high-beam assist adds another optic for high-beam operation.
A matched left/right set
Both complete housings and the listed installation accessories are supplied. This is an assembly upgrade, not a bulb conversion.
Designed around the vehicle
Original-style mounting and application-specific wiring support the installation. Match the exact model, year, original lighting and market before ordering.

PERSONALISE THE SIGNATURE
White or amber. Sequential or fade-off.
Use the supplied Signal Swap keys to configure white or amber DRLs and sequential or fade-off turn signals. The selection is made at the rear connections as shown in the guide.
A multistage welcome sequence illuminates the optics at startup. It is an appearance feature; it does not increase driving-light performance.

FROST-FREE SYSTEM
A dedicated heater—not projector waste heat

The logic-controlled 50W ceramic heating element and circulation fans warm the housing to help mitigate lens frost, snow and ice buildup during driving.
- With the vehicle running, wait until the welcome sequence completes.
- Flash the high beams four times within four seconds. The ambient sensor must read at or below 5°C / 41°F, and the other operating conditions must be satisfied.
- Two return flashes indicate active heating and fans. One acknowledges the request with conditional standby.
The system monitors lens and heater temperatures and battery voltage. It starts off at every ignition cycle; request it again when needed. The same four flashes within four seconds manually disable it.
This is an aid during inclement driving, not a system intended to melt heavy overnight snow accumulation.
If the request is not acknowledged, the guide recommends turning off auto high beams and trying again.
CHOOSE THE EXACT VERSION
Know what changes across the family
This exact XB Evo includes Frost-Free heating and configurable white/amber DRLs. The separate Evo Hybrid has a fixed white DRL and no lens heater.

BEFORE YOU ORDER
Match the vehicle and original lighting
2015–2017 Ford F-150 / 2017–2020 Raptor
Use the halogen or factory LED wiring path that matches your original headlights. Both listed F-150 and Raptor applications use LF2-502.
These are North American left-hand-drive/right-hand-traffic applications. Follow the exact equipment and connector path in the installation guide. Aftermarket exterior lighting can alter signal behavior.
ONE ORDER. BOTH SIDES.
What is supplied

- Headlights: One Pair (1x RH / Passenger Side Headlight, 1x LH / Driver Side Headlight)
- Accessories: 2x Halogen Adapter Harnesses, 2x Magnet Mount Resistors, 1x Mini Fuse Tap, 1x Micro Fuse Tap, 1x DRL Harness, 2x Mode Selector Extensions, 8x (Four Pairs) Mode Selectors, 2x Alcohol Pads, 2x Adhesive Pads, 2x Steel Plates
Use the adapters and signal components appropriate to the truck’s original lighting. Optional Supercharged drivers and other accessories are separate selections; they are not required to complete the standard headlight pair.
FACTORY MOUNTING. CAREFUL WIRING.
Plan the install, then set the aim
- Identify the original halogen or LED equipment and follow its exact wiring branch.
- Fit the housings at the original mounting points and use the listed adapters, resistors and DRL components as instructed.
- Route the DRL fuse-tap wire through the guide’s specified notch in the fuse-box lid. Factory mounting does not mean no modifications.
- Secure the harnesses clear of heat and moving parts. Test every lighting function and set the beam aim before driving.
Download the official LF2-502 installation guide
The guide is shared with other variants where listed. Use the heater activation and operating limits for the exact XB Evo model.


AN OPTIONAL OFF-ROAD CONFIGURATION
The matching Supercharged driver pair
The exact matching accessory is LF2-DRVSC14. It replaces the standard LED drivers when you deliberately select the off-road configuration. The standard driver set is included with the headlights; the optional accessory is not required to complete the pair.
THE EXACT LF2-502 CONFIGURATION
Specifications and replacement references
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD / Right Hand Traffic Only (US/CA Standard) |
| Output (Standard Drivers) | DOT (FMVSS108) Compliant (LB2V and UB2) |
| Output (Supercharged Drivers) | Off-Road use only |
| Main Optics | 2x Type 1 Ishida Optic Bi-LED, 1x D-Optic High Beam Assist |
| Functions | Low, High, Park, Turn, DRL, Welcome, and Lens Heating |
| Turn Signal Modes | Sequential or Fade Off (Configurable) |
| DRL Colors | White or Amber (Configurable) |
| Frost-Free System | Logic-controlled 50w ceramic w/ circulation fans |
| Internal Finish | Two-Tone Piano Black and Titanium w/ contrasting textures |
| Side marker | Amber side reflex reflector (DOT compliant) |
Original-equipment reference numbers
FL3Z13008B, HL3Z13008M, GL3Z13008H, HL3Z13008K, FL3Z13008A, HL3Z13008L, GL3Z13008G, HL3Z13008J, KL3Z13008D, KL3Z13008B, KL3Z13008C, KL3Z13008A, JL3Z13008AH, JL3Z13008AG
Use these as a cross-check, together with the listed model, year and lighting equipment.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Morimoto’s official 2015–2017 F-150 / 2017–2020 Raptor product-family presentation. Distinguish the exact version, equipment path and standard versus optional drivers; the written specifications above describe this SKU.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB Evo questions
Is this a pair or one headlight?
One order supplies the driver-side and passenger-side assemblies with the exact accessories listed above.
Which original headlights can it replace?
Follow the halogen or factory LED equipment branch in the exact manufacturer guide. A model-year match alone does not establish the correct wiring path.
Are the DRLs fixed in one colour?
No. The supplied keys configure white or amber DRLs and the supported turn-signal mode.
Are these headlights road legal?
Morimoto identifies the standard-driver XB Evo as DOT/FMVSS108 compliant for its stated application. Optional Supercharged drivers produce an off-road-only configuration in Canada and the United States.
Does this exact version have heated lenses?
Yes. This exact XB Evo has a dedicated ceramic heater and circulation fans. It must be requested with the specified high-beam sequence under suitable temperature and operating conditions.
Will Frost-Free clear heavy overnight snow?
It is intended to help mitigate buildup during driving, not melt heavy overnight snow accumulation. It defaults off after each ignition cycle and must be requested again when needed.
Is installation completely modification-free?
No. The assemblies use original mounting points, but the exact guide calls for a notch in the fuse-box lid for the DRL wire. Follow all equipment-specific steps.
Do I need the optional Supercharged drivers?
No. Standard drivers are included. Only LF2-DRVSC14 is the exact matching optional pair identified for this SKU; it is for off-road use only in Canada and the United States.
Should the lights still be aimed after fitting?
Yes. Check every lighting function and adjust beam aim after installation. Original-style mounts do not guarantee correct aim.
What warranty is included?
Morimoto lists a five-year limited manufacturer warranty. Keep proof of purchase and contact BTS for help with installation or a suspected warranty issue.
