Diode Dynamics Elite Series LED Headlights for Ford F‑150 (2021–2023)
Upgrade your 2021–2023 Ford F-150 with Diode Dynamics Elite Series LED Headlights — engineered to deliver exceptional performance, advanced lighting technology, and aggressive styling. Featuring dual Bi-LED projectors, selectable blade DRLs, sequential turn signals, and optional off-road lighting features, these headlights redefine aftermarket lighting for the modern F-150.
WELCOME SEQUENCE
The Ford F-150 Elite Series Headlights feature a unique startup sequence, showcasing all of the modern technology inside with a truly unique experience.
SELECTABLE DRL
With a fully customizable DRL, you can change the color and style, all from the inside of the vehicle using existing controls.
Diode Dynamics Elite Series LED Headlights for Ford F‑150 (2021–2023)
Upgrade your 2021–2023 Ford F-150 with Diode Dynamics Elite Series LED Headlights — engineered to deliver exceptional performance, advanced lighting technology, and aggressive styling. Featuring dual Bi-LED projectors, selectable blade DRLs, sequential turn signals, and optional off-road lighting features, these headlights redefine aftermarket lighting for the modern F-150.

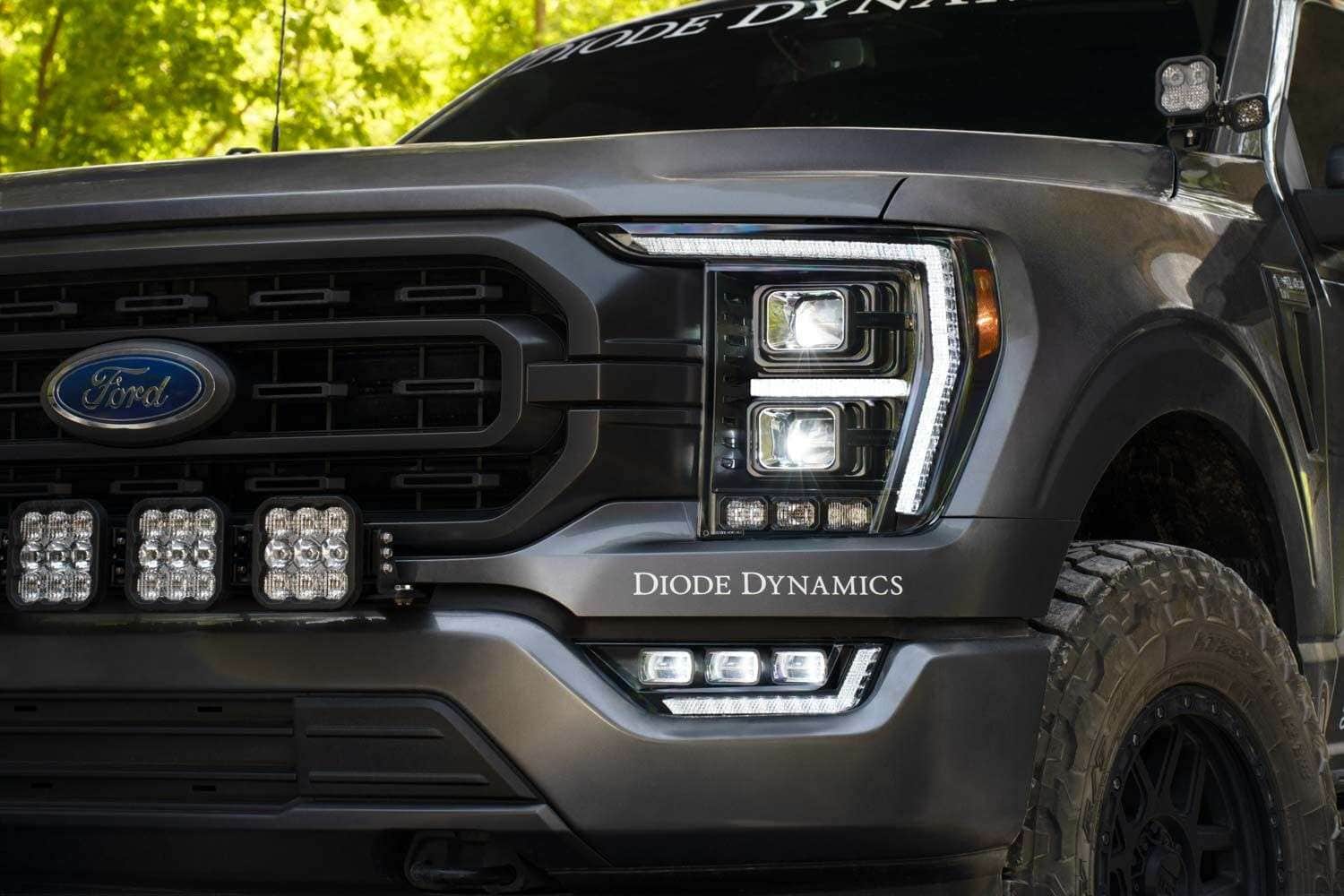

Maximum Performance Lighting for the 2021–2023 F-150
Factory headlights often fall short when it comes to beam width, intensity, and overall nighttime visibility. The Elite Series LED Headlights solve that problem with dual rectangular Bi-LED projectors, delivering nearly double the peak intensity of premium factory projector headlights.
The beam pattern features:
-
Sharp cutoff for glare control
-
Strong center intensity for distance visibility
-
Excellent width to illuminate shoulders and roadside hazards
These headlights dramatically improve real-world nighttime driving performance.

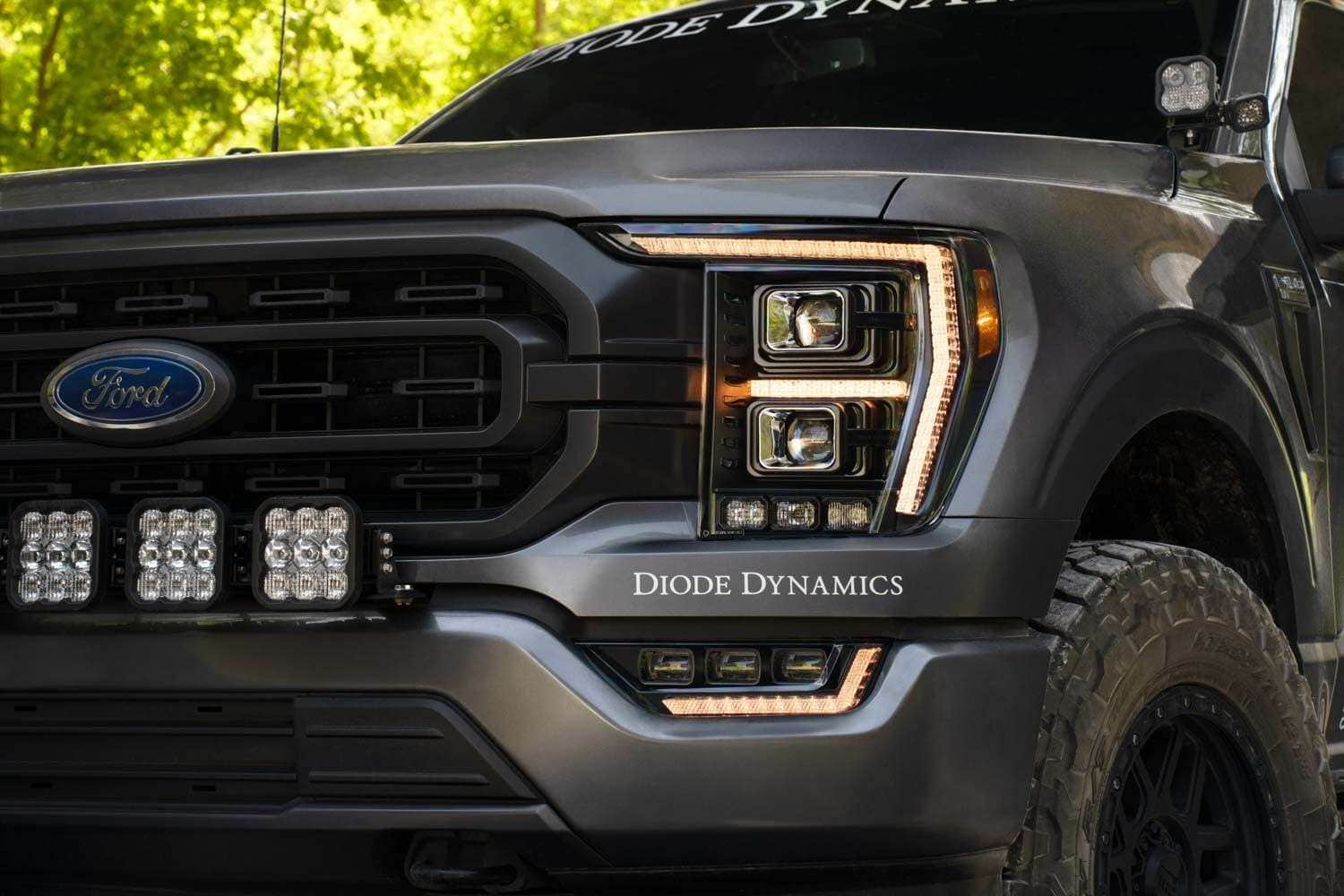

Selectable Blade Daytime Running Lights
Elite Series headlights feature a premium blade-style DRL optic that can be configured directly from inside the vehicle.
Selectable options include:
-
White DRL
-
Amber DRL
-
Enable or disable the horizontal bar
Programming uses existing vehicle controls — no external switches or controllers required.

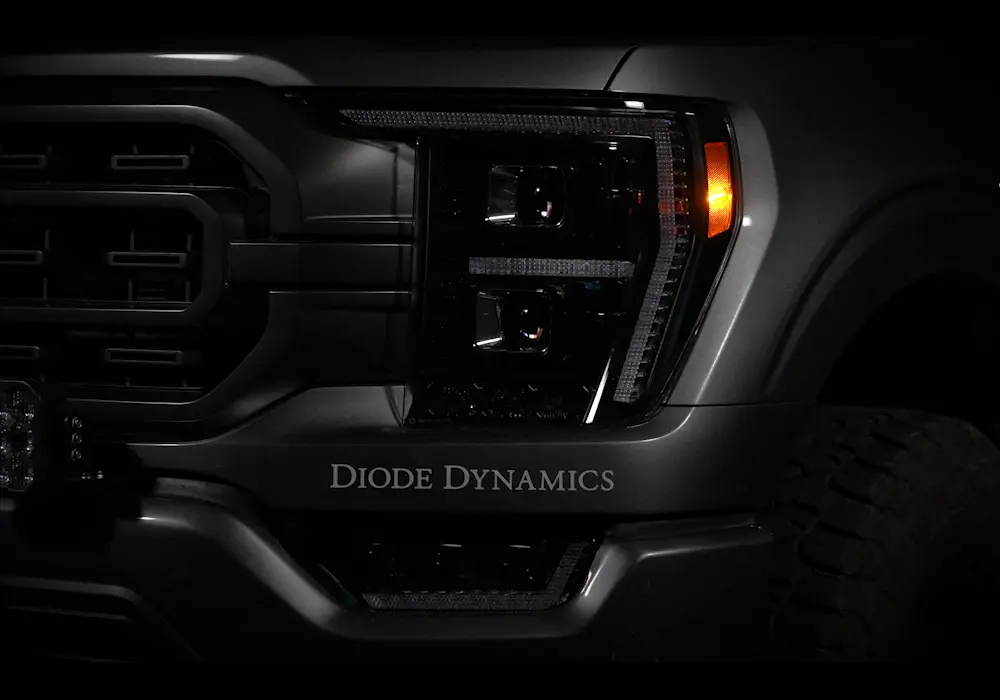

Premium Welcome Sequence
Every time you unlock your truck, the Elite Series headlights perform a smooth startup animation before reaching full brightness.
When paired with Diode Dynamics Elite Series Fog Lights, the headlights can perform a coordinated startup sequence across both lighting systems.
The welcome sequence can also be disabled through programming if desired.

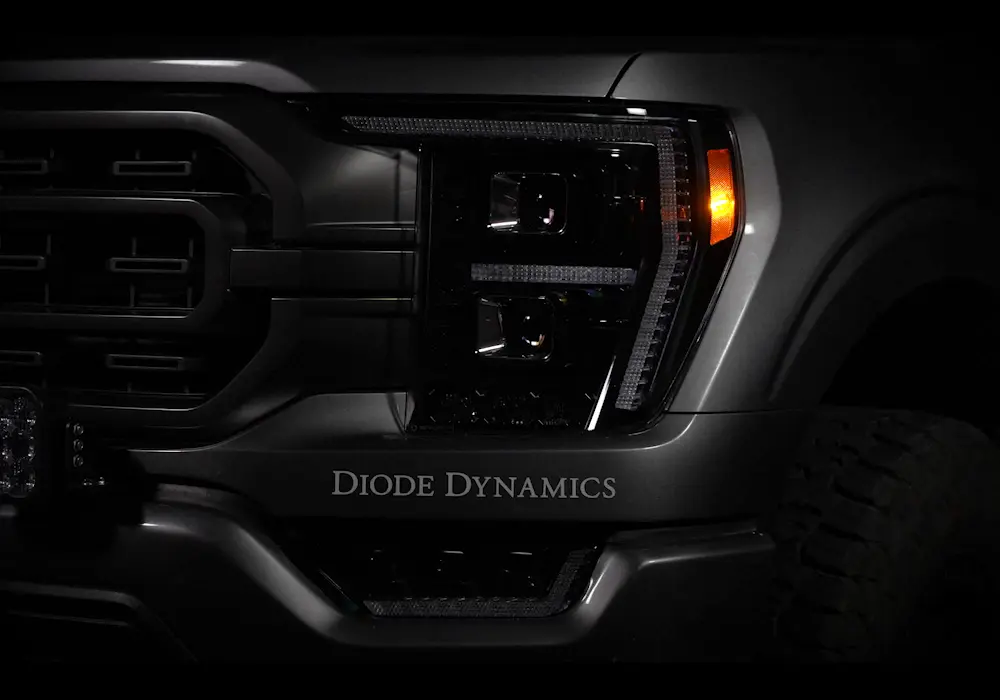

Sequential Turn Signals
When signaling, the horizontal DRL bar performs a sequential animation, while the perimeter blade flashes.
Selectable options include:
-
Sequential mode
-
Static blinking mode
After the turn signal completes, the DRL automatically returns to the selected color.

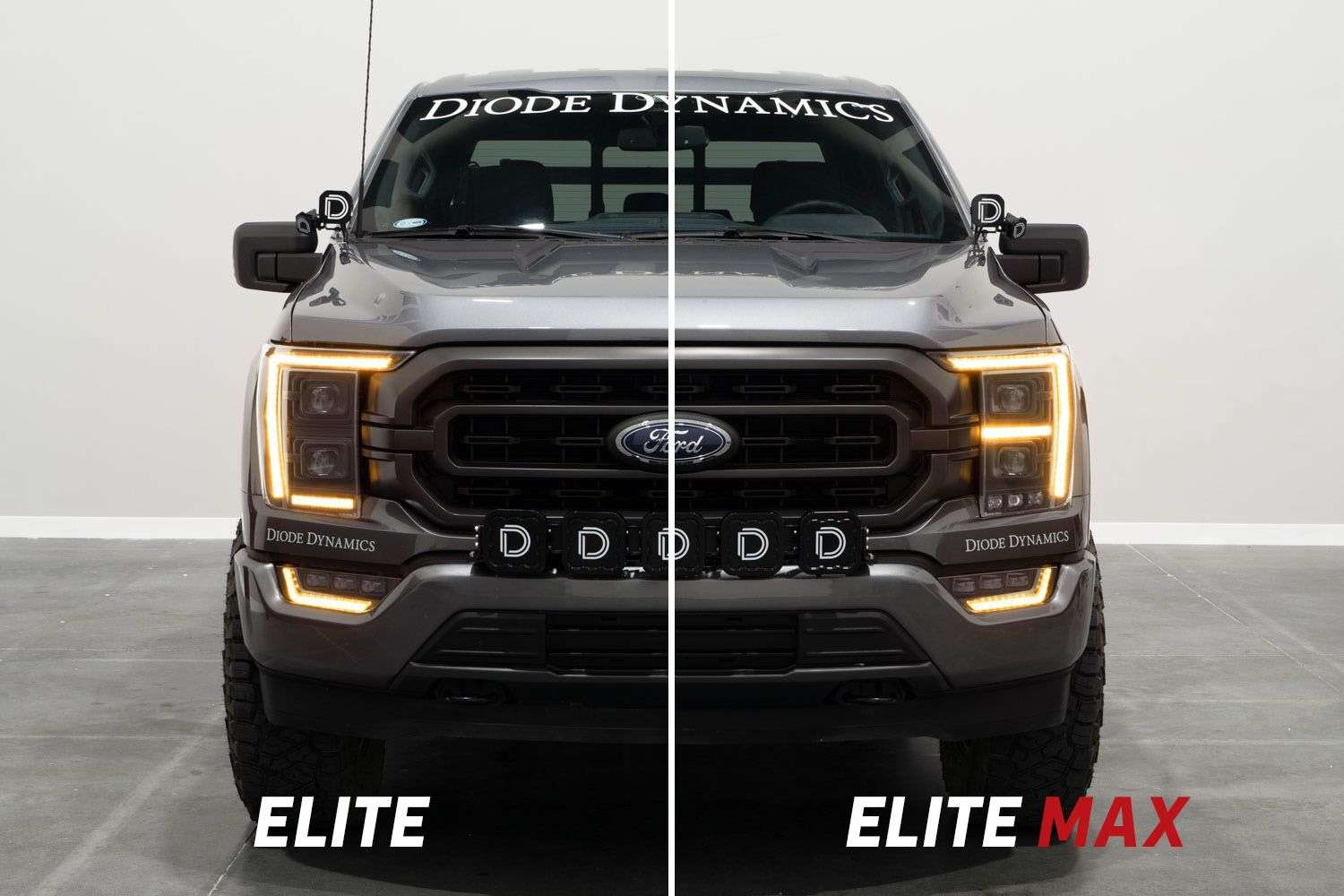

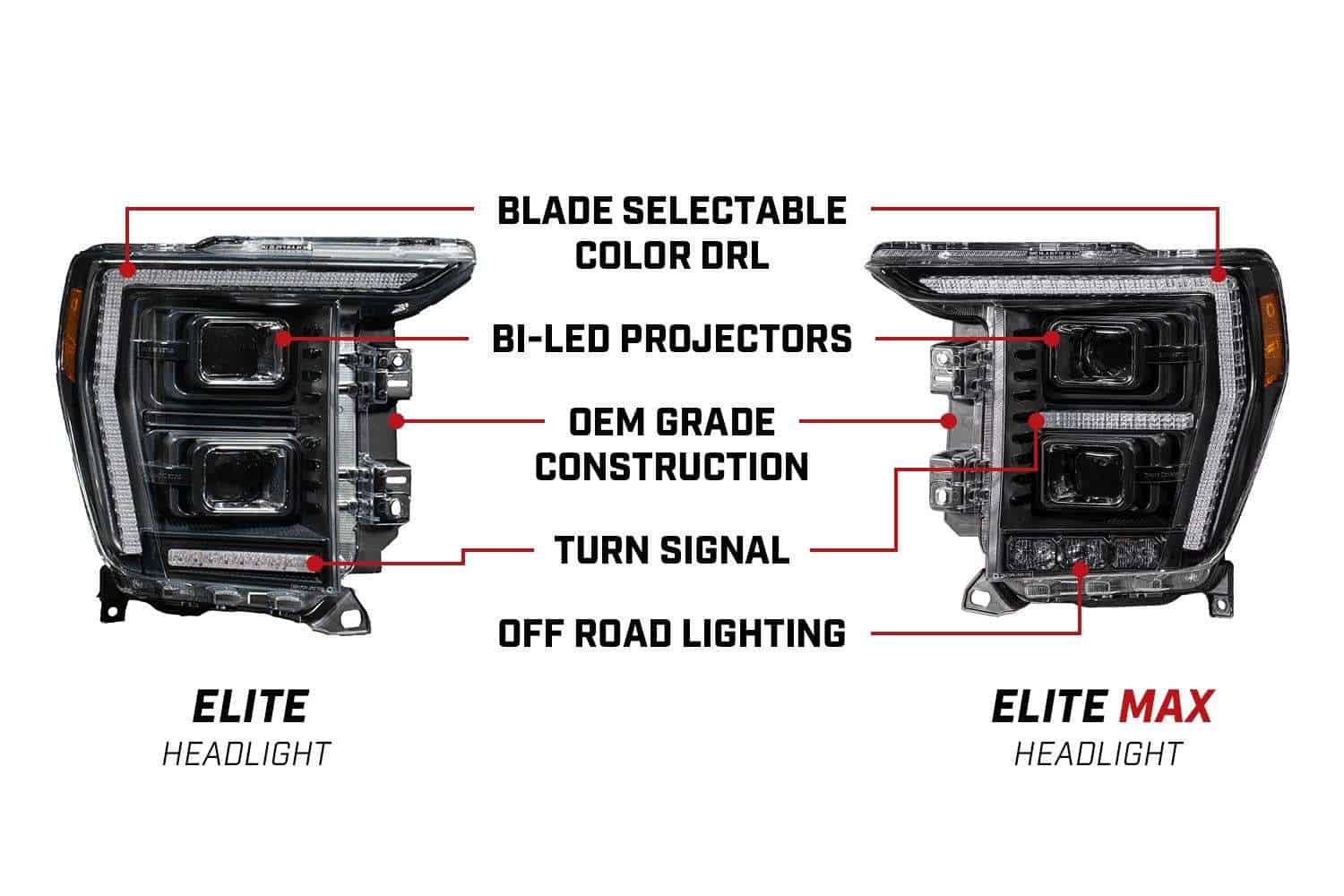

Elite vs Elite Max Features
Both versions include the same powerful dual Bi-LED projectors. The Elite Max adds additional advanced features.
Elite Max Exclusive Features
Adaptive Low Beam Assist
-
Adds side illumination using auxiliary pods
-
Improves visibility of road shoulders and ditches
-
Can be programmed to activate during turns or always on
High Beam Boost
-
Activates additional auxiliary high beam output
-
Meets SAE J581 auxiliary high beam standards
Integrated Trail Light
-
Three SSC2-style LED pods built into the housing
-
Provides powerful off-road illumination
-
Activated via included toggle switch or auxiliary switch bank
-
Intended for off-road use
Show Mode
Selectable show lighting modes:
-
Gradual animation
-
White strobe
-
Amber strobe
-
Amber / white strobe combination
Plug-and-Play Installation
Elite Series headlights are designed as a direct bolt-in replacement for factory F-150 headlights.
Installation features:
-
Plug-and-play wiring harness
-
Compatible with factory halogen and LED trucks
-
Retains auto high-beam functionality
-
No coding, splicing, or reprogramming required
-
Built-in aiming adjusters with included tool
Elite Max models include an additional harness for off-road and show functions.
Built to OEM Standards
Elite Series headlights are proudly assembled in the USA using OEM-grade components.
Construction includes:
-
Cast aluminum drivers and heat sinks
-
UV-coated polycarbonate lenses
-
Aluminum-core circuit boards
-
Automotive-grade LED emitters
-
Precision DRL blade optics
Each unit is robotically sealed and pressure tested for moisture protection.
Proven Reliability
Elite Series headlights are tested to automotive standards:
-
Operating temperature range: -40°F to 185°F
-
Vibration testing
-
Moisture intrusion testing
-
Corrosion resistance testing
-
Voltage spike and reverse polarity protection
Integrated vents allow the housings to breathe with temperature changes.
Fitment & Compatibility
Fits:
-
2021 Ford F-150
-
2022 Ford F-150
-
2023 Ford F-150
NOTE: These lamps are compatible with all trim levels, without the need for FORSCAN or reprogramming. Fitment has been confirmed on USDM models only.
Check out the list below to determine if your trim came with a Projector or Non-Projector headlamp from the factory.
OEM Lamp Styles
XL: Non-Projector
XLT: Non-Projector
Lariat: Non-Projector
Lariat w/ 502A Package: Projector
King Ranch: Projector
Platinum: Projector
Limited: Projector
Tremor: Non-Projector
Tremor w/ 402A Package: Projector
2022 Raptor: Non-Projector
2022 Raptor w/801A Package: Projector
2023 Raptor: Projector
What’s Included
-
2 × Elite or Elite Max LED Headlamp Assemblies
-
2 × Plug-and-Play Wiring Harnesses
-
2 × Molex Sealing Plugs
-
1 × Headlight Adjuster Tool
-
Installation Guide
Elite Max models include an additional harness for off-road and show functions.
Warranty & Guarantee
-
8-Year Limited Warranty
-
30-Day Return Policy (No Restocking Fee)
-
100% Satisfaction Guarantee
Frequently Asked Questions About Elite Series F-150 LED Headlights
What trucks do these fit?
They fit 2021–2023 Ford F-150 models across all trim levels.
Are they plug-and-play?
Yes. Installation uses a plug-and-play harness and factory mounting points.
Do they work on trucks with factory LED headlights?
Yes. They are compatible with both halogen and OEM LED headlight configurations.
What is the difference between Elite and Elite Max?
Elite Max adds Adaptive Low Beam Assist, High Beam Boost, Trail Light off-road pods, and Show Mode.
Are these street legal?
The main headlight functions meet applicable lighting standards. Off-road features on Elite Max should be used in accordance with local regulations.
What warranty is included?
These headlights include an 8-year limited warranty.
