Key Features:
-
Compatible with All 2021–2023 Ford F-150 Trim Levels
-
Triple LED Projectors – Maximum Output, Beam Clarity & Width
-
Blade-Style Selectable DRL: White or Amber (Switch On-the-Fly)
-
Built-In Sequential Amber Turn Signal
-
Modern Welcome Sequence at Startup
-
Optional Show Mode + Off-Road Output (With Elite Max Headlights)
-
White (6000K) or Yellow (3000K) Light Output Options
-
Fully Plug-and-Play – Direct OEM Replacement
-
Designed, Engineered, and Assembled in the USA
-
Backed by Diode Dynamics’ 8-Year Limited Warranty
Why Upgrade to Diode Dynamics Elite Fog Lights?

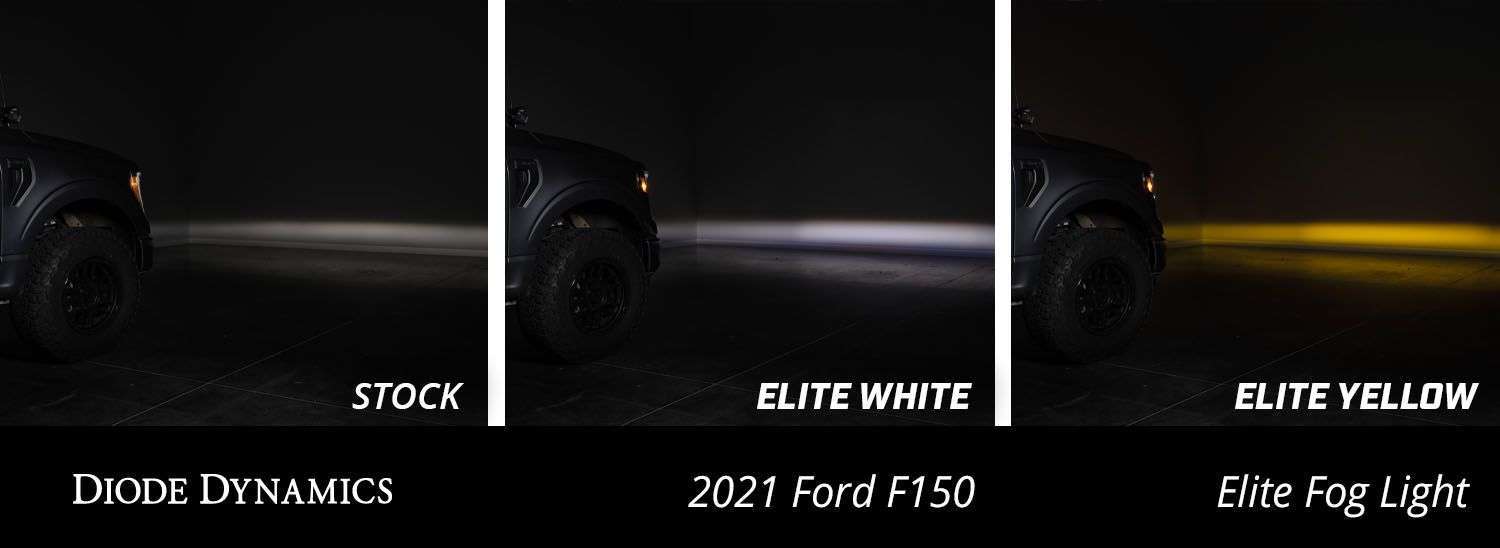

Maximum LED Output for Real-World Visibility
Each fog light uses three modern LED projectors to generate up to 2,400 raw lumens of output with an ultra-wide beam pattern that excels in fog, snow, rain, or low-light driving. Choose between 6000K white for a modern OEM look, or 3000K yellow for high-contrast visibility in harsh conditions.
Selectable Blade DRL with On-the-Fly Color Switching
With patented technology, you can toggle your DRL color between white and amber from inside your vehicle — no hood popping or wiring changes required. The blade-style DRL optic adds a premium look and high visibility during daytime driving.

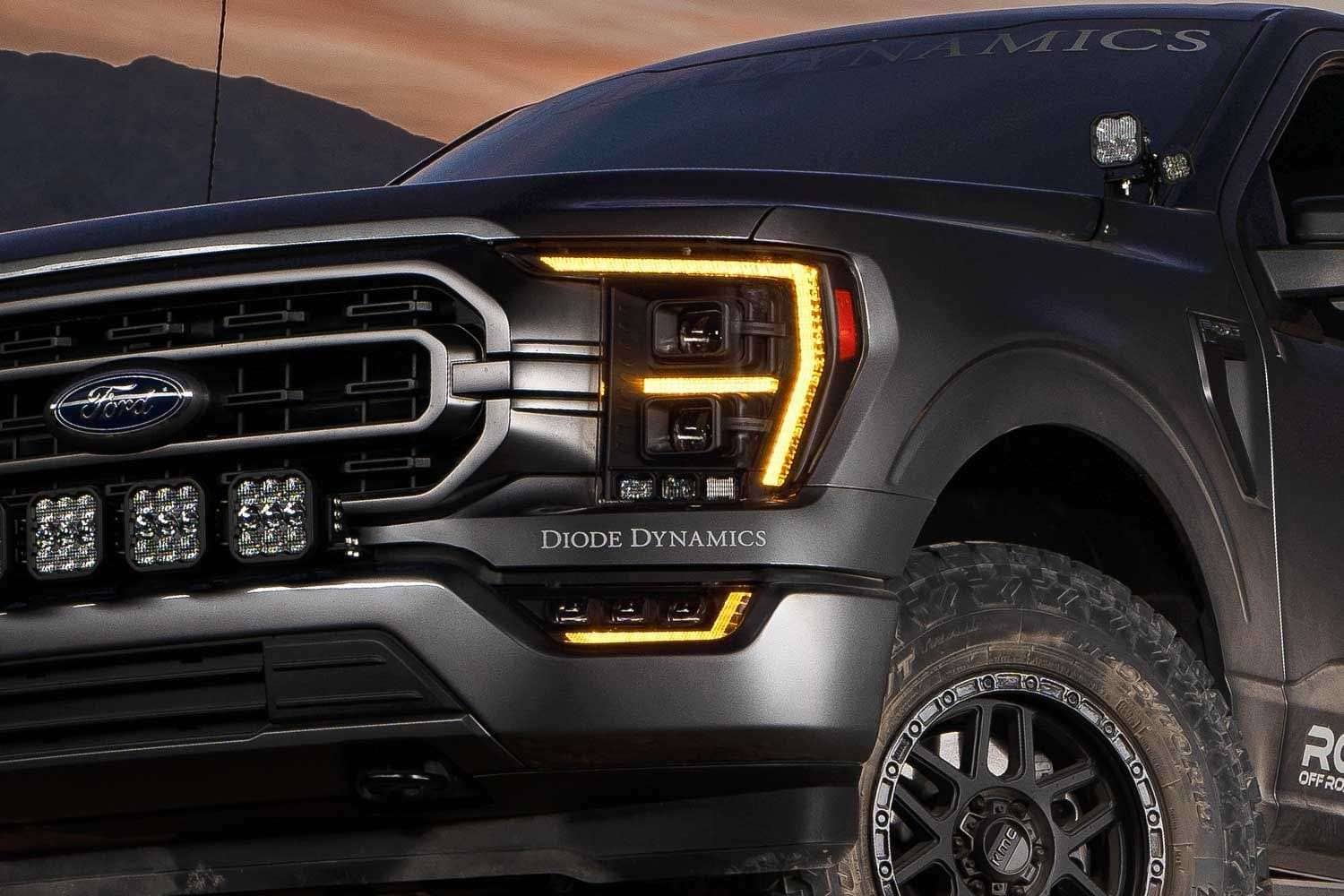

Sequential Turn Signals & Welcome Sequence
Your fog lamps now do more than light the way. Built-in sequential amber turn signals activate anytime your indicators are used, while a smooth welcome animation illuminates when you unlock or approach your truck. When paired with Diode Dynamics Elite Series Headlights, they activate in perfect sync.
Optional Show Mode + Off-Road Integration
Want to make a statement? Connect your fogs to Elite Max Headlights to enable four animated Show Modes (Gradual, White Strobe, Amber Strobe, Amber/White Strobe), plus Off-Road Mode for full-output operation in trail conditions.
No Modifications, Just Plug-and-Play
These lights bolt directly into factory fog light locations and include OEM-style connectors for a true plug-and-play install — with no additional switches or wiring needed. A built-in aim adjustment tool is included for precise alignment.
Assembled in the USA with OEM-Grade Materials
Every Elite Fog Light is assembled in St. Louis, Missouri, using UV-coated polycarbonate lenses, aluminum heatsinks, and automotive-grade Luxeon Z ES & 3030 Bi-Color LEDs. Each unit is robotically sealed for long-term durability in any environment.
Vehicle Compatibility:
-
Ford F-150: 2021, 2022, 2023 (All Trims with Factory Fog Lights)
-
Plug-and-Play fit for halogen or LED-equipped trucks
-
Optional functions (Show Mode, Off-Road Mode) require Elite Max Headlights
Technical Specifications:
-
Output Color: 6000K (White), 3000K (Yellow)
-
DRL Options: Selectable White or Amber
-
Turn Signal: Amber Sequential
-
Startup: Animated Welcome Sequence
-
LED Emitters: Luxeon Z ES, 3030 Bi-Color
-
Operating Voltage: 9V–16V
-
Operating Temp: -40°F to 185°F (-40°C to 85°C)
-
Intrusion Rating: IP67 Waterproof
-
Compliance: SAE J583 Foglamp Beam Pattern
-
Materials: Aluminum Heatsink, UV-Coated Polycarbonate Lens
-
Cooling: Passive Aluminum Heatsink
-
Warranty: 8 Years from Diode Dynamics
-
Unit Weight: 5.20 lb | Product Weight: 10.40 lb | Shipped Weight: 16 lb
What’s Included:
-

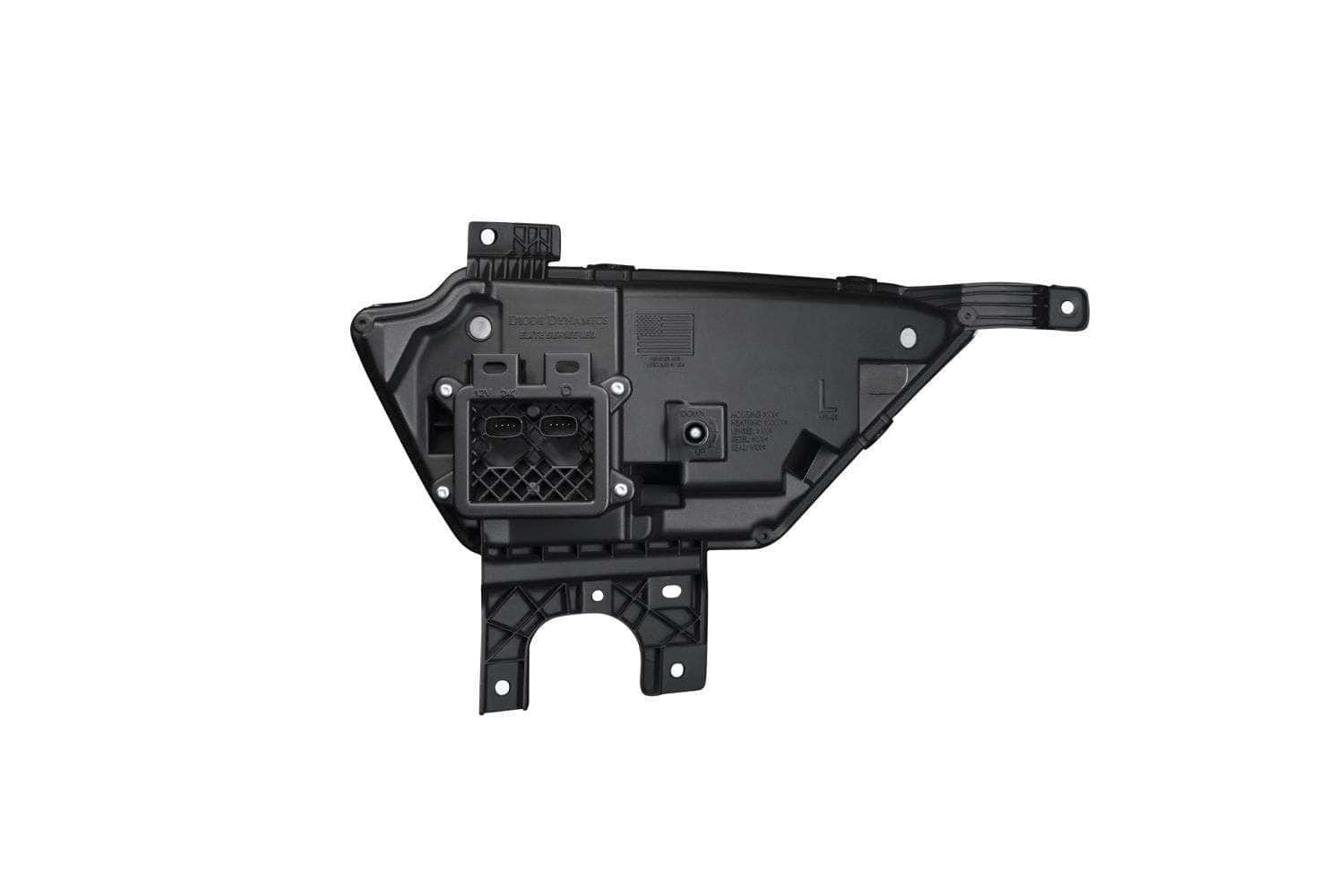

(2) Diode Dynamics Elite LED Fog Lamps (Left & Right)
-
(2) Plug-and-Play Harnesses
-
(2) Molex Sealing Plugs
-
(1) Adjuster Tool for Beam Aim
-
Installation Guide
-
8-Year Limited Warranty
The Most Advanced F-150 Fog Lights on the Market
From design to assembly, the Elite Series LED Fog Lamps are engineered for those who demand more. More light. More control. More innovation. With OEM fitment, advanced DRL and turn signal features, and rugged construction — they’re a true performance upgrade built to outlast and outshine everything else.
Tech-forward. Trail-ready. Diode Dynamics Elite.
