MORIMOTO XB LED · LF501.2-ASM
A sharper F-150, from daytime to dark.
A complete headlight pair for the 2018–2020 Ford F-150, excluding Raptor. This exact LF501.2-ASM version combines white daytime running lights, amber turn signals and integrated Kuria Bi-LED optics in complete replacement housings.
- Left + rightOne complete headlight pair
- White DRLsAmber turn signals
- Kuria Bi-LEDIntegrated low/high-beam optics

LIGHTING THAT WORKS AS A SYSTEM
A complete upgrade, beyond replacement bulbs

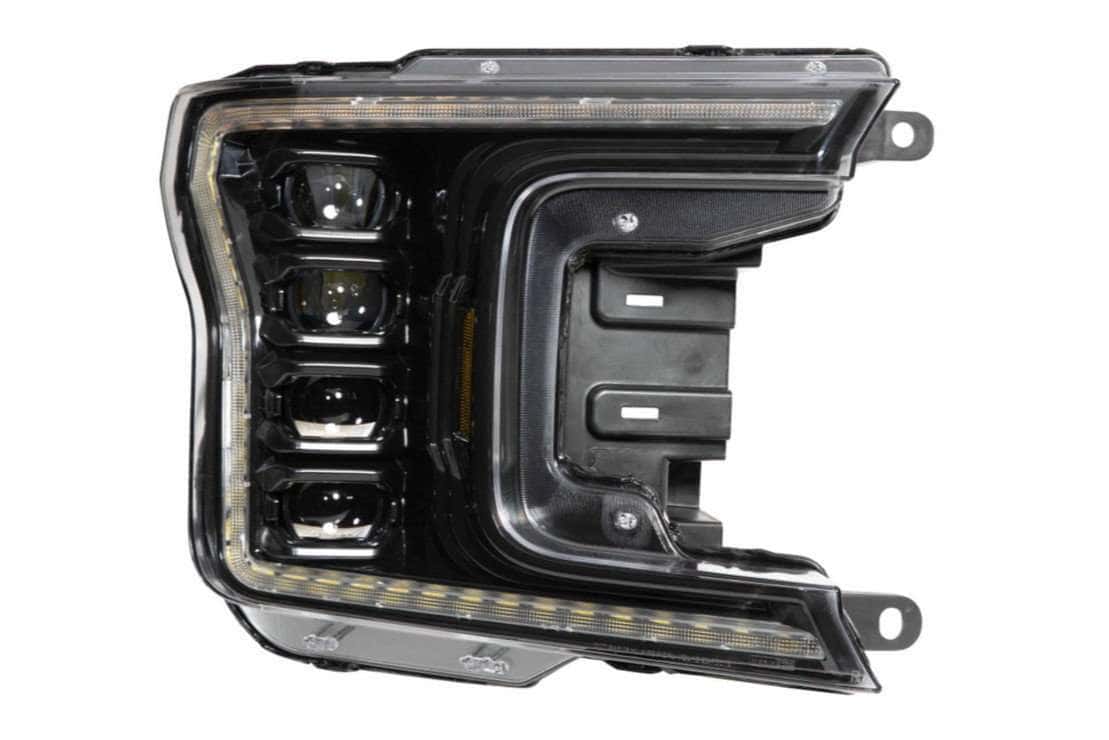

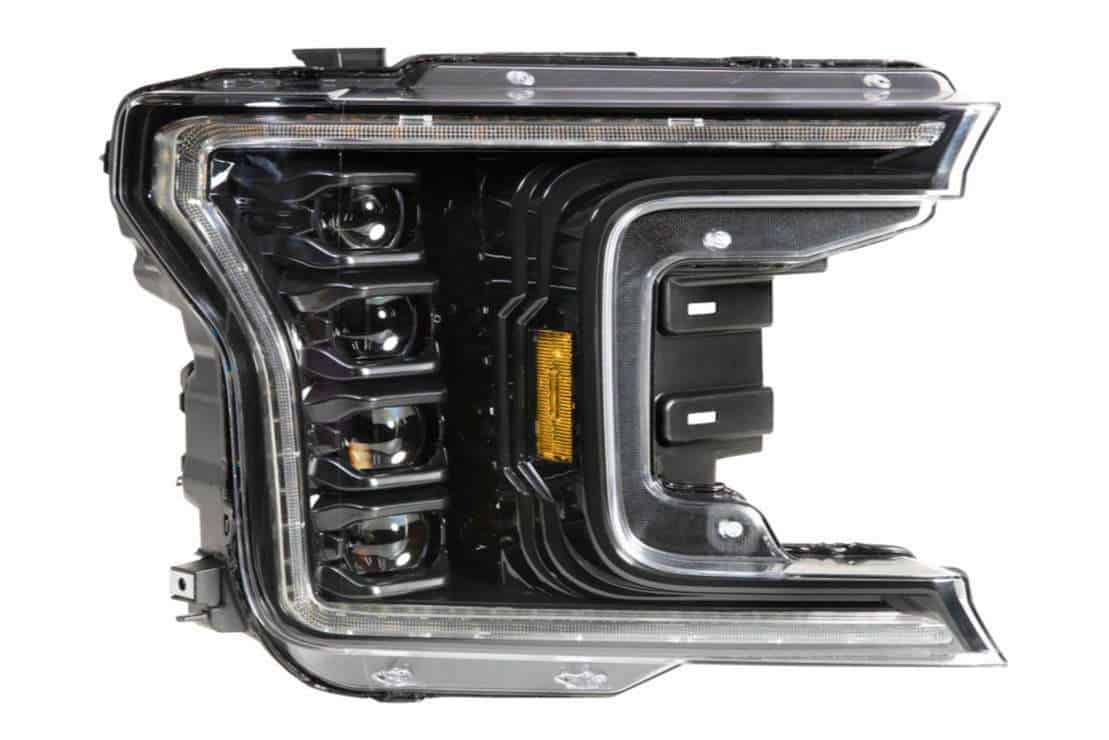

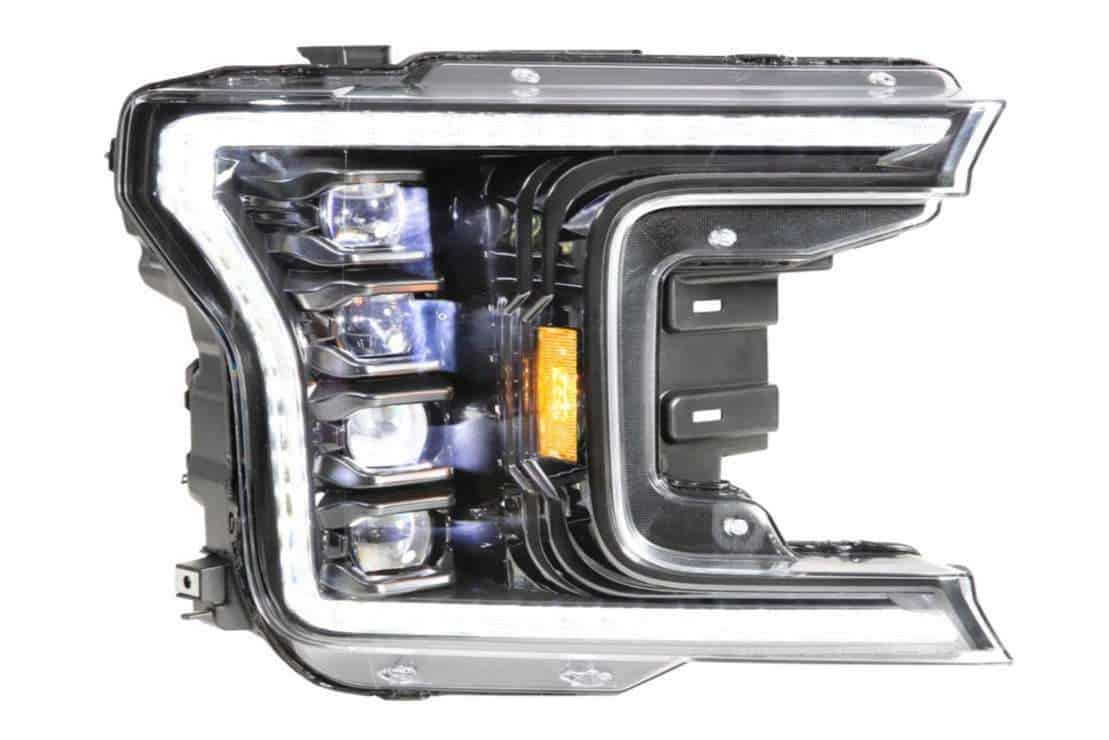

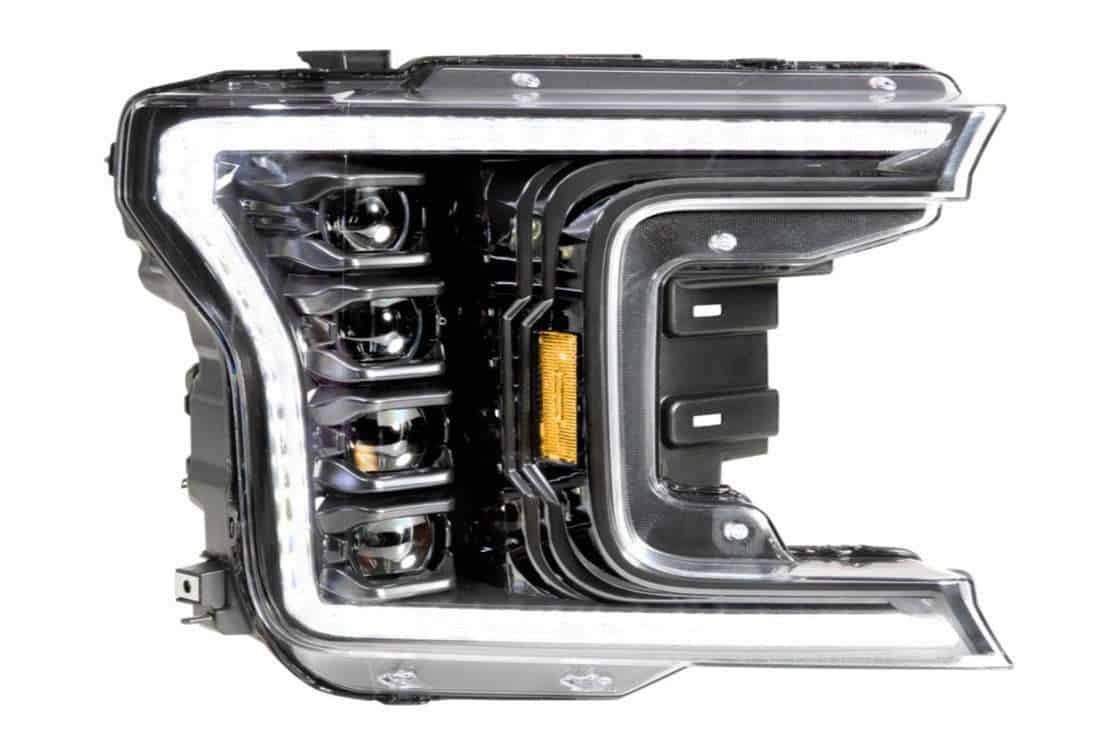

Four-projector design
Four Kuria Bi-LED projectors in each housing create the low- and high-beam functions. Integrated adjusters let the installer set the beam aim for the truck.
A distinctive daytime outline

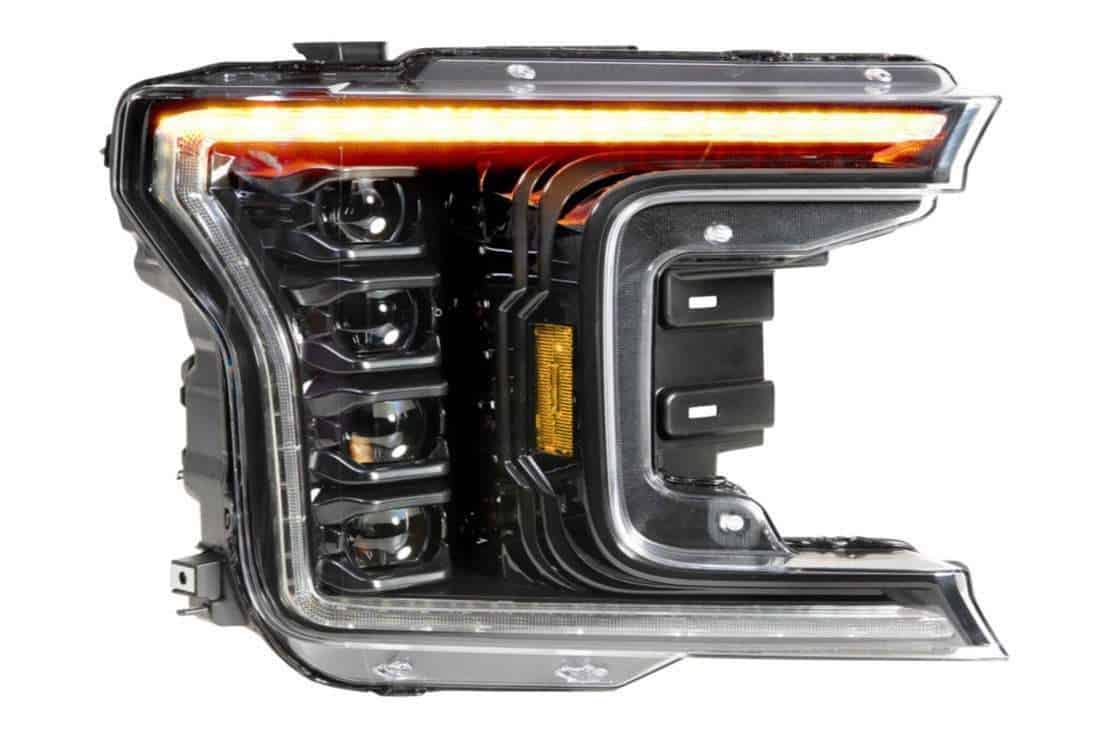

The white daytime running light gives the housing its signature. The amber turn signal can run sequentially or in a conventional flashing mode.
A two-stage welcome
When the daytime running lights first activate, the projectors illuminate in a two-stage startup sequence. It adds a visual welcome while the low- and high-beam optics handle road illumination.

CHOOSE YOUR DAYTIME SIGNATURE
Amber or white. Two separate versions.
| Detail | LF501.2-A-ASM | LF501.2-ASM |
|---|---|---|
| Daytime running lights | Fixed amber | Fixed white |
| Turn signals | Amber; sequential or standard | Amber; sequential or standard |
| Package | Complete left/right pair | Complete left/right pair |
| Original factory LEDs | Follow the OEM-LED wiring branch | Follow the OEM-LED wiring branch |
You are viewing the white-DRL LF501.2-ASM. DRL colour is selected by choosing the product, not by switching a setting on the headlight.
MATCH THE TRUCK BEFORE THE LOOK
Exact vehicle and equipment fitment
| Check | This exact application |
|---|---|
| Vehicle | 2018–2020 Ford F-150, excluding Raptor |
| Original headlights | Listed factory-halogen and factory-LED configurations |
| DRL colour for this SKU | White |
| Traffic pattern | Left-hand-drive vehicles used in right-hand traffic |
| Package | Left and right headlight assemblies |
Morimoto developed and tested these housings on US-spec vehicles. Canadian-market equipment can differ. Send BTS the year, model, original lamp type and connector photos if you are unsure; a connector match alone does not establish fitment.
ONE ORDER. BOTH SIDES.
What is supplied

- Two complete Morimoto XB LED headlight assemblies: left and right.
- Standard model-specific headlight wiring.
- DRL fuse-tap harness.
Use the connectors and wiring branch appropriate to the original lamps. The exact guide shows separate original-halogen and original-LED connector arrangements.
Vehicle photography can show other lighting, custom grilles, wheels and accessories. Those parts are not included with this headlight pair.
PLAN THE ACCESS. FINISH WITH AIM.
Installation details worth knowing
The guide includes grille/trim access, transfer of the lower mounting brackets, DRL-harness routing and the correct original-halogen or original-LED input. Test all functions before refitting trim, then set the low- and high-beam aim.
Use the original mounting points and follow the exact kit instructions. Secure the wiring away from heat, sharp edges and moving parts. Original mounting locations do not eliminate the access work or aiming step.
Download the official LF501.2-ASM installation guide

EXACT PART · LF501.2-ASM
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD Only |
| Input | Ford Multi-Pin OEM |
| Functions | DRL (White), Turn, Parking, Low, High |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Kuria Quad Optics |
| UV Coating | Momentive UVHC3000 |
Original-equipment replacement references
JL3Z13008AH, JL3Z13008G, JL3Z13008AG, JL3Z13008A, JL3Z13008AK, JL3Z13008H, JL3Z13008AJ, JL3Z13008B, JL3Z13008AH, JL3Z13008G, JL3Z13008AG, JL3Z13008A, JL3Z13008AK, JL3Z13008H, JL3Z13008AJ, JL3Z13008B, JL3413EO15AE, Jl3413e015al, FO2502373, FO2503373, FO2502372, FO2503372
Use these alongside the exact vehicle and original-equipment requirements above.
Morimoto identifies the supplied configuration as meeting its stated DOT/SAE requirements when correctly installed and aimed. This does not establish approval for unverified drivers, altered wiring or another vehicle application.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Official Morimoto Lighting overview linked by the supplier. Some demonstrations show a different DRL colour; this exact LF501.2-ASM uses white daytime running lights.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB headlight questions
Is the price for one light or both sides?
One order supplies the complete headlight pair: left and right, with the listed standard installation wiring.
What truck does this exact part fit?
2018–2020 Ford F-150, excluding Raptor. Match the original headlight equipment and market specification before ordering.
Will these fit a Raptor?
No. Raptor is excluded from this 2018–2020 F-150 application. Choose a product specifically matched to the Raptor instead.
Can I switch the DRLs between amber and white?
No. This exact LF501.2-ASM has fixed white DRLs. The other colour is a separate headlight product, linked above.
Can the turn signals flash normally?
Yes. Morimoto lists sequential and standard flashing modes. Configure both sides consistently using the supplied instructions.
Does this replace bulbs or the whole headlight?
The complete housings are replaced, including the integrated LED optics. This is not a set of bulbs that fits inside the original lamps.
What happens during the startup sequence?
The projectors illuminate in a two-stage sequence when the daytime running lights first activate.
Are Supercharged drivers or heated lenses included?
No. Neither a heated-lens feature nor compatible Supercharged drivers have been established for this exact older XB part. Newer Evo features and accessories should not be assumed to apply.
What does LHD mean?
It identifies the beam-pattern specification for left-hand-drive vehicles used on the right-hand side of the road. It does not mean that only the left headlight is included.
What should be checked after installation?
Test low beams, high beams, daytime running lights and both turn signals. Secure the harness and check beam aim. A suspension lift or changed load can require further adjustment.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Terms and exclusions apply. Keep proof of purchase and contact BTS for a suspected warranty issue.

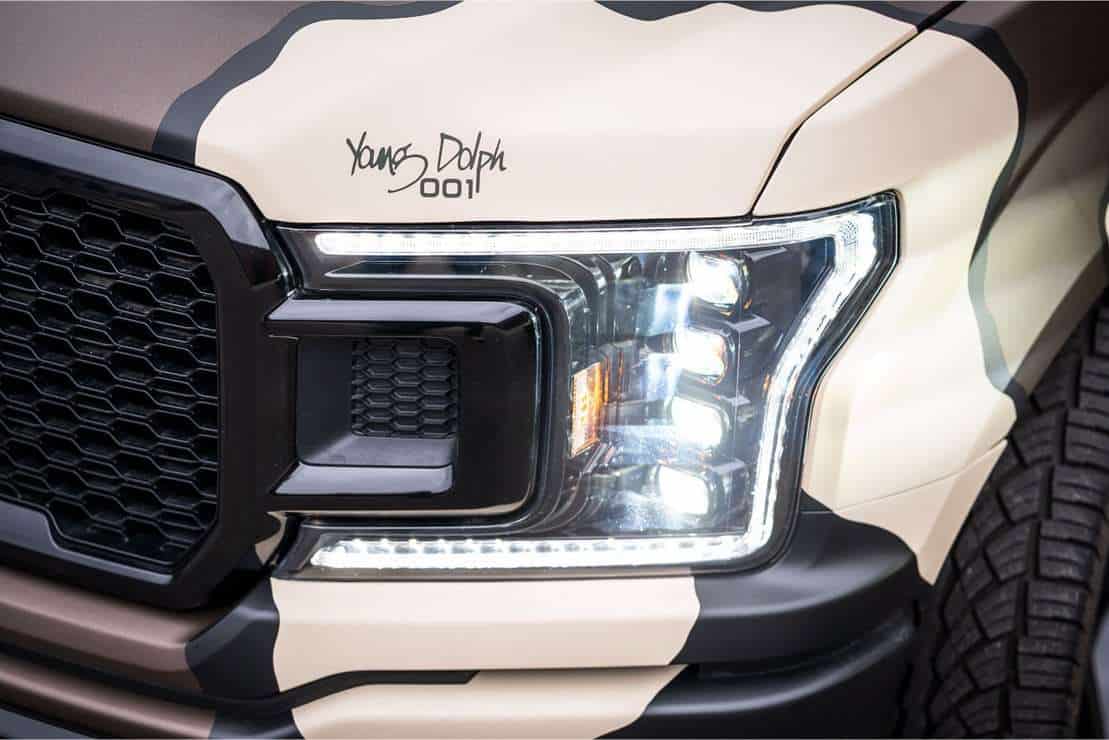

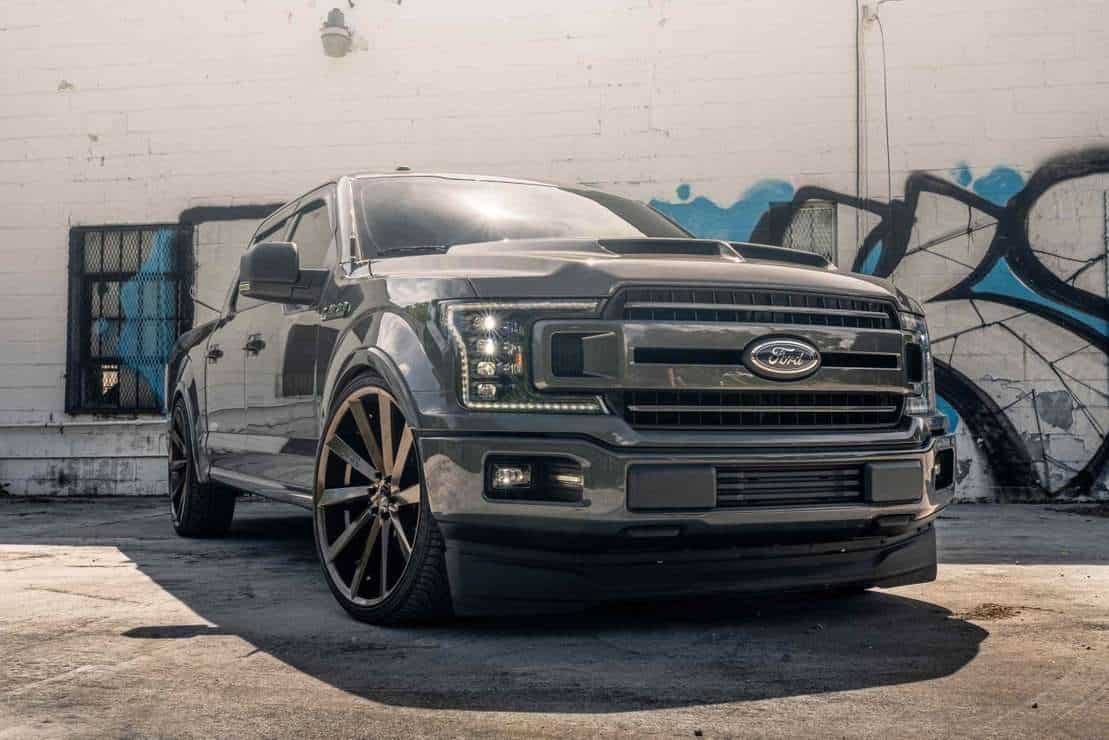

THE FINISHED LOOK
See it on the truck
The exact DRL colour is shown. Other lighting, grilles, wheels and vehicle accessories are not included.
