MORIMOTO XB LED · LF502-A.2-ASM
Give your F-150 an amber signature.

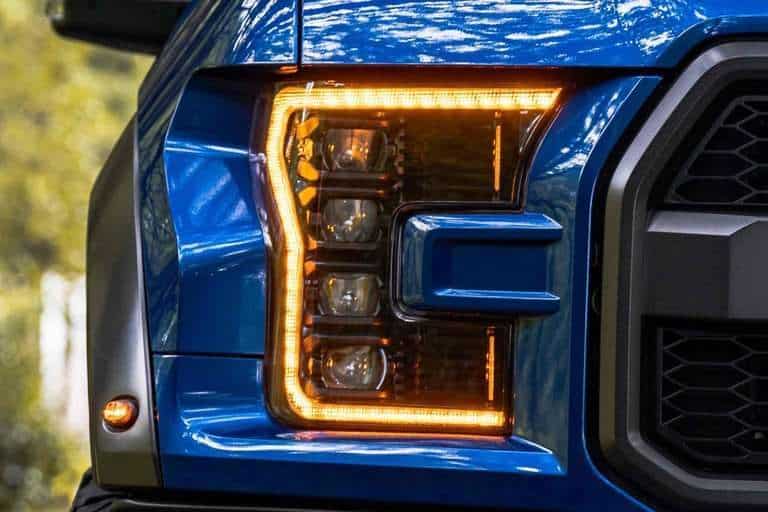

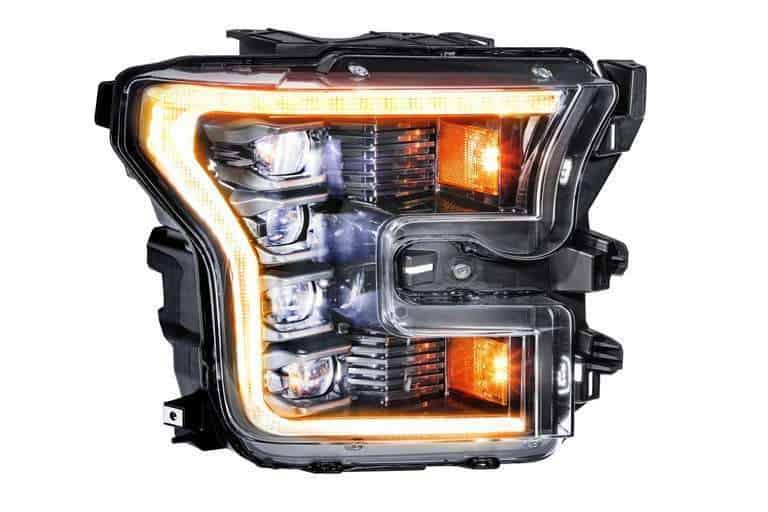

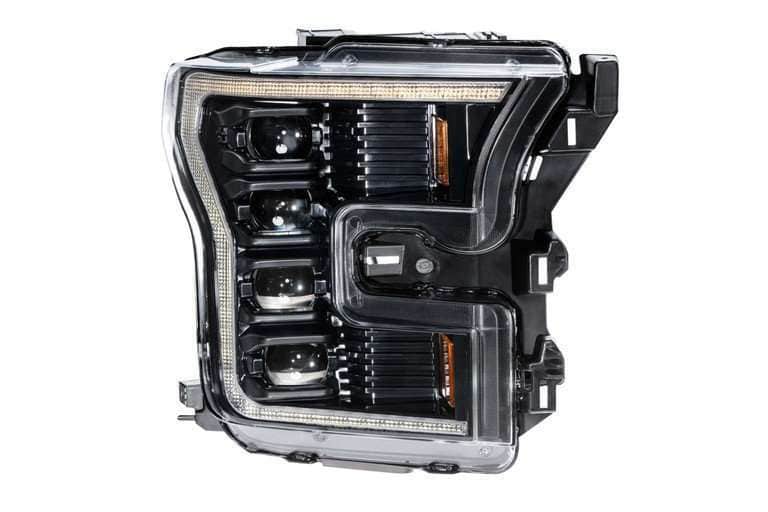

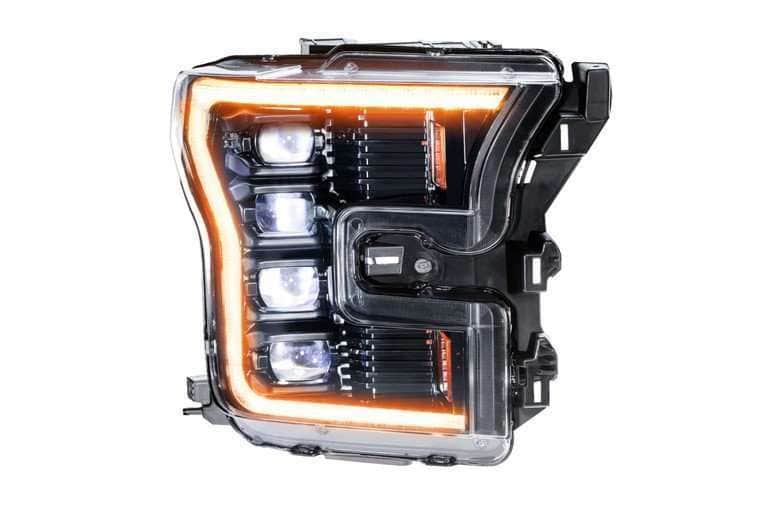

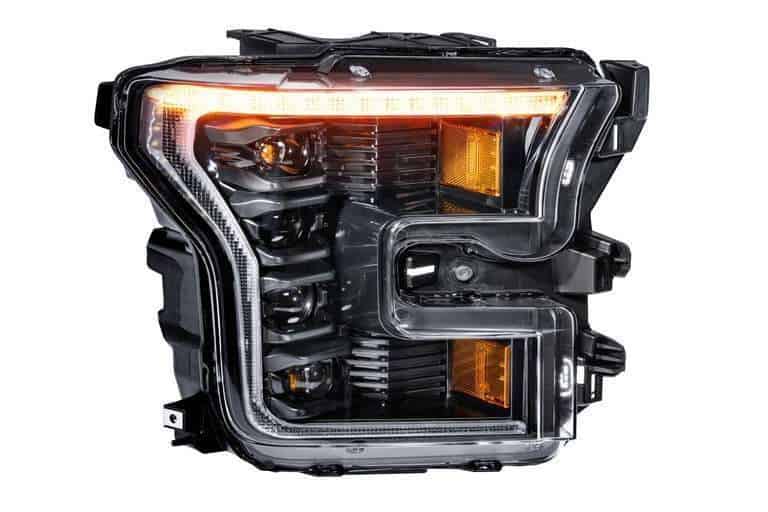

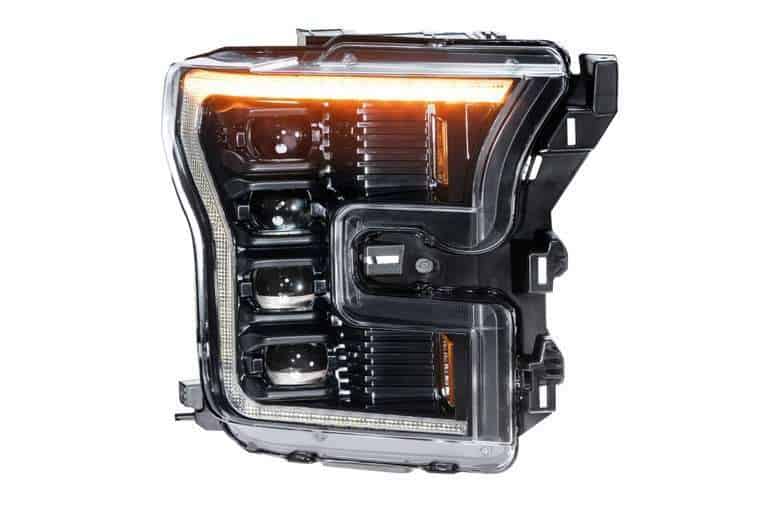

A bold amber daytime signature frames four LED projectors in each housing. This Gen 2 XB pair brings integrated low/high beams, a two-stage start-up sequence and selectable amber turn signals to the 2015–2017 F-150.
- Left + rightOne complete headlight pair
- Amber DRLsA fixed daytime signature
- LED opticsLow- and high-beam functions

THE LIGHTING SYSTEM, EXPLAINED
Three details that define this set
Integrated LED optics
The .2 revision uses all four projectors for low beam and a dual Bi-LED arrangement for high beam. It differs from the earlier configuration shown in the family installation guide.
Fixed amber signature
This exact .2 part has fixed amber DRLs. The supplier specifies a non-dimming amber signature; it is not a white/amber colour selector.
Selectable amber signals
Choose standard flashing or sequential amber LED signals using the connections shown in the exact installation guide. Set both sides consistently.

MATCH THE YEAR, TRIM AND ORIGINAL LAMPS
Exact vehicle and equipment fitment
| Check | This exact application |
|---|---|
| Vehicle | 2015–2017 Ford F-150 |
| Exact headlight part | LF502-A.2-ASM |
| Package | Complete left and right headlight assemblies |
| Original lighting | OEM halogen or OEM LED; follow the appropriate supplied wiring |
| Turn signals | Integrated amber LED |
| Traffic pattern | Left-hand-drive vehicles used in right-hand traffic |
| Raptor | Confirm the exact model year separately; photographs do not establish fitment |
The supplier developed this application on US-spec vehicles. Canadian and other-market DRL equipment can differ: confirm the actual lamps and connectors before ordering.
THE STANDARD HEADLIGHT PACKAGE
What comes with the pair

- Headlights: 2x (One Pair) 15-17 Ford F150 Amber DRL XB LED

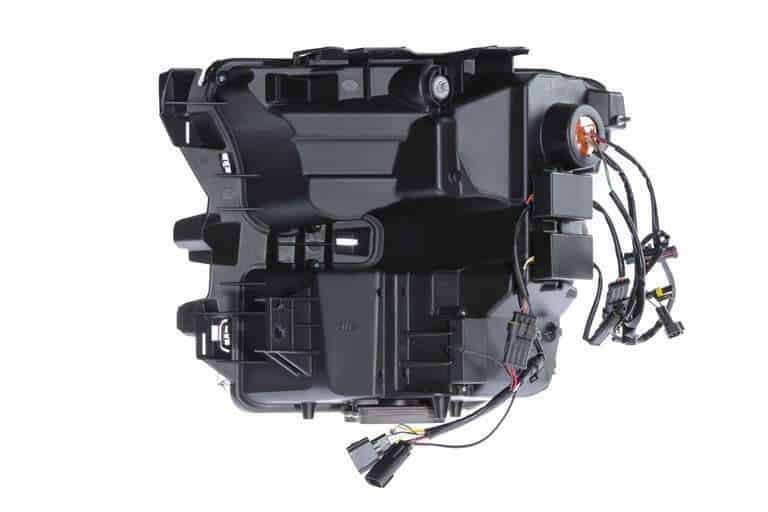

- Wiring: Plug and Play Harness, Fuse Tap
Use the adapters and signal components appropriate to the truck’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
The BTS package SKU also includes the LF501T DRL fuse tap. It remains part of the existing product configuration.
Tail lights, fog lights, bumpers, wheels and other accessories shown on the vehicles are separate products.
PLAN THE ACCESS AND WIRING
Installation details worth knowing
The supplier-linked F-150 guide covers original halogen versus original LED connectors, trim access, transfer of the lower mounting brackets and a separate DRL fuse-tap harness. Its illustrated fuse location is 113. The native package includes LF501T; routing that fuse tap may require a small notch in the fuse-box lid. The older guide illustrates the earlier optical revision and dimming behaviour: the exact .2 amber product uses the updated optics described here and the supplier specifies a non-dimming amber DRL. Match the wiring and aim to the instructions supplied with the exact set.
Download the official LF502-A.2-ASM installation guide
Aftermarket turn signals or LED bulb conversions elsewhere on the vehicle can affect signalling. Test the whole lighting system before final reassembly and follow the vehicle’s actual fuse information.

EXACT PART · LF502-A.2-ASM
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD Only |
| Input | Ford Multi-Pin OEM |
| Functions | DRL (Amber), Turn, Parking, Low, High |
| Material | UV-resistant polycarbonate lens; housing resin not specified here |
| Optic | Kuria Quad Optics |
| UV Coating | Momentive UVHC3000 |
Original-equipment replacement references
FL3Z-13008B, FL3Z-13008A, HL3Z-13008-A, HL3Z-13008-A, FL3Z13008B, FL3Z13008A, GL3Z13008B, GL3Z13008A, FO2502344, FO2503344, FO2502335, FO2503335, FL3Z3008M, FL3Z13008K, FL3Z13008K, FL3413006BV, FL3413006BV, FL3Z13008M, HL3V13006VC, FL3Z13008L
Use these only together with the model-year and equipment requirements above.
Morimoto lists the supplied standard configuration against its stated DOT / SAE requirements when installed and aimed correctly. That does not establish fitment or compliance for unverified replacement drivers or modified applications.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
Officially linked model-family videos. Some show an earlier revision or another DRL colour; the exact part, revision and colour described above govern this selection.
NEW 2015 – 2017 F-150/Raptor Gen 2 XB Headlights by Morimoto

2015-2017 FORD F150 MORIMOTO XB LED HEADLIGHTS – PLUG AND PLAY!

Choose a video to load it. No autoplay. Historical launch or availability statements are not current BTS stock information; the written part-specific details govern this selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB LED questions
Is this one headlight or a pair?
One order supplies complete left and right headlight housings and the listed standard wiring.
Which vehicle does this exact part fit?
2015–2017 Ford F-150. Match the original lamp equipment and detailed fitment table before ordering.
Are these replacement bulbs?
No. They are complete replacement assemblies with integrated LED optics.
Do I keep the original turn-signal bulbs?
Choose standard flashing or sequential amber LED signals using the connections shown in the exact installation guide. Set both sides consistently.
Can I change the daytime running-light colour?
This exact .2 part has fixed amber DRLs. The supplier specifies a non-dimming amber signature; it is not a white/amber colour selector.
Do I need to adjust the aim?
Yes. Finish alignment after mounting and testing. Lift, load and ride height can change where the beam lands.
Can I add Supercharged drivers?
Compatibility is not established for this exact LF502-A.2-ASM assembly. Do not assume drivers sold for newer Evo headlights fit this model.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Terms and exclusions apply; retain proof of purchase and contact BTS if an issue occurs.
What does LHD mean?
The beam pattern is for left-hand-drive vehicles used on the right-hand side of the road. It does not mean only the driver-side lamp is supplied.
Does the amber DRL dim?
The exact .2 amber product description specifies a non-dimming DRL. The older family guide describes different dimming and optical behaviour.
Is this the same as a white-DRL F-150 set?
No. LF502-A.2-ASM has fixed amber DRLs and the .2 optical revision. A family video may show a white version; it does not change the selected part.
THE FINISHED LOOK

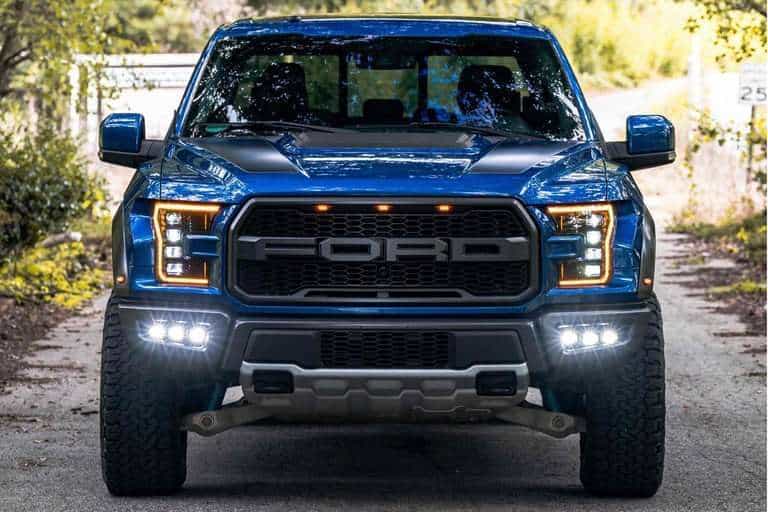

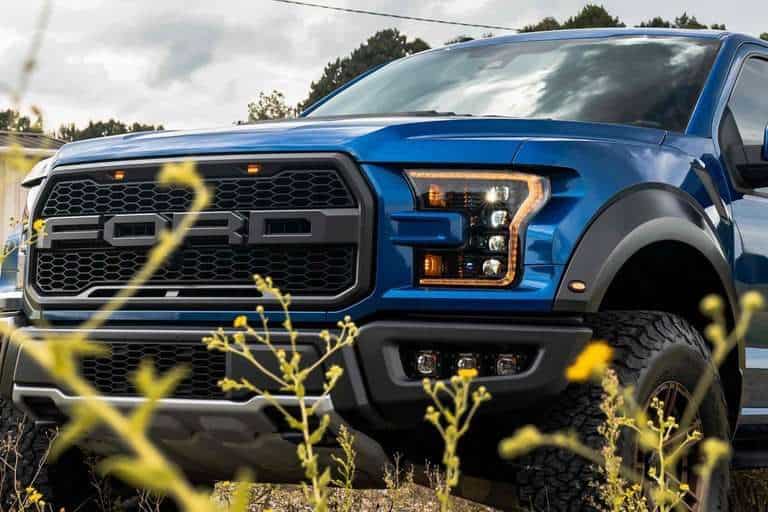

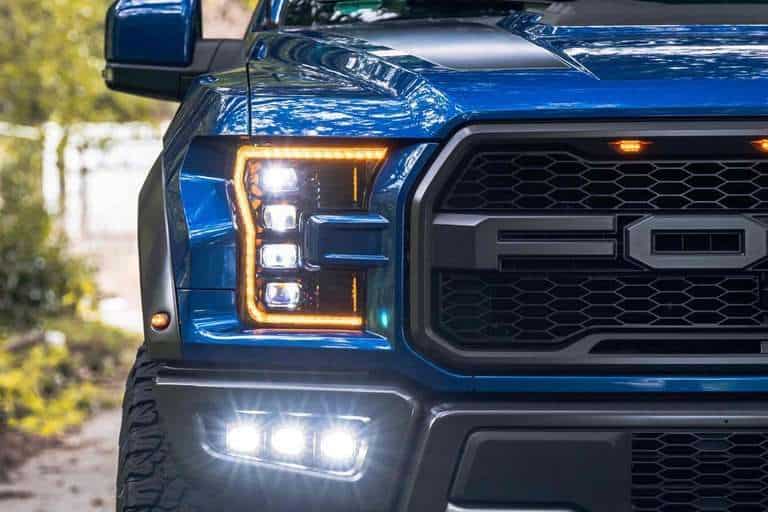

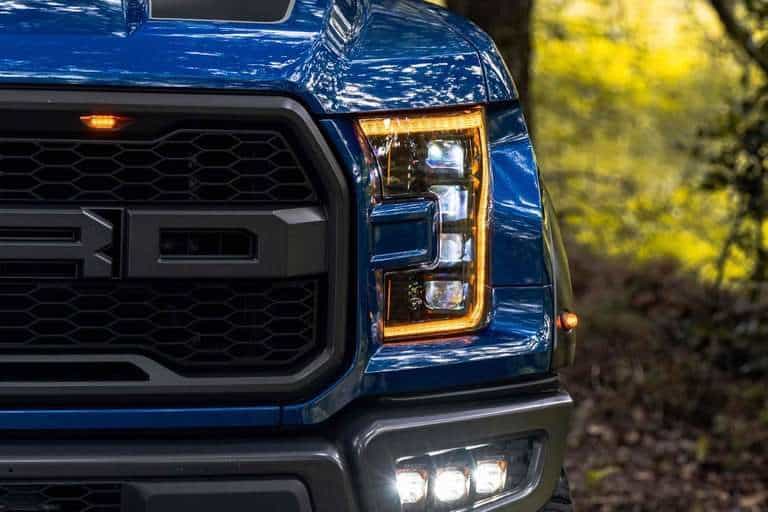

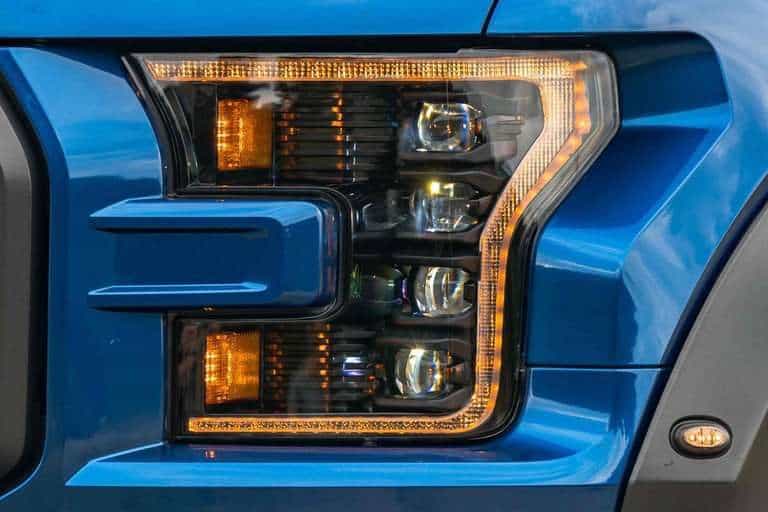

See the design on the vehicle
Original supplier photography. Other lighting and vehicle accessories are separate.
