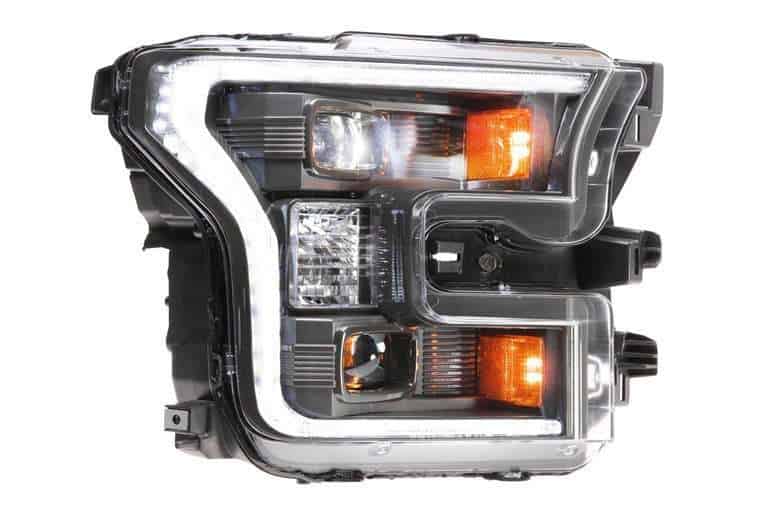

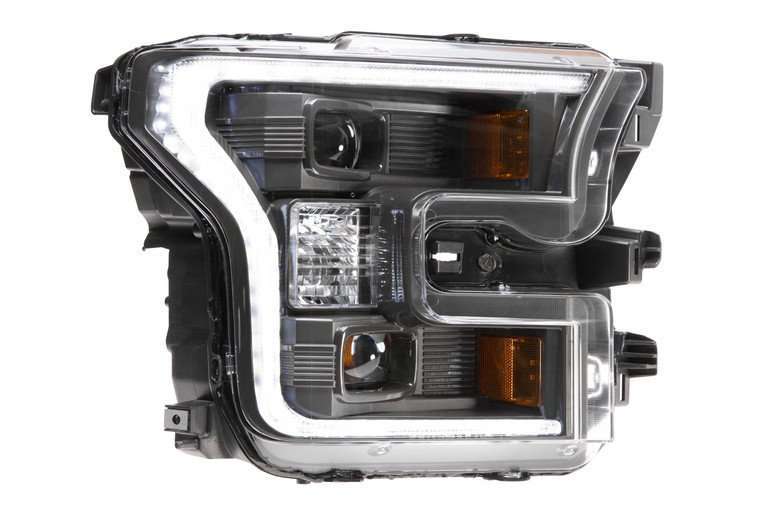

Morimoto 2015–2017 Ford F-150 XB Hybrid LED Headlights
Full LED headlight upgrade designed as a cost-effective alternative to the premium XB series. Combines projector-based LED output, integrated DRLs, and OEM-level fitment.

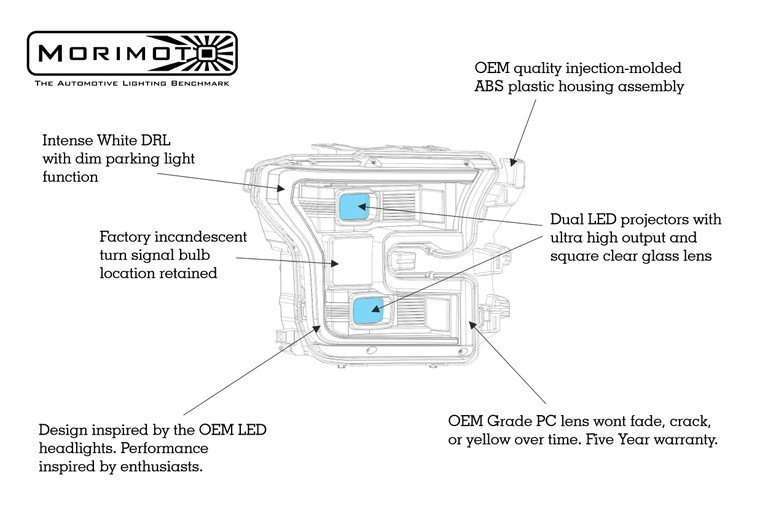

LED Projector Beam System
Integrated LED optics deliver improved beam performance.
Features include:
- Dedicated LED low and high beam projectors
- Wide low beam coverage
- Focused high beam projection
Provides improved visibility over factory halogen and base LED systems.
DOT-Compliant Output
Designed for safe on-road operation.
Compliance includes:
- DOT compliant
- SAE compliant
- FMVSS108 compliant
Maintains proper beam pattern and glare control.

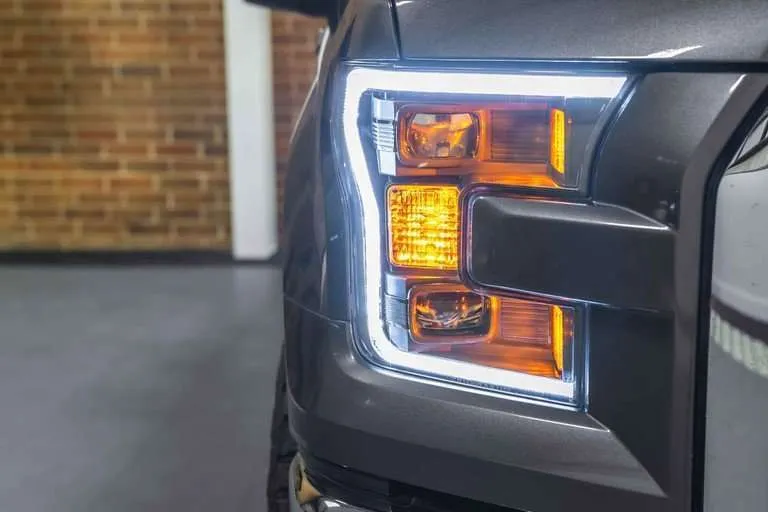

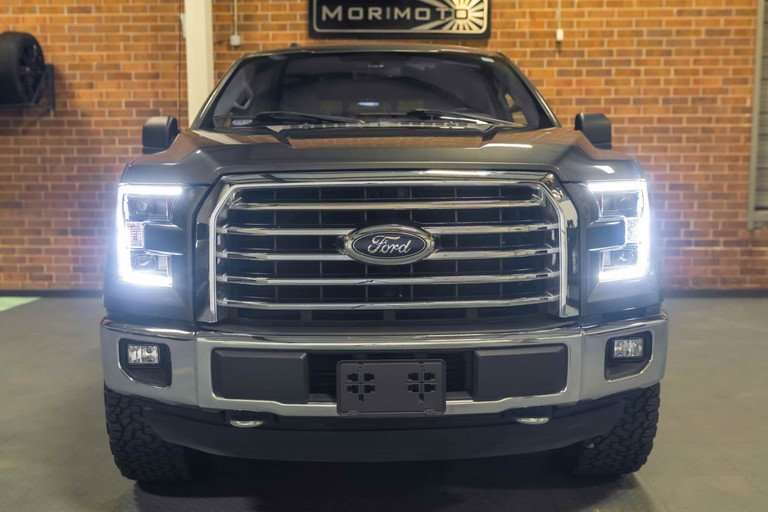

Osram 5000K LED DRL System
High-output daytime running light improves visibility.
Features include:
- 5000K white LED DRL
- High daytime brightness
- Automatic dimming with parking lights and low beams
Enhances daytime recognition without excessive glare.

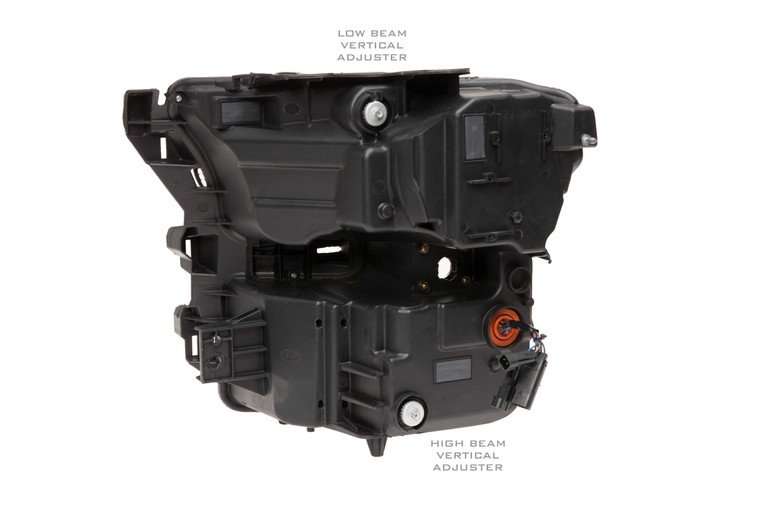

Direct OEM Fitment
Designed to replace factory headlight assemblies.
Features include:
- Direct bolt-on installation
- Uses factory mounting points
- Compatible with OEM halogen and LED systems
Maintains factory alignment and fitment.
Plug-and-Play Installation
Simplified wiring integration.
Includes:
- OEM LED adapter harnesses
- Fuse tap for DRL integration
- Error-free operation
No resistors or additional modules required.
Durable Construction
Engineered for long-term performance.
Materials include:
- UV-resistant polycarbonate lens
- ABS plastic housing
- OE-grade wiring and connectors
Resists fading, cracking, and heat-related degradation.
Application & Use Case
Designed for:
- Ford F-150 (2015–2017)
- Ford F-150 Raptor (2017–2020)
- Daily driving and low-light conditions
Provides a balance of performance and value.
Installation & Technical Details
- Fitment: Ford F-150 (2015–2017), Raptor (2017–2020)
- Traffic Pattern: LHD
- Input: Ford multi-pin OEM connector
- Functions: DRL (white), turn signal, parking, low beam, high beam
- Optic: Kuria LED projector system
Replaces Ford Part Numbers:
FL3Z-13008B, FL3Z-13008A, HL3Z-13008-A, GL3Z13008B, GL3Z13008A, FO2502344, FO2503344, FO2502335, FO2503335, FL3Z13008M, FL3Z13008K, HL3V13006VC
Build Quality & Materials
- UV-coated polycarbonate lens (Momentive UVHC3000)
- ABS housing construction
- Precision LED optics
- Sealed housing design
Designed for durability in daily driving conditions.
What’s Included
- 1 × Driver-side XB Hybrid headlight
- 1 × Passenger-side XB Hybrid headlight
- OEM LED adapter harnesses
- Fuse tap
Warranty Coverage
Backed by a 5-year limited warranty from Morimoto.
Compatibility
- Ford F-150 (2015–2017, halogen or OEM LED models)
- Ford F-150 Raptor (2017–2020)
Frequently Asked Questions About XB Hybrid F-150 Headlights
What is the difference between XB and XB Hybrid?
XB Hybrid offers similar styling and functionality at a more accessible price point with a simplified internal design.
Are these headlights plug-and-play?
Yes. They install using factory connectors with included adapters.
Will these fit trucks with factory LED headlights?
Yes. Adapter harnesses are included for OEM LED-equipped trucks.
Are these brighter than factory headlights?
Yes. LED projectors provide improved output and beam distribution compared to OEM halogen systems.
Are these street legal?
Yes. They meet DOT, SAE, and FMVSS108 standards.
Do these include DRLs?
Yes. They feature integrated 5000K LED daytime running lights.
