MORIMOTO XB LED · LF502.2-ASM
Four projectors. A fresh F-150 look.

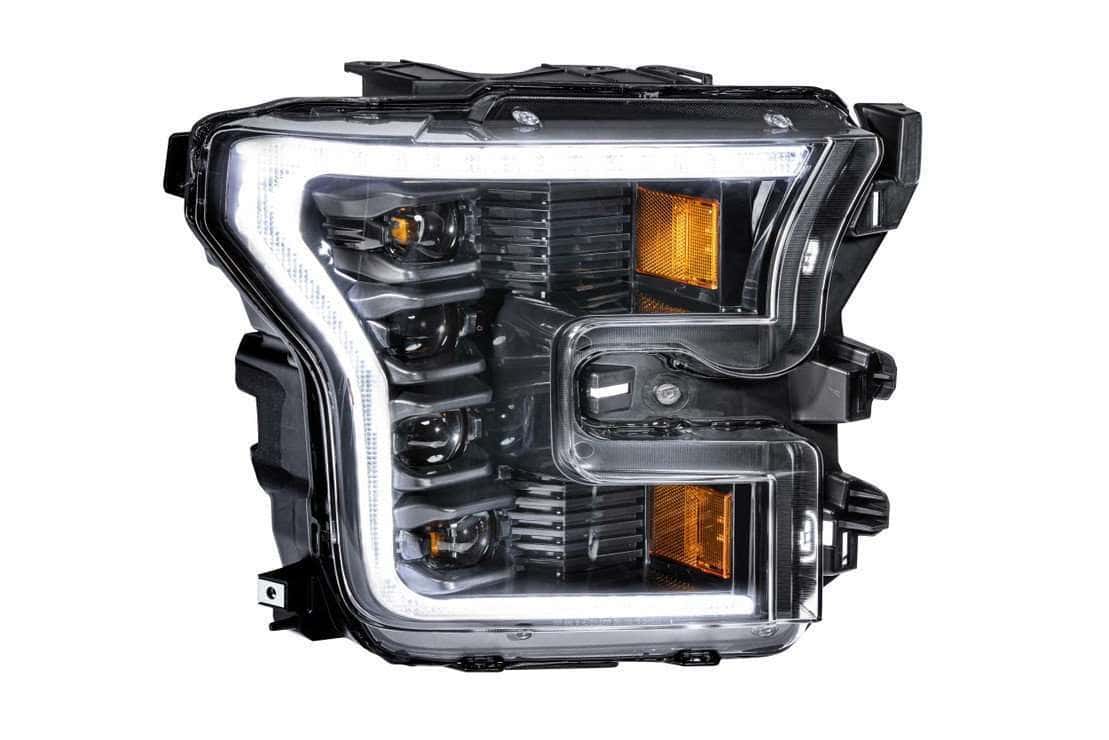

A complete Morimoto XB LED headlight pair for the 2015–2017 Ford F-150. This exact LF502.2-ASM combines white daytime running lights, amber turn signals and integrated LED low/high-beam optics in replacement housings.
- Left + rightOne complete headlight pair
- White DRLsAmber turn signals
- Integrated LEDLow- and high-beam optics

LIGHTING THAT WORKS AS A SYSTEM
More than a replacement bulb
Integrated projector optics

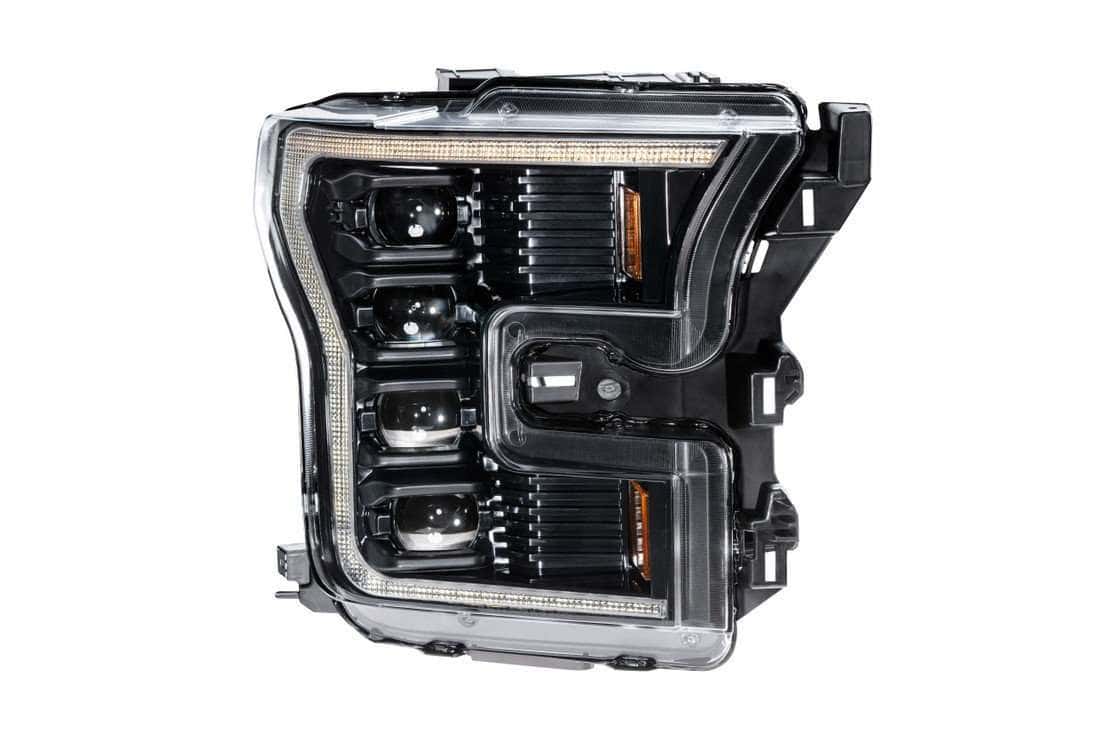

Four integrated projectors in each housing deliver the low- and high-beam functions in a complete optical assembly.
Your daytime signature

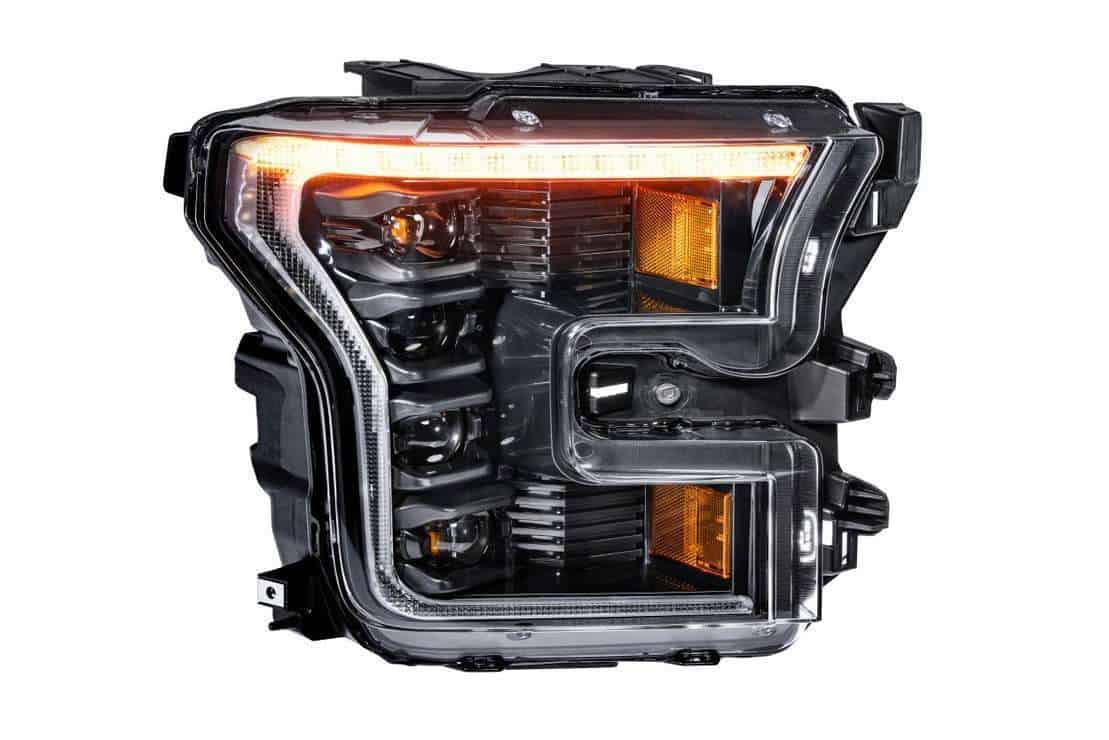

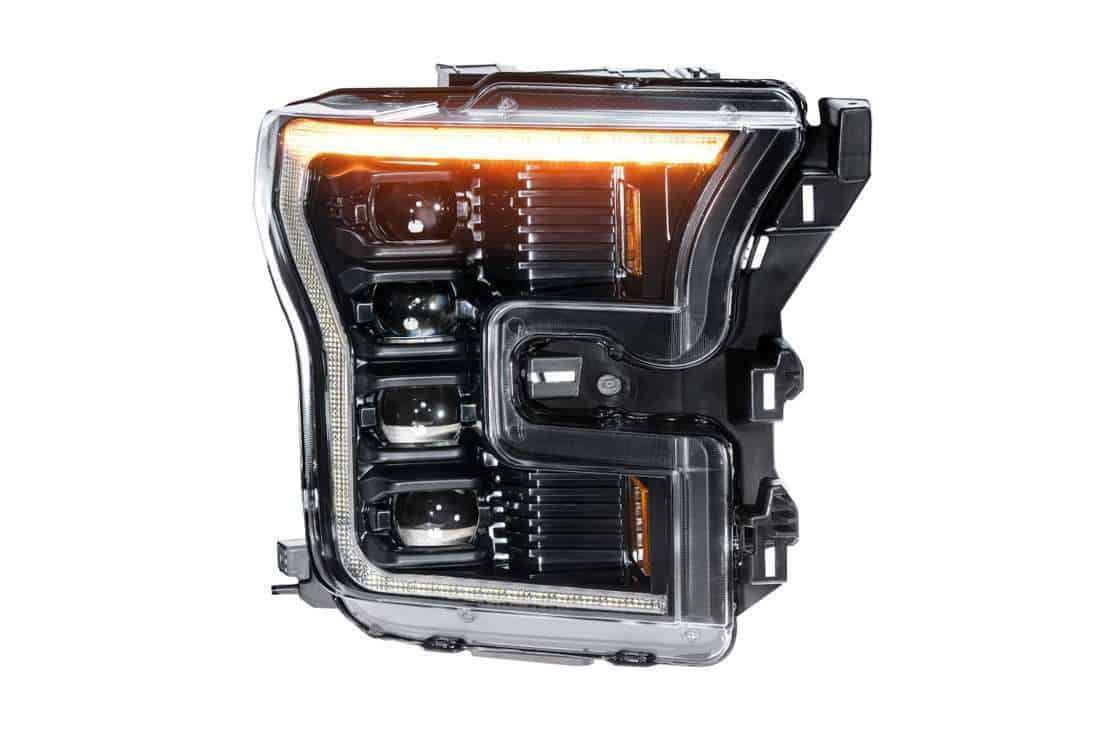

The fixed white DRL outlines the housing. The amber turn signal can run sequentially or with a conventional flashing pattern.
A two-stage welcome

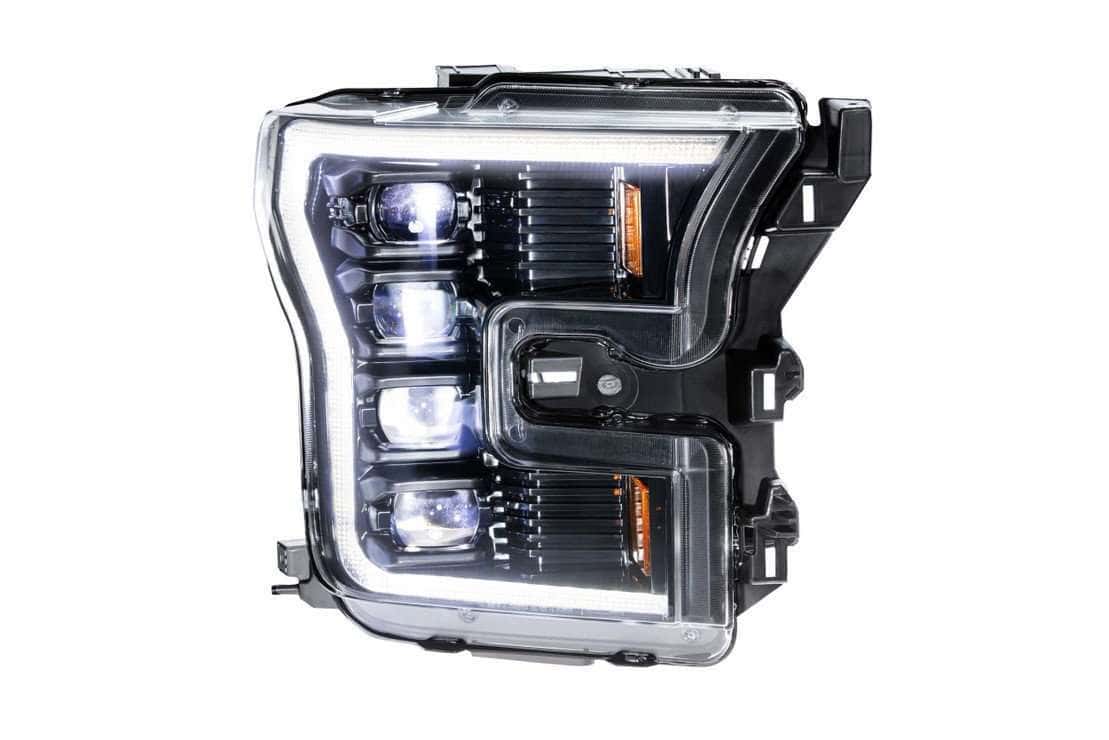

When the daytime running lights activate, the projectors illuminate in a two-stage startup sequence. This visual feature is separate from the normal low- and high-beam functions.

MATCH THE TRUCK BEFORE THE LOOK
Exact vehicle and equipment fitment
| Check | This exact application |
|---|---|
| Vehicle | 2015–2017 Ford F-150 |
| Original equipment | Factory halogen or factory LED, using the matching wiring branch |
| DRL colour for this SKU | White |
| Traffic pattern | Left-hand-drive vehicles used in right-hand traffic |
| Package | Left and right complete headlight assemblies |
Morimoto developed and tested these housings on US-spec vehicles. Canadian-market equipment can differ. Contact BTS with the model year, trim, original headlight type and clear connector photos if you are unsure.
ONE ORDER. BOTH SIDES.
What is supplied

- Two complete Morimoto XB LED headlight assemblies: left and right.

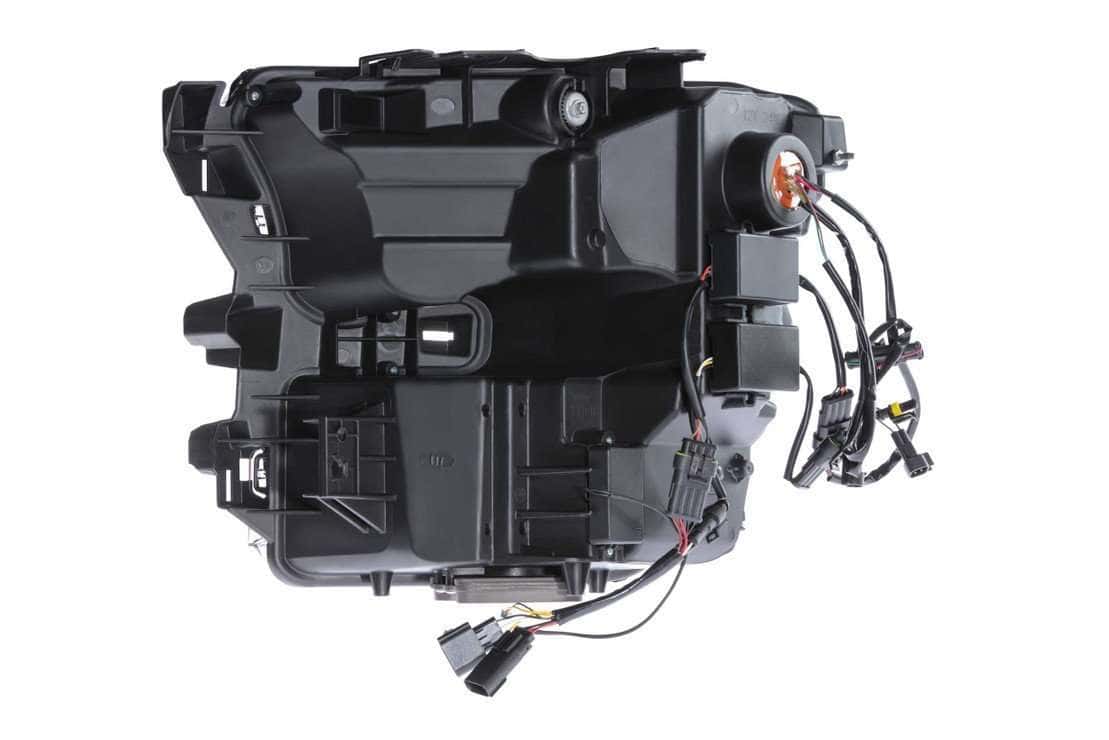

- Model-specific headlight wiring and DRL fuse-tap harness.
The original lower mounting brackets transfer from the existing headlights. The LF501T micro-fuse harness required for the Raptor application is separate.
Vehicle photography may show separate fog lights, custom grilles, wheels and other accessories. Those are not included with the headlight pair.
PLAN THE ACCESS. FINISH WITH AIM.
Installation details worth knowing
The original lower mounting brackets transfer to the new lights. The guide shows separate original-halogen and original-LED connector arrangements, trim access and DRL-harness routing. Test the lamps before completing reassembly and adjust the beam aim.
Download the official LF502.2-ASM installation guide

EXACT PART · LF502.2-ASM
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD Only |
| Input | Ford Multi-Pin OEM |
| Functions | DRL (White), Turn, Parking, Low, High |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Kuria Quad Optics |
| UV Coating | Momentive UVHC3000 |
Original-equipment replacement references
FL3Z-13008B, FL3Z-13008A, HL3Z-13008-A, HL3Z-13008-A, FL3Z13008B, FL3Z13008A, GL3Z13008B, GL3Z13008A, FO2502344, FO2503344, FO2502335, FO2503335, FL3Z3008M, FL3Z13008K, FL3Z13008K, FL3413006BV, FL3413006BV, FL3Z13008M, HL3V13006VC, FL3Z13008L
Match these with the exact year, body and original-equipment requirements above.
Morimoto identifies the supplied configuration as meeting its stated DOT/SAE requirements when installed and aimed correctly. That does not establish compatibility or compliance for unverified drivers, altered applications or other vehicle equipment.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Official supplier-linked TheRetrofitSource model-family overview. The exact SKU, DRL colour and original-equipment requirements on this page govern your order.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB headlight questions
Is this one headlight or a pair?
One order supplies the complete left and right headlight assemblies with the listed standard wiring.
What vehicle does this exact part fit?
2015–2017 Ford F-150. Match the original lights and the detailed equipment requirements before ordering.
Will this fit a 2017–2020 Raptor?
Morimoto lists this headlight part for that Raptor application with a separate LF501T micro-fuse harness. This standard F-150 pair does not automatically include that additional part; confirm it with BTS before ordering.
Can I change the DRL colour?
This exact LF502.2-ASM has fixed white daytime running lights. Amber turn signals do not make a white-DRL set an amber-DRL version.
Can the turn signals flash normally?
Yes. Morimoto provides sequential and conventional flashing settings. Configure both sides consistently using the instructions.
Does this replace the whole headlight?
Yes. The complete housings and their integrated LED optics replace the original lamps. This is not a replacement-bulb kit.
Are Supercharged drivers or heated lenses included?
No. Neither a heated-lens feature nor compatible Supercharged drivers have been established for this exact older XB part. Do not assume newer Evo features or accessories apply.
What does LHD mean?
It describes the beam pattern for left-hand-drive vehicles used on the right-hand side of the road. Both headlights are included.
What must be checked after installation?
Test low beams, high beams, DRLs and turn signals. Secure the harness, check aim and retest after a ride-height or load change.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Terms and exclusions apply. Keep your purchase record and contact BTS if you suspect a warranty issue.
THE FINISHED LOOK

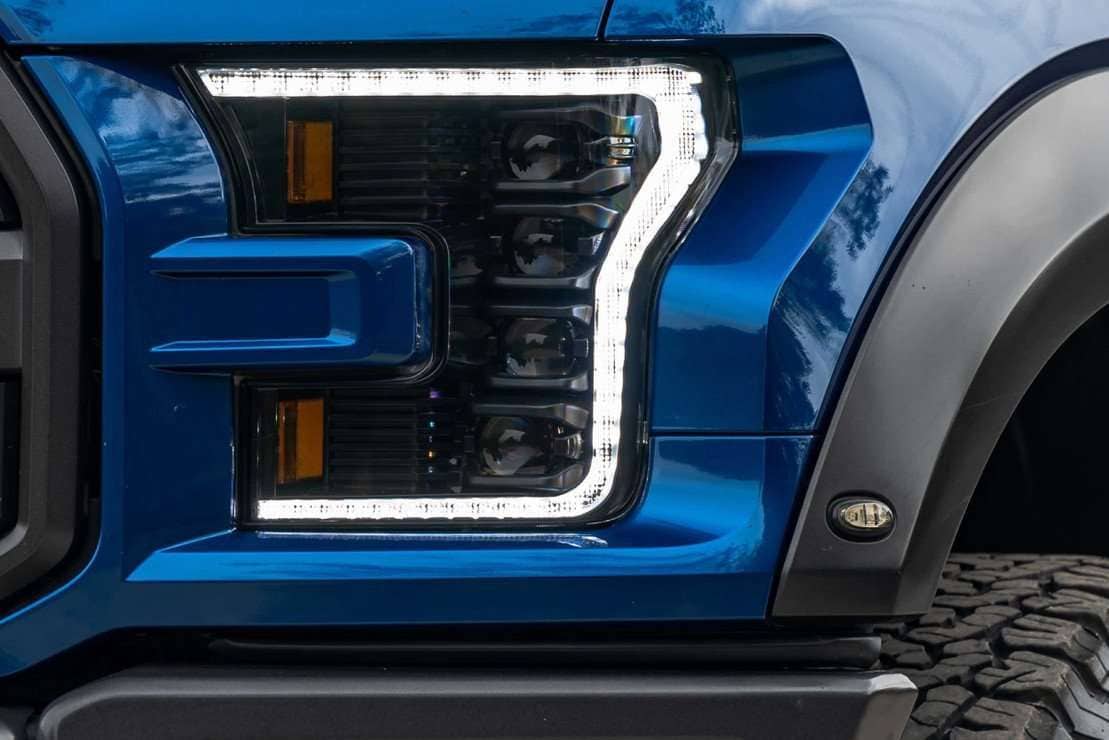

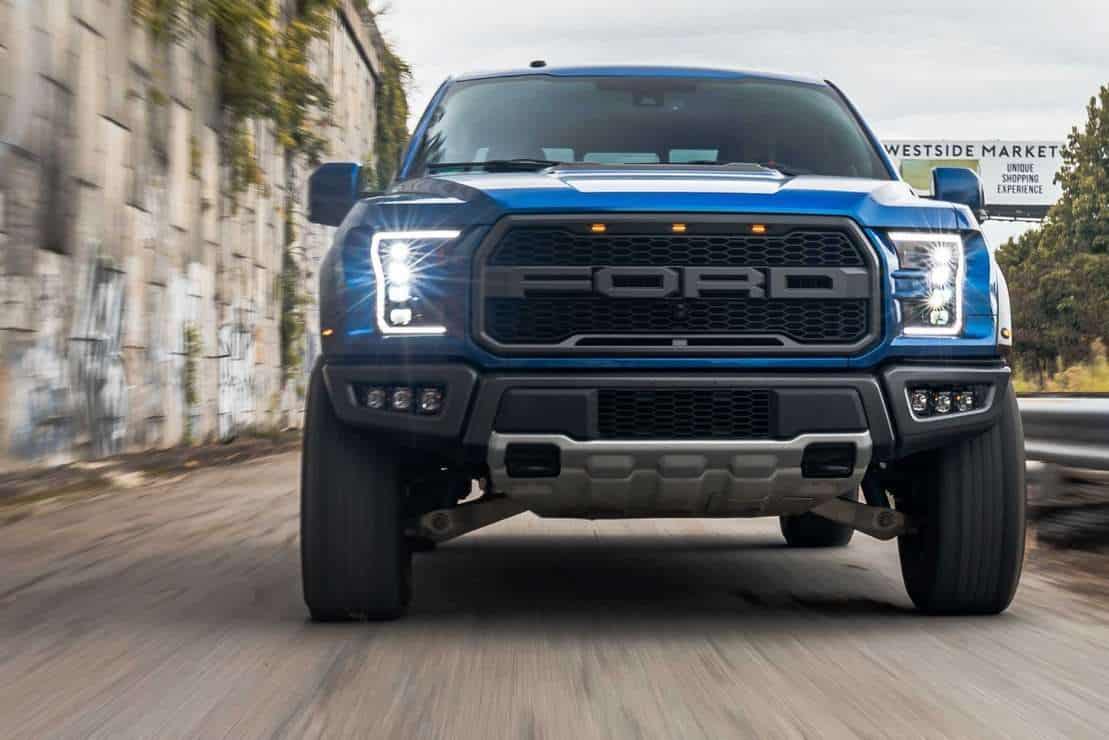

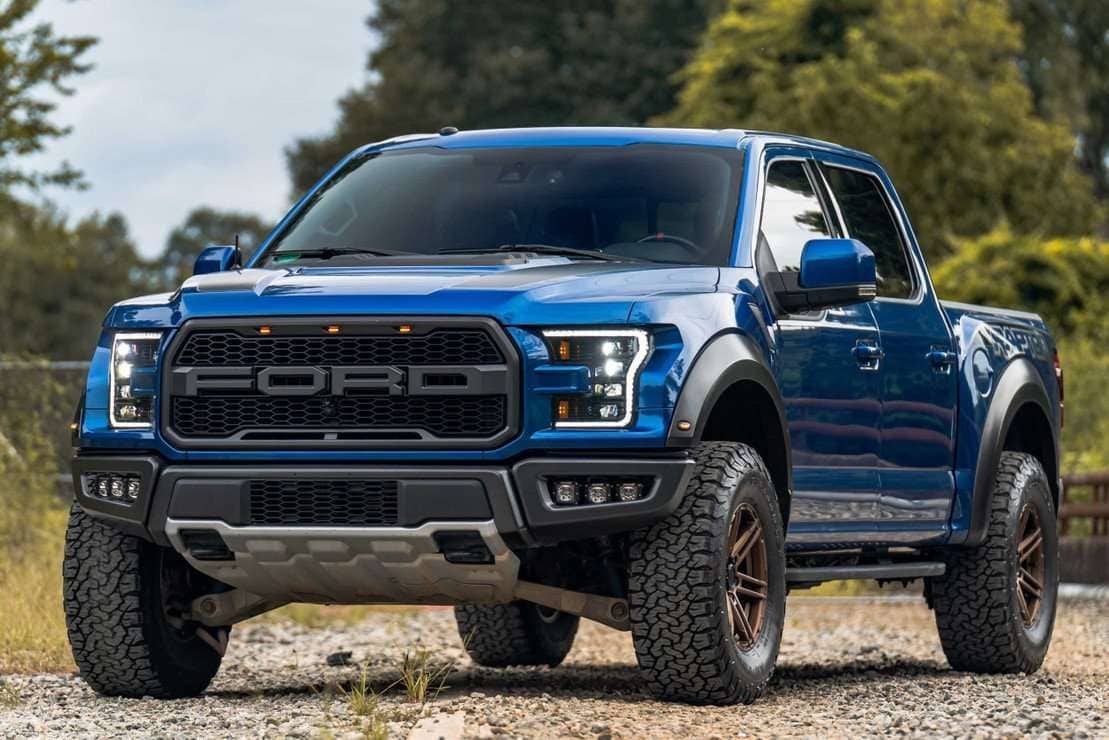

See it on the truck
Exact supplier photography. Other lighting, grilles, wheels and vehicle accessories are not included.
