MORIMOTO XB EVO HYBRID · LF2-506Y
A distinctive F-150 signature. Dual Bi-LED light.
A complete left/right XB Evo Hybrid headlight pair for your 2009–2014 Ford F-150 / 2010–2014 SVT Raptor. Fixed white daytime running lights and fade-off signals pair a clean look with the exact application’s optics.
- Left + rightOne complete headlight pair
- Fixed white DRLsFade-off signals
- Dual Bi-LED opticsBuilt for the exact application

THE OPTICS FOR YOUR TRUCK
Dual Bi-LED optics. A matched pair.
Light where it belongs
Two Type 1 Ishida Bi-LED projectors in each housing handle the main low and high beams. The Hybrid does not include the separate auxiliary 1Banger pods fitted to the heated Evo.
Complete headlight assemblies
Both housings and the exact listed wiring parts are supplied. This replaces the headlight assemblies, rather than converting a bulb inside the old housing.
Finish with correct aim
Check and adjust beam aim after installation. Original mounting points and a stock ride height do not remove the need to verify alignment.

SEE THE MANUFACTURER COMPARISON
Low beam and high beam, with the configuration shown

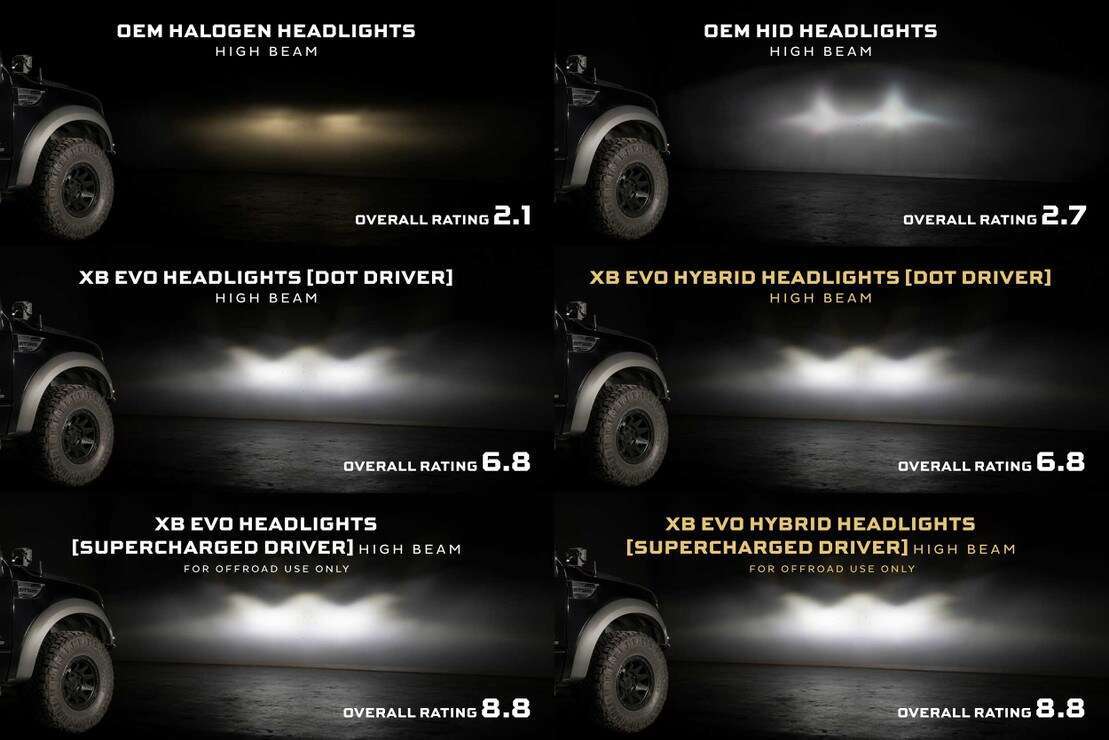

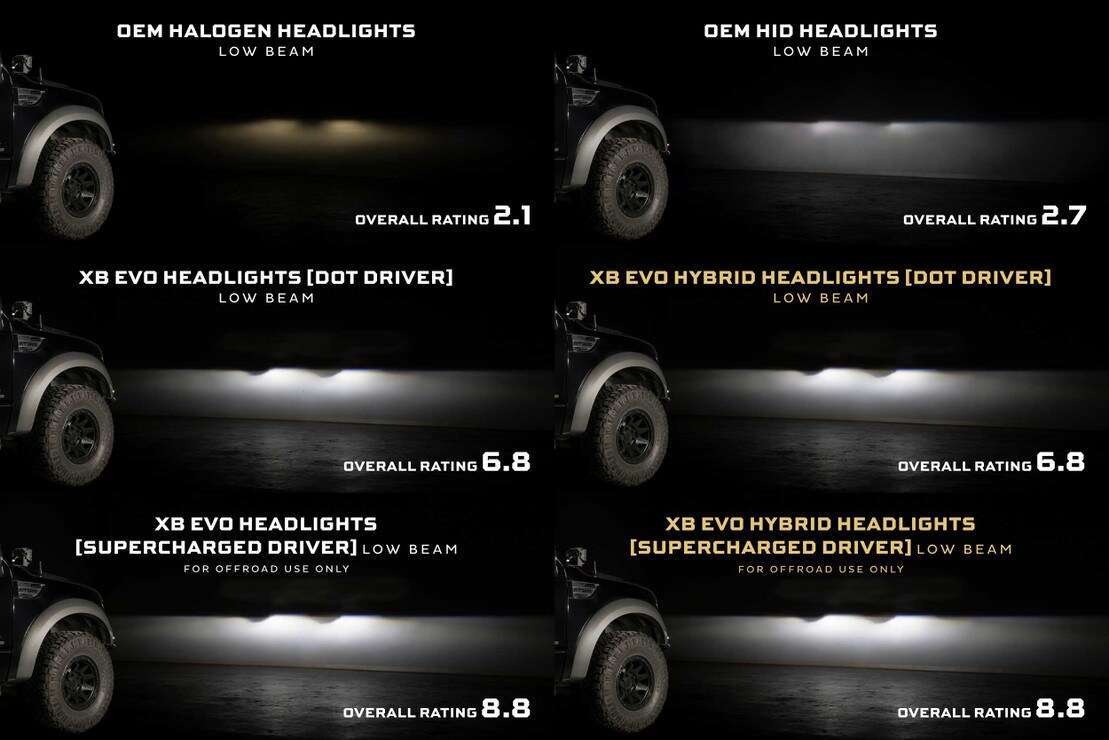

These are Morimoto’s original comparison images, not an independent BTS test. Read the original-lamp and driver labels to understand each example. Supercharged configurations are for off-road use only.


YOUR FRONT-END SIGNATURE
Fixed white. A clean fade-off signal.
This Hybrid uses fixed white daytime running lights and amber fade-off turn signals. It does not include configurable DRL keys, lens heating or a standard startup welcome sequence.

CHOOSE THE FEATURES YOU WANT
Compare the matching Evo pair
This listing is LF2-506Y XB Evo Hybrid. The matching Evo and Hybrid are separate products. On smaller screens, swipe across the table to compare every column.
| Feature | XB Evo | XB Evo Hybrid |
|---|---|---|
| Main optics per housing | Dual Bi-LED projectors + off-road auxiliary 1Bangers | Dual Bi-LED projectors; no auxiliary 1Bangers |
| Daytime running lights | Selectable white / amber | Fixed white |
| Turn signals | Sequential or fade-off | Fade-off |
| Lens heating | Frost-Free; driver-requested | Not included |
| Standard welcome sequence | Included | Not included |
| Optional Supercharged pair | LF2-DRVSC12; off-road only | LF2-DRVSC12; off-road only |
BEFORE YOU ORDER
Match the year, model and original lamps
| Vehicle | Manufacturer-listed application |
|---|---|
| Ford F-150 | 2009-2014 (all trim levels, factory halogen & factory HID/xenon equipped models) |
| Ford SVT Raptor | 2010-2014 |
Developed for North American left-hand-drive vehicles using right-hand traffic. Morimoto does not guarantee compatibility outside North America.
This application covers 2009–2014 F-150 and 2010–2014 SVT Raptor, including the listed factory-halogen and factory-HID/xenon configurations. It is separate from the later 2015–2017 and 2018–2020 F-150 headlights.
BOTH SIDES. THE MATCHED HARDWARE.
What is supplied

- Headlights: One Pair 09-14 Ford F-150 XB Evo Hybrid (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)

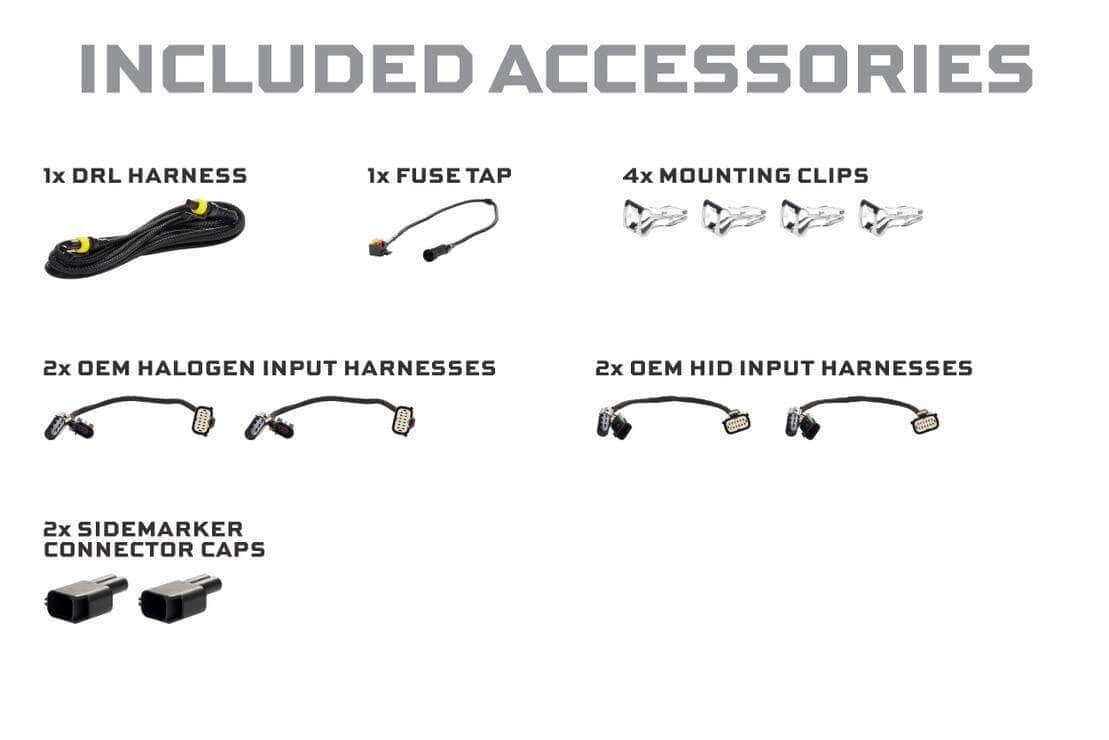

- Accessories: 2x Halogen Input Harnesses, 2x OEM HID Input Harnesses, 1x DRL Harness, 2x Side Marker Connector Caps, Fuse Tap Hardware, 4x Mounting Clips
Use the adapters and signal components appropriate to the truck’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
FACTORY MOUNTING. CAREFUL WIRING.
Plan the installation, then set the aim
- Follow the exact model-family guide and the wiring branch for your original lighting equipment.
- Fit the specified input harnesses and signal components, mount both housings at the original locations and route the DRL harness securely.
- The F-150 guide routes the DRL fuse tap through the engine-bay fuse box. Follow its exact fuse location and cover-routing instructions.
- Secure wires away from heat and moving parts, confirm every lighting function, then adjust the headlight aim.
Download the official LF2-506 model-family installation guide
The shared guide also includes heated-Evo instructions; they do not apply to this nonheated Hybrid.
AN OPTIONAL OFF-ROAD CONFIGURATION
Add the exact Supercharged driver pair
Standard LED drivers are included. The matching optional pair is LF2-DRVSC12. Select the matching Supercharged option with the headlight if you want that separate configuration.
For this exact application, Morimoto describes 30–50% greater low/high-beam intensity. This is the manufacturer’s comparison, not an independent BTS measurement or a guarantee in every condition.

THE EXACT LF2-506Y CONFIGURATION
Specifications and replacement references
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD / Right Hand Traffic Only |
| Output (Standard Drivers) | DOT / FMVSS108 Compliant (LB2V and UB2) |
| Output (Supercharged Drivers) | +30-50% (Non-Compliant) |
| Main Optics | 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA) |
| Functions | Low Beam, High Beam, Parking Light, Turn Signal, and DRL |
| Turn Signal Mode | Instant-On / Fade-Off |
| DRL Color | White |
| DRL/Signal Optics | Glass-like 3D Optics |
| Internal Finish | Piano Black w/ contrasting textures |
| Side marker | Amber side reflex reflector (DOT compliant) |
Original-equipment replacement references
FO2503289, FO2502289, FO2503287, FO2502287, DL3Z13008A, DL3Z13008B, DL3Z13008EB, DL3Z13008EC, FR560B1A12SD6V, DL3Z13008DB, DL3Z13008FB, DL3Z13008BB, DL3Z13008CB
Confirm the exact year, model and original lamp equipment above.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Morimoto’s official F-150 / SVT Raptor model-family presentation. Other versions may appear; use this page’s exact LF2-506Y package and specifications for your selection.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
