Diode Dynamics SS5 White Sport LED Pod – 5” Off-Road Light with Custom Backlight (Single)
Light up your next adventure with the Diode Dynamics SS5 White Sport LED Pod—a 5” auxiliary light designed to deliver unmatched beam focus, rugged durability, and customizable style. Featuring patented TIR optics, high-output white LEDs, and a selectable 8-color backlight, this compact powerhouse brings big performance to any build.

Key Features
-
Engineered TIR Optics for maximum light output and beam control
-
Selectable Backlight Color – choose from 8 vibrant colors
-
Ultra-Bright Sport Output (40W) with long-distance throw
-
Modular Linking Design – connect pods to build up to a 50” light bar
-
Heavy-Duty Housing – built to withstand extreme off-road use
-
Assembled in the USA with lifetime warranty
Next-Level LED Performance, Tailored for You
The SS5 White Sport LED Pod sets a new benchmark for 5-inch off-road lighting. Using nine high-intensity LEDs and advanced Total Internal Reflection (TIR) optics, it provides focused, high-efficiency illumination exactly where you need it. With beam patterns like Driving, Spot, Combo, or Flood, the SS5 adapts to any environment—from high-speed desert runs to technical trail work or worksite visibility.
What makes this version stand out is the selectable backlight, offering 8 color options including red, blue, green, amber, and more. Match your vehicle’s theme or change it up with a switch for extra personality.
Built with torture-tested housing and weatherproof connections, the SS5 Sport is ready to tackle the harshest conditions—while maintaining a sleek, high-performance look.
Vehicle Compatibility
Universally compatible with:
-
Pickup trucks, Jeeps, and 4x4s
-
Side-by-sides, UTVs, and ATVs
-
Work trucks, trailers, and utility vehicles
-

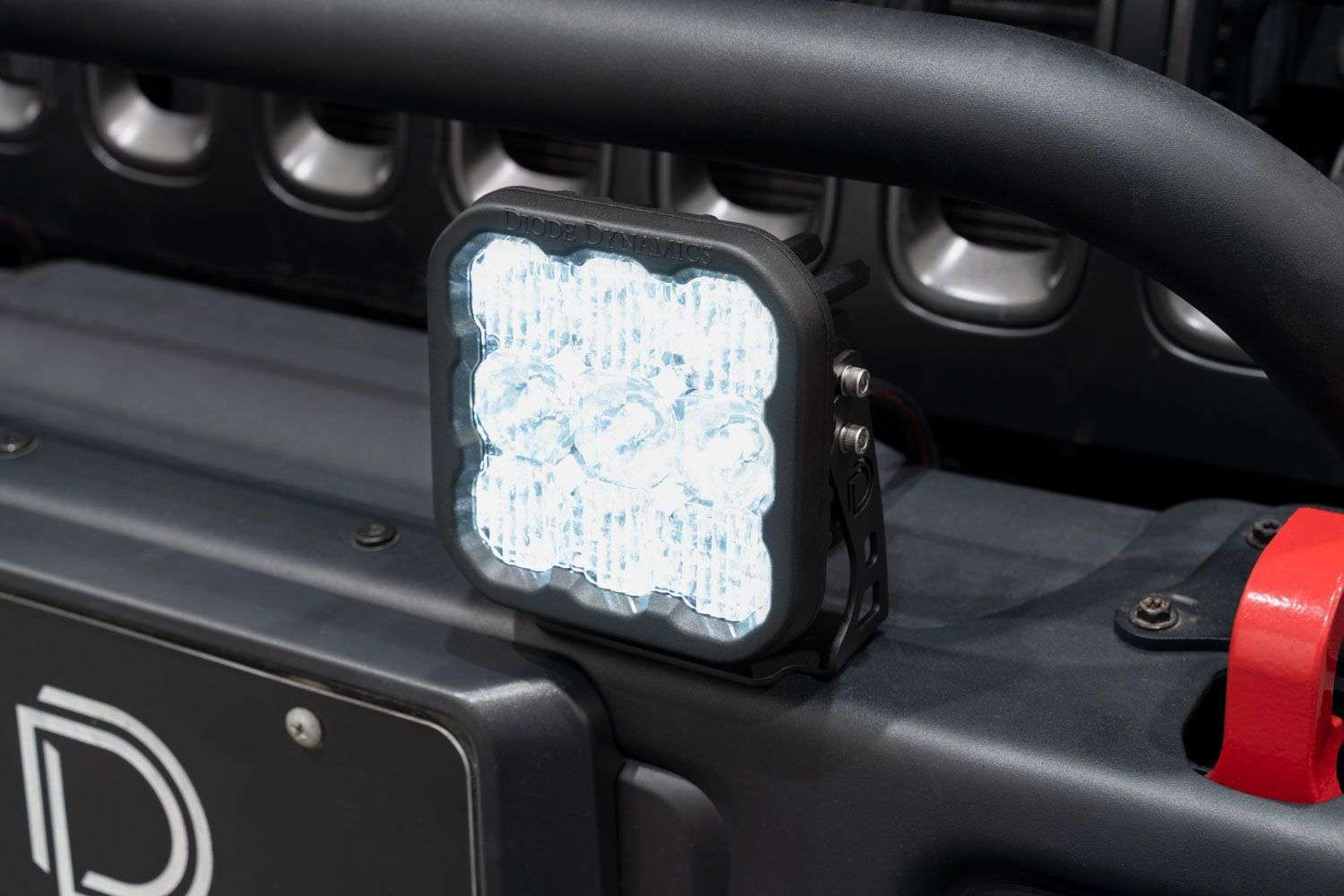

Roof racks, bumpers, grilles, and pillar mounts
Works with standalone brackets or custom-fit mounting solutions.
Technical Specifications
-
Power Output: 40 watts
-
Beam Options: Spot, Driving, Combo, Flood
-
Main Beam Color: 6000K Cool White
-
Backlight Colors: Red, Blue, Green, Amber, White, Cyan, Purple, Off
-
LED Type: High-intensity emitters (9 total)
-
Optics: Patented Total Internal Reflection (TIR)
-
Waterproof Rating: IP67
-
Connector: Integrated Deutsch DT-style with 6″ pigtail
-
Operating Voltage: 9–16V
-
Housing: Die-cast aluminum with polycarbonate lens
-
Origin: Assembled in the USA
-
Warranty: Lifetime
What’s Included
-

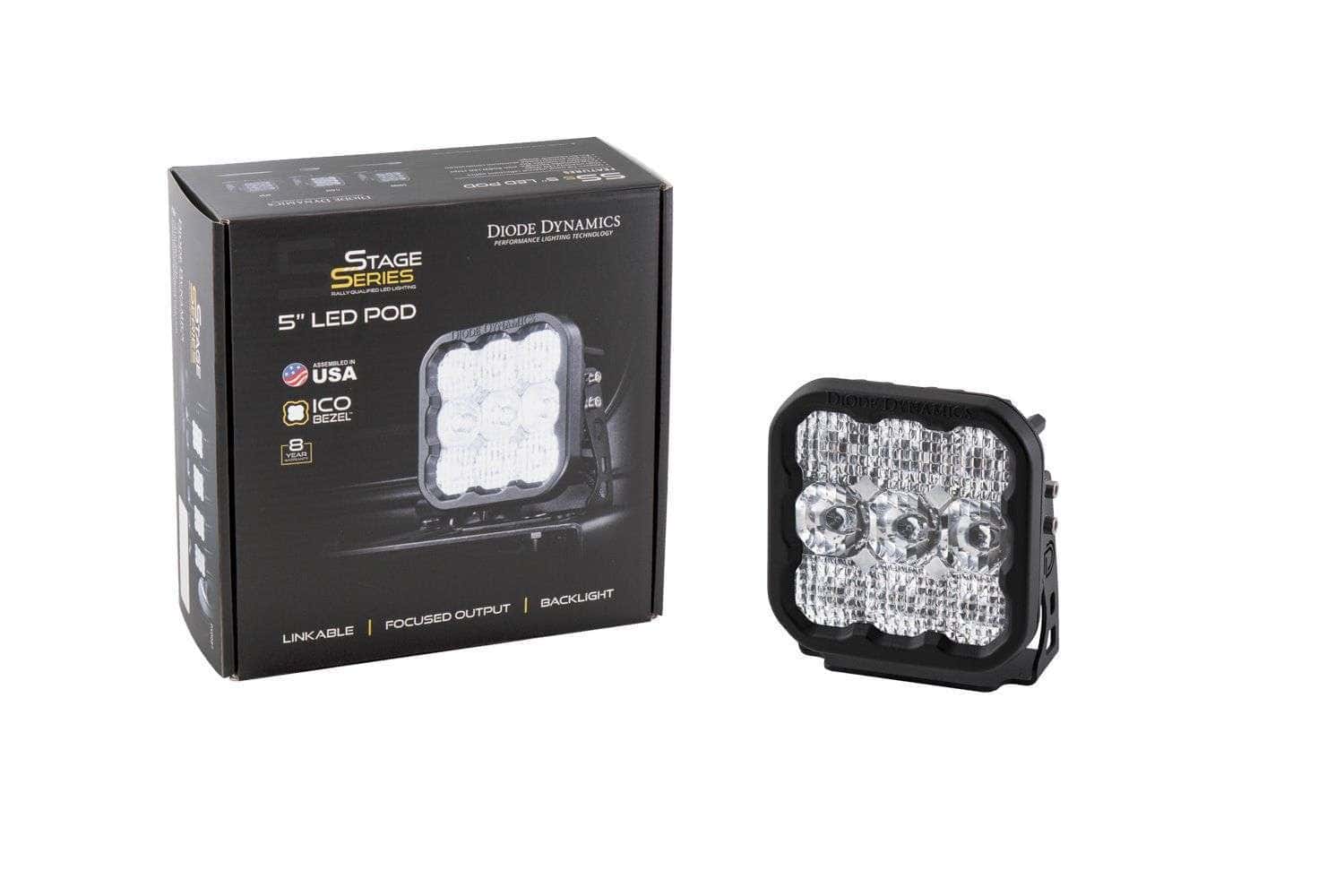

One (1) Diode Dynamics SS5 5” White Sport LED Pod
-
One (1) Deutsch-style wire pigtail
-
One (1) Mounting bracket and hardware
-
Lifetime Warranty
-
30-Day No-Hassle Return Policy
Your Go-To Light for Trail, Work, or Play
From daily drivers to dedicated off-road rigs, the SS5 White Sport LED Pod delivers powerful illumination, bold styling, and complete customization in one tough package. Whether you’re looking to upgrade your lighting performance or add a clean, modern touch to your build, the SS5 has your back.
Customize your beam. Color your backlight. Conquer the dark.
Choose the correct Diode Dynamics configuration
| Manufacturer SKU | Configuration |
|---|---|
| DD6768S | SS5 LED Pod Sport White Spot (single) |
| DD6769S | SS5 LED Pod Sport White Combo (single) |
| DD6770S | SS5 LED Pod Sport White Flood (single) |
| DD6780S | SS5 LED Pod Sport White Driving (single) |
Questions and answers
How do I choose the correct version?
Select the options that match the manufacturer SKU and configuration table on this page. The listed choices cover DD6768S, DD6769S, DD6770S, DD6780S; each row is a real product configuration.
What is included?
One (1) Stage Series 5inch LED Pod; One (1) Deutsch-style wire pigtail; One (1) Mounting bracket and hardware
Does a universal pod include vehicle-specific fitment?
A universal pod requires a compatible mounting location and wiring arrangement. Choose a vehicle-specific kit when you need application-specific brackets or a matching harness.
Explore pod lights, vehicle-specific lighting kits and matching wiring harnesses.
Manufacturer warranty
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
