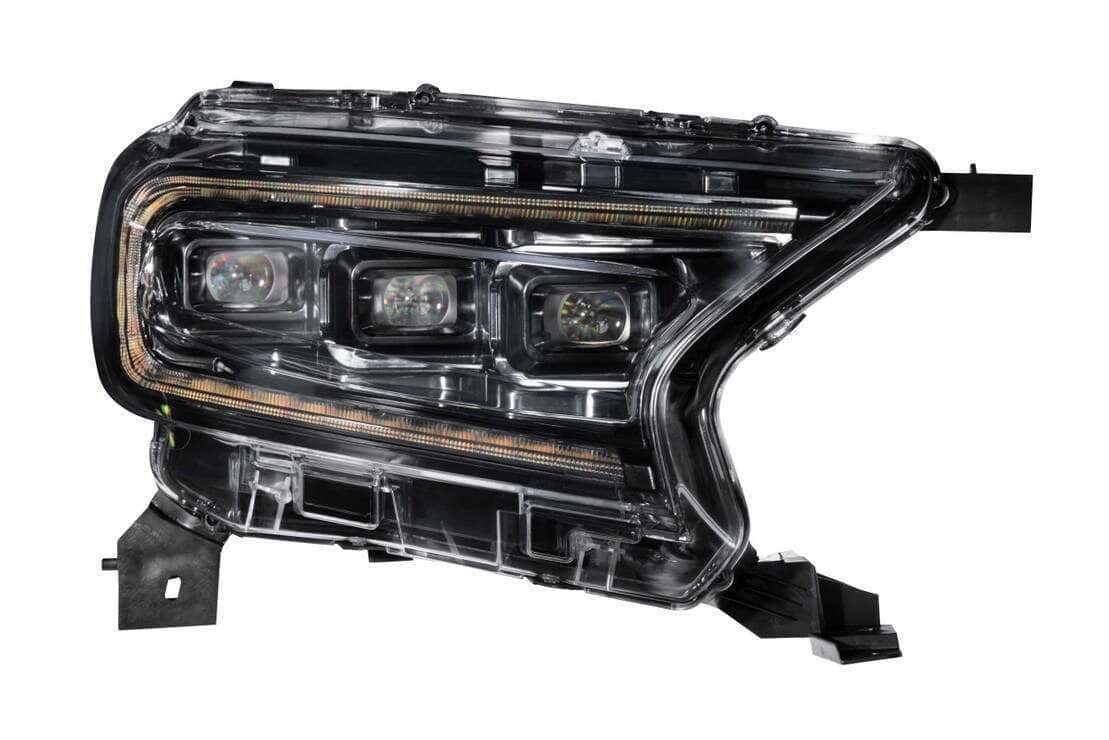

The Morimoto LF437 XB LED headlight pair provides triple Bi-LED projectors, white DRLs and selectable amber turn signals for the listed 2019–2023 Ford Ranger applications. Match the original lamp and Ford multi-pin connection before ordering.
Fitment and original equipment
- Ford Ranger: 2019–2023. The source lists basic halogen and higher-end projector/LED-DRL equipment; match the actual original assembly.
- Left-hand-drive beam pattern. Morimoto designed and tested these housings on US-spec vehicles. Confirm the actual lighting, connectors and DRL equipment on Canadian or other-market vehicles.
Specifications and contents
| Part number | LF437 |
|---|---|
| Quantity | Two complete headlights, left/right pair |

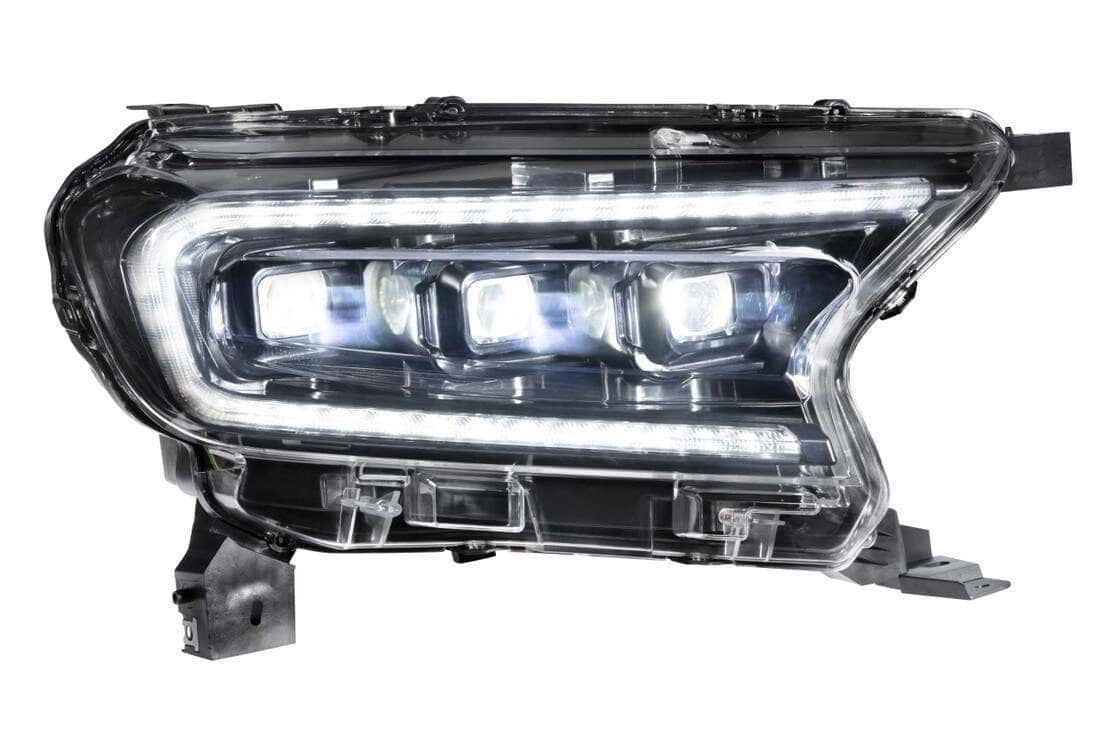

| Optics | Three Bi-LED projectors per housing for low and high beam |
| Output rating | 2,600 raw lumens per headlight |

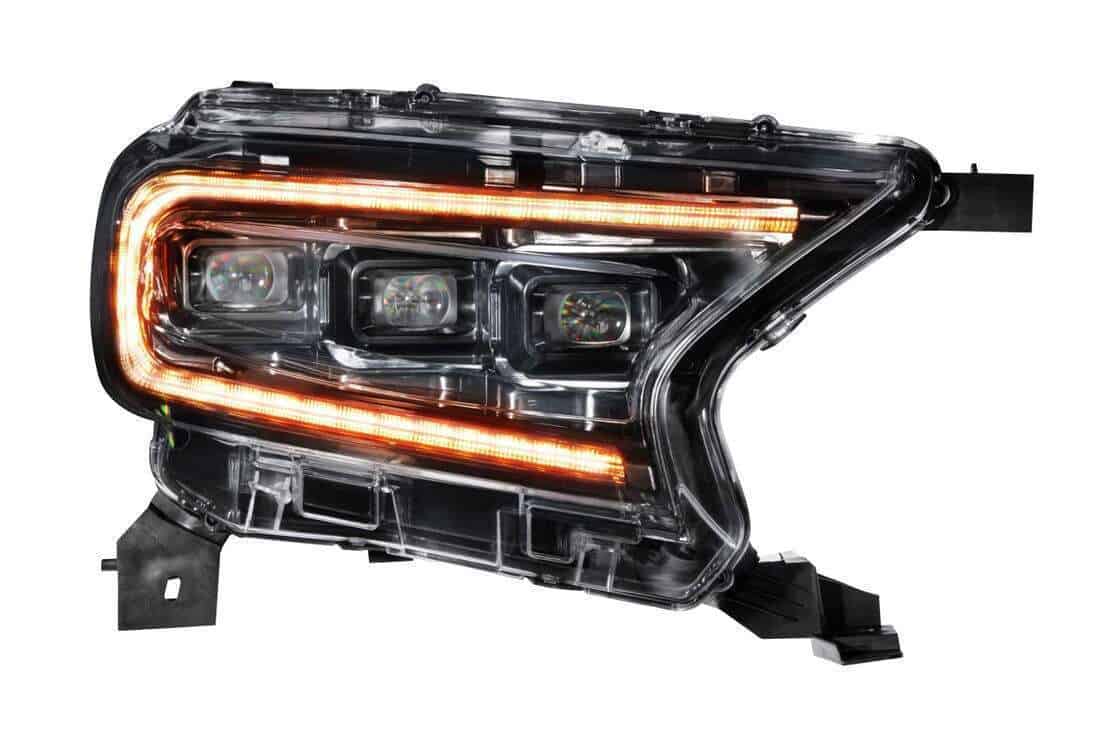

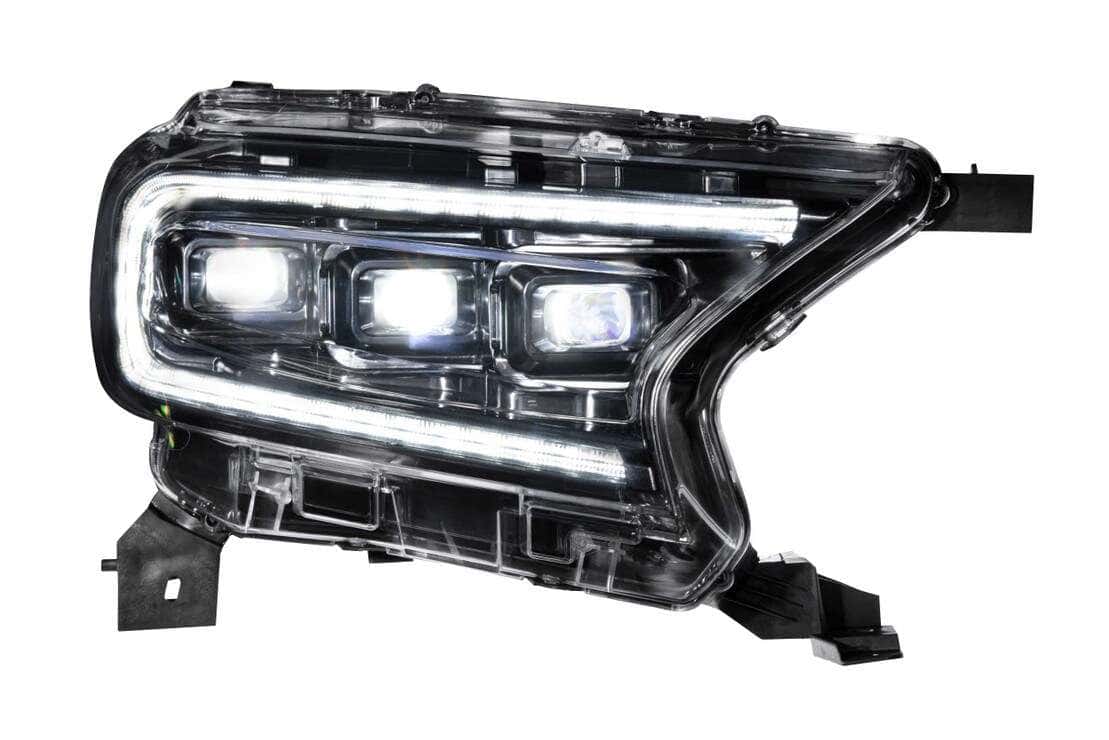

| DRL / turn signal | 5000K white DRL; amber sequential or conventional on/off turn signal |
| Wiring | Ford multi-pin OEM connection, installation harness and fuse tap |
| Lens | UV-resistant polycarbonate |
Before installation

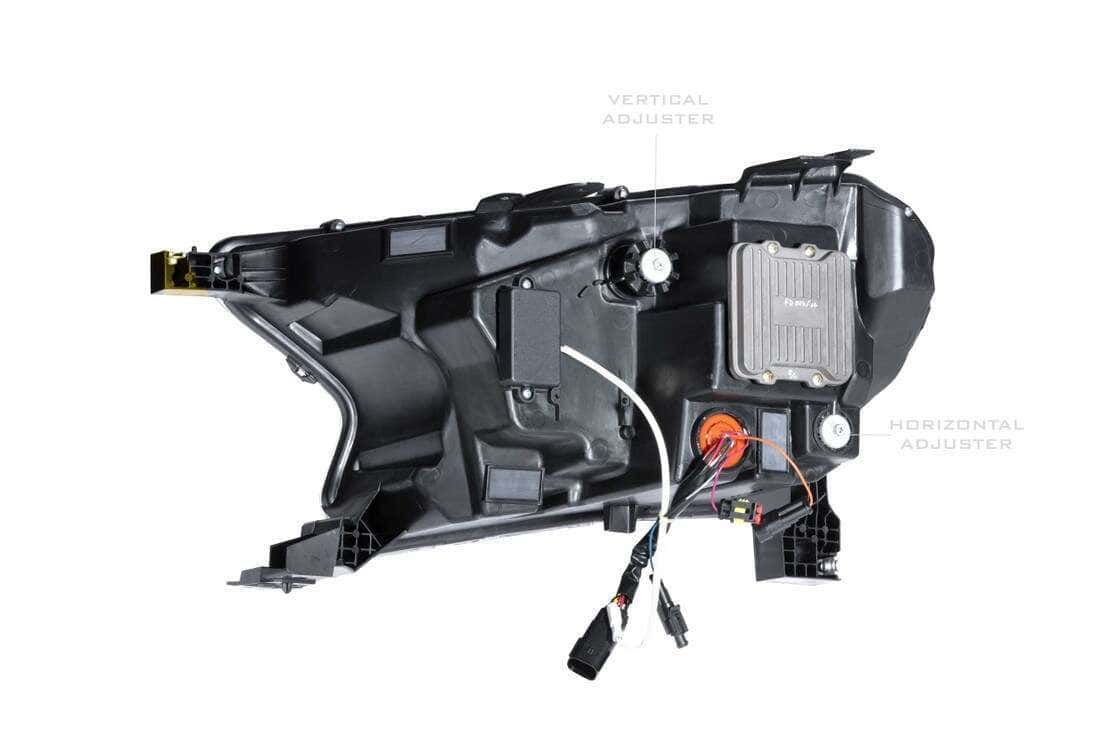

Confirm the original headlight package, connect the appropriate supplied wiring and DRL feed, and test each mode. Adjust beam aim after installation and verify signal operation with any other aftermarket exterior lighting.
Warranty
Warranty: 5-Year Manufacturer Warranty
How many low and high beams does each LF437 housing provide?
Each housing has three Bi-LED projectors serving both low and high beam. Across the left/right pair, that is six projectors operating in each beam mode.
What does the 2,600-lumen figure refer to?
The manufacturer rates each headlight at 2,600 raw lumens. It is not a measured road-surface illuminance value or a claim that every installed lighting condition improves by a fixed percentage.
Can LF437 replace the higher-end Ranger headlights?
Morimoto lists both the basic halogen setup and the higher-end projector/LED-DRL configuration. Compare the actual original headlight and connectors to the guide, particularly for Canadian or other-market vehicles.
Can I choose a non-sequential turn signal?
Yes. The amber signal supports a sequential pattern or standard on/off operation. Configure both assemblies according to the guide and test the selected mode.
Are the daytime running lights amber?
LF437 uses 5000K white DRLs. Amber LEDs provide the turn-signal function; that does not make it an amber-DRL headlight.
Does LF437 fit the redesigned 2024 Ranger?
The exact application is 2019–2023. Do not extend that range to the redesigned truck without a separate exact-part application.
Is the fuse tap part of the listed package?
Yes. The pair lists its installation harness and fuse tap. Follow the DRL-power instructions and check final beam aim once the housings are secure.
