United Pacific · 31090 / 31091
LED projector beams with a position-light bar

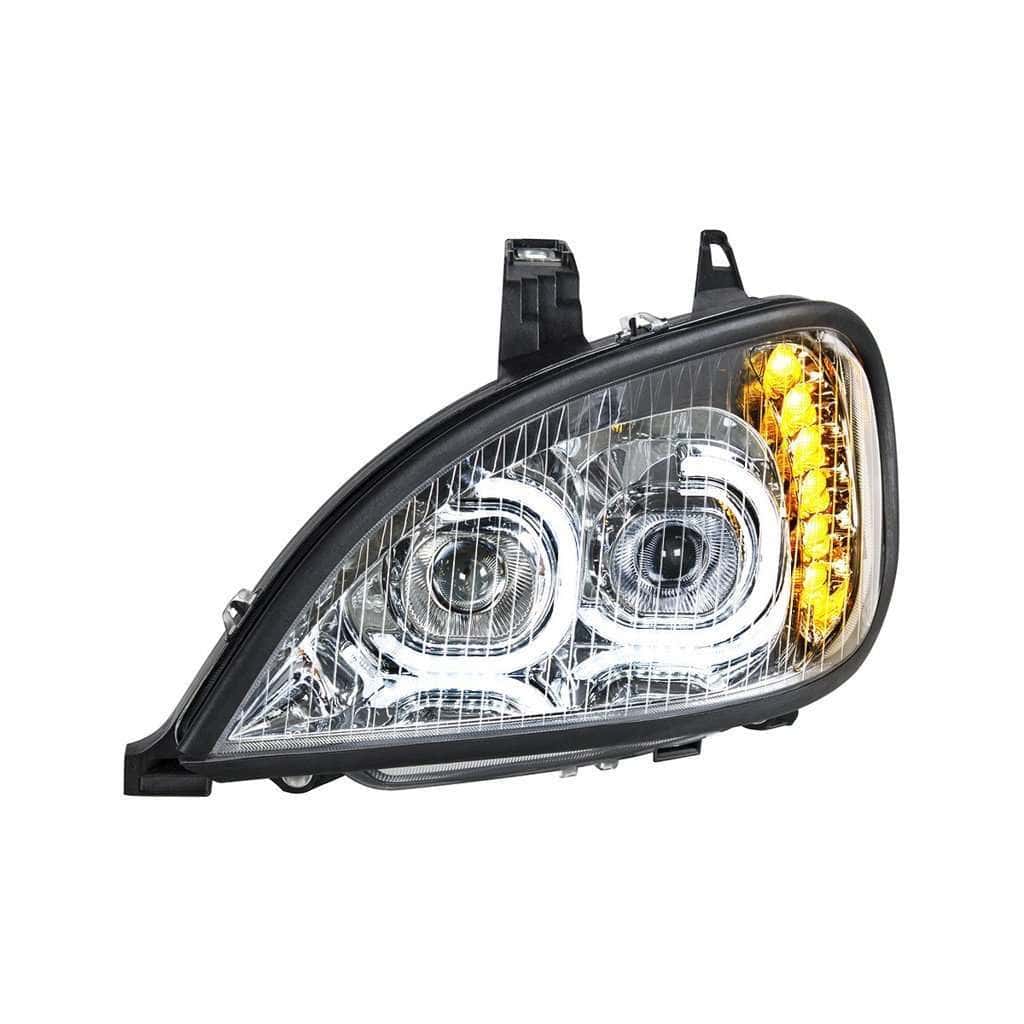

This chrome assembly combines LED projector low and high beams with amber LED turn signals and a separate position-light bar. Main lighting connects to the original harness; the bar needs its own wiring.
LED projector beams
Integrated low and high beams replace the complete original lamp.
LED signal and bar
Six turn-signal LEDs and a 52-LED position bar provide distinct lighting functions.
Separate bar wiring
The position-light power feed must be independent of the OE harness, as shown in the guide.

Fitment & selection
Match the original headlight
- Freightliner Columbia: 2001–2011
For 2012–2020 or another year outside this list, confirm the original assembly, connector and bulb configuration with BTS before ordering.
| Driver | 31090 · one headlight assembly |
|---|---|
| Passenger | 31091 · one headlight assembly |
Installation & aiming
Connect the main functions to the original OE plugs. Wire the LED position-light feed separately from the OE harness, following the manufacturer guide; check both beam adjusters after fitting.
Lighting details
Specifications
| Low beam | 1,300 lumens · 1A at 12V |
|---|---|
| High beam | 1,500 lumens · 1A at 12V |
| Accent lighting | 6 turn-signal LEDs · 52 position-light LEDs |
| Finish | Chrome Inner Housing |
| Package | One headlight assembly for the selected side |
Product questions
Before you order
Does the price include both headlights?
No. Each option supplies one headlight for the selected side. Choose both sides separately if you need a pair.
Which model years should I check?
Use the application list above and match the original housing, mounting and connector. Confirm any year outside that list with BTS before ordering.
Is this an LED bulb conversion kit?
No. This is a complete headlight assembly with integrated LED main beams, supplied for the selected side.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for this headlight design. Keep your purchase information and contact BTS Lighting for product support.
