United Pacific · 32840 / 32841
Black full LED projector headlight with light bar
This all-LED projector family uses an LED projector low beam and separate LED high beam, together with a 40-LED white position-light bar. Twelve amber LEDs provide the turn-signal and side-marker lighting.
LED projector low beam
The projector low beam and high beam are both LED.
40-LED white bar
A white position-light bar is separate from the main beam optics.
Amber signal and marker
Twelve amber LEDs supply these functions.

Fitment & selection
Match the assembly to your truck

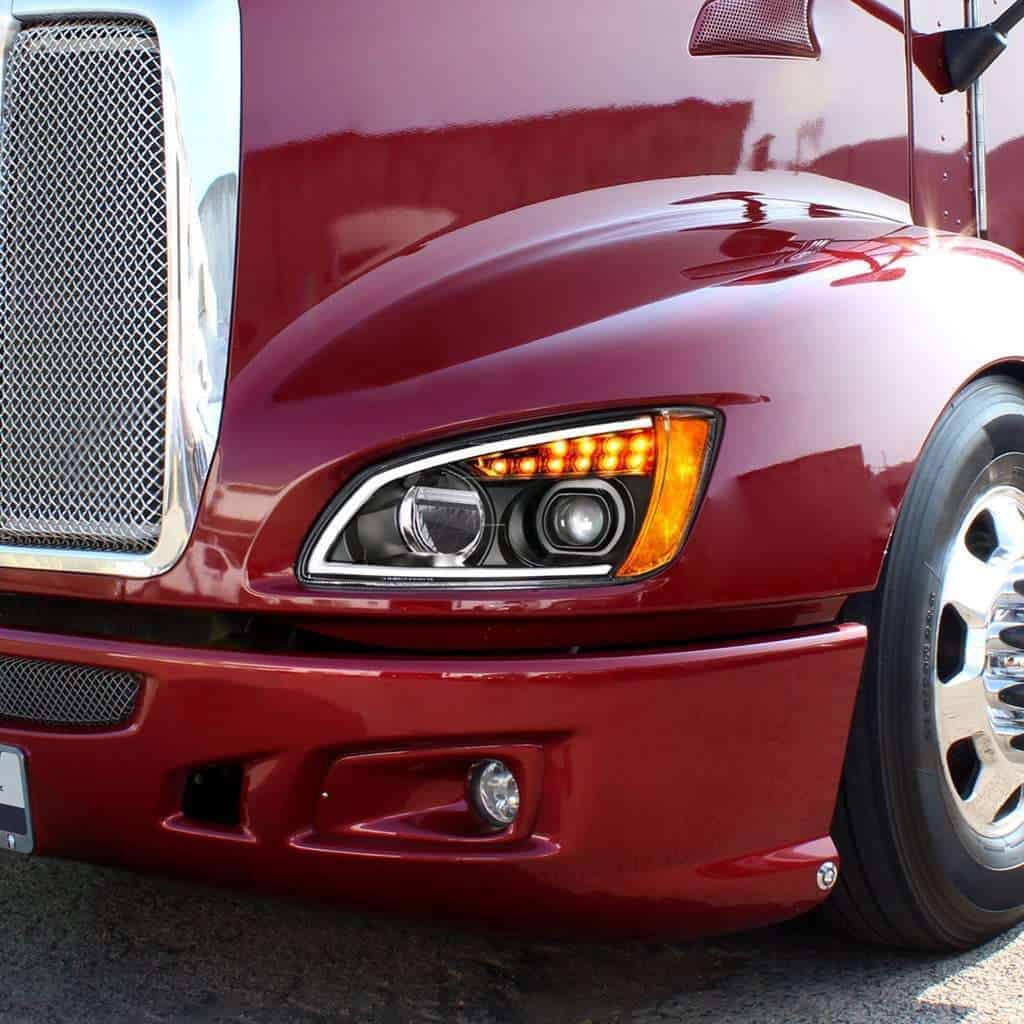

For the 2008–2017 Kenworth T660. Confirm the original headlight connector and mounting points, then select driver or passenger side. The price is for one headlight assembly, not a pair.
| Driver | 32840 — one assembly |
|---|---|
| Passenger | 32841 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | 1,600 lumens · 2.7A at 12V DC |
|---|---|
| High beam | 1,600 lumens · 2.7A at 12V DC |
| Position light | 40 white LEDs |
| Turn signal / marker | 12 amber LEDs |
| Finish | Black inner housing |
| Package | One selected-side headlight assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number

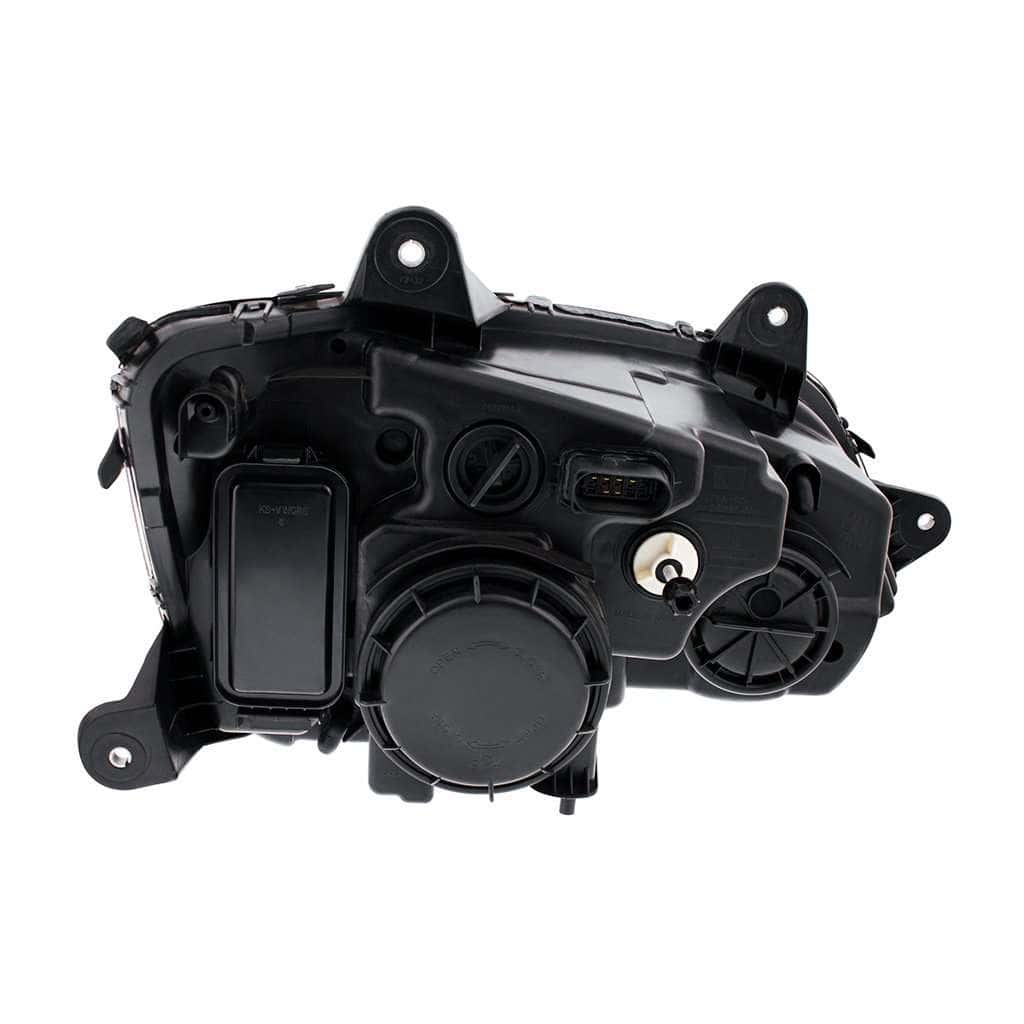

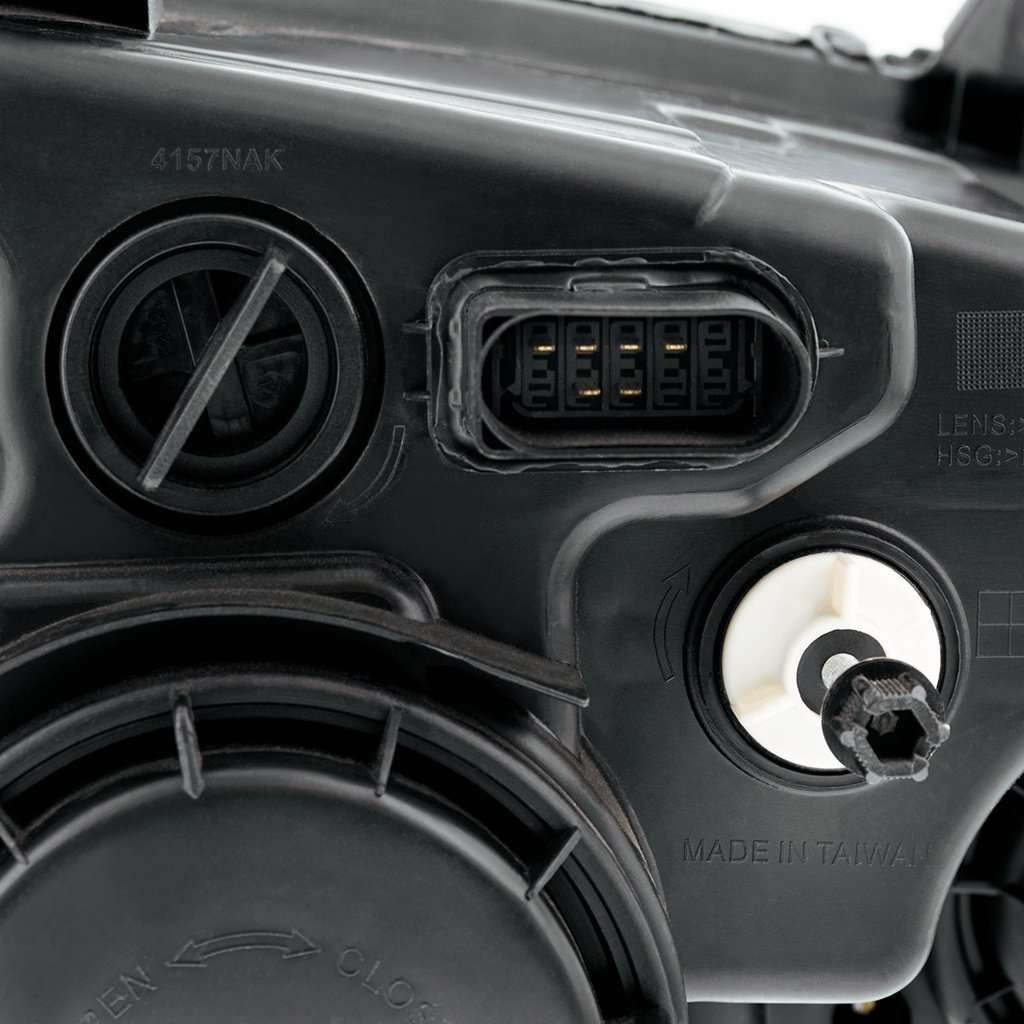

The 32838–32841 manual shows the original-harness connector and shared high/low beam adjuster. Use that diagram when aiming the installed assembly. Check low beam, high beam, turn signal and marker/position functions after connection, and have the beam aim checked before road use.
Product questions
Before you order
Are the main beams halogen because this is a projector?
No. Projector describes the optical layout. This specific family uses LED low and high beams.
Is the high-beam lumen figure different from low beam?
United Pacific lists 1,600 lumens for both. Those figures describe output, not identical beam patterns.
Does the selected option include both sides?
No. Each option is one headlight for the selected side. Order both side options if you need a pair.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
