United Pacific · 31158 / 31159

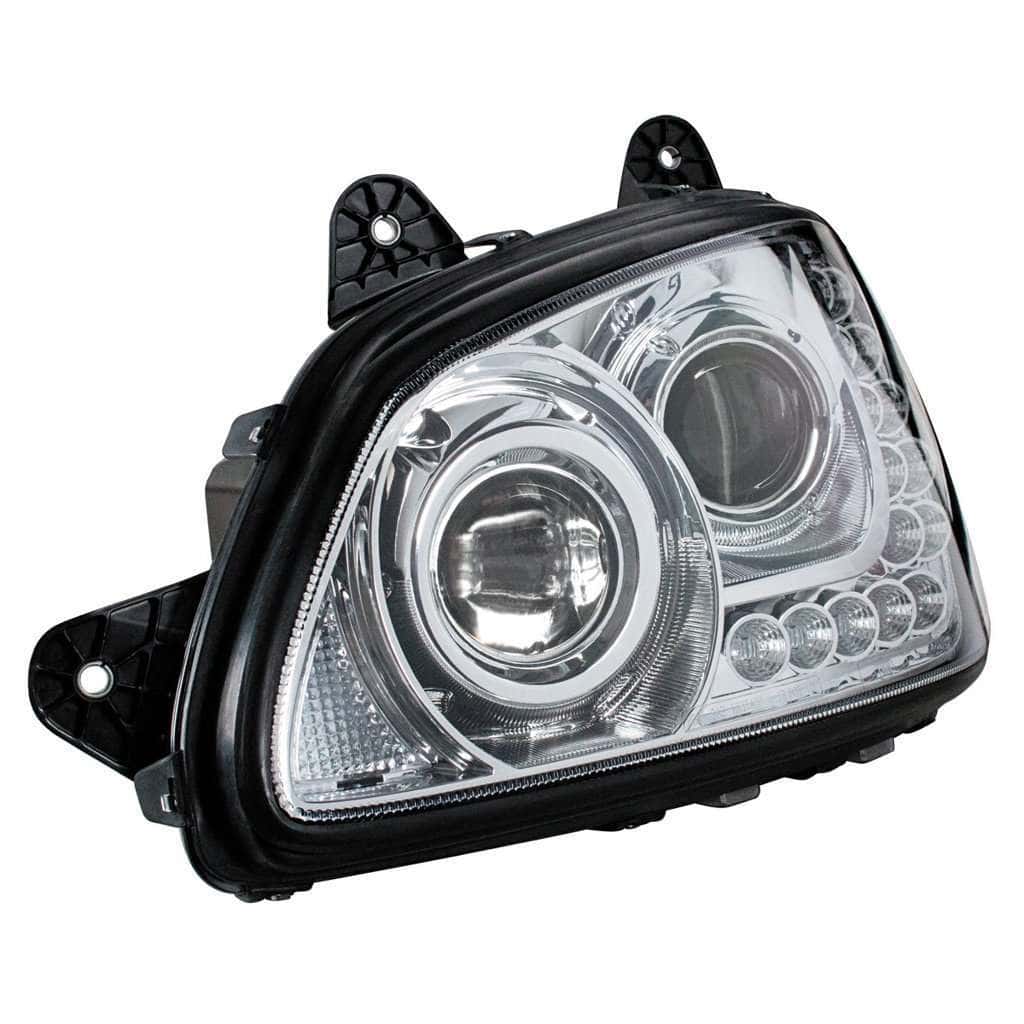

Chrome halogen projector headlight assembly
A projector headlight assembly with an H11 low-beam position and HB3 high-beam position. United Pacific requires replacing the original turn-signal flasher with the supplied LED flasher for this specific family.
H11 low / HB3 high
The main beam positions use replaceable bulbs, with separate ratings listed below.
Required flasher change

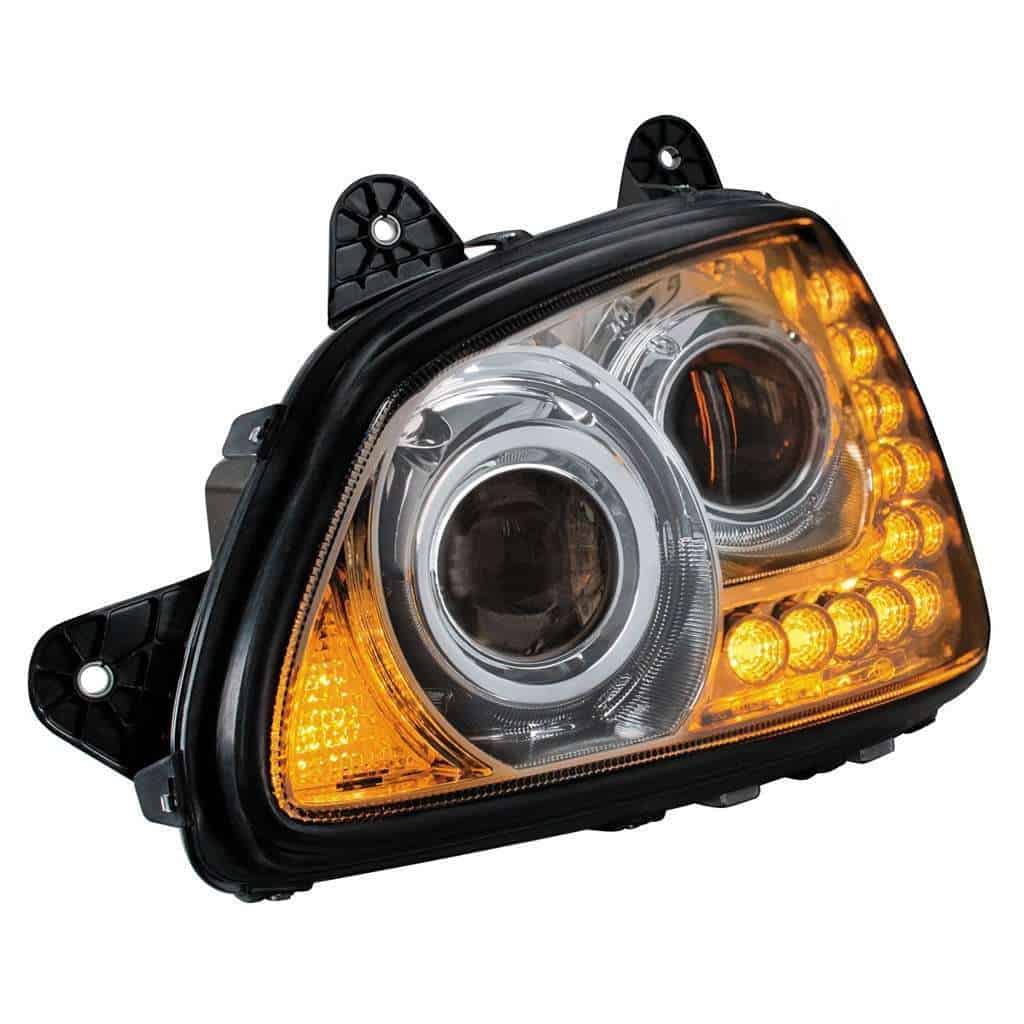

The included LED flasher replaces the original turn-signal flasher for correct operation.
Side-specific replacement
Choose the driver or passenger assembly and match the original mounting and connector.

Fitment & selection
Match the assembly to your truck

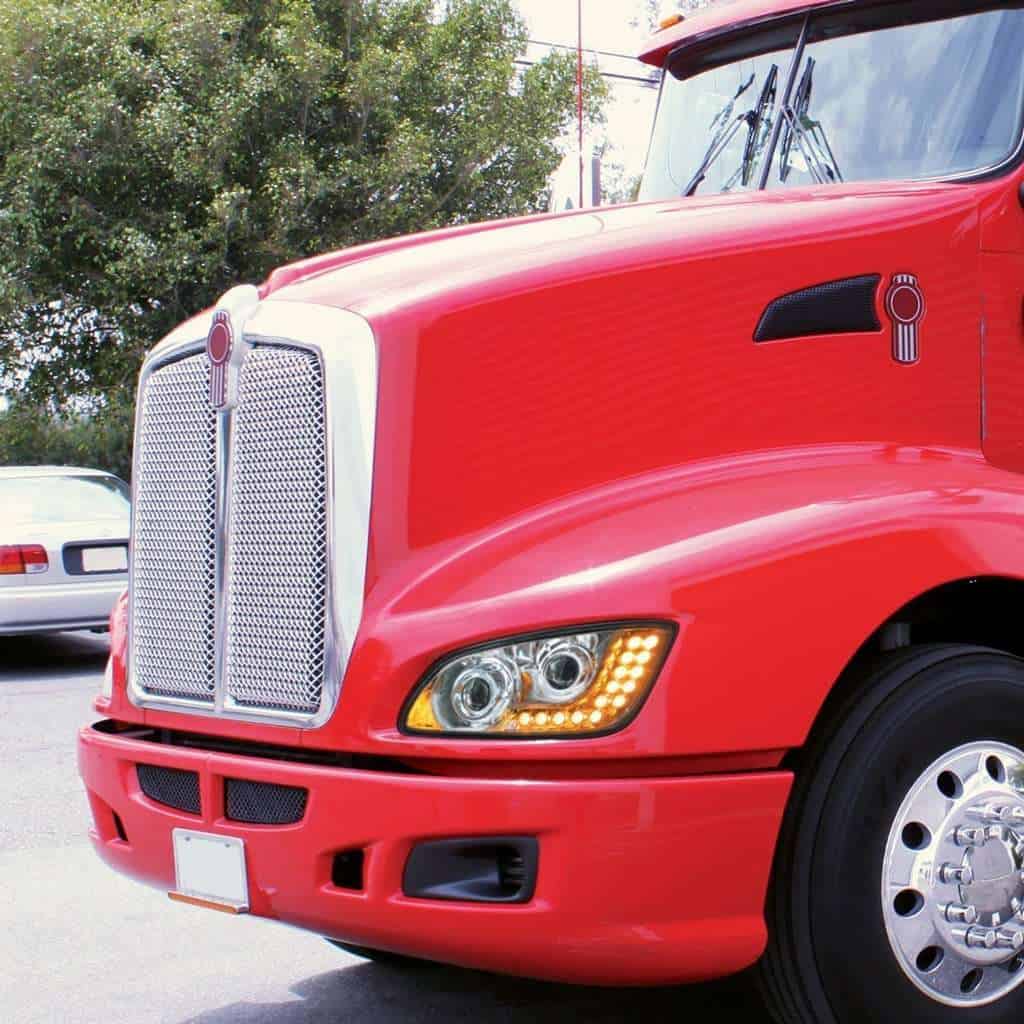

For the 2008–2017 Kenworth T660. Confirm the original headlight connector and mounting points, then select driver or passenger side. The price is for one headlight assembly, not a pair.
| Driver | 31158 — one assembly |
|---|---|
| Passenger | 31159 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | H11 bulb · 49.2W · 4.1A at 12V DC |
|---|---|
| High beam | HB3 bulb · 60W · 5A at 12V DC |
| Turn-signal flasher | Included LED flasher; replacement required |
| Package | One selected-side assembly |
| Finish | Chrome inner housing |
| Package | One selected-side headlight assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number

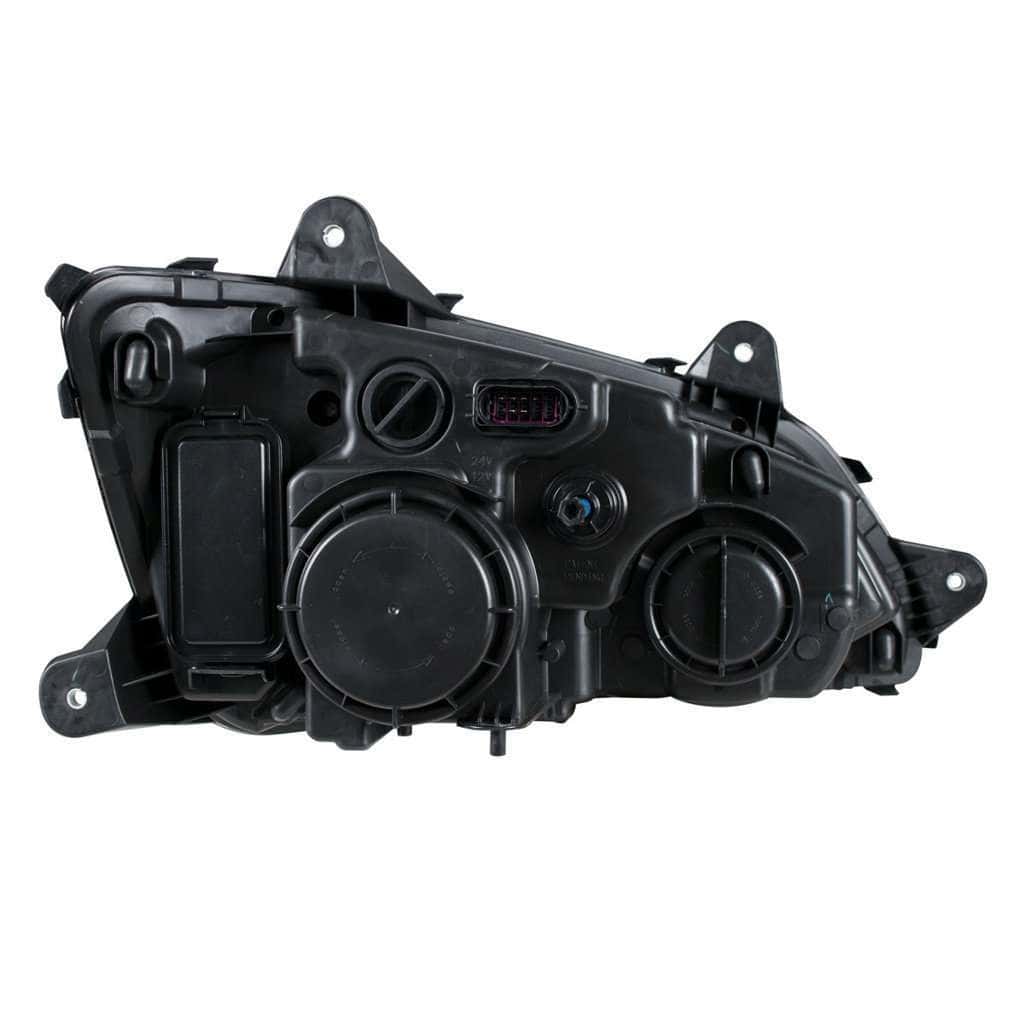

Replace the original turn-signal flasher with the included LED flasher as required by United Pacific. The exact manual also identifies the OE connector and the shared high/low beam adjuster. Check low beam, high beam, turn signal and marker/position functions after connection, and have the beam aim checked before road use.
Product questions
Before you order
Can I leave the original turn-signal flasher in place?
United Pacific says the original flasher must be replaced with the included LED flasher for proper function.
Is this a complete LED main-beam conversion?
No. The specified low- and high-beam positions are H11 and HB3 bulbs.
Does the selected option include both sides?
No. Each option is one headlight for the selected side. Order both side options if you need a pair.
2-year manufacturer warranty
United Pacific lists a 2-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
