United Pacific · 35773 / 35774

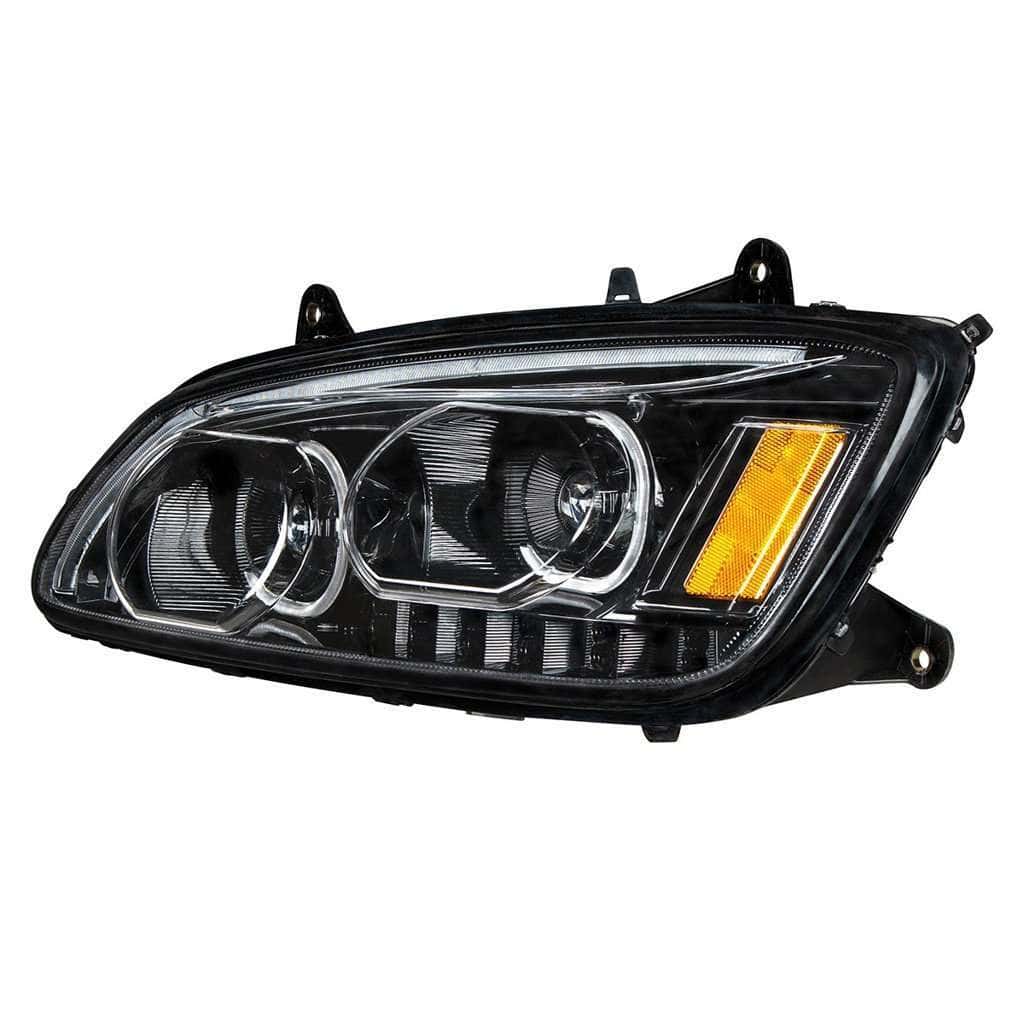

Black LED headlight with position light bar
A complete LED replacement with separate low and high beams, a white position-light bar, and amber signal lighting. The 60-LED white bar is an accent light; the main beams are integrated into the assembly.
LED main beams
Integrated low and high beams eliminate separate halogen beam bulbs in this assembly.

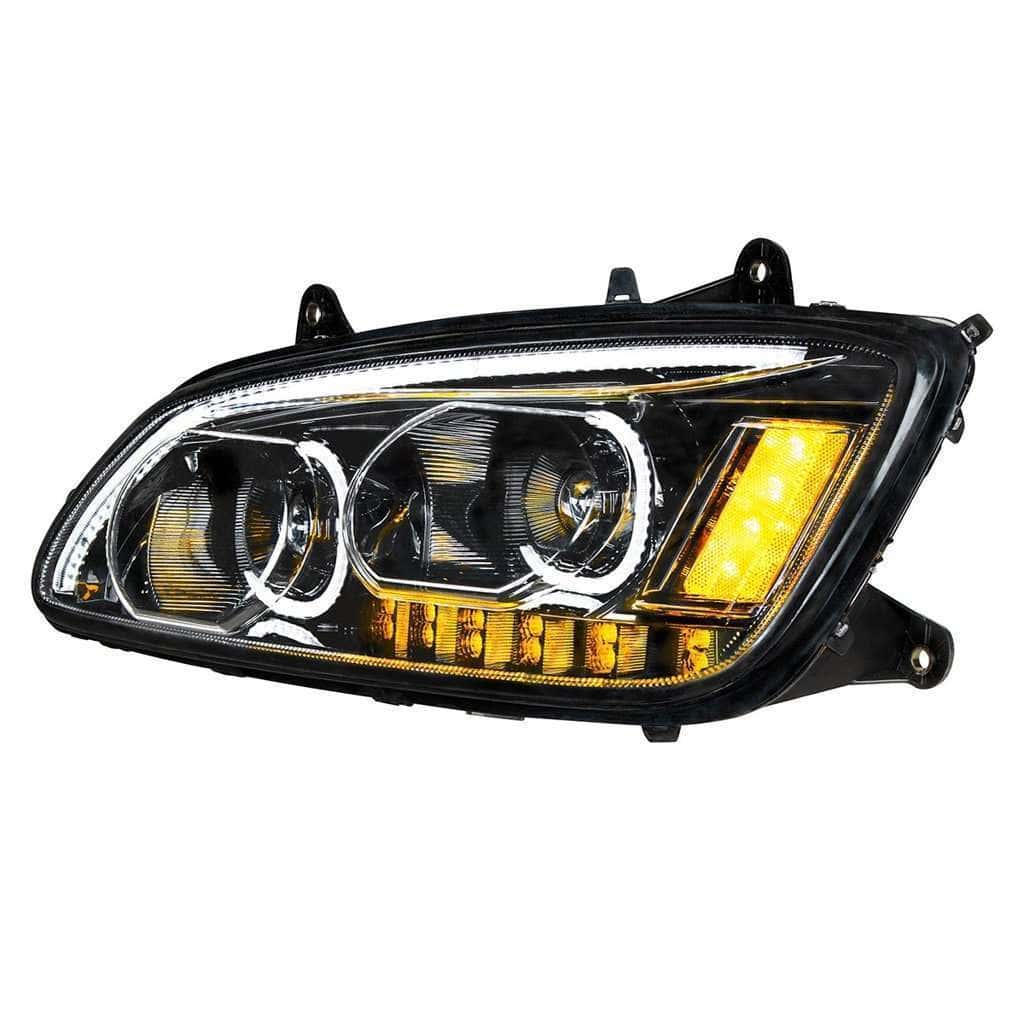

White bar and amber signal
60 white LEDs form the position-light bar, with 12 amber turn-signal LEDs and five amber marker LEDs.
Conventional signal
United Pacific lists a non-sequential turn signal for these part numbers.

Fitment & selection
Match the assembly to your truck

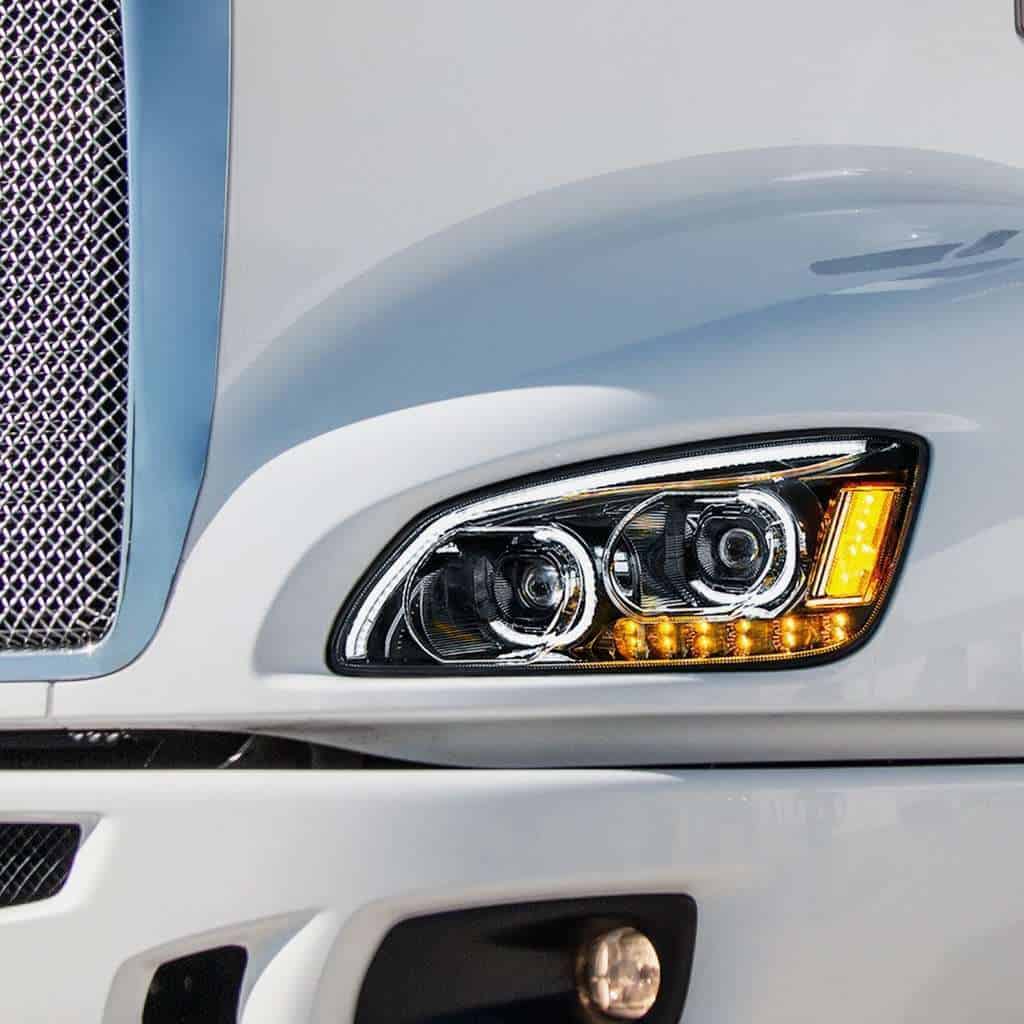

For the 2008–2017 Kenworth T660. Confirm the original headlight connector and mounting points, then select driver or passenger side. The price is for one headlight assembly, not a pair.
| Driver | 35773 — one assembly |
|---|---|
| Passenger | 35774 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | 1,600 lumens · 2.7A at 12V DC |
|---|---|
| High beam | 2,400 lumens · 2.7A at 12V DC |
| Position light | 60 white LEDs |
| Turn signal / marker | 12 amber / five amber LEDs |
| Finish | Black inner housing |
| Package | One selected-side headlight assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number

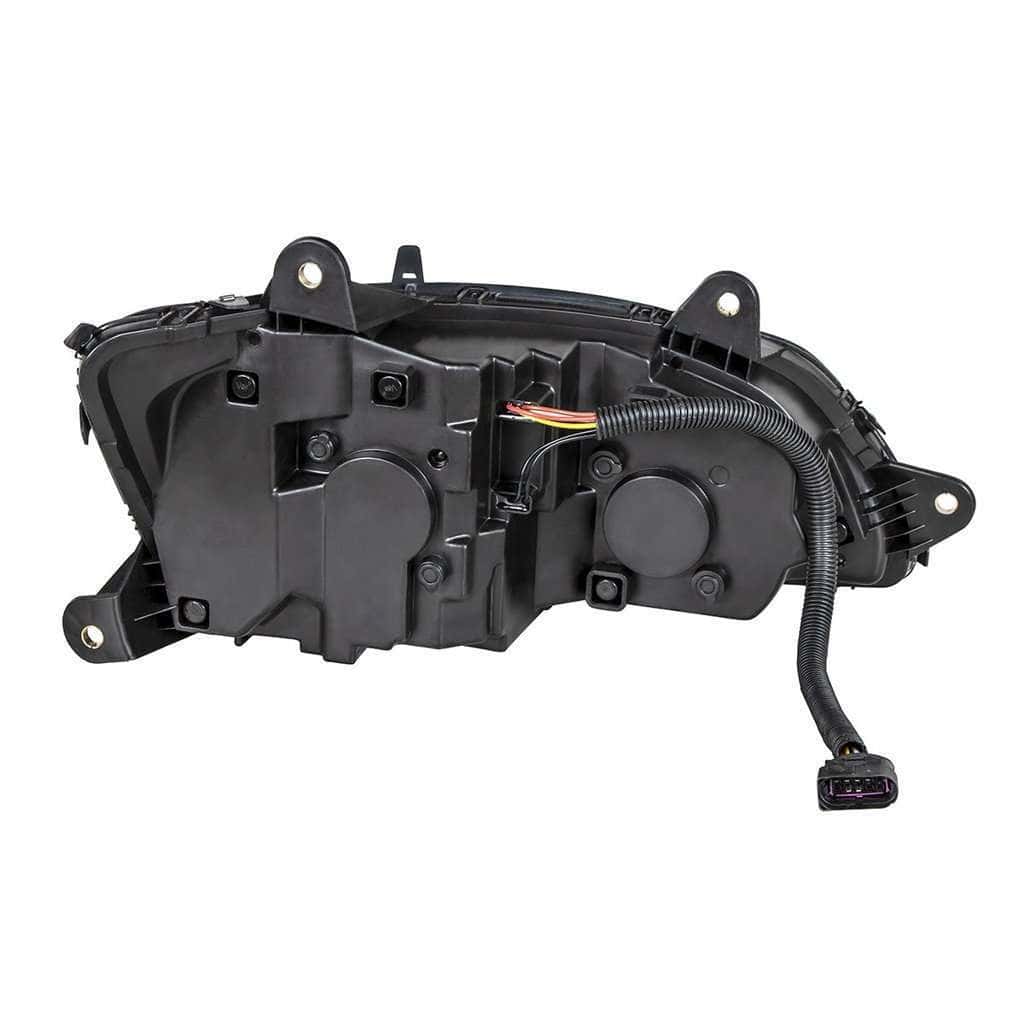

The manufacturer diagram identifies the original-harness connector and separate vertical and horizontal beam adjusters. Use the diagram for your part number; the adjustment directions differ between low and high beam. Check low beam, high beam, turn signal and marker/position functions after connection, and have the beam aim checked before road use.
Product questions
Before you order
Is the turn signal sequential?
No. These exact part numbers use a non-sequential signal. Choose the triple-bar or switchable sequential family if that is the effect you want.
Are the light bar and headlight beams the same LEDs?
No. The white position-light bar is separate from the integrated low and high beams.
Does the selected option include both sides?
No. Each option is one headlight for the selected side. Order both side options if you need a pair.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
