United Pacific · 32906 / 32907
Black 8-LED projector headlight with light bar
Eight LED projectors divide the beam functions in this T680 headlight: three for low beam and five for high beam. A full LED light bar and 12-LED turn signal complete the assembly.
Three low / five high
Separate LED projectors handle the low- and high-beam functions.
LED signal and light bar
The assembly includes a 12-LED turn signal and full LED light bar.
Polycarbonate lens
United Pacific specifies an injection-molded polycarbonate lens.

Fitment & selection
Match the assembly to your truck
For the 2013–2021 Kenworth T680. Confirm the original headlight connector and mounting points, then select driver or passenger side. The price is for one headlight assembly, not a pair. This listing does not extend fitment to the later T680 Next Gen body style.
| Driver | 32906 — one assembly |
|---|---|
| Passenger | 32907 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | 1,250 lumens · 38.4W at 12V DC · three projectors |
|---|---|
| High beam | 1,850 lumens · 48W at 12V DC · five projectors |
| Turn signal | 12 LEDs |
| Accent lighting | Full LED light bar |
| Finish | Black inner housing |
| Package | One selected-side headlight assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number

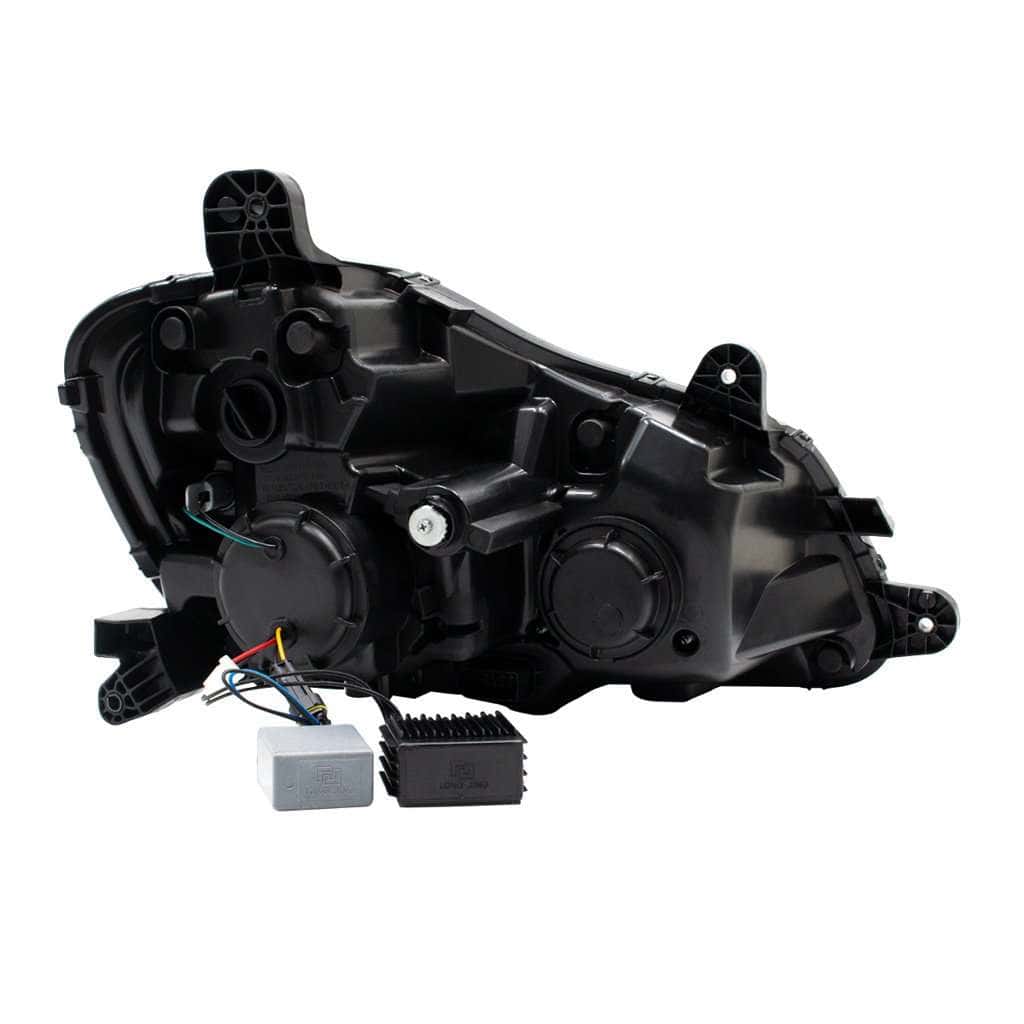

United Pacific describes a plug-in connection to the existing headlight harness. No exact installation PDF is currently listed for 32904–32907. Match the original mounting and connector, test all functions, and have beam aim checked after installation. Check low beam, high beam, turn signal and marker/position functions after connection, and have the beam aim checked before road use.
Product questions
Before you order
What does eight-LED projection mean?
This assembly has three low-beam LED projectors and five high-beam LED projectors.
Is there a downloadable installation sheet?
United Pacific does not currently list an installation PDF for these exact part numbers. Match the original connector and ask BTS for installation support rather than using instructions for another T680 headlight.
Does the selected option include both sides?
No. Each option is one headlight for the selected side. Order both side options if you need a pair.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
