United Pacific · 35719 / 35720

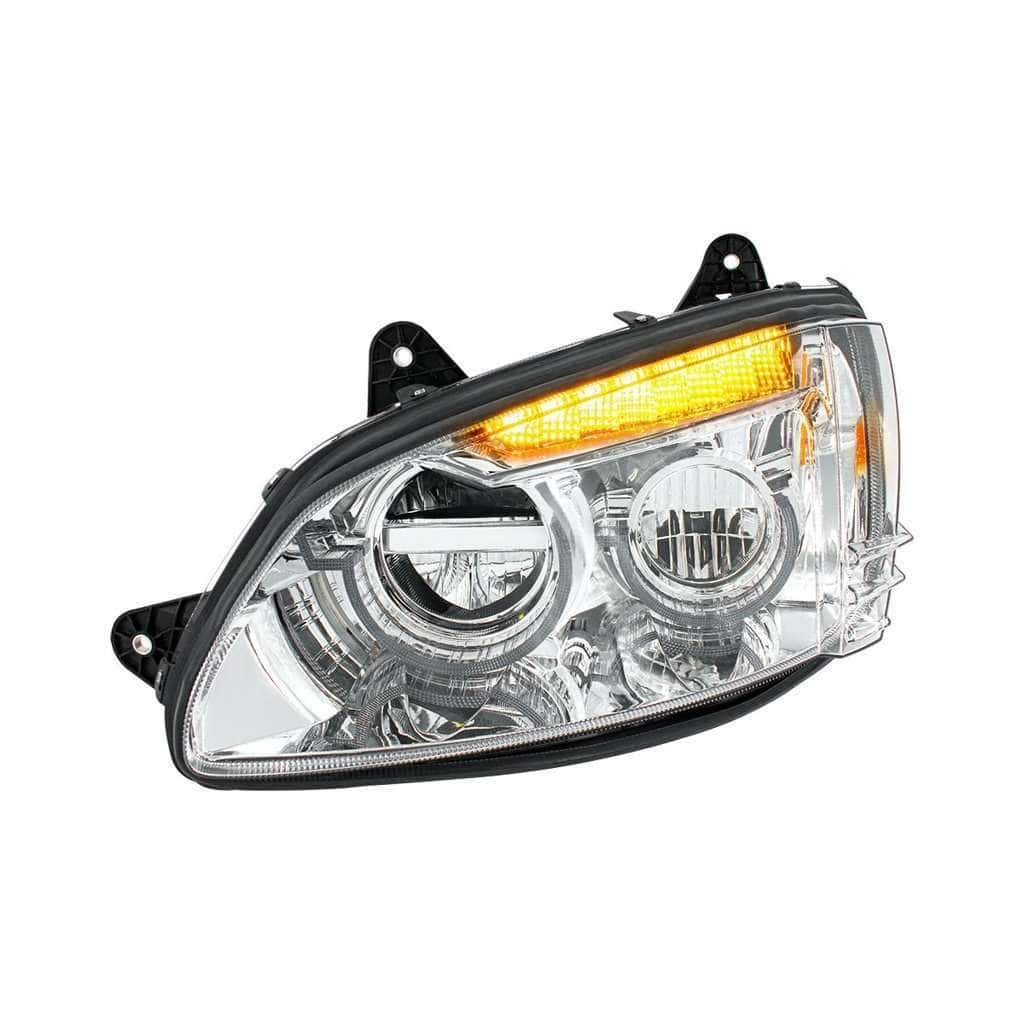

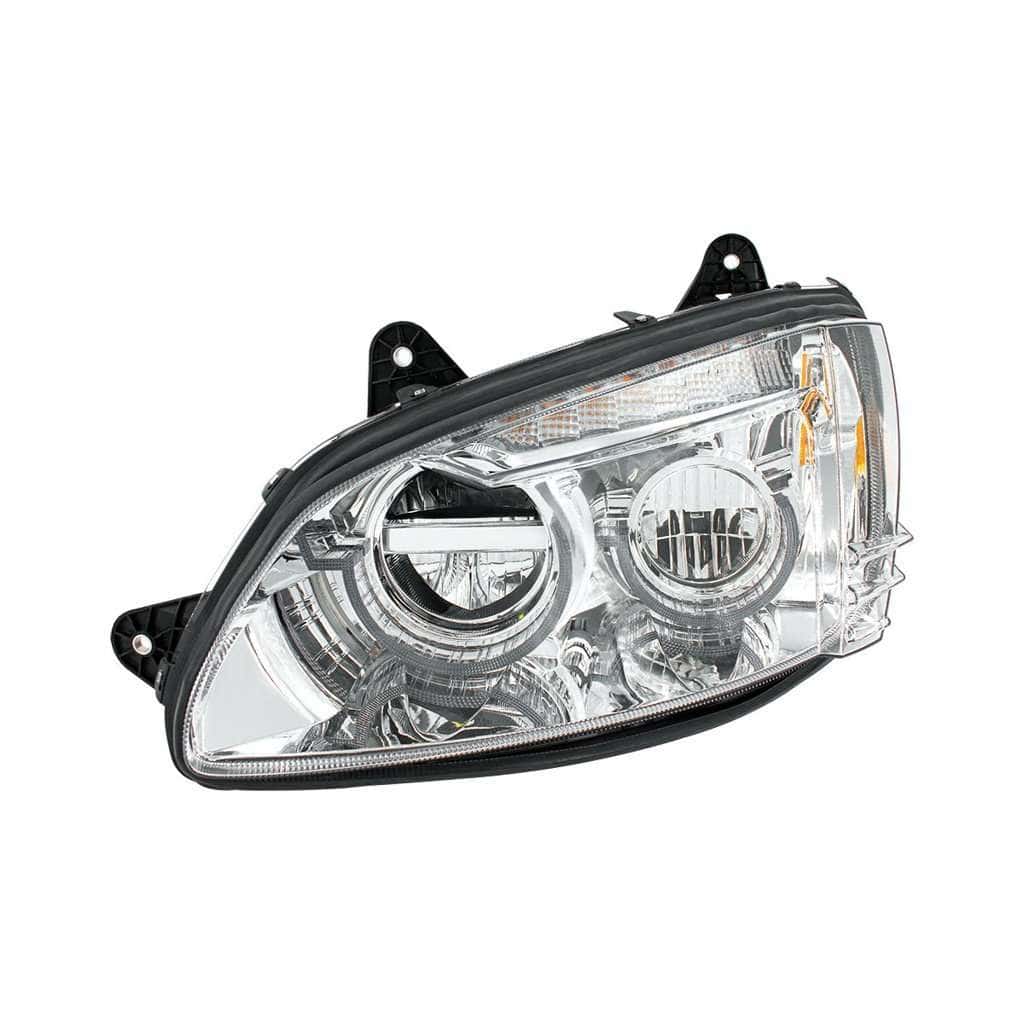

Chrome full LED headlight with white position bar

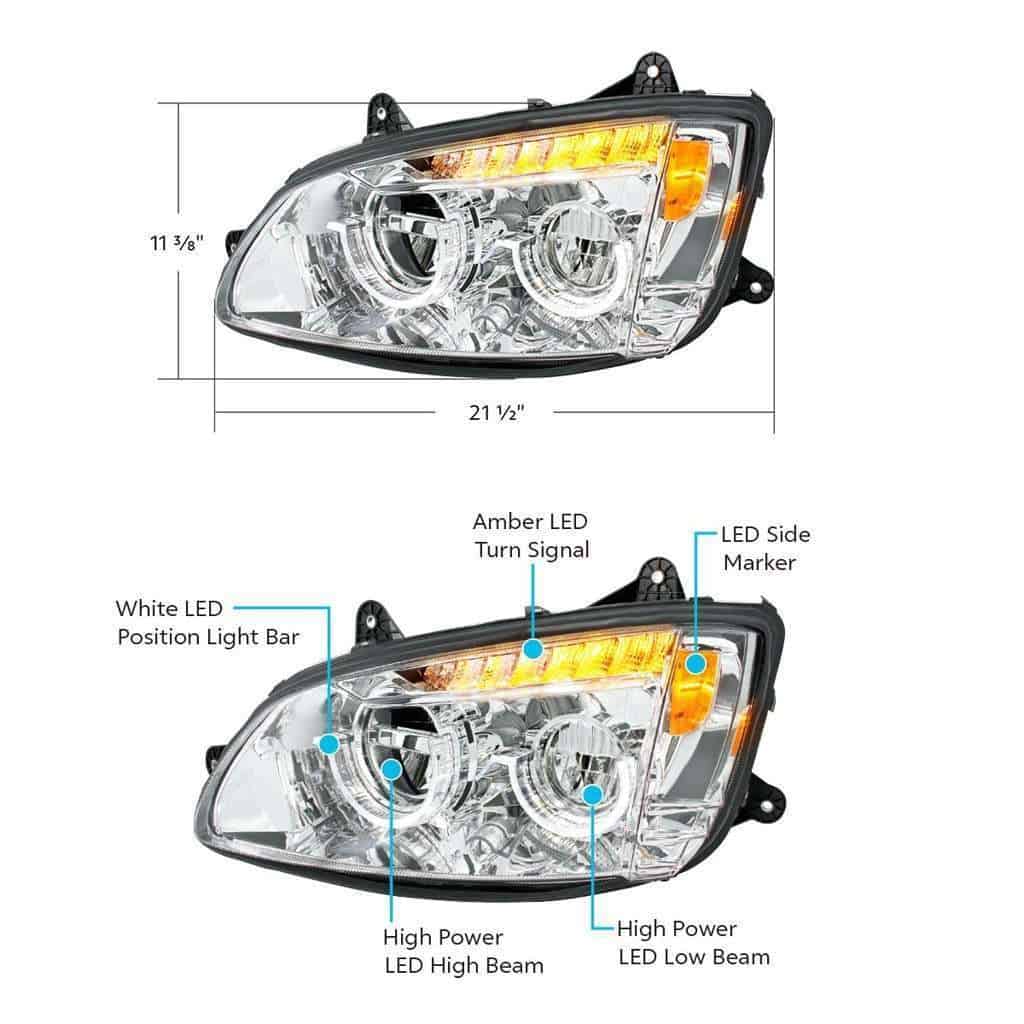

A full LED assembly with a 33-LED white position-light bar and 27 amber LEDs serving the turn signal and side marker. Its polycarbonate lens is sonically sealed to the housing.
Integrated low and high beams
The headlight beams are LED, rather than halogen bulbs behind LED accents.
White position-light bar
33 white LEDs form the position-light feature.
Amber signal and marker
27 amber LEDs supply the turn-signal and side-marker functions.

Fitment & selection
Match the assembly to your truck

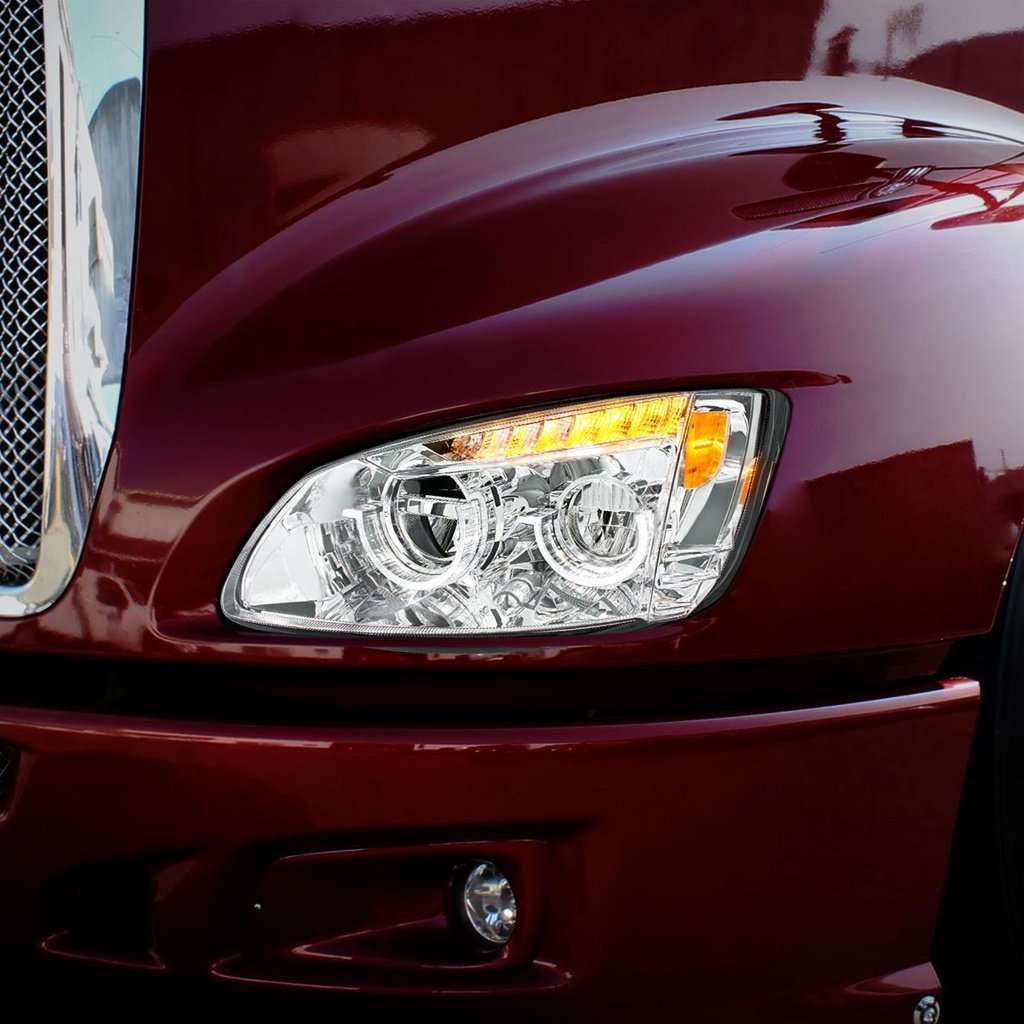

For the 2008–2017 Kenworth T660. Confirm the original headlight connector and mounting points, then select driver or passenger side. The price is for one headlight assembly, not a pair.
| Driver | 35719 — one assembly |
|---|---|
| Passenger | 35720 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | 1,100 lumens · 30.7W at 12V DC |
|---|---|
| High beam | 2,500 total lumens · 61.4W at 12V DC |
| Accent lighting | 33 white position LEDs / 27 amber signal and marker LEDs |
| Lens | Polycarbonate, sonically sealed to housing |
| Finish | Chrome inner housing |
| Package | One selected-side headlight assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming

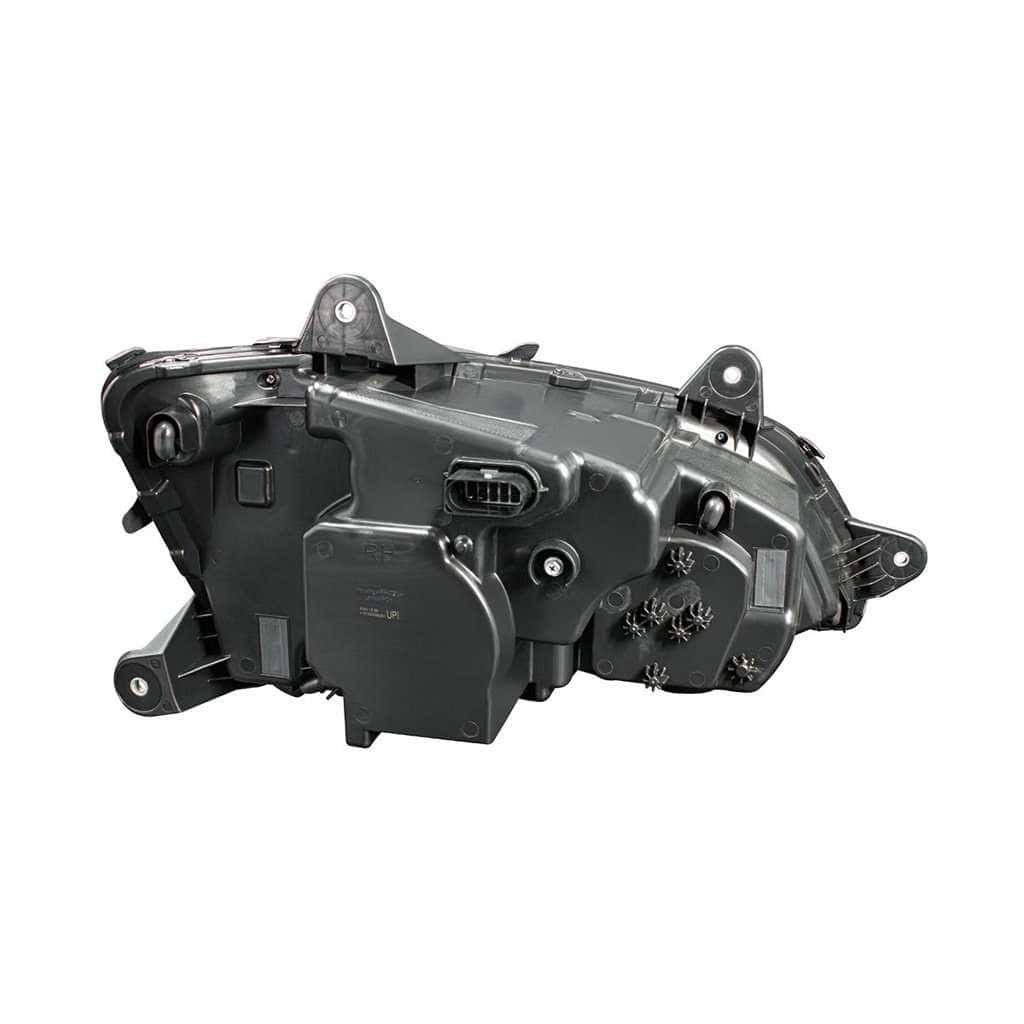

Use the instructions for your part number
The 35719–35722 manual shows the connection to the original harness and the shared high/low beam adjuster. Match the connector, test the lighting functions, and check the beam aim before road use. Check low beam, high beam, turn signal and marker/position functions after connection, and have the beam aim checked before road use.
Product questions
Before you order
Does this need an additional headlight bulb kit?
The main low and high beams are already integrated LEDs. This is a complete headlight assembly, not a bulb-upgrade kit.
Is the 2,500-lumen figure per individual LED?
No. United Pacific describes it as the high-beam total for the assembly.
Does the selected option include both sides?
No. Each option is one headlight for the selected side. Order both side options if you need a pair.
Product support
Keep your purchase information and contact BTS Lighting for help with a product issue. Ask us to confirm the current manufacturer warranty for your selected part number.
