United Pacific · 35879 / 35880
Chrome LED headlight with triple light bars

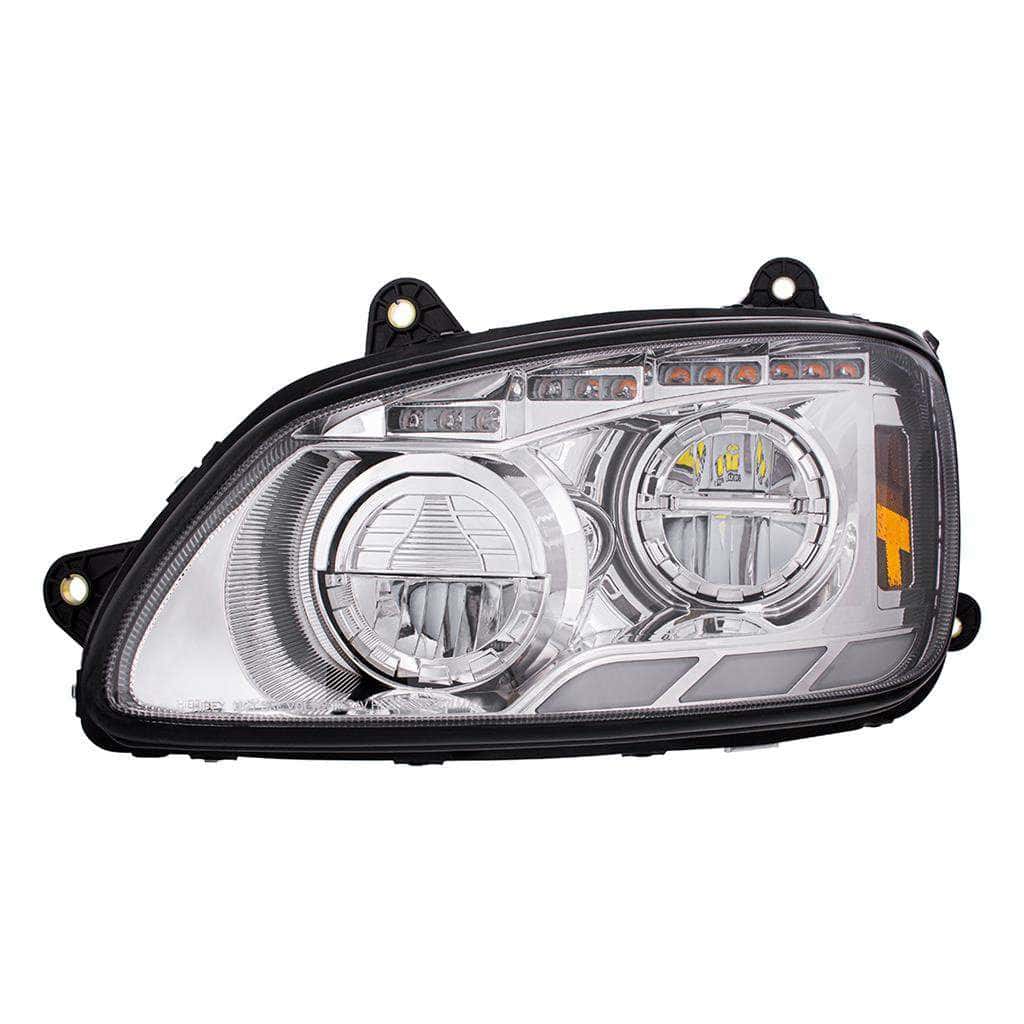

Three white position-light bars give this all-LED T660 headlight its distinctive layout. The assembly combines 81 white position-light LEDs with a 12-LED sequential amber turn signal and integrated 6000K low and high beams.
Triple-bar appearance
81 white LEDs form the lower position-light bars.
Sequential amber signal
The 12-LED amber turn signal uses a sequential lighting pattern.
Integrated 6000K beams
Low and high beam are both LED and are separately rated by the manufacturer.

Fitment & selection
Match the assembly to your truck
For the 2008–2017 Kenworth T660. Confirm the original headlight connector and mounting points, then select driver or passenger side. The price is for one headlight assembly, not a pair.
| Driver | 35879 — one assembly |
|---|---|
| Passenger | 35880 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | 1,500 lumens · 6000K · 2.8A at 12V DC |
|---|---|
| High beam | 1,500 lumens · 6000K · 2.8A at 12V DC |
| Position lights | 81 white LEDs · triple-bar layout |
| Turn signal | 12 amber LEDs · sequential |
| Finish | Chrome inner housing |
| Package | One selected-side headlight assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number
The supplied manufacturer diagram identifies the original-harness connection and the separate low/high beam adjusters. Aim both beam functions after installation using the correct adjusters. Check low beam, high beam, turn signal and marker/position functions after connection, and have the beam aim checked before road use.
Product questions
Before you order
Are the white bars the daytime headlight beam?
The white bars are position lights. Separate integrated LEDs provide the main low and high beams.
Why are both beam lumen figures the same?
United Pacific lists 1,500 lumens for each beam on this family. Lumen totals alone do not describe the different low- and high-beam patterns.
Does the selected option include both sides?
No. Each option is one headlight for the selected side. Order both side options if you need a pair.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
