United Pacific · 31456 / 31457

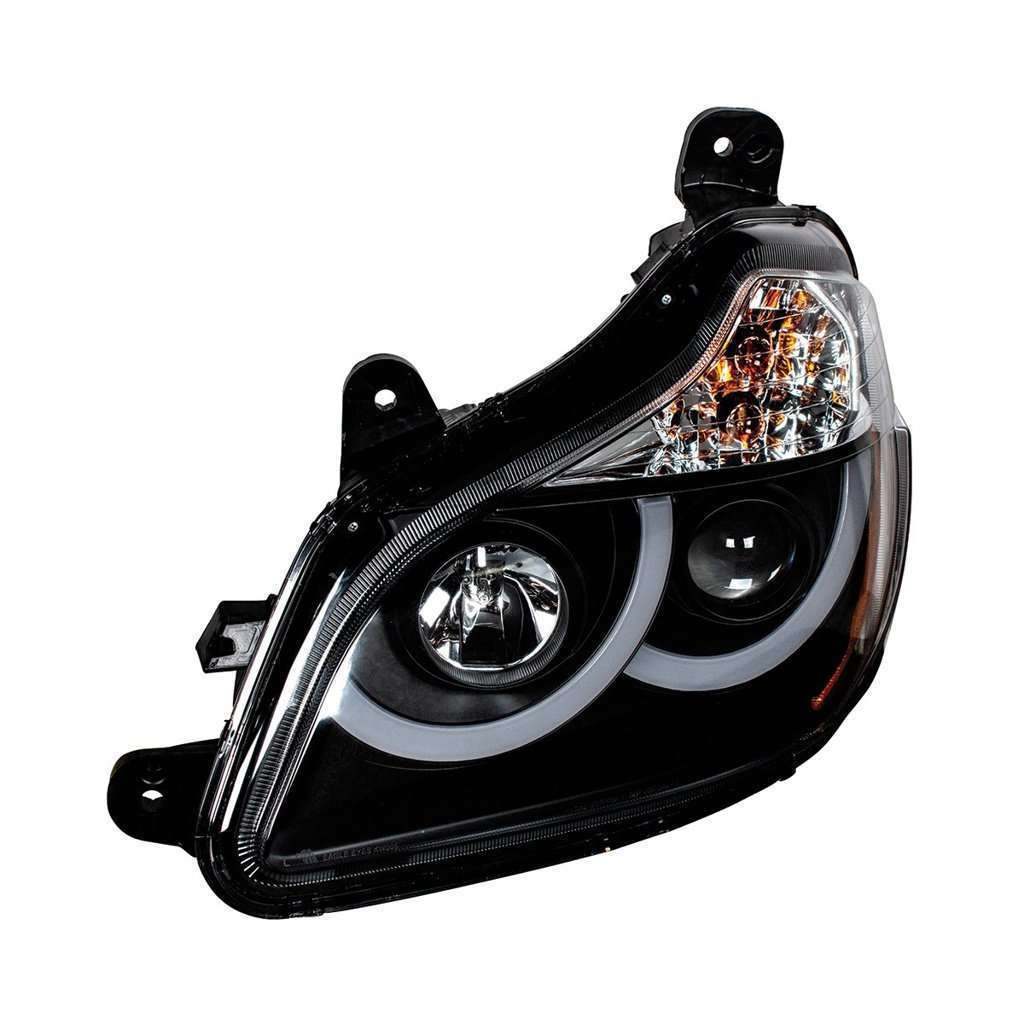

Black halogen projector headlight with LED position light
A projector-style replacement using H7 low-beam and H1 high-beam halogen bulbs, with a separate white LED position light. This is the option for buyers who want projector styling while retaining replaceable halogen beam positions.
Replaceable halogen beams
H7 low beam and H1 high beam are each specified at 55W, 12V.
White LED accent
The position light is LED; that does not make the main low and high beams LED.
Check resistor needs
United Pacific says a load resistor may be required and identifies parts 34205 and 34235.

Fitment & selection
Match the assembly to your truck
For the 2013–2021 Kenworth T680. Confirm the original headlight connector and mounting points, then select driver or passenger side. The price is for one headlight assembly, not a pair. This listing does not extend fitment to the later T680 Next Gen body style.
| Driver | 31456 — one assembly |
|---|---|
| Passenger | 31457 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | H7 quartz halogen · 55W · 4.58A at 12V DC |
|---|---|
| High beam | H1 quartz halogen · 55W · 4.58A at 12V DC |
| Turn signal | 4157 bulb · 12V DC |
| Position light | White LED |
| Finish | Black inner housing |
| Package | One selected-side headlight assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number

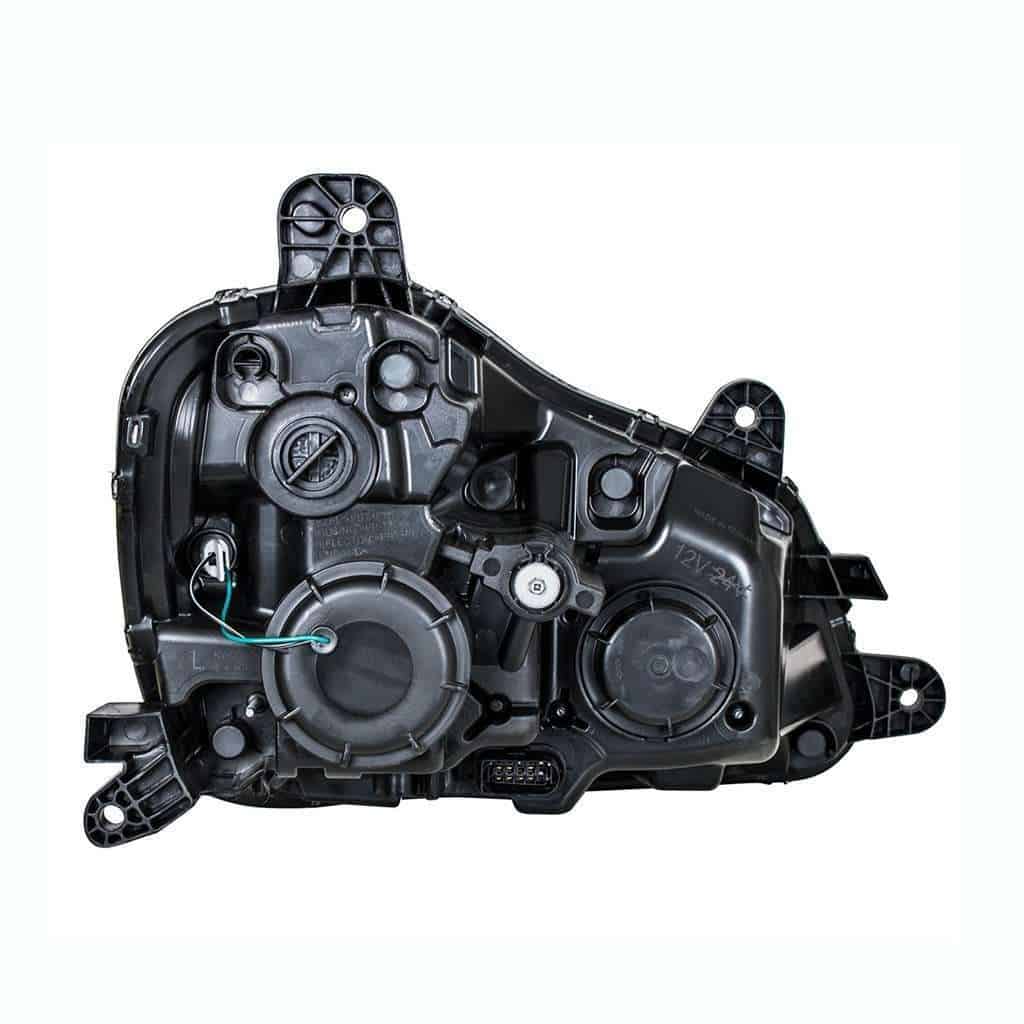

The exact manual shows the original-harness plugs and beam adjuster. Check whether a load resistor is required for your truck before finishing the installation; do not assume one is included. Check low beam, high beam, turn signal and marker/position functions after connection, and have the beam aim checked before road use.
Product questions
Before you order
Are the projector beams LED?
No. This family uses H7 and H1 halogen beam positions. Only the position-light feature is specified as LED.
Do I need an additional resistor?
United Pacific says a load resistor may be required. It identifies 34205 and 34235; confirm the truck configuration before ordering additional parts.
Does the selected option include both sides?
No. Each option is one headlight for the selected side. Order both side options if you need a pair.
2-year manufacturer warranty
United Pacific lists a 2-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
