United Pacific · 35741 / 35742

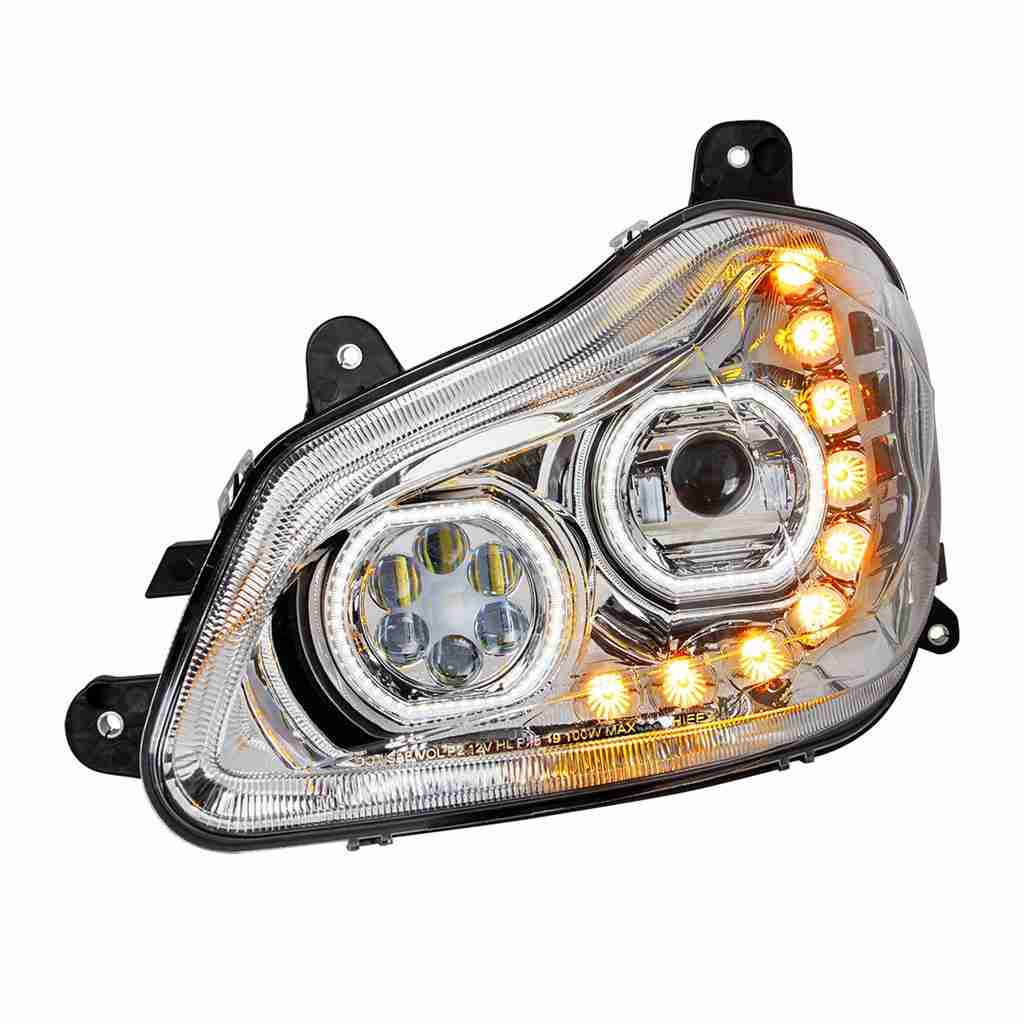

Chrome LED halo headlight with sequential signal
An all-LED assembly with a 100-LED white DRL halo, sequential amber turn signal, and integrated low and high beams. This particular family is specified for 12–24V operation, with separate manufacturer electrical ratings for each voltage.
100-LED white halo
The halo supplies the daytime-running-light function around the main headlight design.
Sequential amber signal
Nine amber LEDs provide the sequential signal, with six additional amber side-marker LEDs.
12–24V family
These exact part numbers support 12–24V; do not assume that voltage range applies to every T680 headlight.

Fitment & selection
Match the assembly to your truck
For the 2013–2021 Kenworth T680. Confirm the original headlight connector and mounting points, then select driver or passenger side. The price is for one headlight assembly, not a pair. This listing does not extend fitment to the later T680 Next Gen body style.
| Driver | 35741 — one assembly |
|---|---|
| Passenger | 35742 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | 2,100 lumens · 2.5A at 12V / 1.25A at 24V |
|---|---|
| High beam | 3,700 lumens · 7A at 12V / 2.75A at 24V |
| DRL / side marker | 100 white LEDs / six amber LEDs |
| Turn signal | Nine amber LEDs · sequential |
| Operating voltage | 12–24V |
| Finish | Chrome inner housing |
| Package | One selected-side headlight assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number

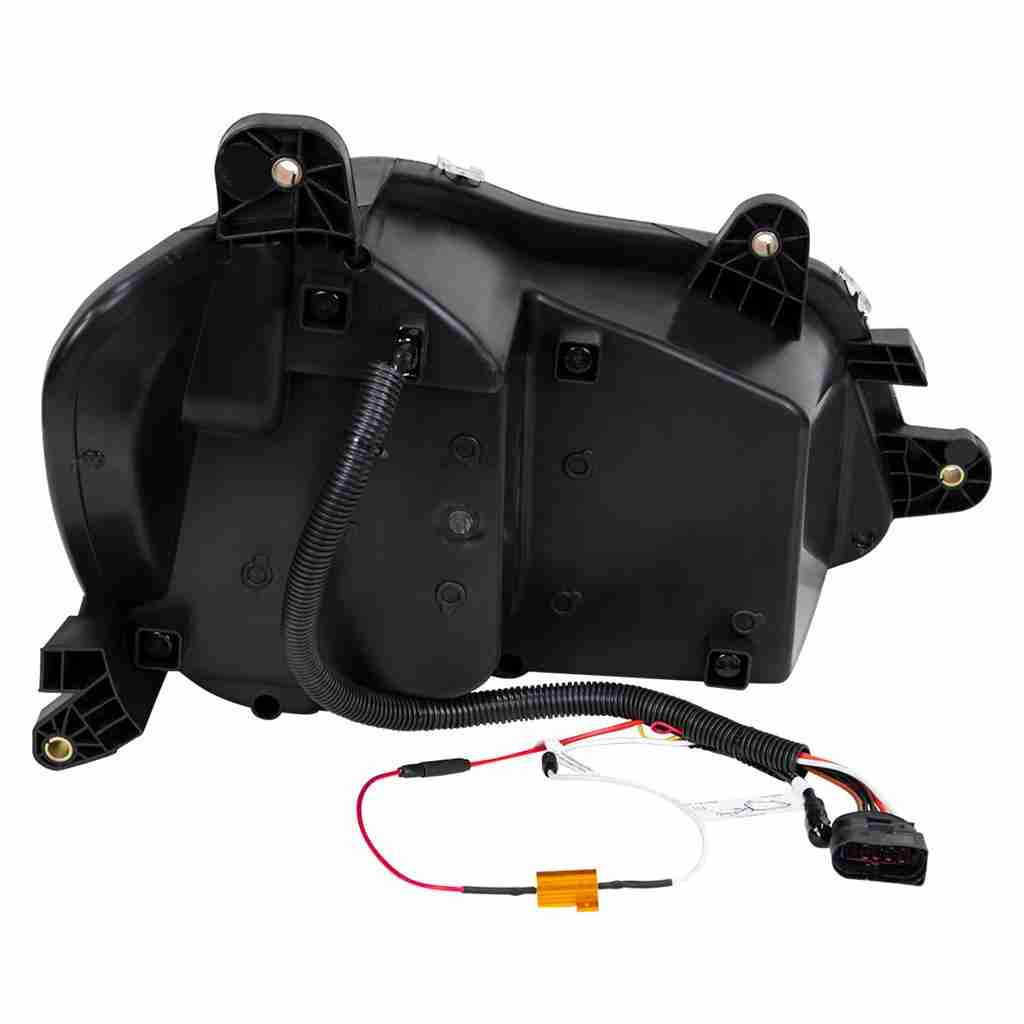

Connect to the matching original harness and use the manual to identify each adjuster. The pre-installed load resistor is removable; United Pacific says to remove it if the headlight dims or will not turn on. Check low beam, high beam, turn signal and marker/position functions after connection, and have the beam aim checked before road use.
Product questions
Before you order
Does this version have a sequential turn signal?
Yes. United Pacific specifies sequential operation for the nine-LED amber signal.
What if the light is dim or will not turn on after fitting?
A removable load resistor is pre-installed. United Pacific instructs removal of that resistor if it causes dimming or prevents the light from turning on. Follow the exact instructions and have the connection checked.
Does the selected option include both sides?
No. Each option is one headlight for the selected side. Order both side options if you need a pair.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
