Product Overview
Red/green dual-color watermelon lights are notoriously difficult to execute cleanly. Most competitors rely on plastic lenses and diode clusters that cause muted green output, uneven beams, and visible dead spots—especially when switching colors.
The Glass is Class Duo Gen 2 was engineered to solve those problems at the optical level.
By pairing a real tempered-glass star lens with the AlphaFit Duo bulb’s dual-bank LED architecture, this system delivers long, sharply defined beam lines with zero center dark void. Red provides a powerful, saturated primary color, while green offers a striking secondary that instantly transforms the look of your truck.
This is not a glow-based light. It’s a precision beam system.
Key Features & Benefits
Red Primary / Green Secondary Dual-Color Output
The AlphaFit Duo bulb uses two dedicated LED chip banks per side, one red and one green.
-
Red for primary marker, accent, or rear-facing illumination
-
Green for show, specialty, or theme-based lighting
When both color wires receive power, green automatically overrides red, ensuring clean, instant switching with no color blending or flicker.
AlphaFit Duo 23-Watt LED Bulb – Gen 2 Platform
At the heart of the system is the 23W AlphaFit Duo bulb, purpose-built for Glass is Class optics.
-
Single-function per color (no dim/high cycling)
-
Full-power output on both colors
-
Extremely small emission surface area for complete beam fill
Unlike the original hand-assembled Duo bulbs, the Gen 2 AlphaFit Duo is machine-manufactured with tight tolerances and strict QC, delivering far greater consistency and long-term reliability.
Advanced Cooling & Moisture Management
The Gen 2 Duo uses the same proven thermal architecture as the Gen 2 single-color AlphaFit:
-
Oversized anodized aluminum body
-
Internal active cooling fan
-
Passive heat-sink structure directly beneath the LED chips
This hybrid system actively pulls heat away from the LEDs while creating positive internal pressure, allowing moisture to vent out naturally instead of being trapped inside the housing.
Real Tempered-Glass Star Lens
Plastic lenses scatter light and dull green output. Glass preserves it.
The Glass is Class tempered star lens:
-
Produces long, crisp beam lines
-
Preserves deep red and green color saturation
-
Resists yellowing, scratching, and heat distortion
The result is a beam pattern that looks sharp, aggressive, and unmistakably premium.
Simple 3-Wire Control – No Mandatory 3-Way Switch
The AlphaFit Duo uses a simple 3-wire configuration:
-
Ground
-
Primary color (red)
-
Secondary color (green)
You can:
-
Run red full-time and trigger green separately
-
Use a 3-way switch if desired
-
Or wire green as a full-time override
Unlike some competitor systems, a 3-way switch is optional, not required.
Performance / Compatibility / Use-Case
The Red/Green Duo Gen 2 is ideal for:
-
Show trucks wanting a high-contrast, aggressive color combo
-
Custom builds using green for theme or branding
-
Interior, exterior, or accent lighting where visibility matters
Thanks to tight LED chip spacing and a minimal emission surface area, the Duo Gen 2 produces a uniform, fully filled beam with no center dead spot, outperforming common 17- and 19-diode dual-revolution designs.

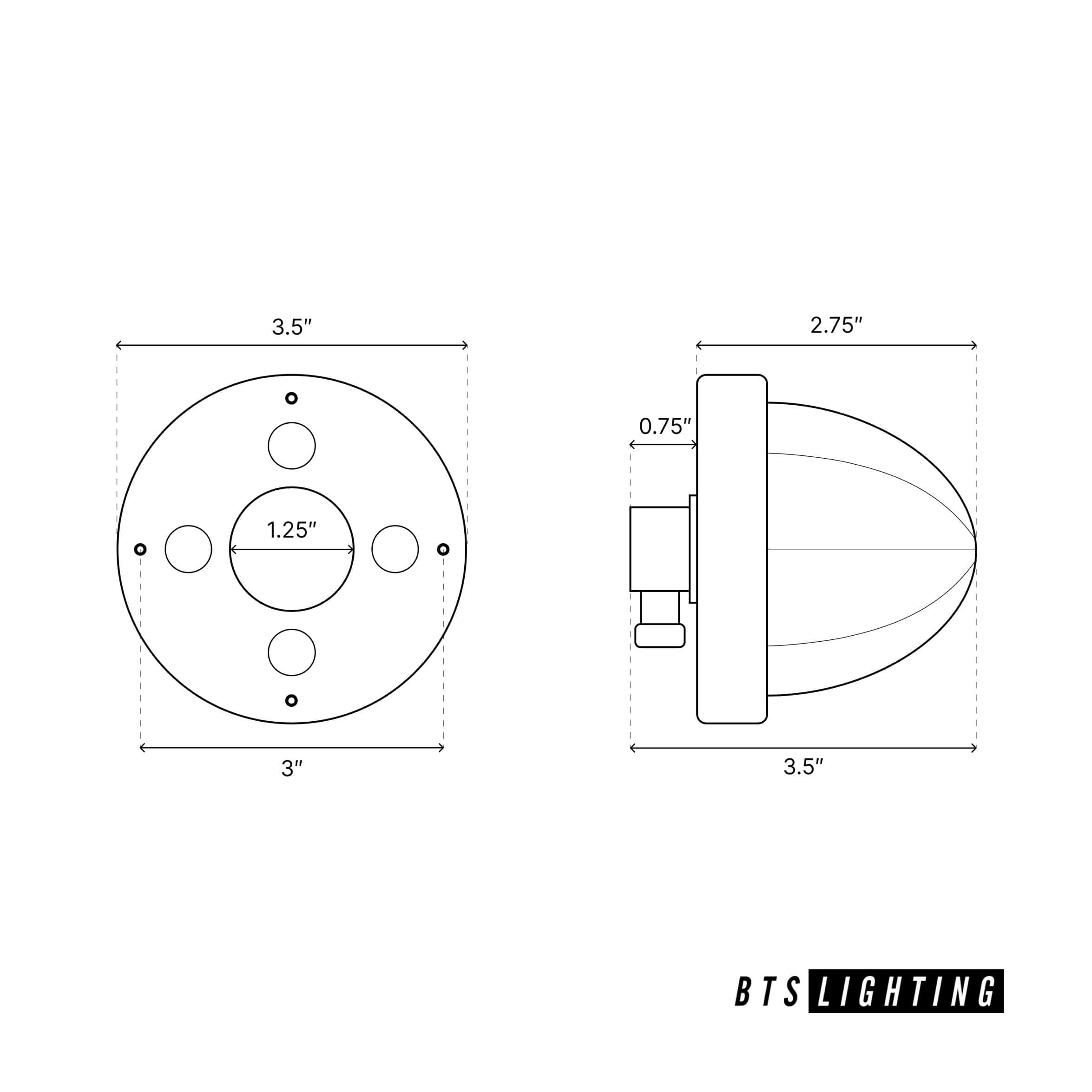

Installation / Fitment / Technical Details
-
Voltage: 12V & 24V compatible
-
Power Draw: 23W (active color)
-
Bulb Base: Custom AlphaFit Duo (H11-style fitment)
-
Wiring: 3-wire (ground, red, green)
-
Cooling: Active + passive hybrid system
-
Lens: Tempered glass star pattern
Mounting brackets sold separately.
Build Quality / Warranty
The Gen 2 Glass is Class Duo represents a major evolution over the original Duo line:
-
Machine-built bulbs instead of hand-assembled
-
Much tighter manufacturing tolerances
-
Significantly lower failure rates
-
Improved heat and moisture control
Warranty: 1-Year Limited Warranty
Designed and validated by Alpha Series Lighting for real-world truck environments.
⚠️ Not SAE/DOT compliant
These lights are intended for show, off-road, and auxiliary use only due to extreme brightness.
What’s Included
-
(1) Glass is Class Duo Gen 2 Watermelon Light – Red/Green
-
(1) Pre-installed AlphaFit Duo 23W LED bulb
-
Integrated cooling system and venting
-
Mounting bracket not included
Frequently Asked Questions
Is the green output bright or washed out?
The green output is deep, saturated, and sharply defined thanks to a dedicated green LED bank and real glass optics.
Does green override red automatically?
Yes. When both color wires are powered, green overrides red instantly.
Can I run red as my main color and green only when triggered?
Yes. This is a very common wiring configuration.
Is this the same bulb as the single-color AlphaFit?
It uses the same housing, cooling system, and engineering — but adds dual LED chip banks for dual-color control.
Is this waterproof?
The glass lens is sealed, and the bulb uses positive-pressure venting. It is weather-resistant and moisture-managed, not a fully potted plastic unit.
