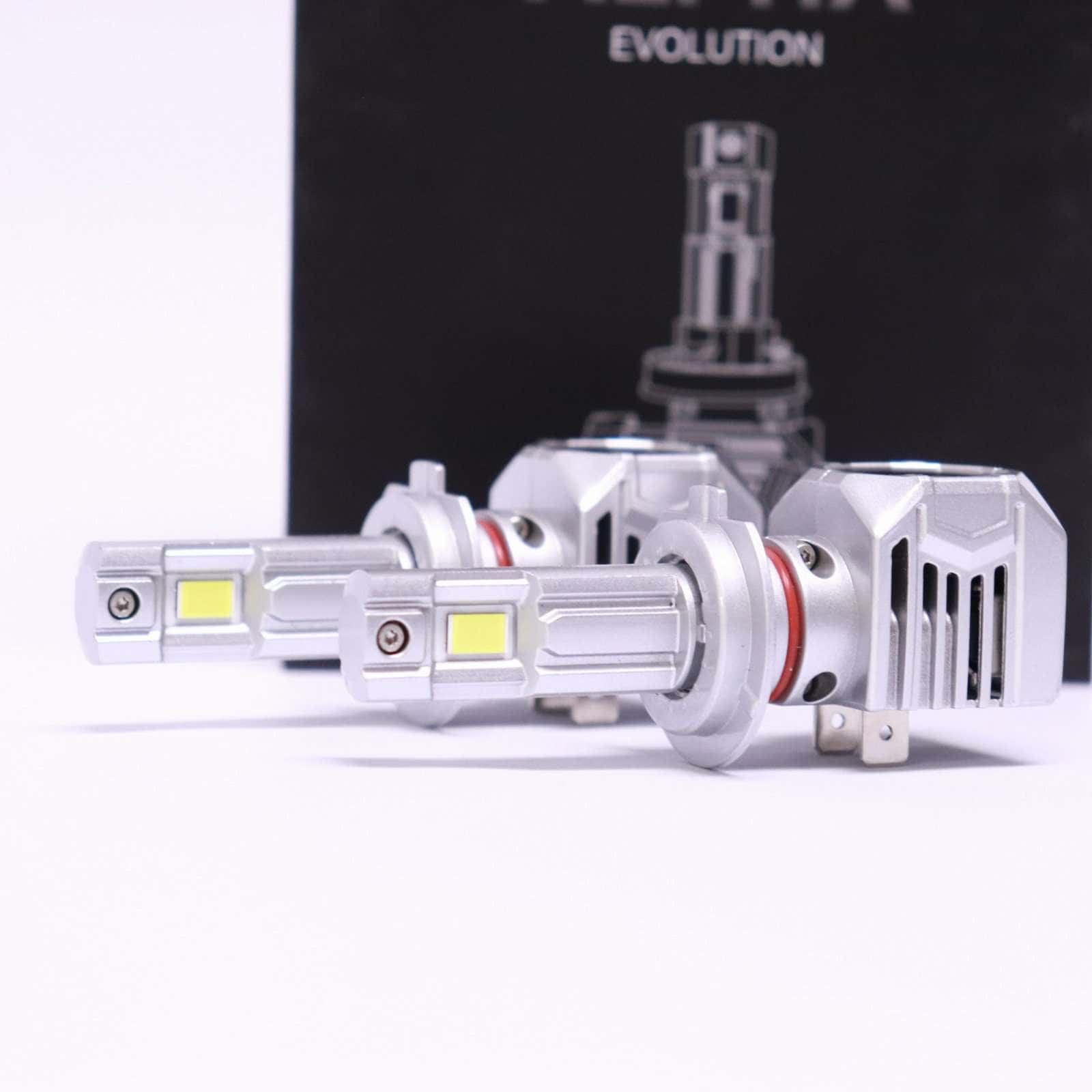

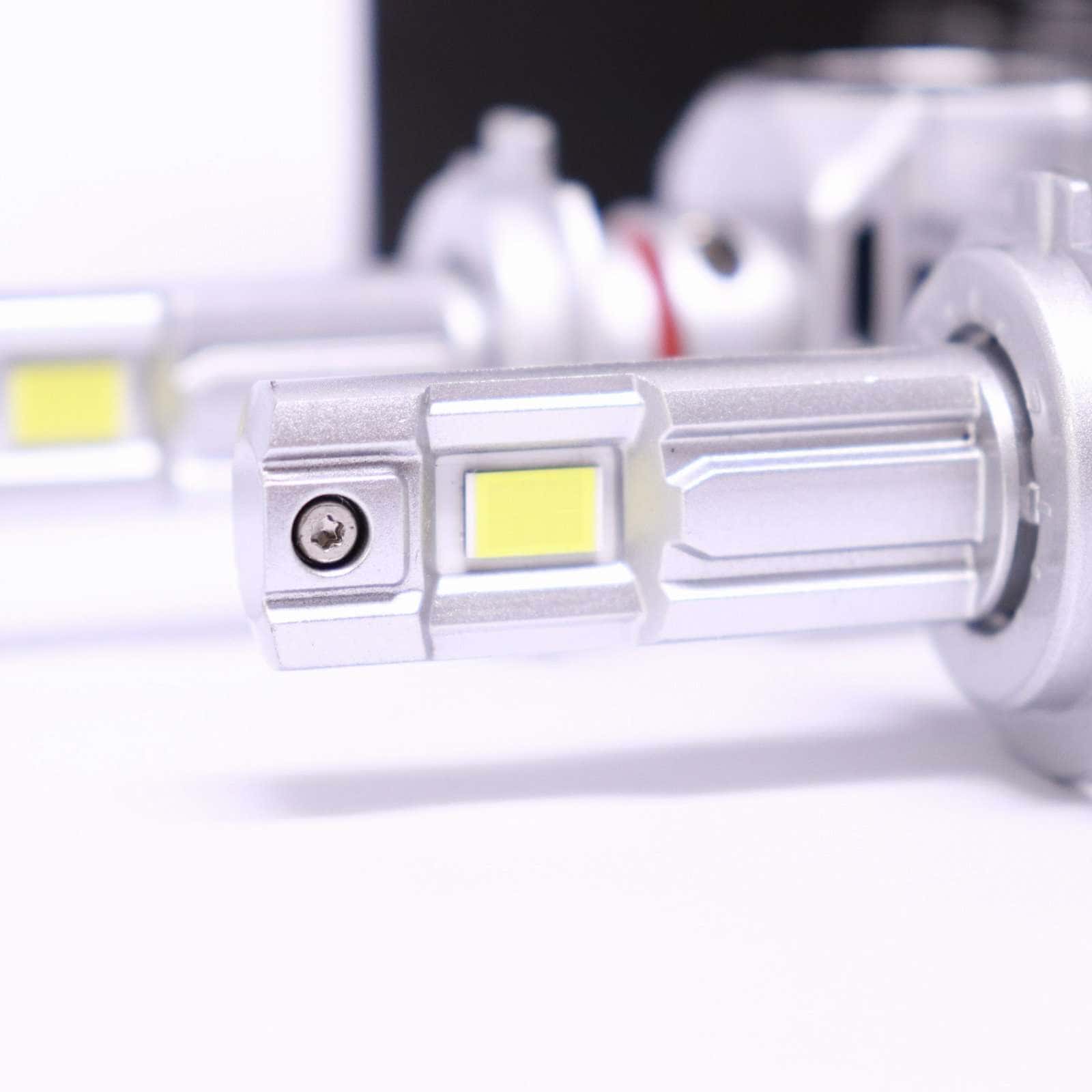

Alpha Series H7 LED bulbs: match the bulb and housing
SKU A1007 identifies this Alpha Series H7 LED bulb listing. Its published output is 11,000 lumens per set with 6500K white light. Compare the installed bulb marking, lamp position, connector and cooling clearance before choosing a replacement.
Read more: specifications and installation checks
- Exact SKU: A1007
- Bulb designation: H7
- Published light output: 11,000 lumens per set
- Colour temperature: 6500K white
- Listed supply range: 9–32V DC
- Cooling design: Copper PCB, integrated cooling and a high-speed dual ball-bearing fan
- Warranty: lifetime limited warranty; existing product terms apply

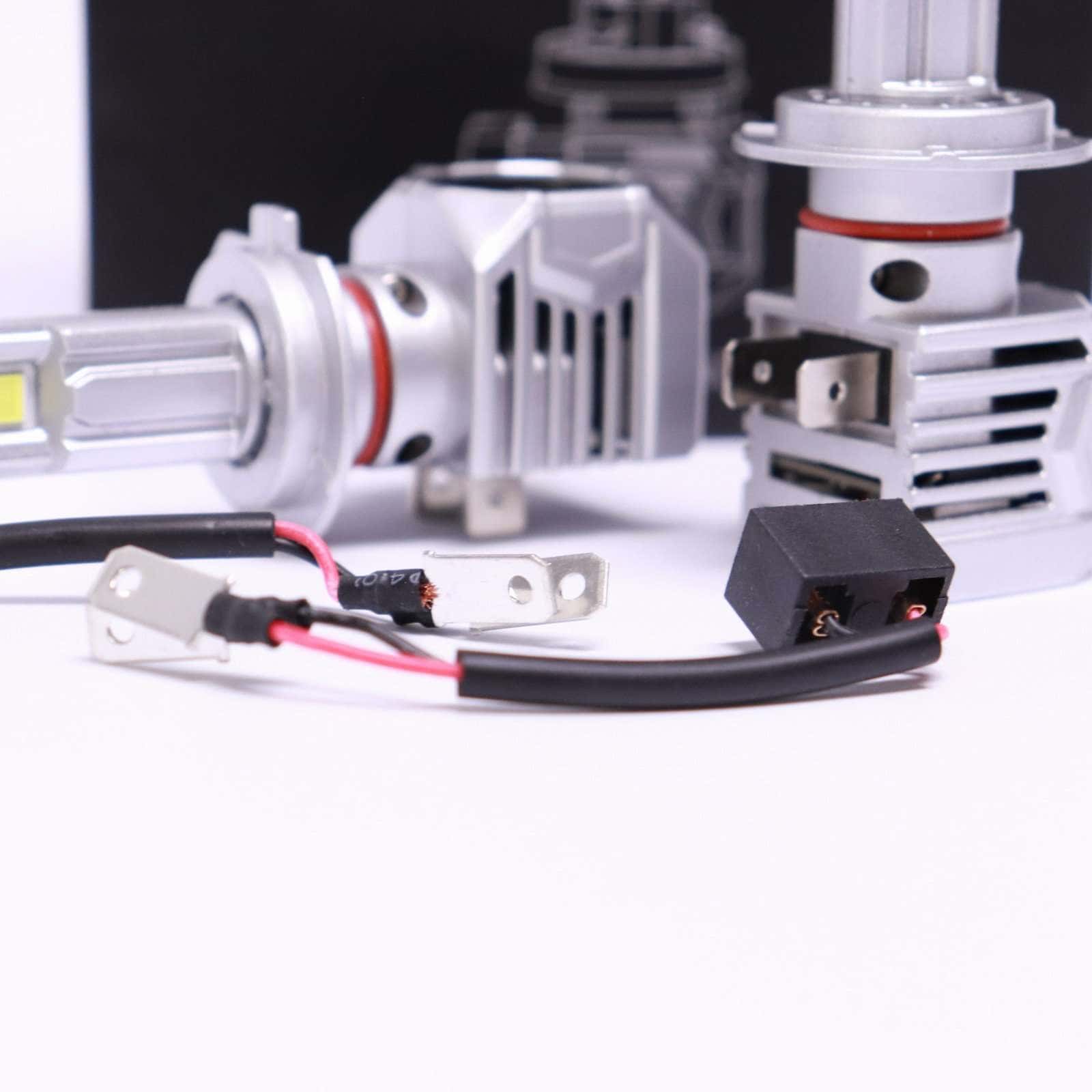

Before installation, compare the mounting/retainer, connector, available space and dust-cap closure. After installation, check high/low operation where applicable and the final beam aim. A bulb-base match alone does not establish optical performance, approval or compatibility with a complete factory LED housing.
Frequently Asked Questions
Is the 11,000-lumen figure for one bulb?
The published rating for SKU A1007 is 11,000 lumens per set. Keep that unit with the number when comparing products; it is not a measurement of light delivered to a particular point on the road.
What light colour is this H7 product?
This exact listing specifies 6500K white light. Match the SKU and product generation when replacing an existing bulb; another Alpha Series bulb can have a different specification.
Will my original H7 bulb retainer work with these LEDs?
Compare the original retaining clip or adapter, bulb seating and rear clearance with the new bulb before ordering. A vehicle model or an H7 designation alone does not confirm every holder and dust-cap arrangement.
What voltage range is listed for A1007?
This exact product lists a 9–32V DC input range. Check the actual lighting-circuit supply and connector against that range.
Does an LED bulb replace a complete factory LED headlight?
This is a replacement-bulb product for a compatible serviceable lamp. A complete factory LED headlight can use different integrated electronics and light sources; a model name or similar exterior housing is not a bulb-fitment check.
Will built-in electronics prevent every warning or flicker?
Do not assume a universal result. Check the installed bulb type, connections and lighting circuit. Some applications require an appropriate additional module; diagnose the cause before choosing electrical accessories.

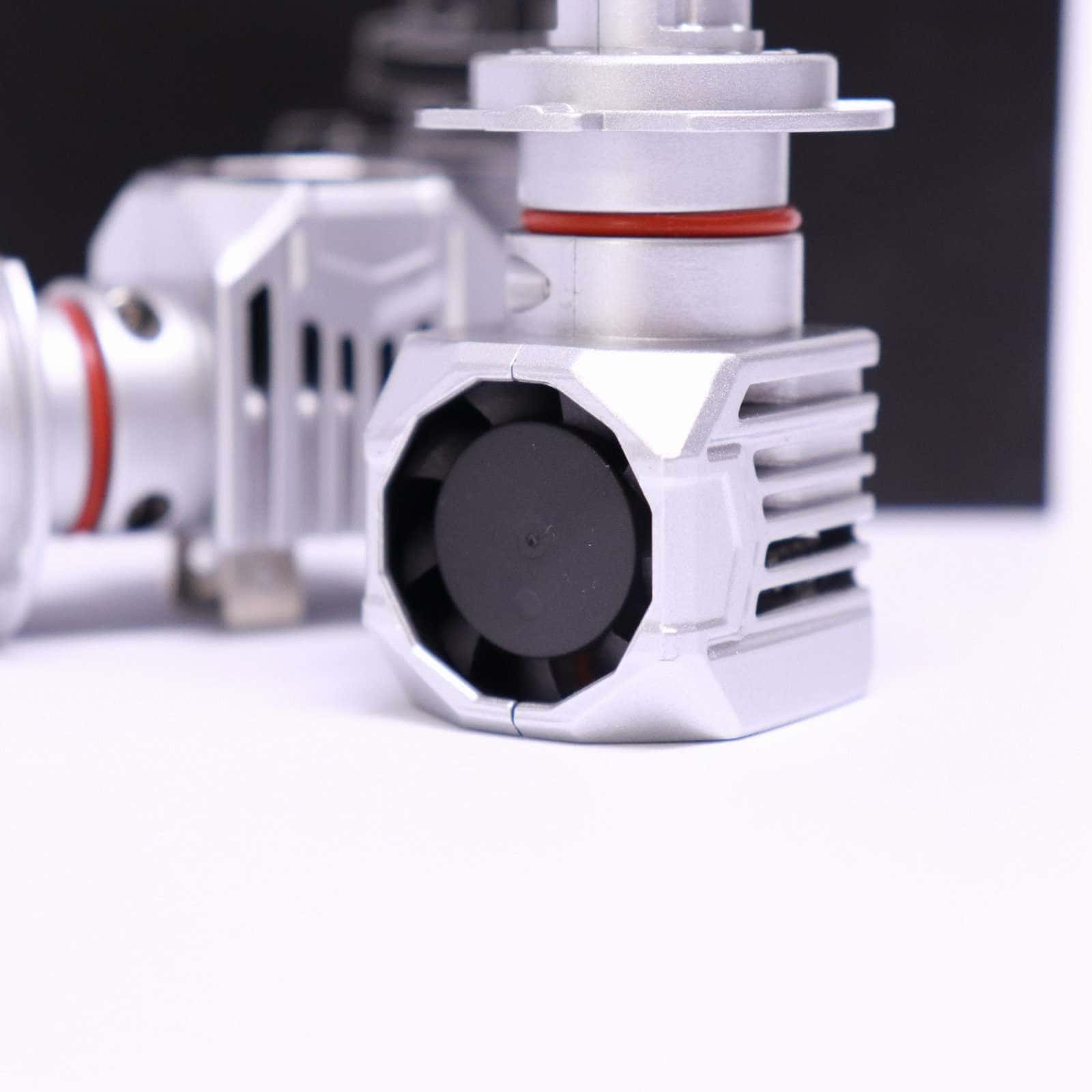

What should I check around the H7 cooling system?
This product lists: copper pcb, integrated cooling and a high-speed dual ball-bearing fan. Check the space available behind the bulb and the way the original dust cap closes. Keep the cooling path and mounting arrangement consistent with the supplied installation instructions.
What warranty applies to this Alpha Series bulb?
The current product carries a lifetime limited warranty. The existing terms and exclusions for the purchased product apply; a warranty does not make an incompatible housing or electrical supply suitable.
Compare bulb bases and product options in our LED bulb collection.
