United Pacific | 31096 / 31097
Integrated LED beams with a replaceable turn signal

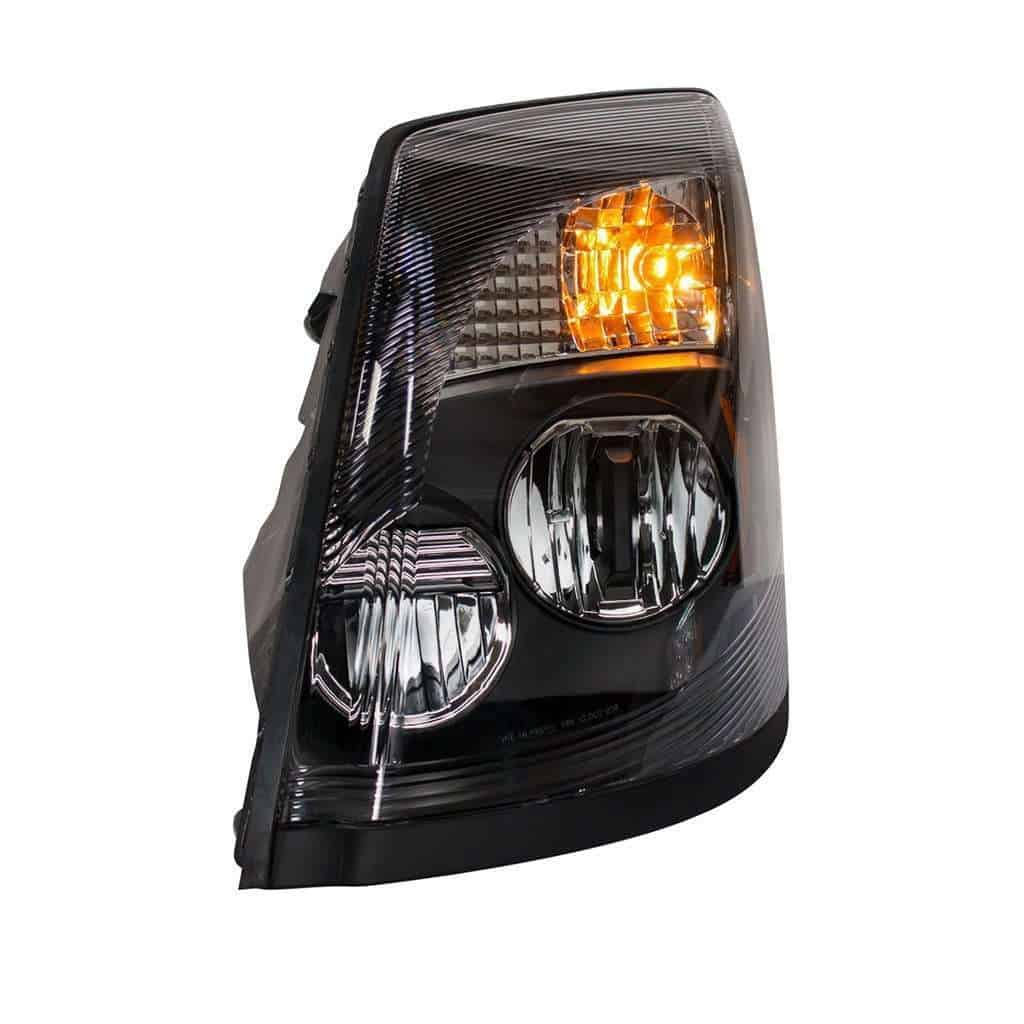

This black assembly replaces the 2003-2017 Volvo VN/VNL headlight with integrated LED low and high beams. A separate amber 3157 turn-signal bulb is included.
LED low and high beams
United Pacific lists 1,590 lumens for low beam and 2,240 lumens for high beam, per assembly.
Included turn-signal bulb
The amber 3157 turn-signal bulb is supplied. This is a complete assembly, not a loose LED bulb conversion.
Keep the original harness
Retain the unused factory wiring harness and follow the exact manufacturer diagram.

Fitment & selection
Match your Volvo and original equipment
- 2003-2017 Volvo VN
- 2003-2017 Volvo VNL
Match the original housing, mounting points and electrical connector before ordering.
| Driver | 31096 | one assembly |
|---|---|
| Passenger | 31097 | one assembly |
Lighting details
Specifications for this assembly
| Low beam | 1,590 lumens; 2.15A at 12V |
|---|---|
| High beam | 2,240 lumens; 3.85A at 12V |
| Turn signal | Amber 3157 bulb included |
| Finish | Black Inner Housing |
| Package | One assembly for the selected side |
| Manufacturer standards listing | DOT/SAE; FMVSS 108. Correct application and beam aim are required. |
Installation & aiming
Use the instructions for your part numbers
Retain the original wiring and mounting hardware until installation is complete. Match the connections, check all lighting functions and have the beam aim checked before road use. Follow the connector and adjuster diagram for these exact part numbers where provided.
Product questions
Before you order
Is every lighting function LED?
The main low and high beams are LED. The amber turn signal uses an included 3157 bulb.
Is the price for a pair?
No. Each selection supplies one assembly for the driver or passenger side. Order both sides separately if you need a pair.
Product support
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
