United Pacific · 31154 / 31155
LED beams and a light bar for your original housing

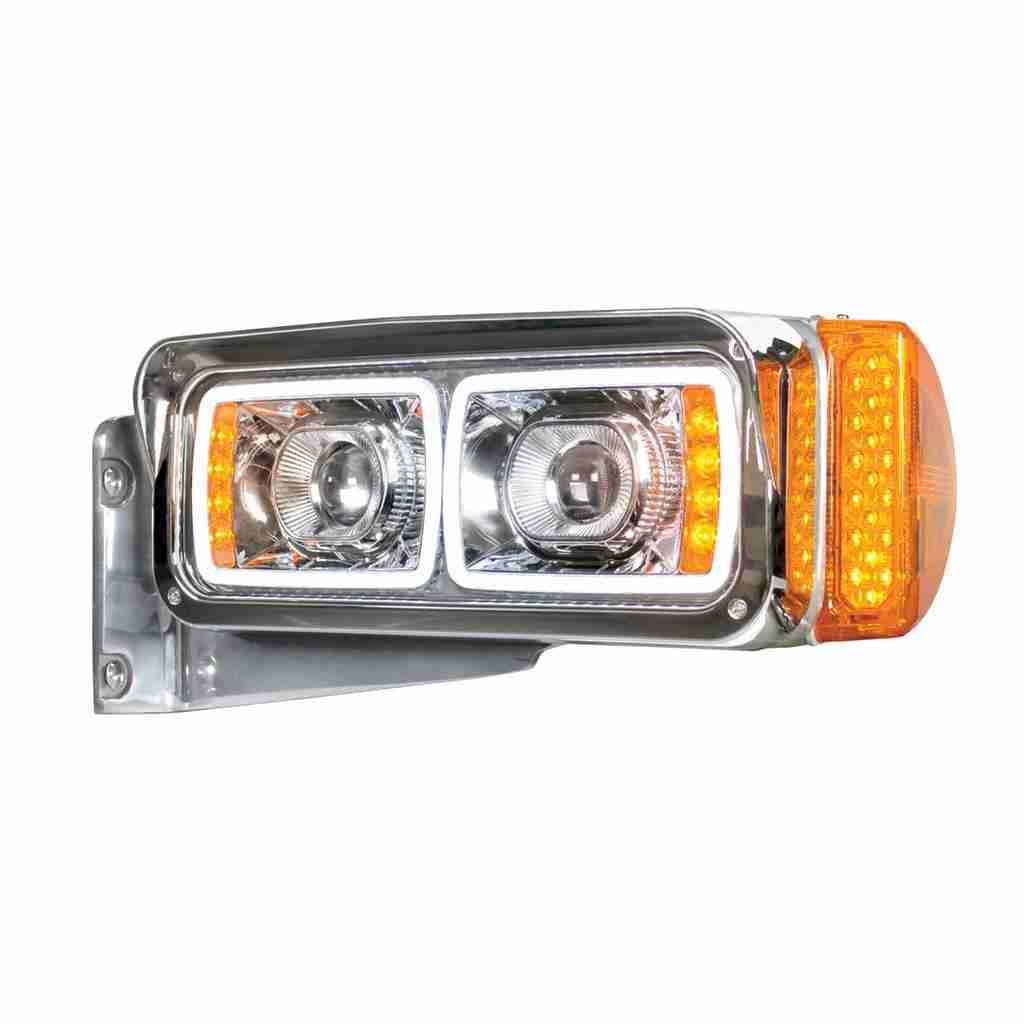

A chrome conversion insert for a matching original dual-4×6 headlight housing, combining LED low/high beams, turn signal and position-light bars. Choose the driver or passenger side.
Integrated low and high beams
LED low/high beams in one replacement insert.
Turn and position lighting
Integrated turn signal and position bars, with additional wiring for those functions.
Insert and fender liner
One selected-side insert and fender liner. The mounting arm and outer housing are not included.

Fitment & selection
Match the installed headlight equipment
For matching original dual-4×6 headlight housings on Peterbilt 357, 365, 378 and 379. The manufacturer also names Kenworth T600/T800/W900, Freightliner Classic and Western Star 4800/4900/6900 fender-mounted systems. Compare the actual housing, mounting, required side and wiring; model name alone is not a fit check.
| Side | Part number | Package |
|---|---|---|
| Driver | 31154 | One insert and fender liner |
| Passenger | 31155 | One insert and fender liner |
Lighting details
Specifications for this model
| Low beam | 1,500 lumens · 1.5A |
|---|---|
| High beam | 2,100 lumens · 2.3A |
| Operating range | 12–24V DC |
| Inner finish | Chrome |
| Manufacturer compliance listing | DOT/SAE · FMVSS108 |
Installation
Connect every lighting function

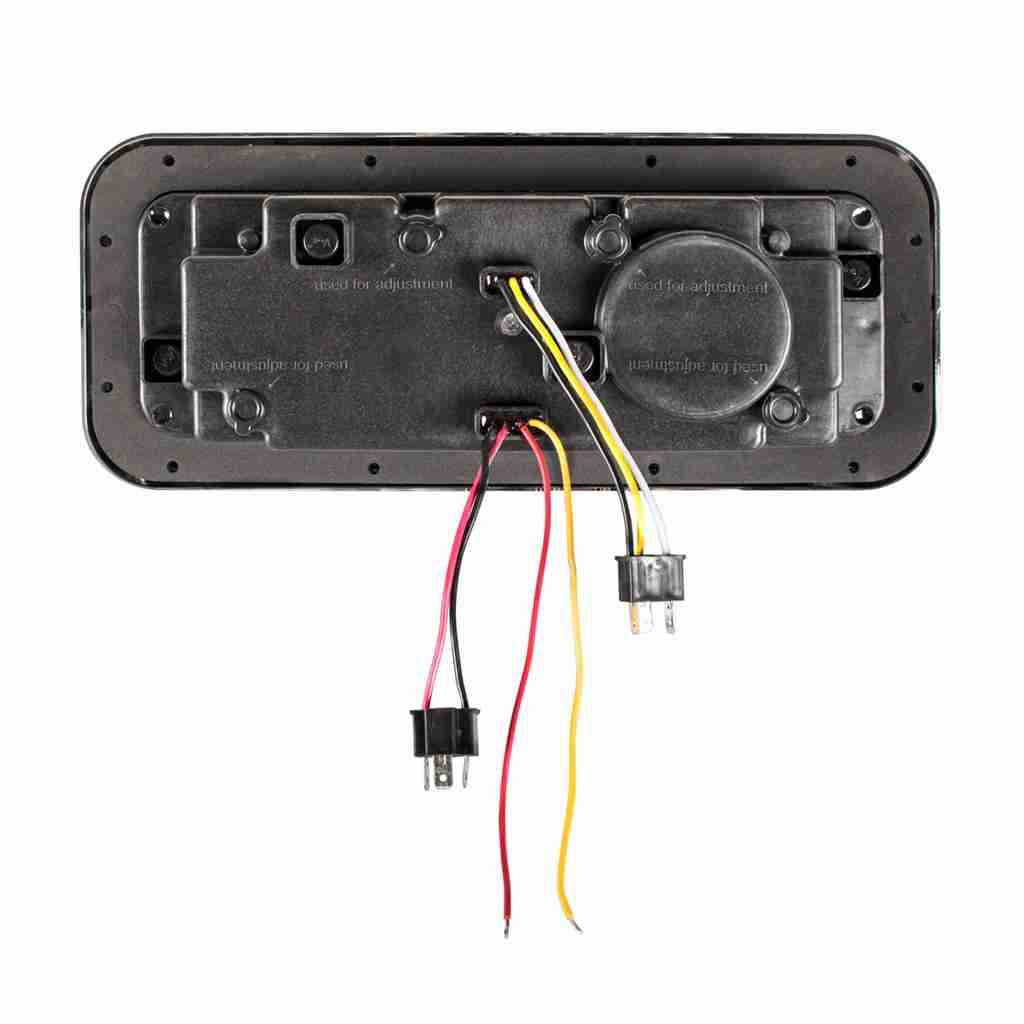

The headlight connection plugs into the matching original harness; position and turn functions require additional wiring. Match the actual supplied connections, secure the wiring and check all lighting functions and headlight aim.
Product questions
Before you order
Does it include a mounting arm?
No. This is an insert for the matching original housing; the mounting arm and complete outer housing are not included.
Are both sides included?
No. Select and purchase driver and passenger inserts separately.
Is every lighting function plug-and-play?
No. The position and turn functions require additional wiring even when the main headlight connector matches.
Warranty & alternatives
Three-year manufacturer warranty
United Pacific lists a three-year warranty for these headlights. Keep your purchase information and contact BTS Lighting for help with a product issue.
