United Pacific · 31175 / 31176
Chrome halogen projector headlight with LED turn signal

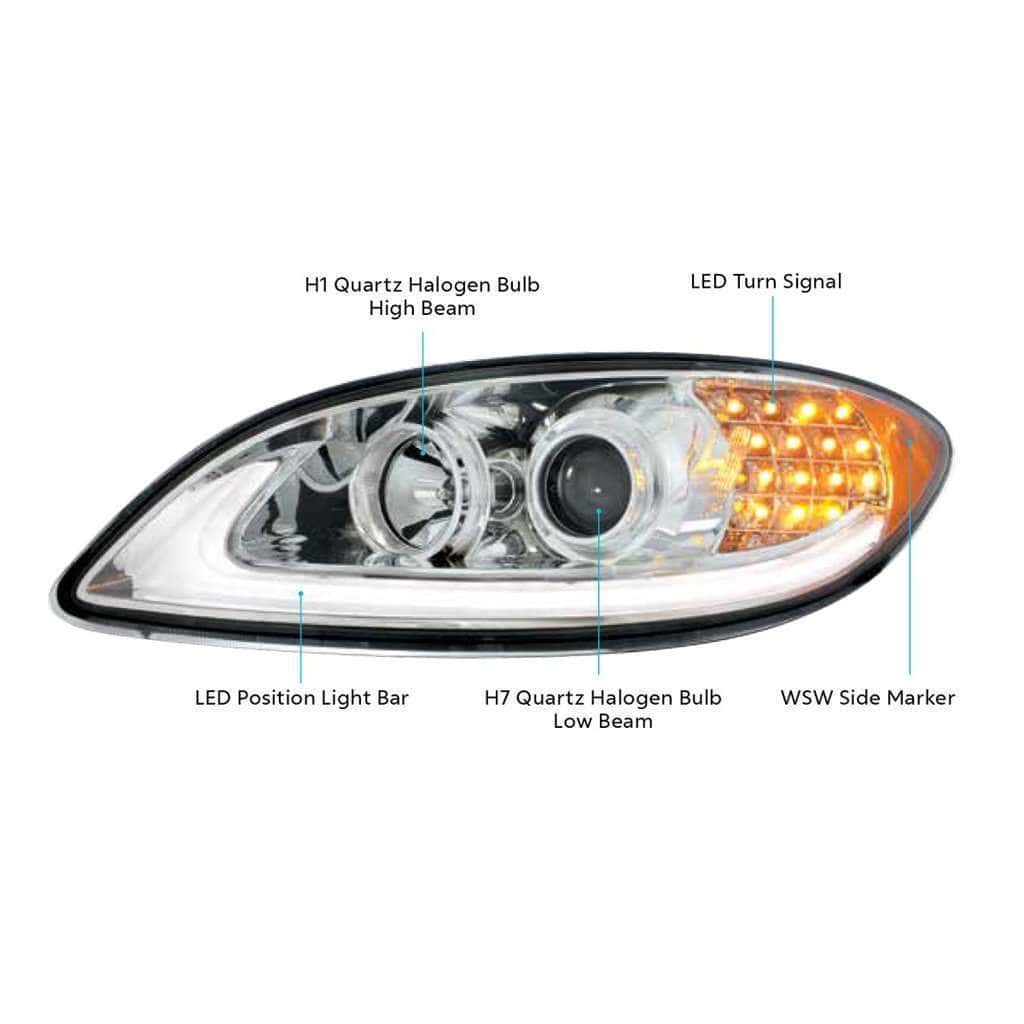

Replaceable halogen low and high beams sit alongside a 15-LED amber turn signal and a separate position-light bar. Choose this version when you want the LED signal design while keeping serviceable H7 and H1 headlight bulbs.
H7 / H1 main beams
The projector low beam uses an H7 bulb; the high beam uses H1. These are halogen headlight beams, not integrated LED beams.
LED turn signal
Fifteen LEDs handle the turn-signal function, with a separate LED position-light bar.
Factory-LED exclusion
United Pacific excludes trucks equipped with factory LED headlights from this family.

Fitment & selection
Match the assembly to your truck
For 2006–2017 International ProStar trucks. Not for trucks equipped with factory LED headlights. Compare the original connector and mounting points before ordering.
Each option is one headlight assembly. Select driver or passenger side; order both side options if you need a pair.
| Driver | 31175 — one assembly |
|---|---|
| Passenger | 31176 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | H7 halogen · 55W · 4.58A |
|---|---|
| High beam | H1 halogen · 55W · 4.58A |
| Turn signal | 15 LEDs · 2.14A |
| Side marker | W5W · 5W · 0.35A |
| Operating voltage | 12V DC |
| Finish | Chrome Inner Housing |
| Package | One selected-side assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number
Use the 31175–31178 diagram in the manufacturer manual for the original-harness connections and beam adjuster. Check every light function and have the headlight aim set after installation.
Product questions
Before you order
Are the low and high beams LED?
No. The main beams use H7 and H1 halogen bulbs. The turn signal and position bar are LED.
Will this fit a factory-LED ProStar?
No. United Pacific explicitly excludes factory-LED-equipped trucks from this family.
Which manual diagram applies?
Use the diagram labeled 31175, 31176, 31177 and 31178. The same PDF also contains a different diagram for another headlight family.
Does the selected option include both sides?
No. Each option is one assembly for the selected side. Order both side options if you need a pair.
2-year manufacturer warranty
United Pacific lists a 2-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
