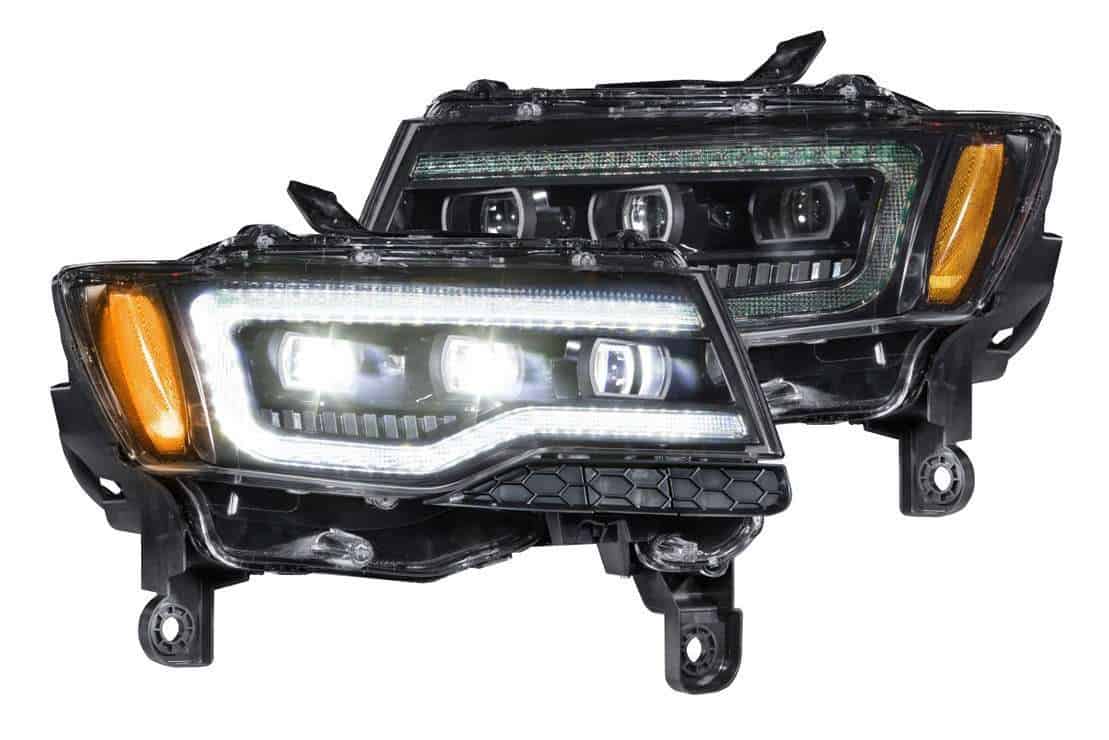

MORIMOTO XB LED GEN I · LF278
Triple-projector light. A distinct WK2 signature.
Three Bi-LED projectors in each housing give the Grand Cherokee a complete LED low- and high-beam system. A crisp white daytime signature, amber signals and a startup sequence bring a different character to the front end.
- Left + rightOne complete headlight pair
- White DRLFixed daytime signature
- Bi-LED opticsIntegrated low and high beams

THE LIGHTING SYSTEM, EXPLAINED
Three details that define this set
Integrated LED optics
Three Kuria Bi-LED projectors per housing provide low and high beams: six projectors across the pair. The original supplier comparisons show the pattern in a specific test setup.

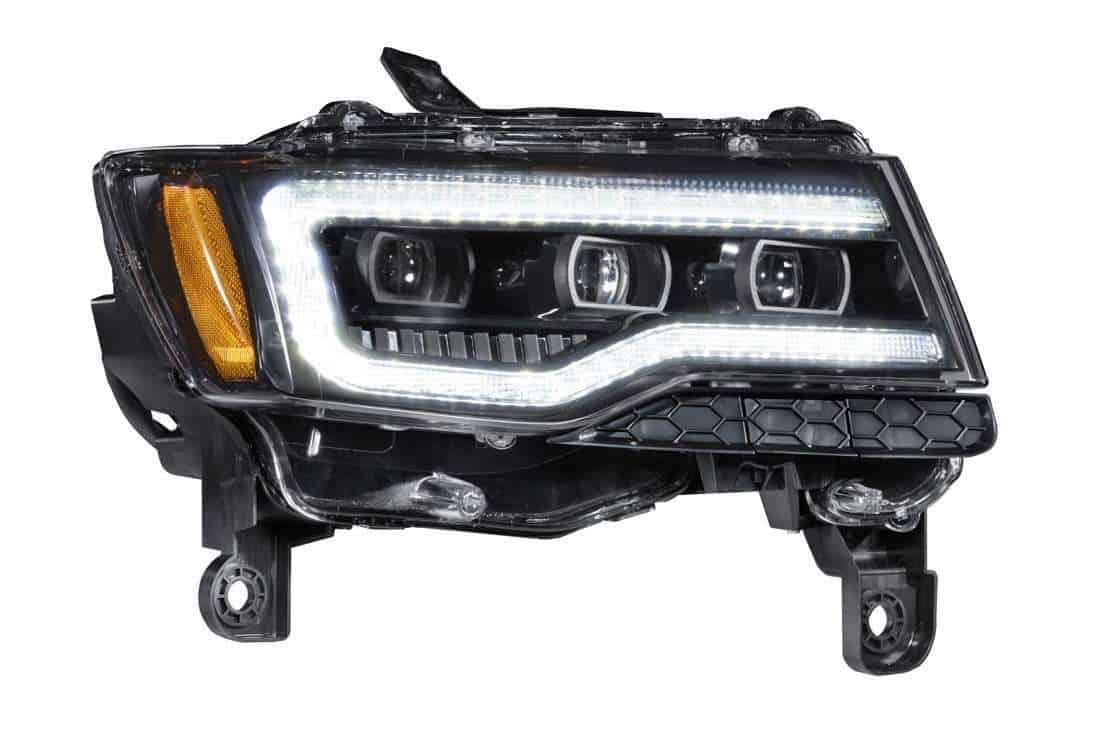

Choose the signature
The DRL is white. The rear signal connector selects a sequential sweep or a conventional on/off amber turn signal; this Gen I model does not have the Gen II white/amber DRL selector keys.

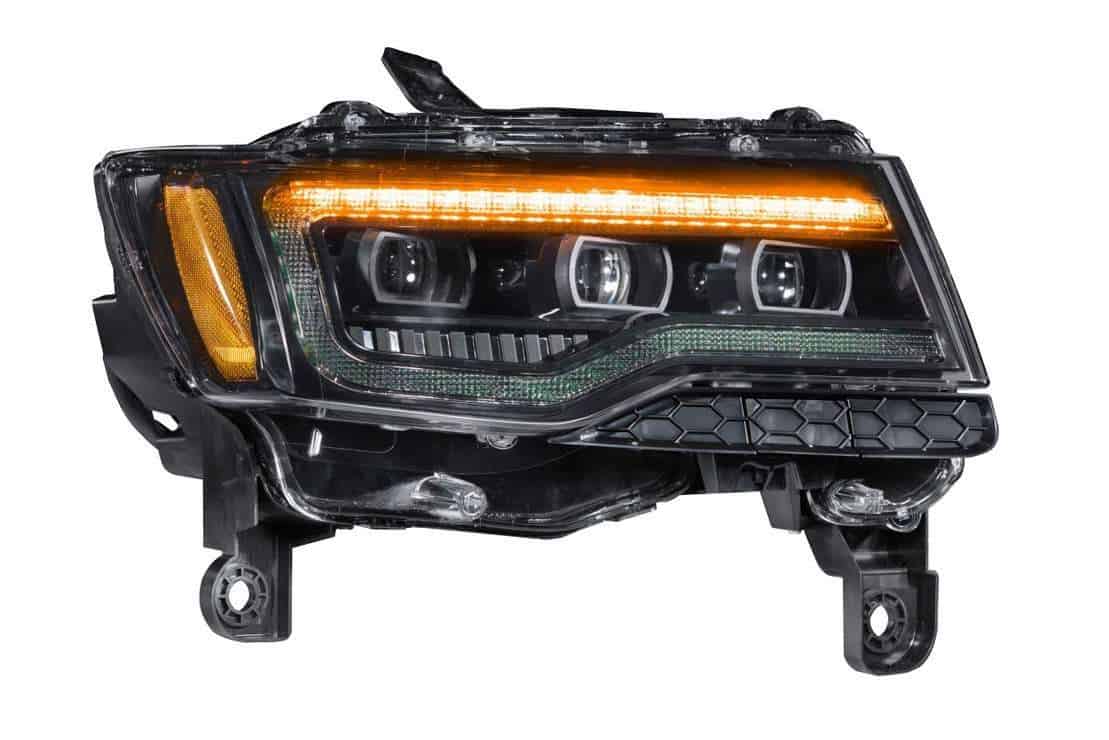

Amber turn signals
Choose sequential or conventional amber signals through the rear connector. The official guide also explains the vehicle approach-light setting used for the startup sequence.

ORIGINAL MANUFACTURER IMAGERY

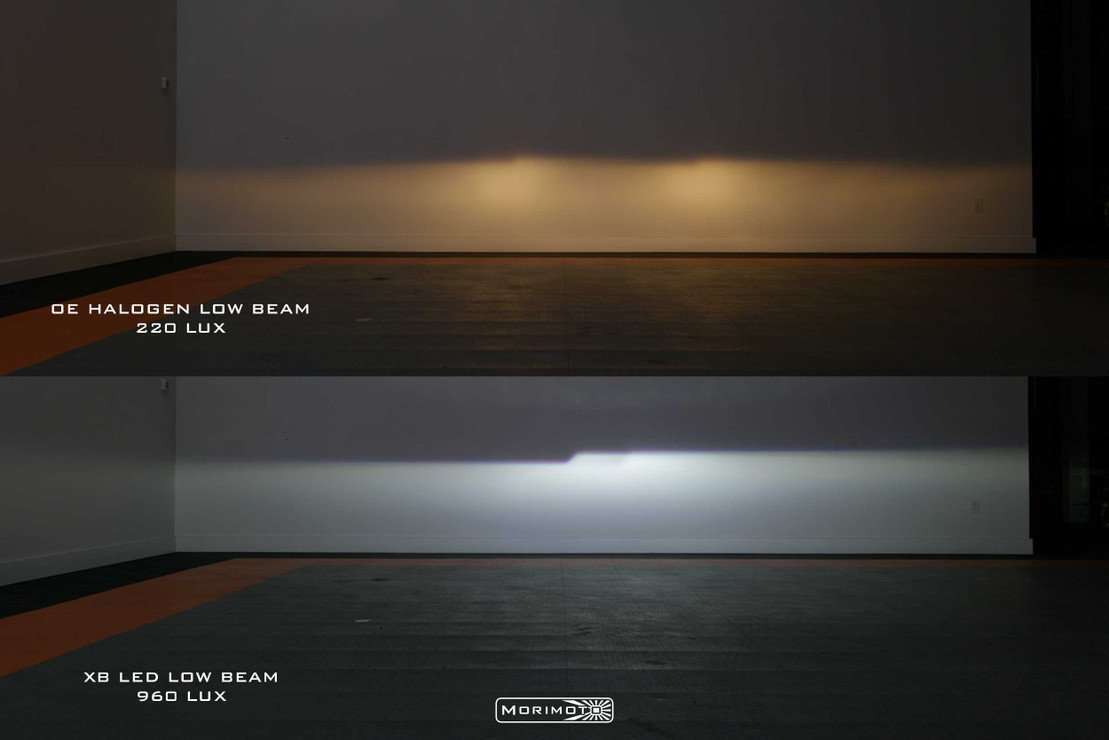

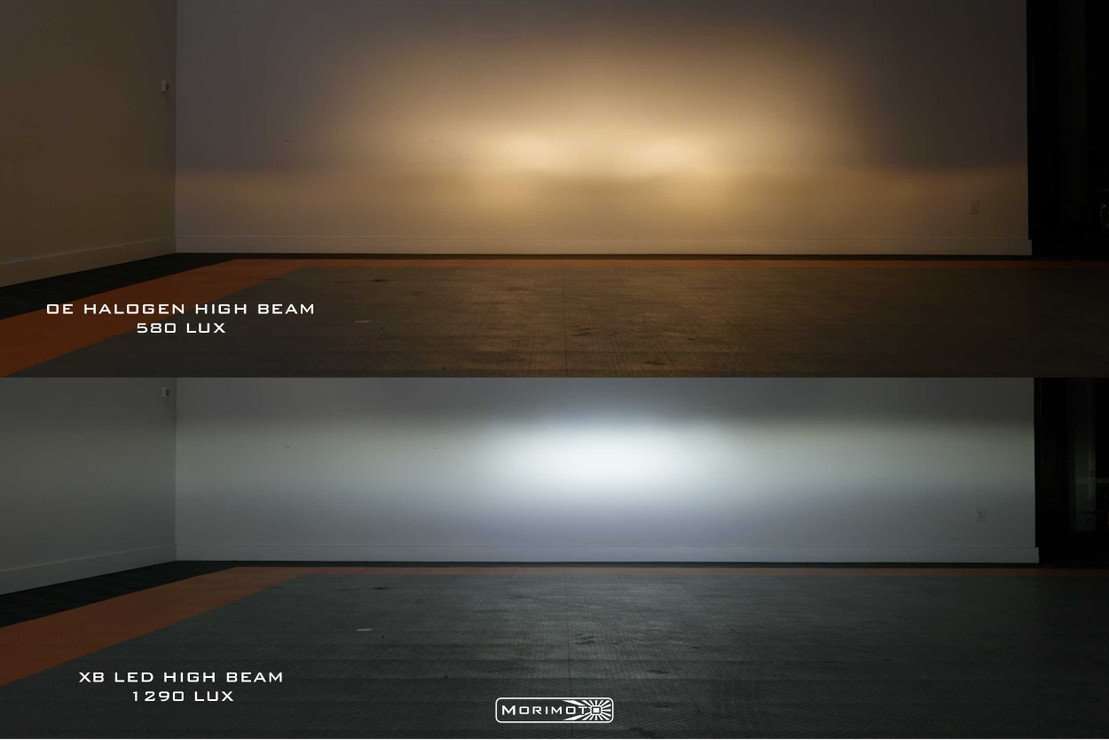

Compare the beam patterns
These unchanged supplier photographs show the pictured configurations in Morimoto’s test setup. Figures are manufacturer measurements, not independent BTS test results or guaranteed performance on every vehicle.


Final beam aim, ride height, vehicle load and test distance affect the result. These comparisons do not establish Supercharged-driver compatibility.
YOUR LIGHTING SIGNATURE
See the available lighting modes
The DRL is white. The rear signal connector selects a sequential sweep or a conventional on/off amber turn signal; this Gen I model does not have the Gen II white/amber DRL selector keys.


MATCH THE VEHICLE AND ORIGINAL EQUIPMENT
Exact fitment before you order
| Check | This exact application |
|---|---|
| Vehicle | 2014–2016 Grand Cherokee with included lower trim; 2017–2022 Grand Cherokee WK2 |
| Excluded | Grand Cherokee WL and Grand Cherokee L |
| Original lighting | Factory halogen, Bi-xenon or Bi-xenon with AFS. AFS turning is not retained and the manufacturer warns of related error codes. |
| Halogen note | Some halogen vehicles can have low-beam issues; Morimoto recommends AlfaOBD reprogramming to mitigate them. |
| Market | US-spec application; compatibility in other countries can differ and must be checked |
| Generation | LF278 triple-projector XB Gen I; not LF279 Gen II |
| Exact part | LF278 |
| Package | Complete driver- and passenger-side headlight assemblies |
THE STANDARD HEADLIGHT PACKAGE
What comes with the pair

- Headlights: 2x (One Pair) 14-22 Grand Cherokee WK2 XB LED Headlights
- Lower Trim: 2x (One Pair) Black Plastic Trim for 14-16 GC Bumpers
- Wiring: Plug and Play Harness, Fuse Tap
Use the adapters and signal components appropriate to the vehicle’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
The Gen I guide illustrates the positive-voltage harness and halogen adapters as part of the wiring package. Lower trim is used for the specified 2014–2016 application.
Other lighting, bodywork and accessories in the vehicle photographs are separate products.
PLAN THE ACCESS AND WIRING
Installation details worth knowing
The supplier-linked Gen I guide covers bumper and fender-liner removal, the halogen adapter or factory HID connector, a separate positive-voltage harness and the DRL fuse-tap feed illustrated at F76. Configure the rear turn-signal connector before the lamps are bolted in, replace removed plastic retainers and complete the beam aim. The guide cover says 2014–2021; the current exact LF278 compatibility record extends the WK2 application through 2022. Use the current model-specific instructions supplied with the set. Morimoto also warns that AFS-equipped vehicles lose adaptive turning and have related errors; certain halogen vehicles may need AlfaOBD reprogramming for low-beam operation. Confirm the original equipment before ordering.
Download the official LF278 installation guide
Follow the instructions supplied with the exact set and the actual vehicle’s wiring information. Other aftermarket exterior lighting can affect turn-signal behaviour. Test the complete system before final reassembly.

EXACT PART · LF278
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| LOW BEAM PERFORMANCE | 220 lux OEM halogen versus 960 lux Morimoto; manufacturer test setup |
| High BEAM PERFORMANCE | 580 lux OEM halogen versus 1290 lux Morimoto; manufacturer test setup |
| INTENSITY | 3,200lm (Raw; each) |
| INPUT | Jeep Multi-Pin OEM |
| FUNCTIONS | DRL (White), Sequential LED Turn, Parking, Low, High |
| BEZEL COLOR | Gloss / Matte Black |
| SIDEMARKER | Amber |
| MATERIAL | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| OPTIC | Triple Kuria Optic Bi-LED |
| UV COATING | Momentive UVHC3000 |
The 3,200-lumen figure is raw output per headlight, not road lux or a measured output for the complete pair.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
An official supplier-linked overview and installation video for this model. Use the current written part-specific fitment and package details above when the video shows earlier configurations.
Jeep Grand Cherokee 2014 – 2022 XB Headlight | Install and Overview

Choose a video to load it. No autoplay. Historical launch or availability statements are not current BTS stock information; the written part-specific details govern this selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB LED Gen I questions
Is this one lamp or a pair?
One order supplies complete left and right headlight assemblies with the listed standard installation parts.
Which vehicle does this exact part fit?
2014–2022 Jeep Grand Cherokee WK2. Check the original equipment and market notes above before ordering.
How do I choose the daytime lighting?
The DRL is white. The rear signal connector selects a sequential sweep or a conventional on/off amber turn signal; this Gen I model does not have the Gen II white/amber DRL selector keys.
How do the turn signals work?
Choose sequential or conventional amber signals through the rear connector. The official guide also explains the vehicle approach-light setting used for the startup sequence.
Can I add Supercharged drivers?
No exact Supercharged-driver compatibility is confirmed for this LF278 selection. Do not fit a driver intended for a different Evo or XB assembly. This page describes the standard supplied headlight package.
Should the headlights be aimed after installation?
Yes. Check all functions and adjust the low-beam cutoff on the actual vehicle. Suspension changes, load and ride height can affect the aim.
What warranty applies?
The exact supplier record lists a 5-year limited manufacturer warranty. Coverage and exclusions follow the manufacturer’s terms; retain proof of purchase and contact BTS for assistance.
Do these fit the newer Grand Cherokee body?
No. The WL and Grand Cherokee L are excluded. Check the WK2 platform and original headlamp equipment, especially where model years overlap.
Will factory AFS still work, and can a halogen vehicle need programming?
AFS turning is not retained. Morimoto warns of related AFS error codes and says some halogen vehicles may have low-beam issues that need AlfaOBD reprogramming. Confirm the factory headlamp equipment before ordering.

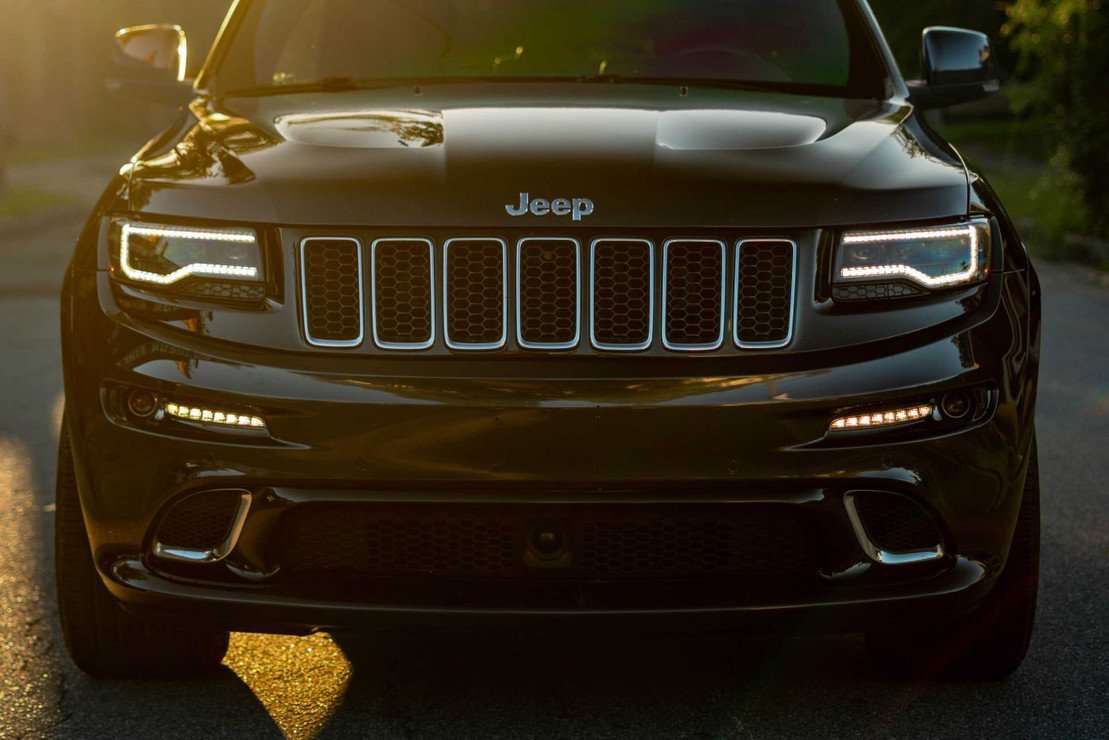

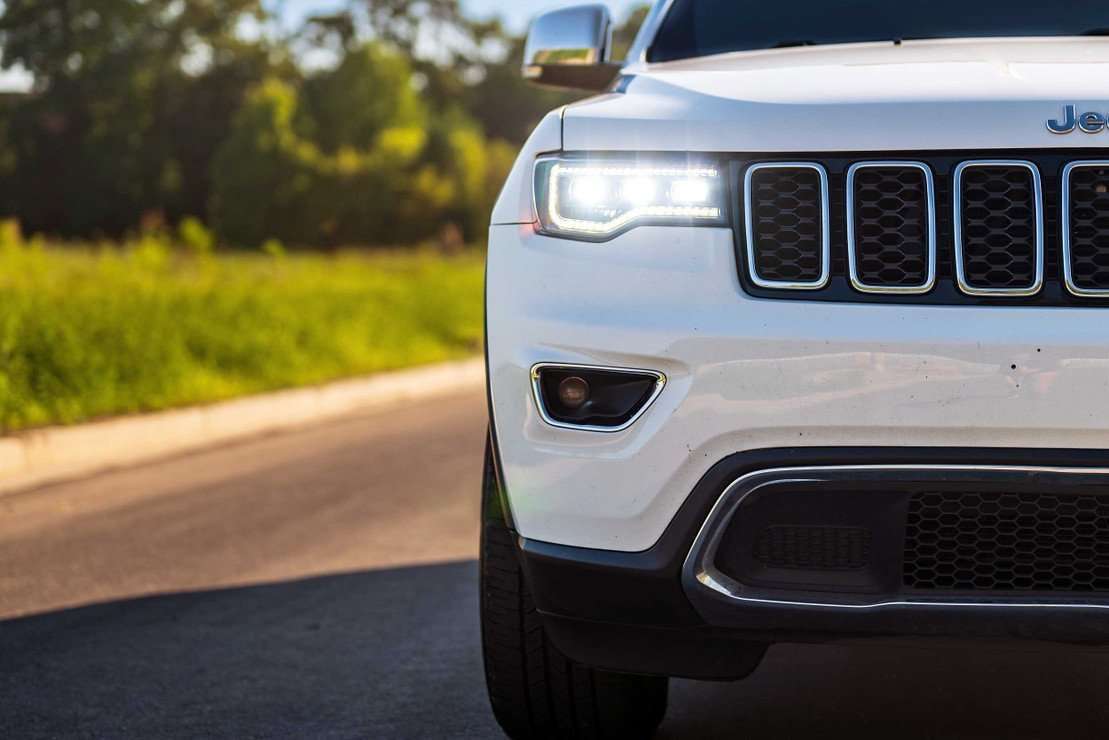

THE FINISHED LOOK
See the design on the vehicle
Original supplier photography; other vehicle equipment is separate.
