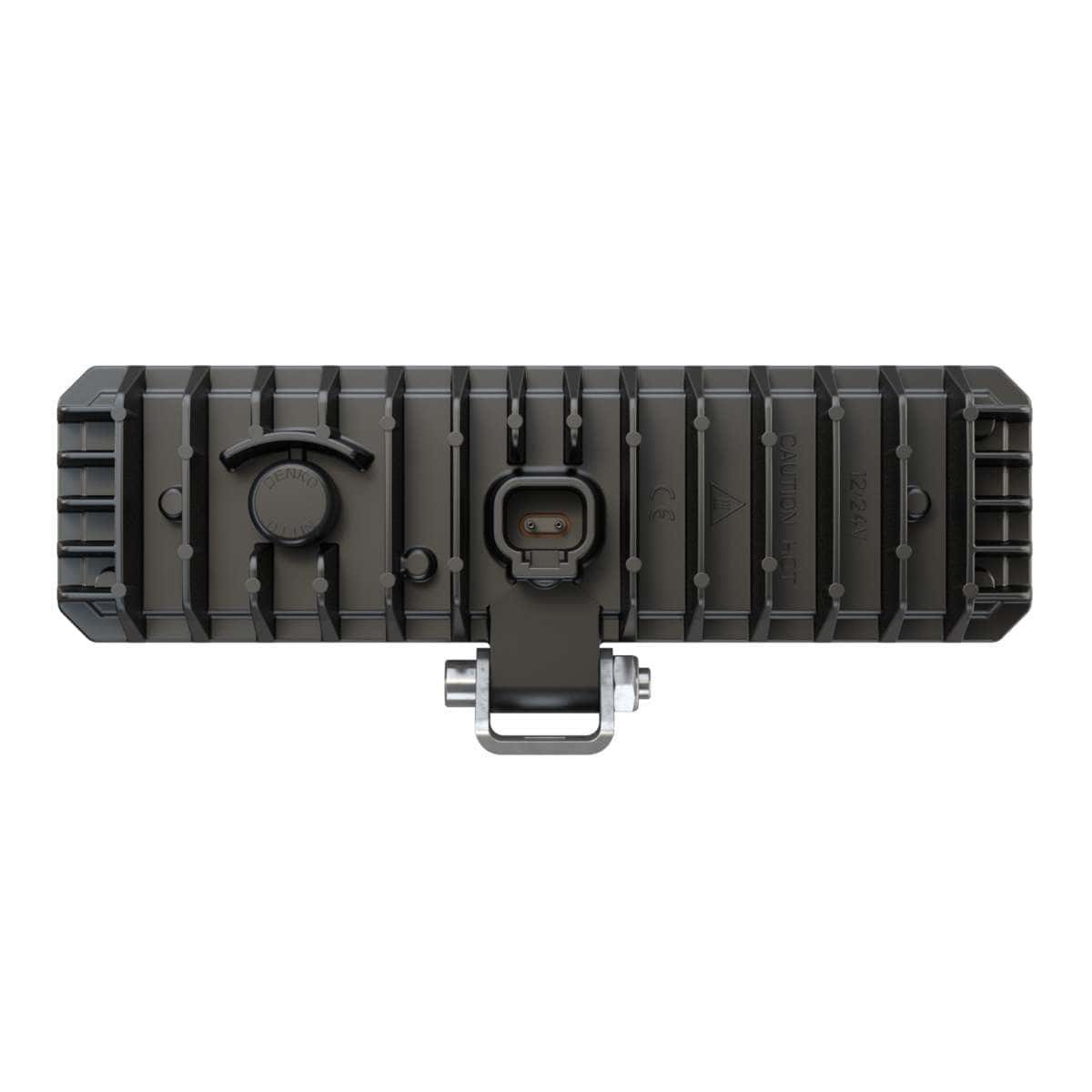

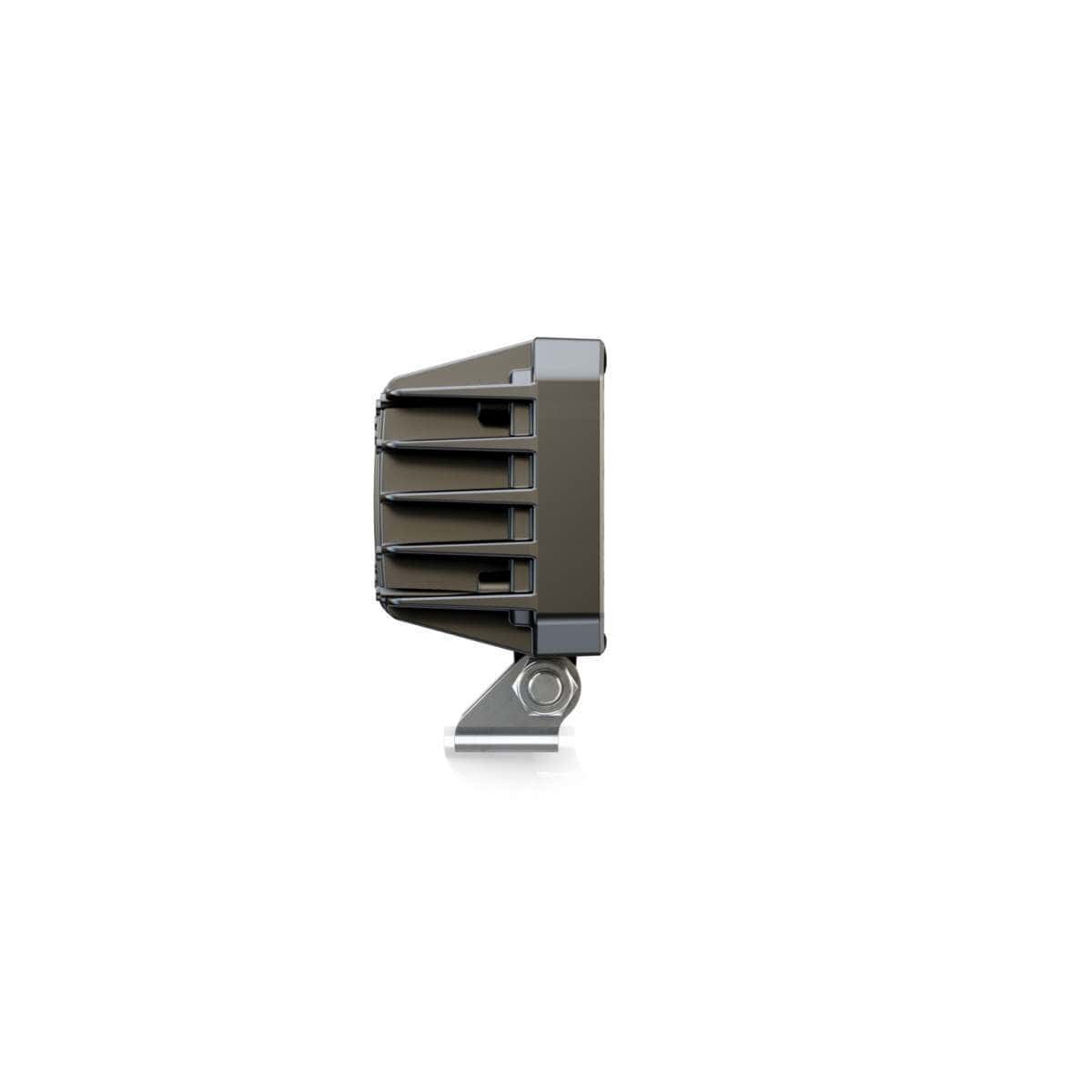

JW Speaker Model 893 LED Work Light — Compact Power, Maximum Visibility
See clearer, work longer, and stay safer with the JW Speaker Model 893 — a rugged 3″ x 8″ LED compact work light engineered for tough, real-world conditions. Designed to deliver an impressive 3,700 effective lumens in a wide flood beam, this rectangular work light is perfect for agriculture, construction, mining, and industrial applications where dependable lighting is critical.
With smart thermal protection, IP69K waterproof rating, and impact-resistant design, the Model 893 offers the powerful performance you need — day or night, rain or shine.
🔧 Features & Benefits
High-Output Flood Beam – 3,700 Effective Lumens
A wide beam pattern offers exceptional forward illumination, ideal for work zones, machinery operation, and low-light sites. Perfect for replacing bulky halogen work lamps with a modern, compact alternative.
Compact Rectangular Design
At just under 3″ high and 8″ wide, the 893 fits easily in tight spaces on machinery or vehicles, delivering powerful lighting without bulky housing or clearance concerns.
Impact-Resistant Polycarbonate Lens
Built to withstand harsh environments, the clear polycarbonate lens resists impacts, scratches, and UV degradation.
Rugged Black Aluminum Housing
Corrosion-resistant and lightweight, the aluminum housing is built to handle continuous exposure to dust, water, and vibration on high-demand worksites.
Thermal Throttling Protection
Smart internal temperature control automatically protects the LEDs from overheating, ensuring reliable, long-life performance — even in high-heat environments.
Rated IP67 & IP69K
Fully sealed against water, dust, and pressure washing. Built to survive extreme conditions in the field or on the job.
Deutsch-Style Sealed Connector
Includes a weather-resistant Deutsch DT06-2S-E003 plug for safe, secure power connections in dirty or wet environments.
Pedestal Mount for Universal Fitment
Comes complete with a 5/16″-18 x 1.00″ mounting bolt and bracket for quick installation on a wide range of vehicles and equipment.
🚜 Applications & Vehicle Compatibility
The JW Speaker 893 is built for mission-critical lighting on tough terrain, ideal for:
-
Agricultural Equipment: Tractors, sprayers, balers
-
Construction Machinery: Loaders, cranes, graders
-
Mining & Heavy Industry: Haulers, drills, utility trucks
-
Railroad & Industrial Fleets: Maintenance equipment, service trucks
-
Off-Road Vehicles: UTVs, buggies, side-by-sides
Its low profile and wide beam make it ideal for both close-quarters and area lighting needs.
⚙️ Technical Specifications
-
Shape: Rectangular
-
Dimensions: 2.76″ H × 7.72″ W × 1.77″ D
-
Lens Material: Clear Polycarbonate
-
Housing: Black Aluminum
-
Mount Type: Pedestal
-
Mounting Hardware: (1x) 5/16″-18 × 1.00″ Bolt + Bracket
-
Connector: Deutsch DT06-2S-E003
-
Input Voltage: 9–32V DC
-
Operating Voltage: 12–24V DC
-
Transient Spike Protection: 330V Peak @ 1Hz (100 Pulses)
-
Current Draw: 4.5A @ 12V / 1.8A @ 24V
-
Beam Pattern: Flood (Wide)
-
Raw Lumens: 7,120
-
Effective Lumens: 3,700
-
Candela Output: 6,230
-
Color Temperature: 5050K
-
Operating Temp: -40°C to 85°C / -40°F to 185°F
-
Certifications: ECE Reg. 10, IP67, IP69K
🔦 Why Choose the JW Speaker Model 893?
-
Compact footprint with powerful 3,700-lumen output
-
Thermal throttling ensures safety and longevity
-
Built tough for industrial, construction, and off-road environments
-
Waterproof, shock-resistant, and weatherproof
-
A superior upgrade over traditional halogen or low-grade LEDs
Ready to upgrade your visibility and durability? The JW Speaker Model 893 is the compact workhorse you can trust for real-world performance under pressure.
Illuminate your world. Count on JW Speaker.
