JW Speaker 3.25″ x 13″ LED Snowplow Headlights – Model 9900 LP Heated Set of 2

JW Speaker Model 9900 LP Heated LED Snowplow Headlights — Low-Profile Power for Winter’s Worst

The JW Speaker 9900 LP is a game-changer in winter-ready lighting. Designed with SmartHeat® lens technology and a compact, low-profile frame, this 13″ x 3.25″ all-in-one LED snowplow headlight set delivers superior visibility and multi-function utility — all while keeping a clear line of sight for operators in harsh, low-visibility conditions.

Combining low beam, high beam, turn signal, DRL, and front position light in a single unit, the 9900 LP offers unmatched efficiency for snowplows, pickup trucks, municipal fleets, and more. Its SmartHeat® system keeps lenses ice-free and road-ready — all in a rugged housing built to withstand snow, slush, and salt.

🔧 Features & Benefits

SmartHeat® Heated Lens Technology
JW Speaker’s advanced SmartHeat® grid automatically activates to melt away snow and ice on the lens — keeping your lights clear and your work uninterrupted, even in sub-zero conditions.

Ultra-Low 3.25″ Profile for Maximum Visibility
Unlike bulky 5–8″ tall units, the slim 9900 LP minimizes obstructions for the driver. This compact height ensures better road visibility, especially critical during nighttime plowing or whiteout conditions.

5-in-1 Functionality
Each light combines high beam, low beam, daytime running light (DRL), front position light, and turn signal in a single, compact unit — reducing wiring complexity and streamlining installation.

Universal Mounting (Single or Double Stud)
Mount the lights using a single or dual stud setup, giving you greater flexibility across different vehicle types and snowplow frames.

Durable, Rugged Construction
Built with a hard-coated polycarbonate lens and aluminum housing. Rated IP69K, the 9900 LP resists water, dust, and even high-pressure washdowns — perfect for salted roads and extreme job sites.

Bright White LEDs for Daylight Clarity
The crisp white light output improves visibility and contrast in dark or stormy conditions, helping reduce fatigue and boost operator confidence.

🚛 Applications & Vehicle Compatibility

Ideal for any vehicle operating in snow, ice, or freezing weather. Common uses include:

• Pickup Truck Snowplows

• Municipal Snow Removal Fleets

• Commercial & Agricultural Plows

• Construction Equipment in Winter Regions

• Off-Road Utility Vehicles and Service Trucks

Its compact profile and universal mounting make it suitable for retrofitting onto existing snowplow rigs or integrating into custom-built solutions.

⚙️ Technical Specifications

• Shape: Rectangular

• Kit Includes: 2 Heated LED Headlight Units

• Dimensions (per unit): 3.27″ H × 13.15″ W × 3.35″ D

• Lens Material: Clear Polycarbonate

• Housing: Black Aluminum

• Bezel Color: Black

• Mounting: Universal (Single or Double Stud Compatible)

• Input Voltage: 12–24V DC

• Operating Voltage: 9–30V DC

• Transient Spike Protection: 150V Peak @ 1Hz (100 Pulses)

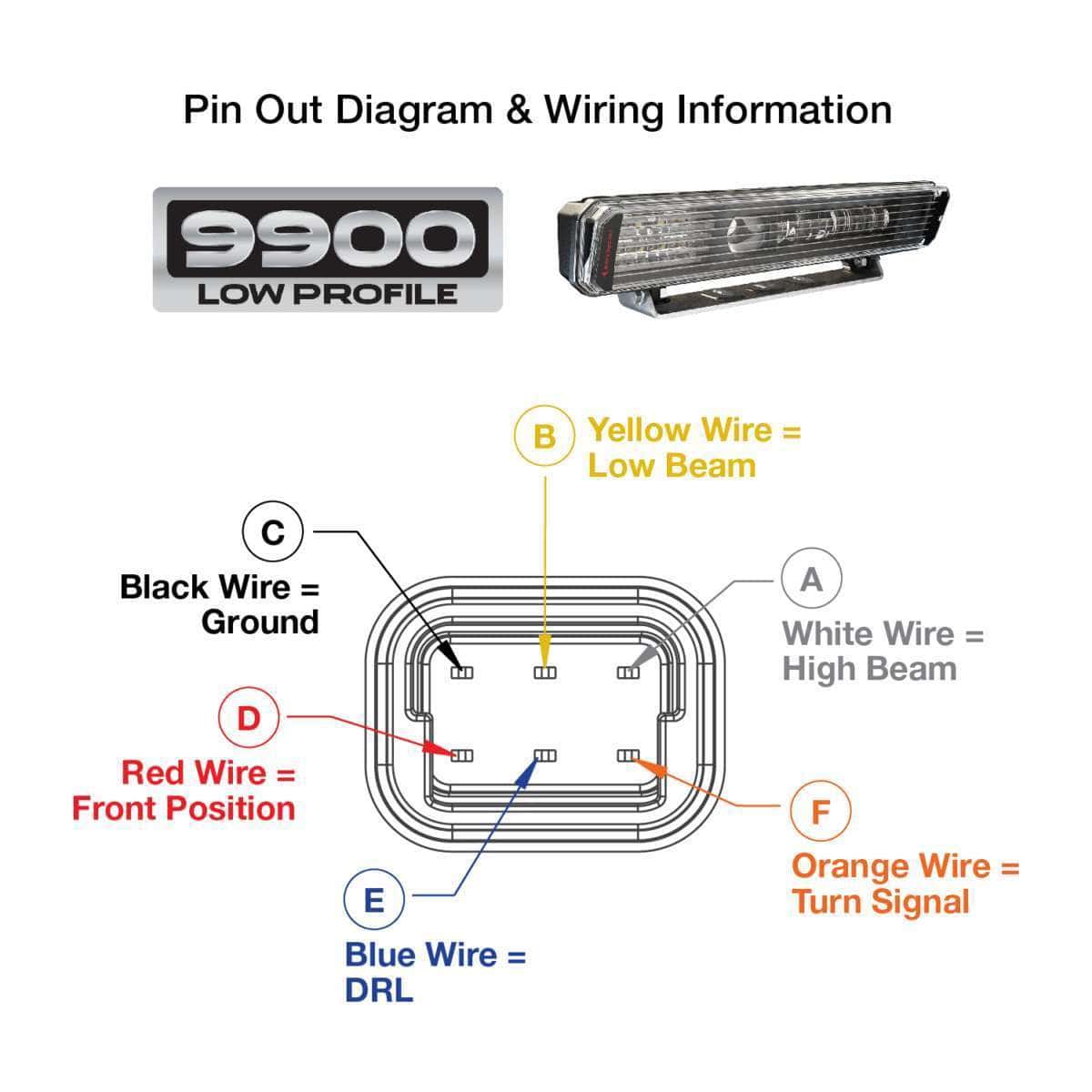

• Wiring Configuration:

  • Red: Front Position

  • Black: Ground

  • White: High Beam

  • Yellow: Low Beam

  • Blue: DRL

  • Orange: Turn Signal

• Certifications: DOT & ECE RHT Compliant

• IP Rating: IP69K

• Temperature Range: -40°C to 65°C / -40°F to 149°F

🔦 Why Choose the JW Speaker 9900 LP?

• All-in-one headlight solution with 5 integrated functions

• Ultra-low profile minimizes visual obstruction for plow operators

• SmartHeat® lens defrosts up to 2× faster than halogens

• Flexible mounting and rock-solid waterproof design

• Built for winter’s toughest jobs, trusted by pros worldwide

Plow with confidence. Light the road ahead. Power through the storm — with JW Speaker.
